CSC20-0032 Thermostat Fits Case-IH Tractor Models H M HV MV W4 W6 W9

Name: CSC20-0032 Thermostat Fits Case-IH Tractor Models H M HV MV W4 W6 W9
Brand: AIC Replacement Parts
SKU: CSC20-0032_2
Price: 29.68 USD
Availability: OutOfStock

CSC20-0032 Thermostat Fits Case-IH Tractor Models H M HV MV W4 W6 W9

AIC Replacement Parts

TO VIEW PRICE

LOGIN or REGISTER

Product variants

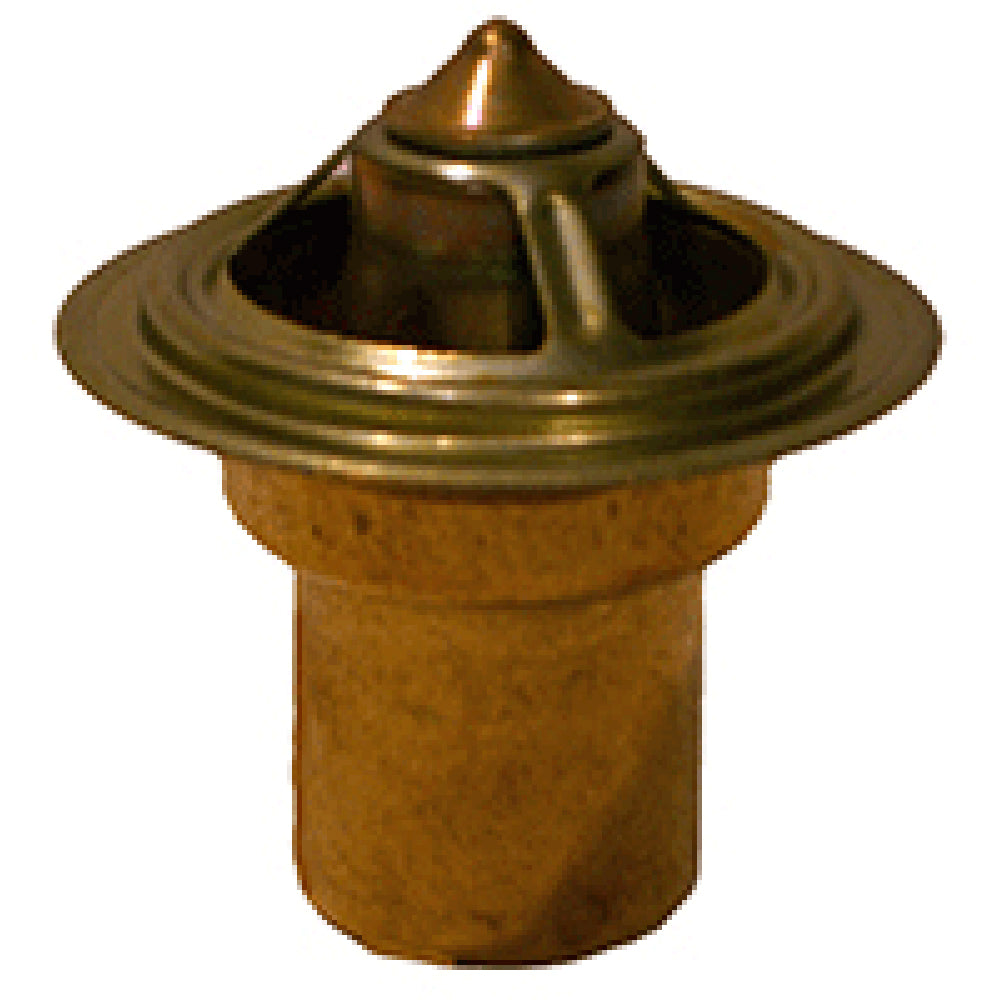

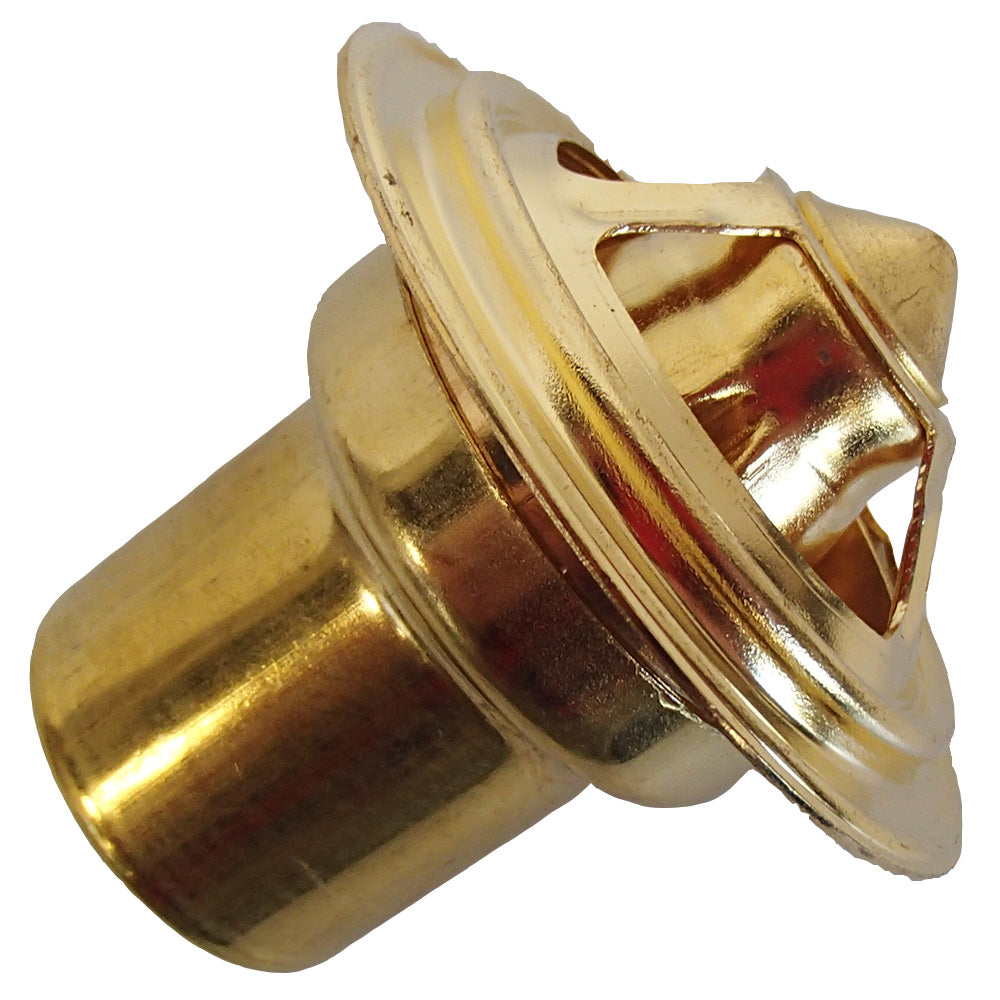

One New Aftermarket Replacement Thermostat

Fits Case-IH Tractor Models: 300, 350, 400, 400 Fits FARMALL, 450, 600, 650, H, HV, M, MD, MV, SUPER MTA, W4, W6, W9

Tech Info:
Height: 2.54 Inches
Lower Outer Diameter: 1.24 Inches
Upper Outer Diameter: 2.48 Inches
Opening Temperature: 71 Celcius
Opening Temperature: 160 Farenheit

Replaces Part Number: 387533R91

Models This Part Fits:

30, Super HV, 88, T9, 450, ODS6, Super MV, Super WDR9, 60, 90, CO, M, Super WD6, D, I4, WR9S, 560, Super W6, TD9, OS4, 2-44, Super 66, I9, WD9, 600, 400, W9, H, 1550, 660, W6, TD6, 770, MD, Super M, DH, 650, WR9, 77, MTA, HV, 900, Super MDV, 99, 1600, MV, OS6, I6, DC-4, 300, T6, 706, Super MD, 570, DO, MDV, WD6, W4, O4, Super H, SUPER MTA, E3, 550, 66, DC-3, WDR9, O6, Super 77, 460, DI, Super W6TA, Super WD9, 880, Super 88, Super W4, Super 55, CI, CC, Super MTA, C, 2-62, DV, DC, 1555, DCS, 350, 656, ID9

Additional Information:

Opening Temperature: 160 F / 71 C Length: 2.600" Flange Diameter: 2.510" Note: Pointed end goes down when installed. 160 Degree Thermostat

Reference Numbers:

101400A, 162137A, 1J-525A, 3112353, 311807, J-525, J-525A, 101400A, 162137A, J.525, J.525.A, J525, O3785AB, O8989B, J.525, J.525.A, 162137A, 101400A, J525, J-525, 1J-525A, 162137A, 3112353, 311807, J-525A, 101400A, O3785AB, O8989B, 261514R92, 313942R91, 313942R92, 315838R91, 317668R91, 33814DA, 37634DA, 387533R91, 3112353, T5380, T5406, 387533R91, 317668R91, 33814DA, 313942R92, 315838R91, 313942R91, 261514R92, 37634DA
