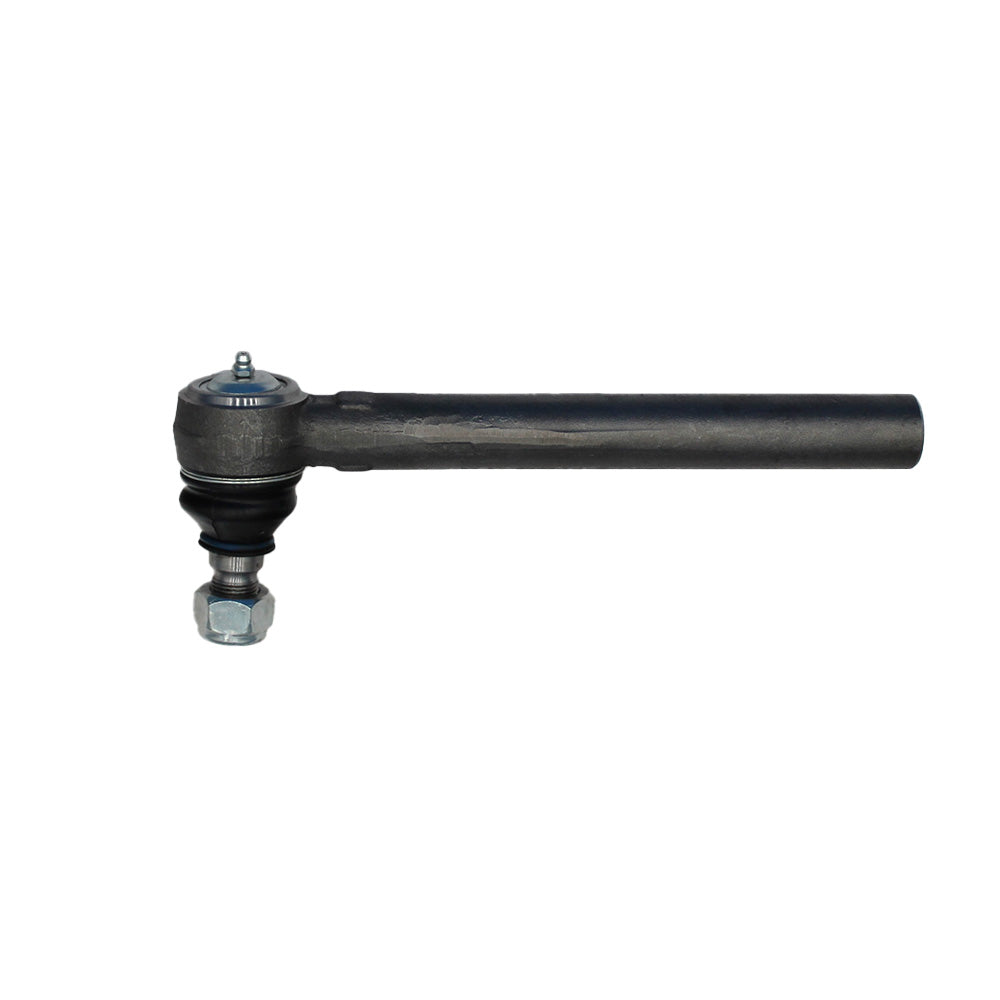

One New Aftermarket Replacement Track Rod End / Tie Rod End Fits Massey Ferguson 3000 Series Tractors

This aftermarket replacement track rod end (also sold as a cylinder end or tie rod end) is part of the front axle steering linkage on Fits Massey Ferguson 3000 Series tractors. It threads into the power steering cylinder or drag link assembly and is used on both left-hand and right-hand sides. Important: Fits tractors up to Engine Number D062001. Verify your engine number before ordering.

Specifications

• Length: 9.812 in
• Internal Thread: M18 x 1.5 RH Female
• Outer Side Thread: M18 x 1.5
• Taper Diameter: 20 mm - 22.2 mm
• Outer Diameter: 26 mm
• Effective Length: 250 mm
• Lock Nut Thread Length: 25.9 mm
• Fitment: LH / RH (both sides)
• Supplied with nut

Compatible Models

Fits Massey Ferguson 3000 Series: 3070, 3075, 3080, 3085, 3090, 3095, 3115, 3120, 3120T

Note: Compatible up to Engine Number D062001 only. Confirm engine number before purchase.

Replaces Part Number(s):

3426313M1

Aftermarket Interchange Numbers

3462313M1, 3426313V1, VPJ3157, 3030524, A-3426313M1

New aftermarket replacement part - not remanufactured, not used.
