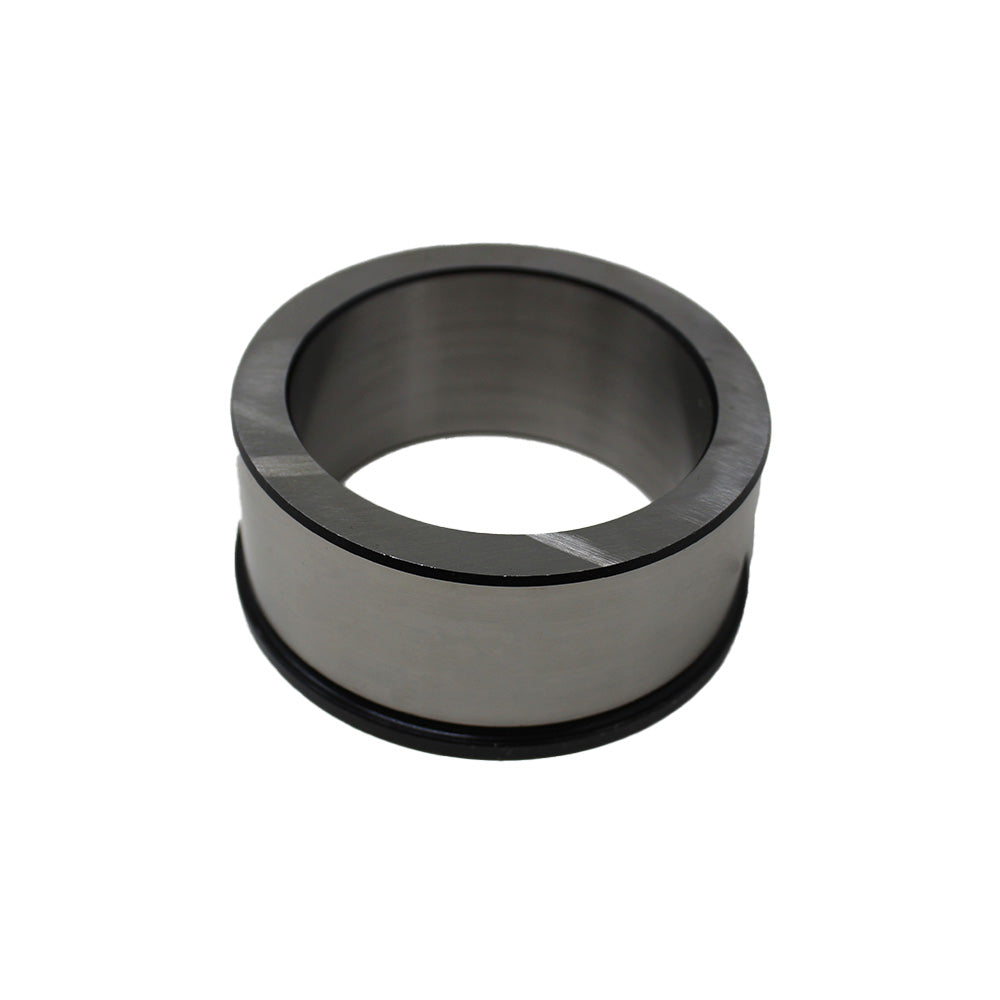

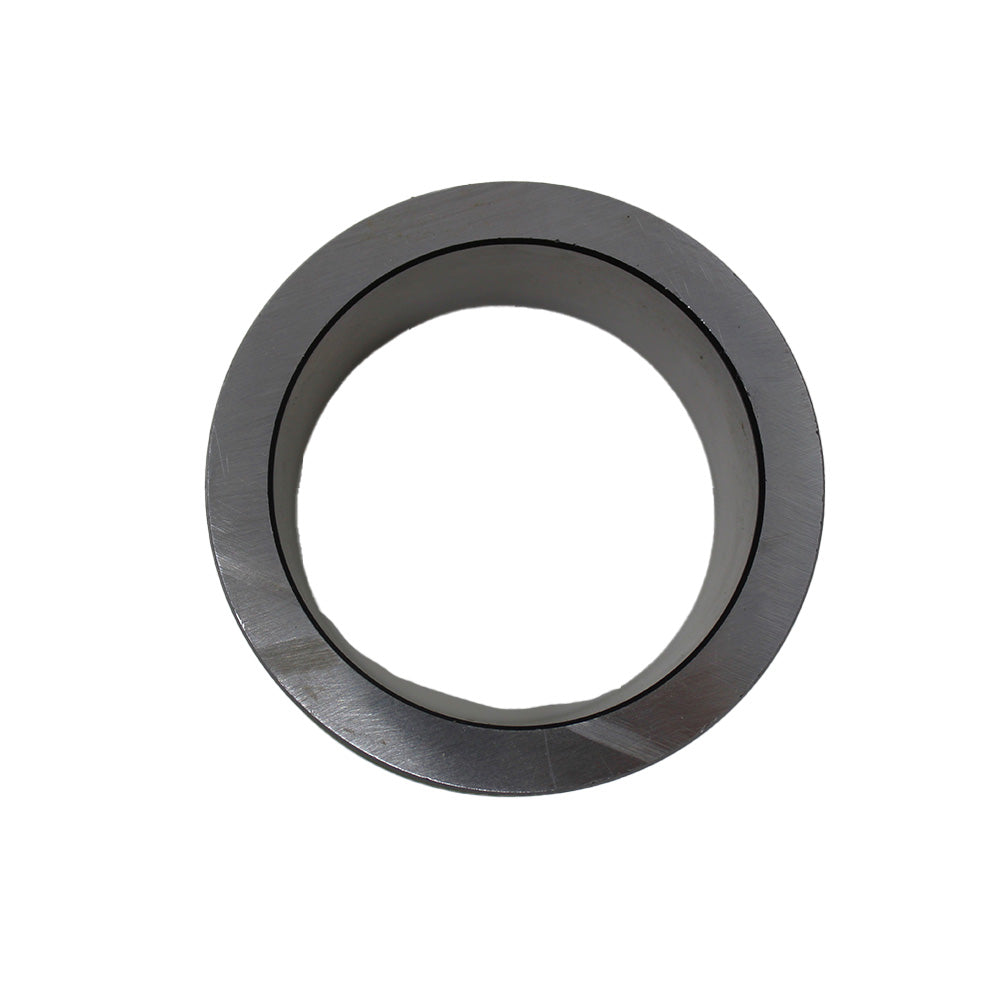

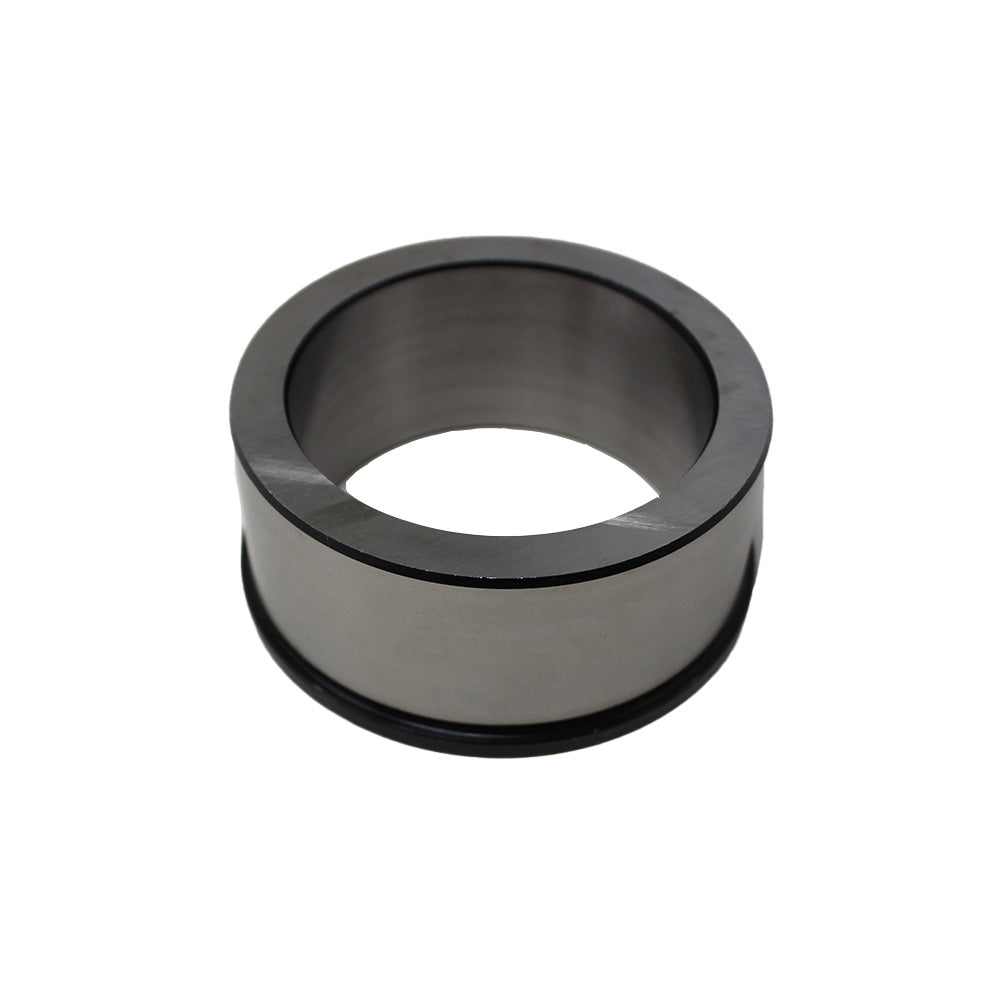

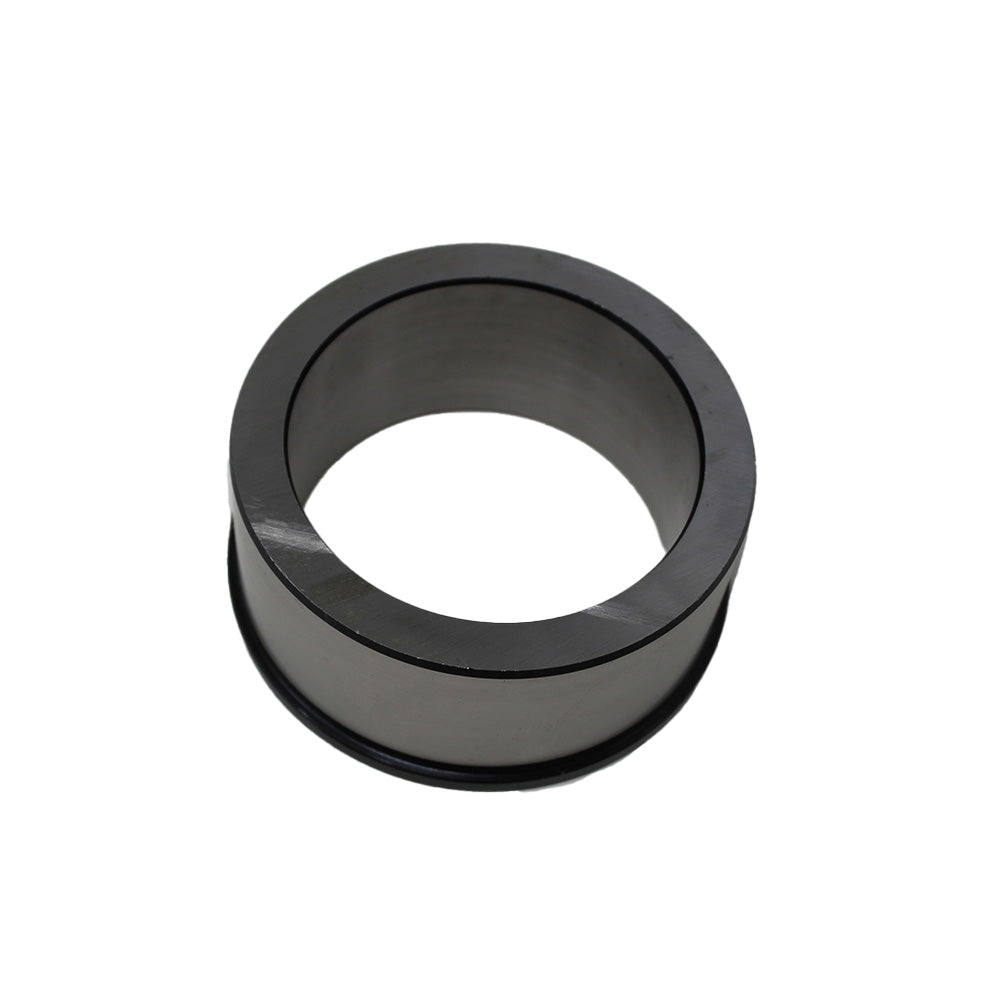

One New Aftermarket Replacement Dipper-at-Boom Pivot Bushing Fits Case (Fits Case/IH) Backhoe Loaders

This bushing seats at the dipper-to-boom pivot point on Fits Case 580 and 570 series backhoe loaders, controlling the connection between the dipper stick and the boom arm. It is a high-wear structural bushing that must be replaced during dipper arm rebuilds to maintain proper alignment and minimize slop at the pivot. Compatible with both standard dipper stick and extendahoe configurations.

Specifications

• Inside Diameter (I.D.): 2.760 in. (70.19 mm)
• Outside Diameter (O.D.): 3.700 in. (94 mm)
• Width: 1.580 in. (40 mm)

Compatible Models

Fits Case 580 Series Backhoe Loaders: 580L, 580L Series 2 (580SL), 580SL Series 2, 580M, 580M Series 2, 580M Series 3, 580SM, 580SM Series 2, 580SM Series 3, 580SM+ Series 2, 580SM+ Series 3

Fits Case 570 Series Backhoe Loaders: 570LXT, 570LXT Series 2

Replaces Part Number(s):

102434A1, 255568A1, 255568A2, 256231A1, 256231A2, D145904, D150121, D150784

New aftermarket replacement part - not remanufactured, not used.
