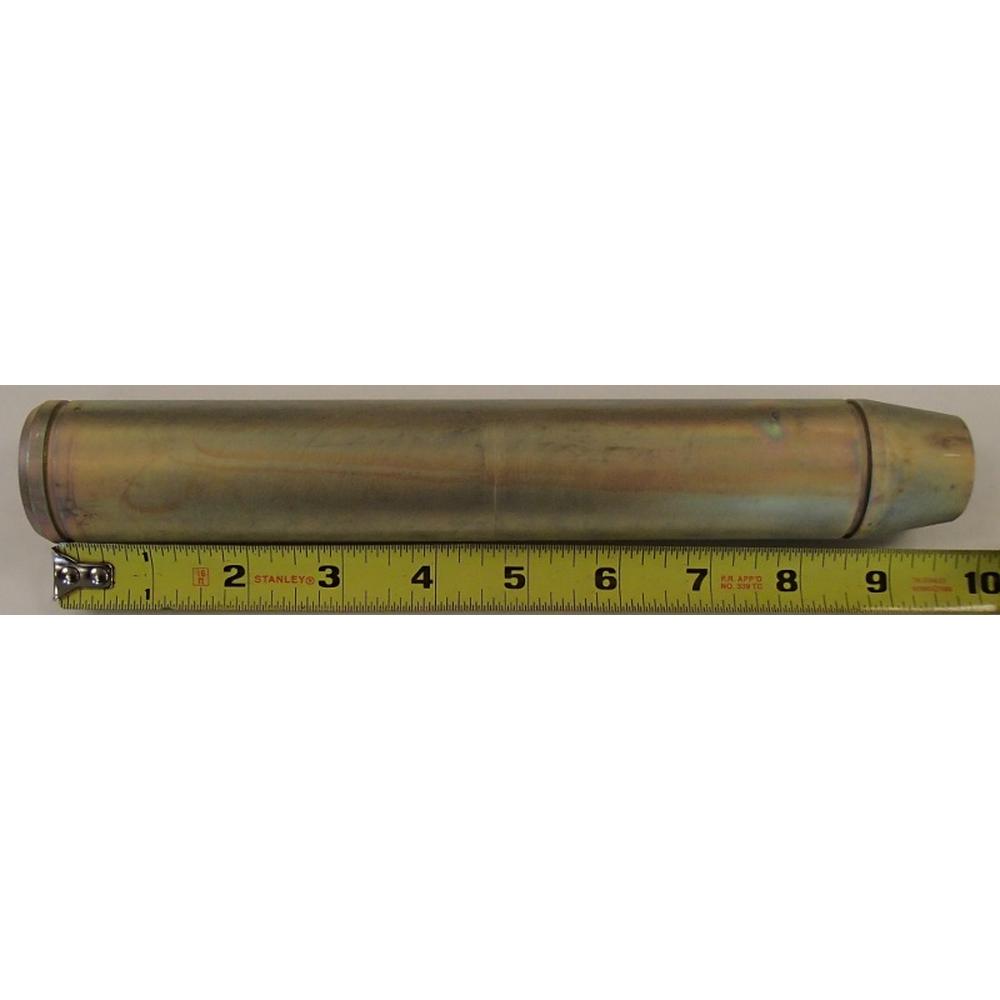

One New Aftermarket Replacement Bucket-to-Link Pin for Case (Case/IH) Backhoe Loaders

This aftermarket replacement bucket-to-link pin connects the backhoe bucket to the dipper link in the backhoe dipper and bucket assembly on Case (Case/IH) loader backhoes. Also referred to as the small bucket pin, it is a hardened steel pivot pin used in the backhoe attachment linkage. Replaces OEM part numbers D37614 and 47048659.

Specifications

• Outer Diameter: 1-1/2" (38mm)
• Length: 9-11/16" (approx. 246mm)
• Distance between snap ring grooves: 8"
• Weight: approx. 4.6 lbs

Compatible Models

Case 480-Series Backhoe Loaders: 480C, 480D, 480E, 480F

Case 580-Series Backhoe Loaders: 580, 580B, 580C, 580D, 580 Super D (580SD), 580E, 580 Super E (580SE), 580K, 580SK, 580L, 580 Super L (580SL), 580L Series 2, 580SL Series 2, 580M, 580 Super M (580SM), 580M Series 2, 580SM Series 2, 580SM+ Series 2, 580M Series 3, 580SM Series 3

Case 590-Series Backhoe Loaders: 590, 590SL, 590SL Series 2, 590SM, 590SM Series 2, 590SM Series 3

Case 680-Series Backhoe Loaders: 680E, 680G, 680H, 680K, 680L

Case Backhoe Attachments: 26, 26B, 26C, 26D, 26S, 33, 33S, 34, 35, 35A, 35C, 35C WL, 35WL

Replaces Part Number(s):

123326A1, 47048659, 85821103, D37614, D40267, L78991

New aftermarket replacement part - not remanufactured, not used.
