One New Aftermarket Replacement Bushing for Case Backhoe Loaders, Skid Steers, Forklifts, Crawlers, Trenchers, and Wheel Loaders

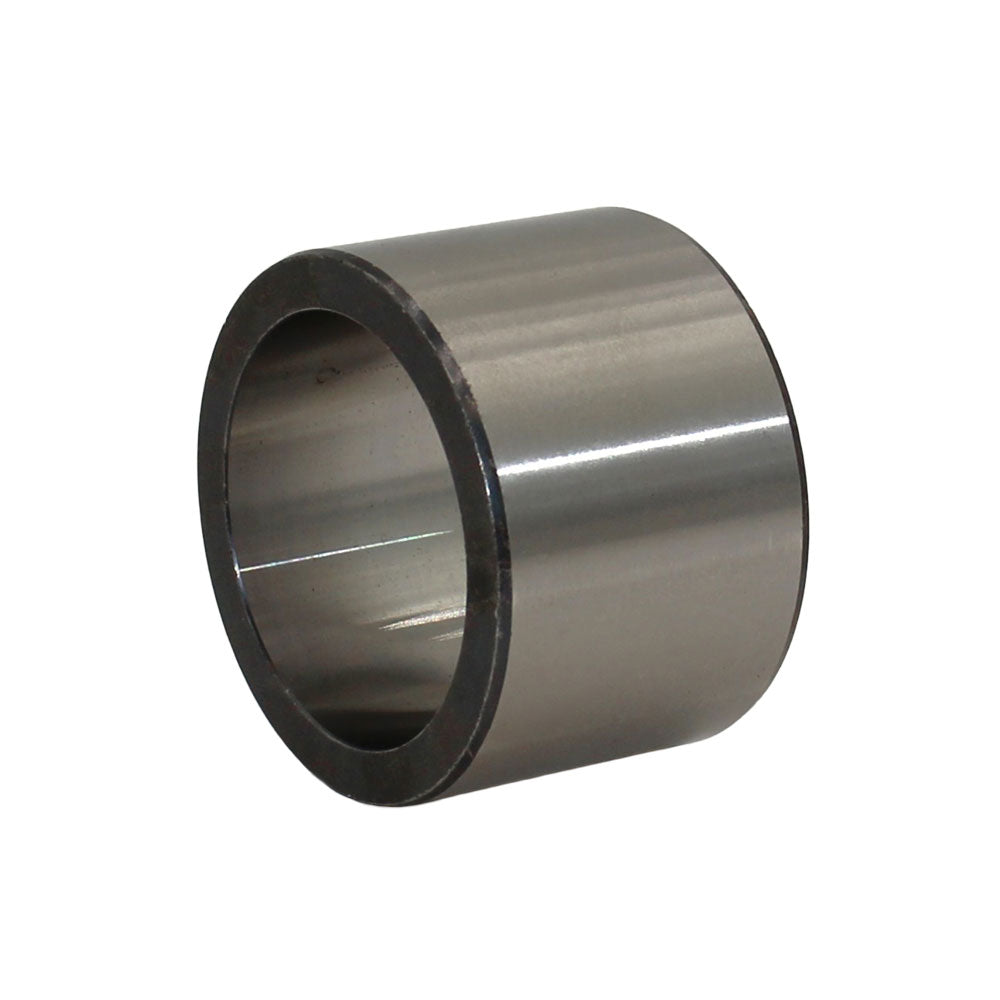

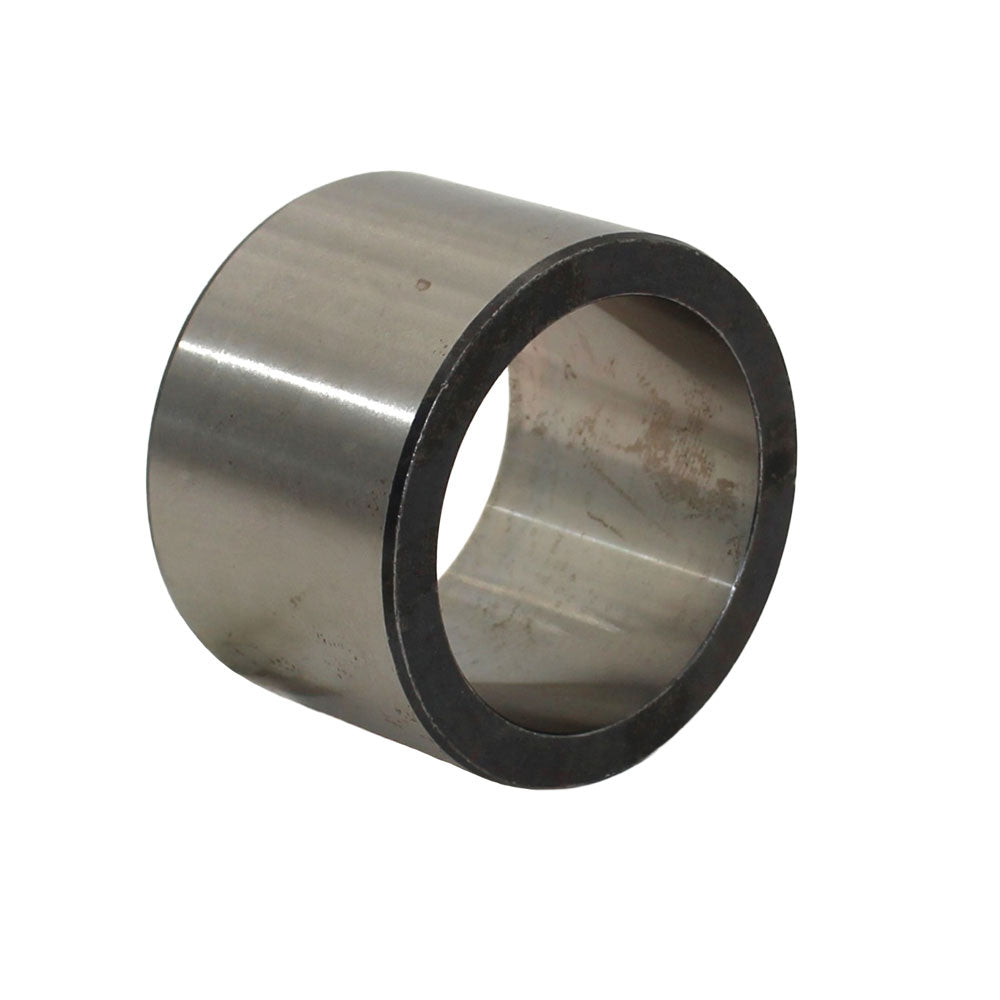

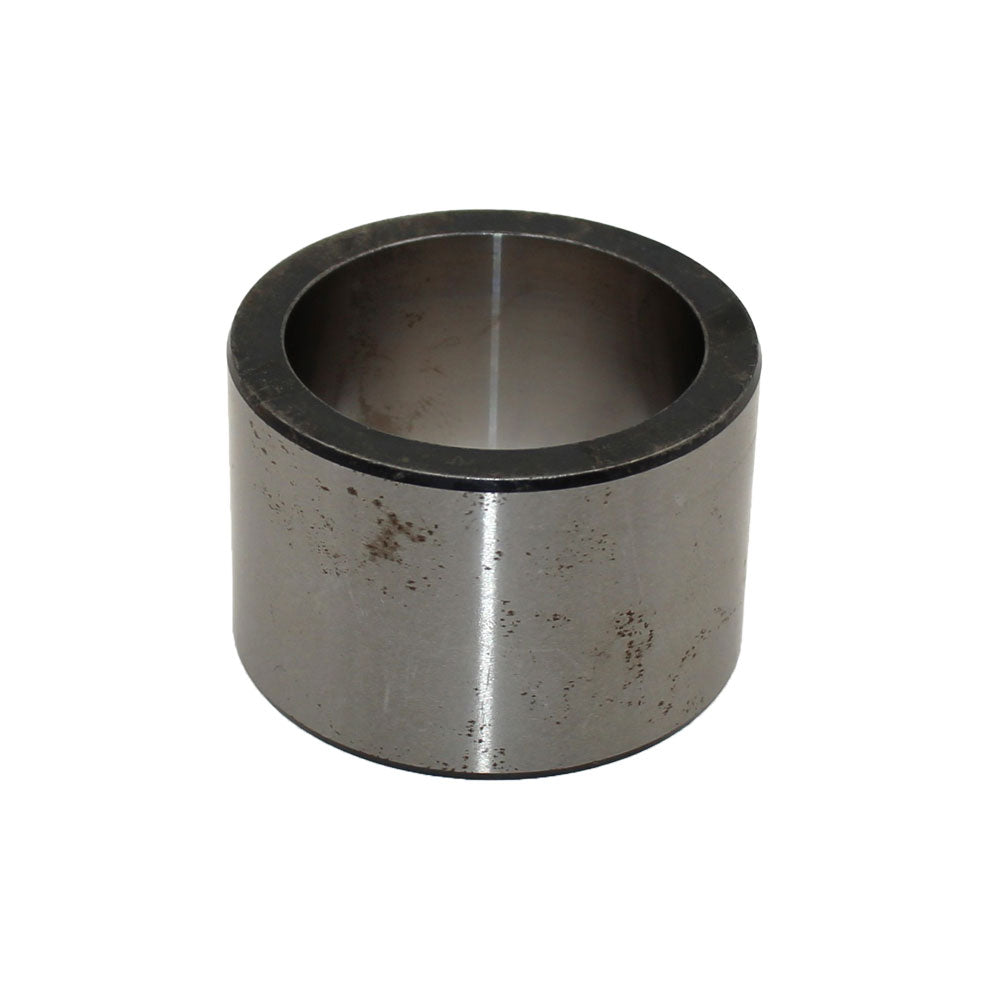

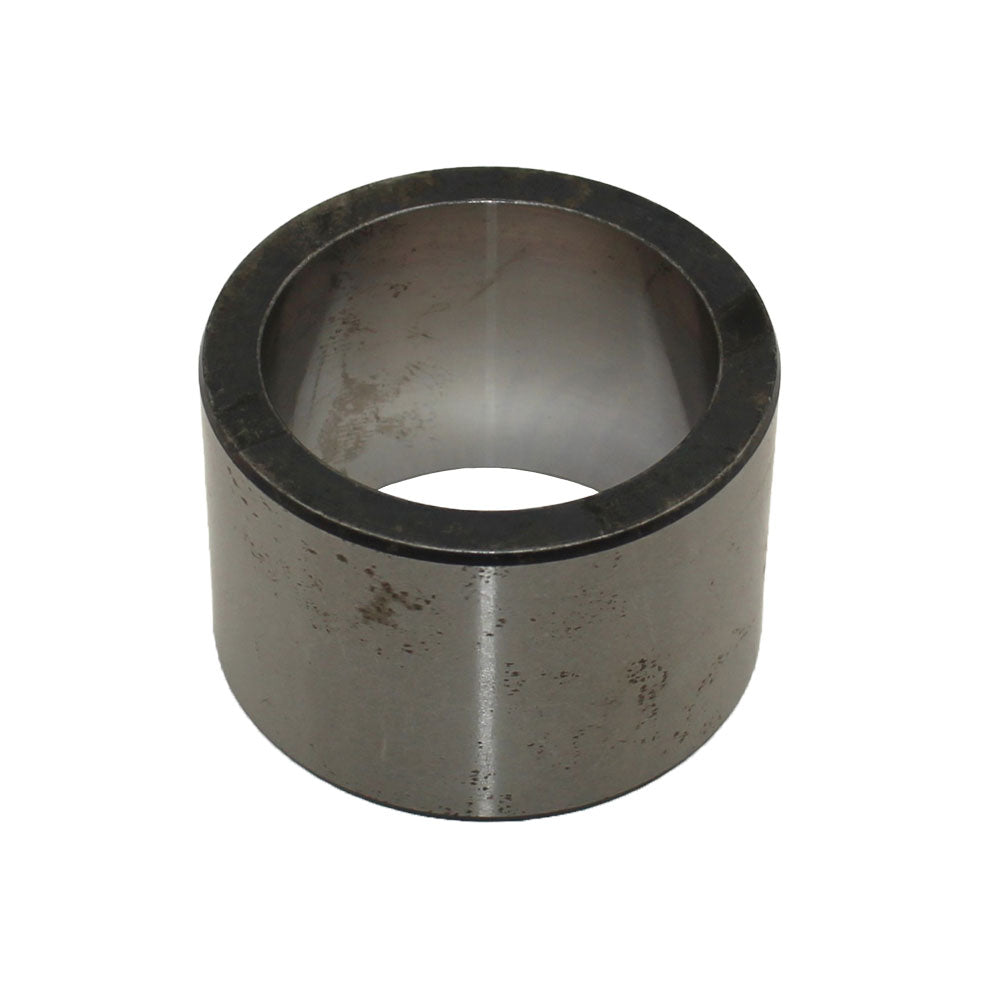

This steel bushing (part number D50146) fits at the dipper-to-bucket linkage connection on Case backhoe loaders, and also serves in stabilizer leg, suspension guide, and 3-point hitch frame applications across a wide range of Case (Case IH) construction and industrial equipment. It provides a precision wear surface between the pin and boom linkage components, reducing friction and extending the service life of the surrounding assembly.

Specifications

• Inner Diameter (ID): 1.760 in. (44.68 mm)
• Outer Diameter (OD): 2.250 in. (57.15 mm)
• Width/Length: 1.500 in. (38.10 mm)
• Material: Steel

Compatible Models

Case Backhoe Loaders: 480C, 480D, 480E, 480F, 480FLL, 480LL, 570LXT, 570LXT Series 2, 570MXT, 580B, 580C, 580D, 580E, 580F, 580G, 580K, 580L, 580M, 580SD, 580SE, 580SK, 580SL, 580 Super L, 580 Super M, 590, 590 Super L

Case Forklifts: 584, 585, 586

Case Skid Steer Loaders: 480ELL, 570LXT

Case Trenchers: 760, 860

Case Wheel Loaders: 480LL

Case Crawlers: 1450

Case Mini Excavators / Construction & Industrial: 26, 33, 33S, 35, 35WL

Note: On the 590 Super L, this bushing is used at the stabilizer leg and 3-point hitch frame. On the 1450 Crawler, it is used at the suspension guide lever.

Replaces Part Number(s):

D50146, R27172

New aftermarket replacement part - not remanufactured, not used.
