Disc Pulley Clutch Kit Fits John Deere Replaces 14H994

Disc Pulley Clutch Kit Fits John Deere Replaces 14H994



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


One New Aftermarket Disc Pulley Clutch Kit

Tech Info:

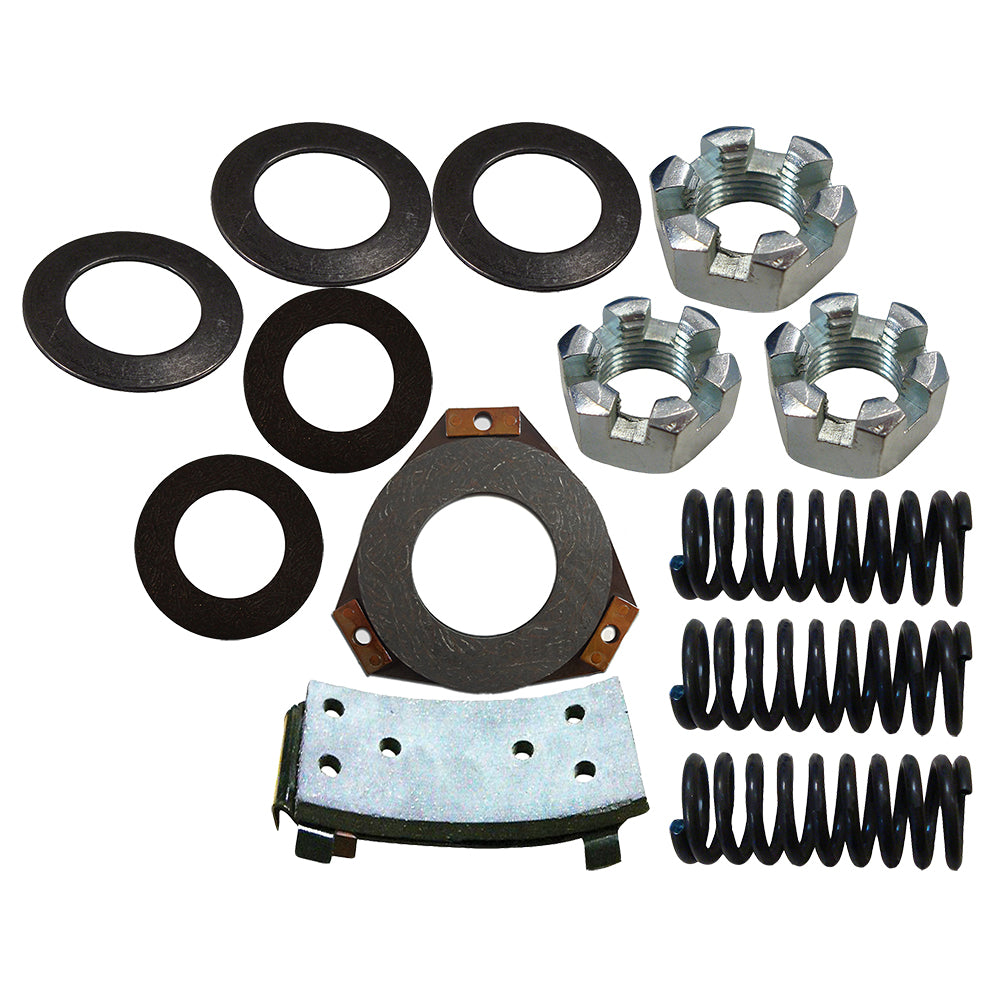

 -Kit Contains:

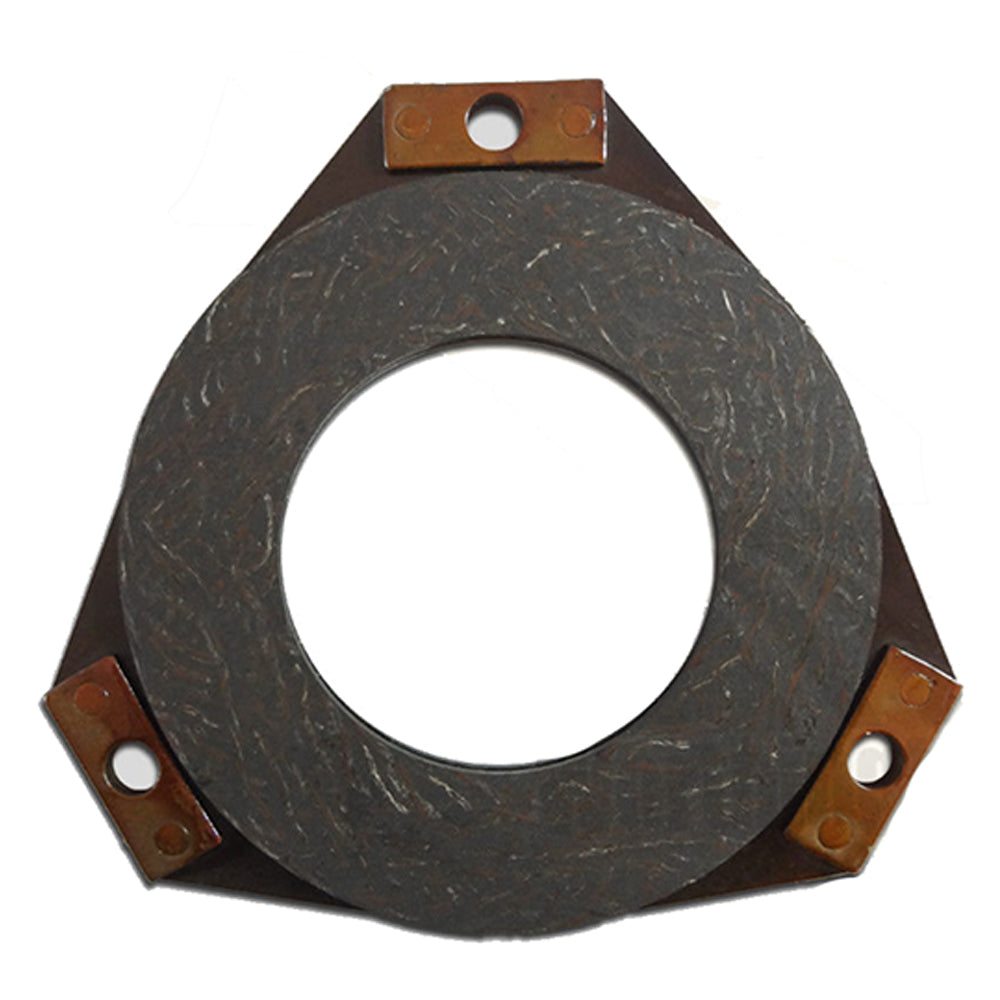

 -(1) Pulley Clutch Discs w/ Bonded Lining
 -Includes Riveted Lining
 -0.445" Thick
 -1-1/2" Lining Width
 -
 -Replaces Part Number(s):
 -AB3471R, B2355R, AB4828R, RE29878
 -

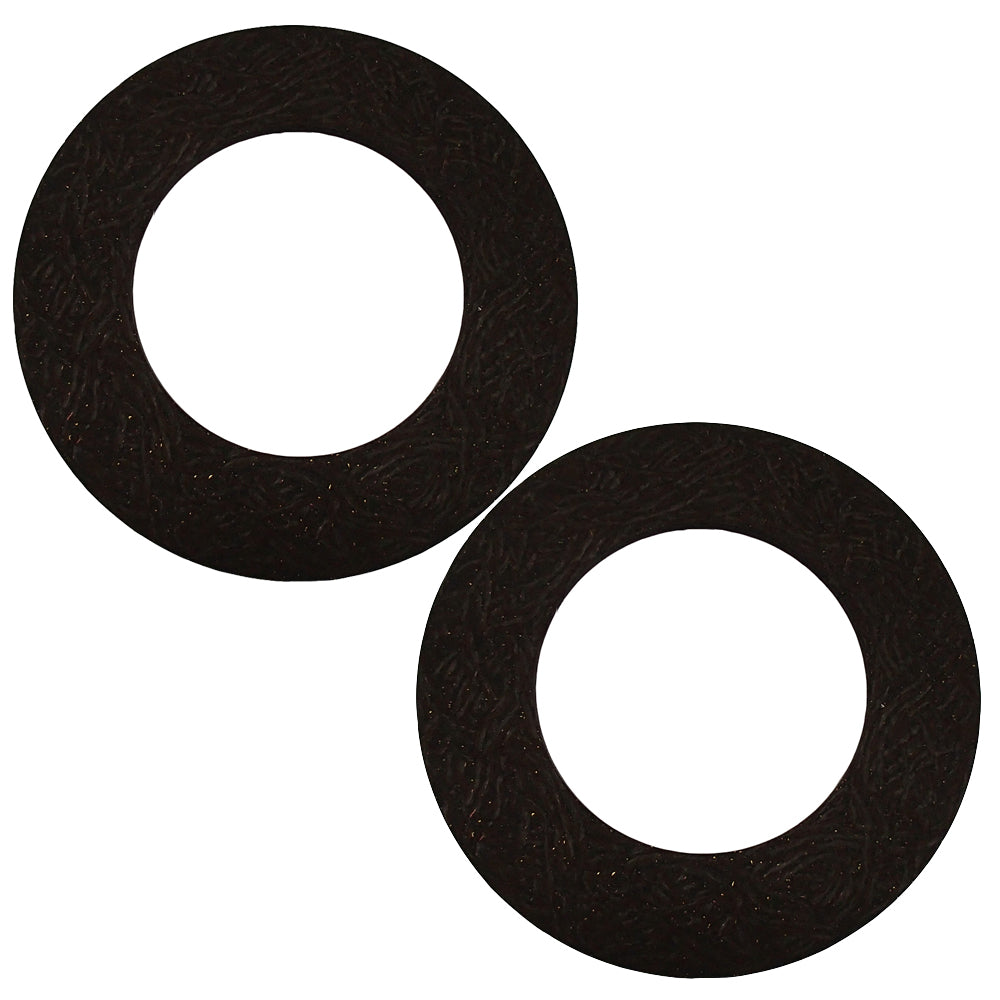

 -(2) Floating Clutch Facing Discs
 -7" OD x .160 Thick
 -
 -Replaces Part Number(s):
 -R90220
 -

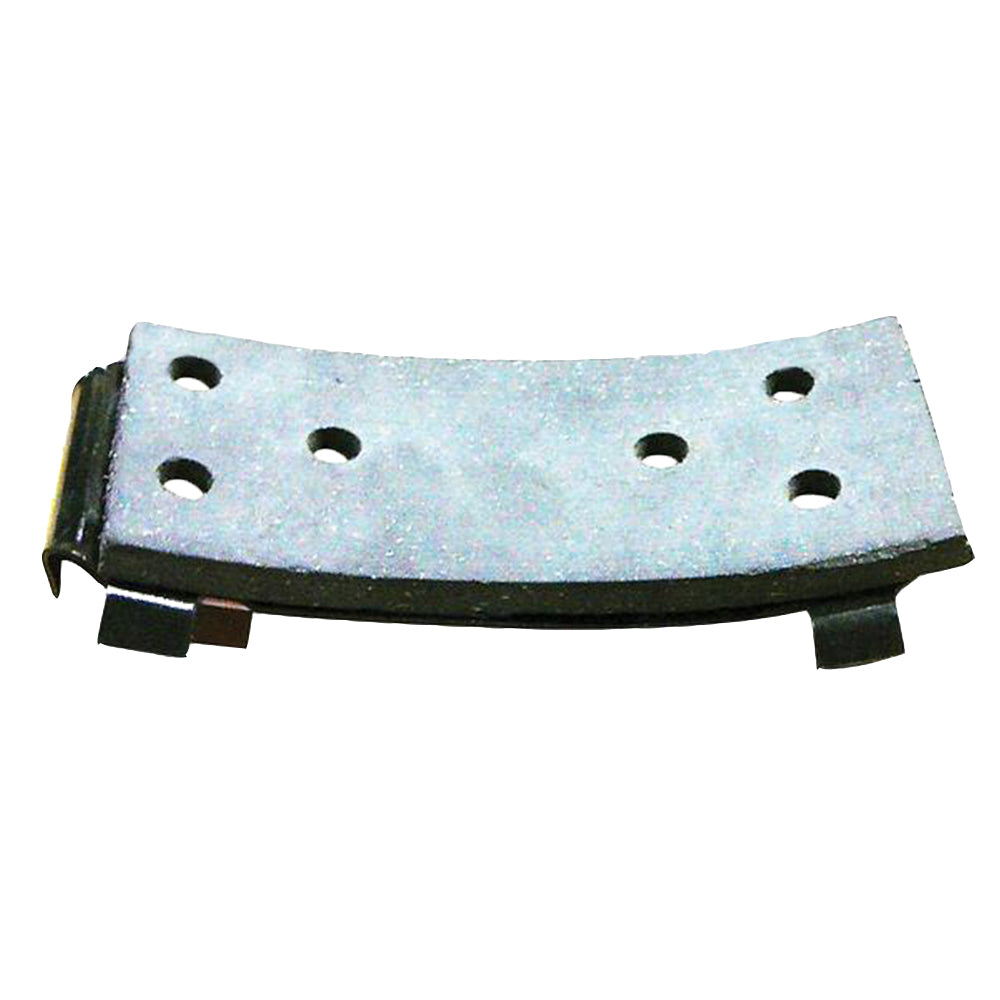

 -(1) Belt Pulley Brake Pad Lining
 -Woven
 -Non-Asbestos Lining with Countersunk Brass Rivets
 -
 -Replaces Part Number(s):
 -AB4748R, AF4748R, RE29790
 -

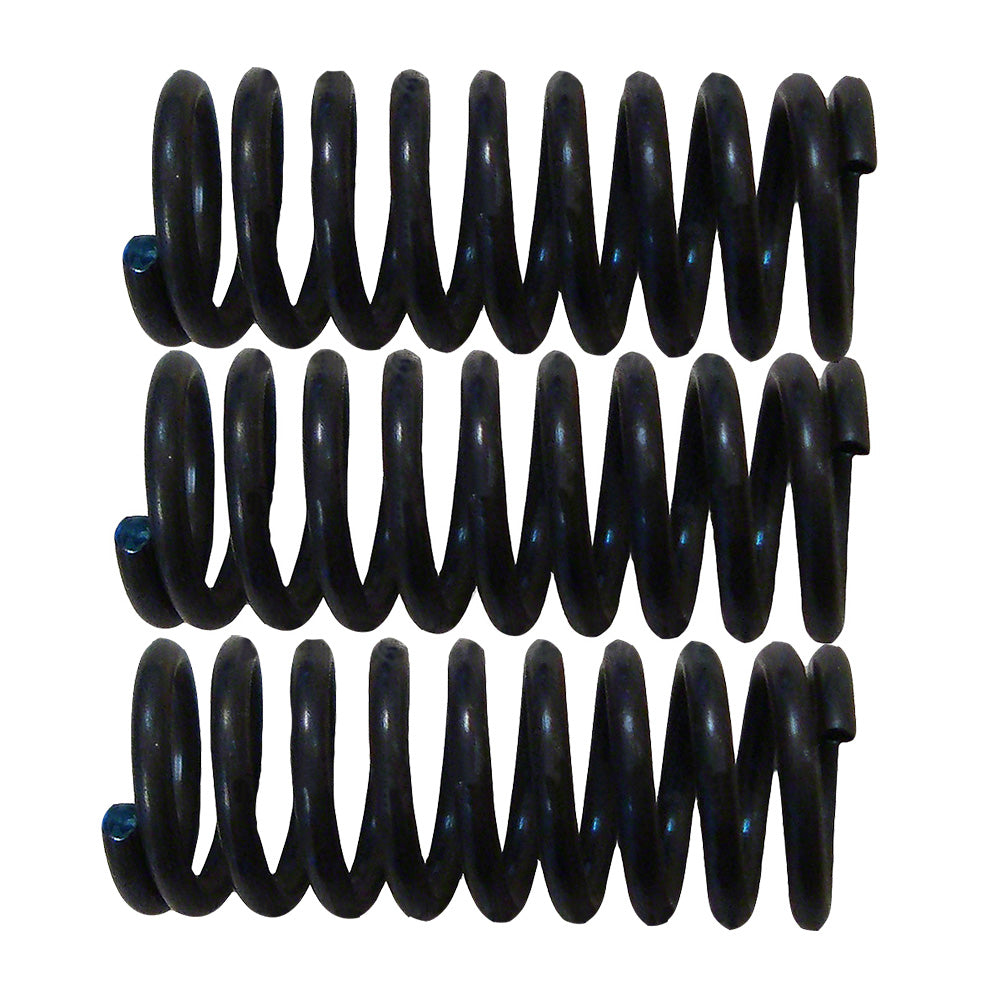

 -(3) Clutch Disc Adjusting Springs
 -It Mounts to the Outer Cast Iron Adjusting Disc
 -
 -Replaces Part Number(s):
 -B161R
 -

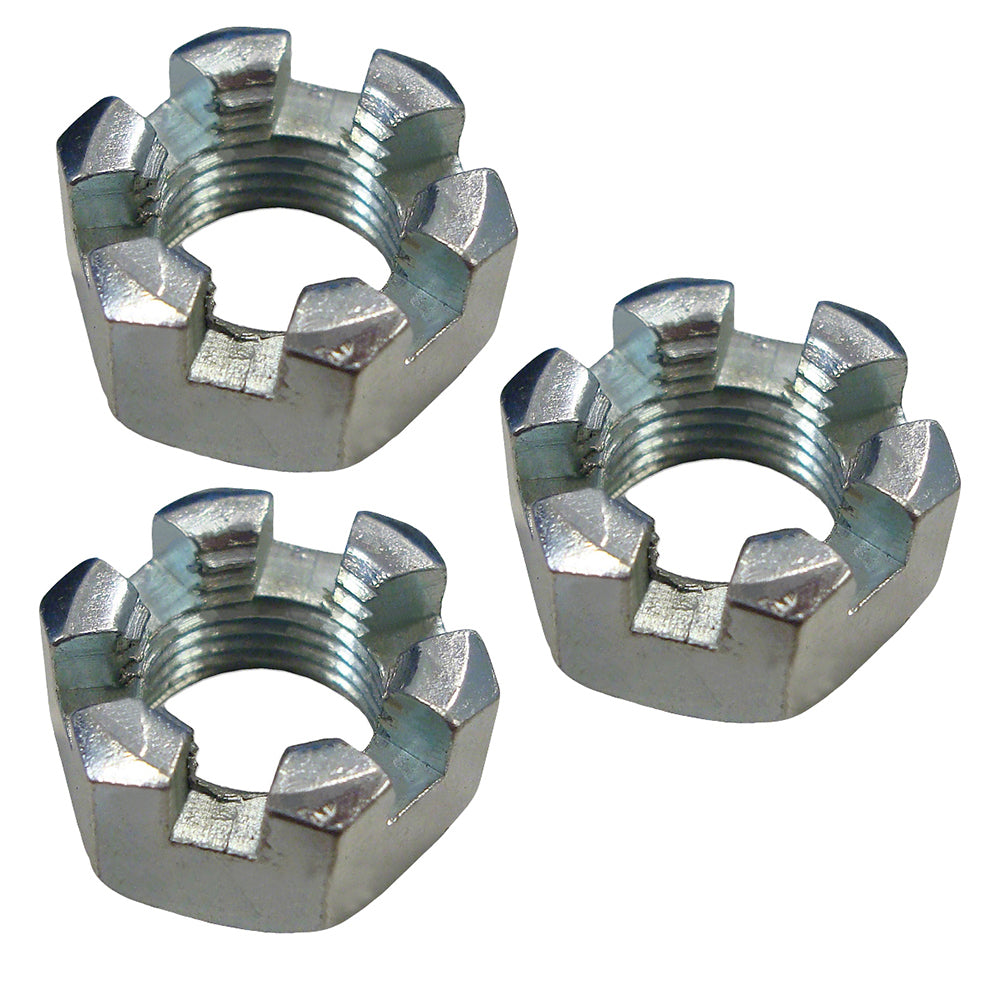

 -(3) Clutch Adjusting Nuts
 -1/2" - 20 Nf
 -Grade 5
 -Zinc
 -Slotted Hex Nut, 1/2"
 -3 Used Per Tractor
 -
 -Replaces Part Number(s):
 -B3279R, AA4967R, A335R, 14H994
 -

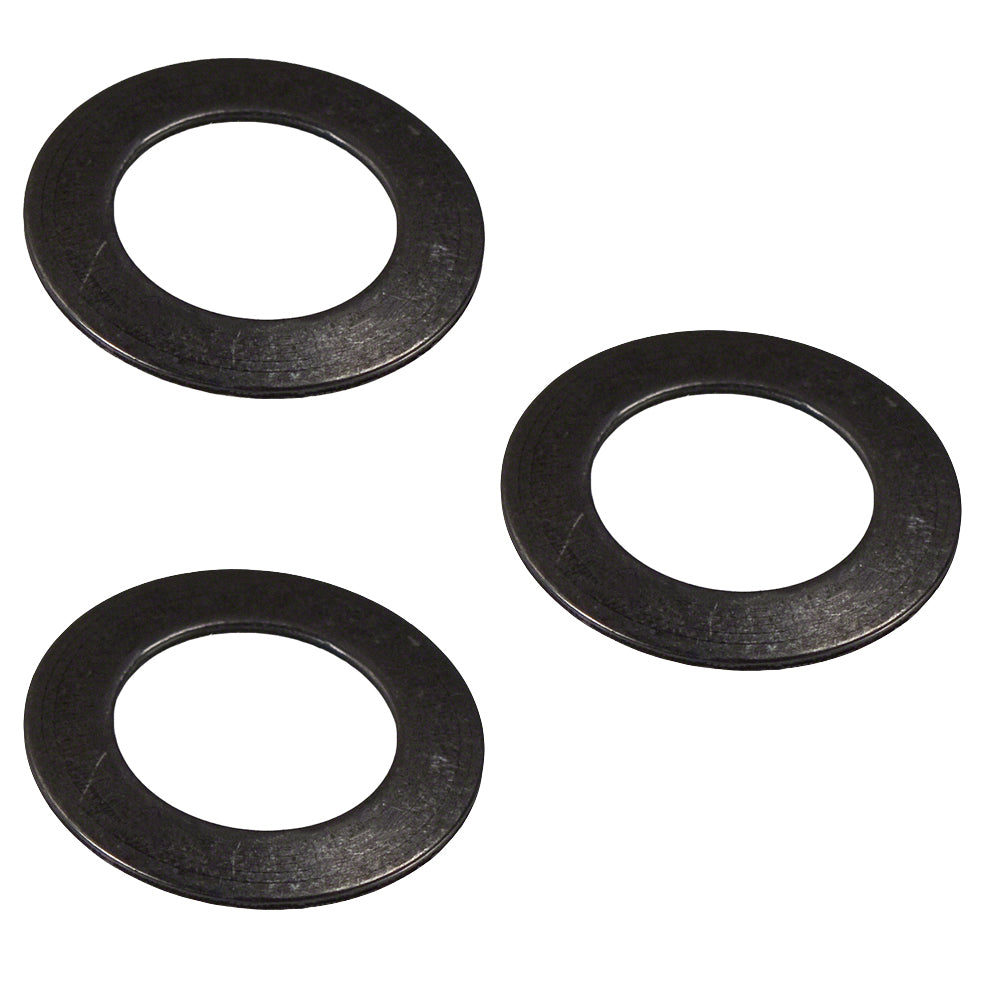

 -(3) Clutch Pressure Plate Spring (Fits Belleville) Washer
 -0.572" Inside Diameter
 -0.937" Outside Diameter
 -0.035" Thick
 -Spring Steel
 -Torque Initially to 15 Ft Pounds, Then Adjust as Needed
 -Use to Smooth Out the Hand Clutch Engagement
 -3 Used Per Tractor
 -
 -Replaces Part Number(s):
 -AR21803R, R21647

Made to Fits John Deere:
Replaces Part Number(s): AR21803R, R21647, AB3471R, B2355R, AB4828R, RE29878, R90220, AB4748R, AF4748R, RE29790, B3279R, AA4967R, A335R, 14H994, B161R

Models This Part Fits:

520, 530

Additional Information:

Kit Contains: (1) Pulley Clutch Discs w/ Bonded Lining Includes Riveted Lining 0.445" Thick 1-1/2" Lining Width Replaces Part Number(s): AB3471R, B2355R, AB4828R, RE29878 (2) Floating Clutch Facing Discs 7" OD x .160 Thick Replaces Part Number(s): R90220 (1) Belt Pulley Brake Pad Lining Woven Non-Asbestos Lining with Countersunk Brass Rivets Replaces Part Number(s): AB4748R, AF4748R, RE29790 (3) Clutch Disc Adjusting Springs It Mounts to the Outer Cast Iron Adjusting Disc Replaces Part Number(s): B161R (3) Clutch Adjusting Nuts 1/2" - 20 Nf Grade 5 Zinc Slotted Hex Nut, 1/2" 3 Used Per Tractor Replaces Part Number(s): B3279R, AA4967R, A335R, 14H994 (3) Clutch Pressure Plate Spring (Belleville) Washer 0.572" Inside Diameter 0.937" Outside Diameter 0.035" Thick Spring Steel Torque Initially to 15 Ft Pounds, Then Adjust as Needed Use to Smooth Out the Hand Clutch Engagement 3 Used Per Tractor Replaces Part Number(s): AR21803R, R21647

Reference Numbers:

AR21803R, R21647, AB3471R, B2355R, AB4828R, RE29878, R90220, AB4748R, AF4748R, RE29790, B3279R, AA4967R, A335R, 14H994, B161R
