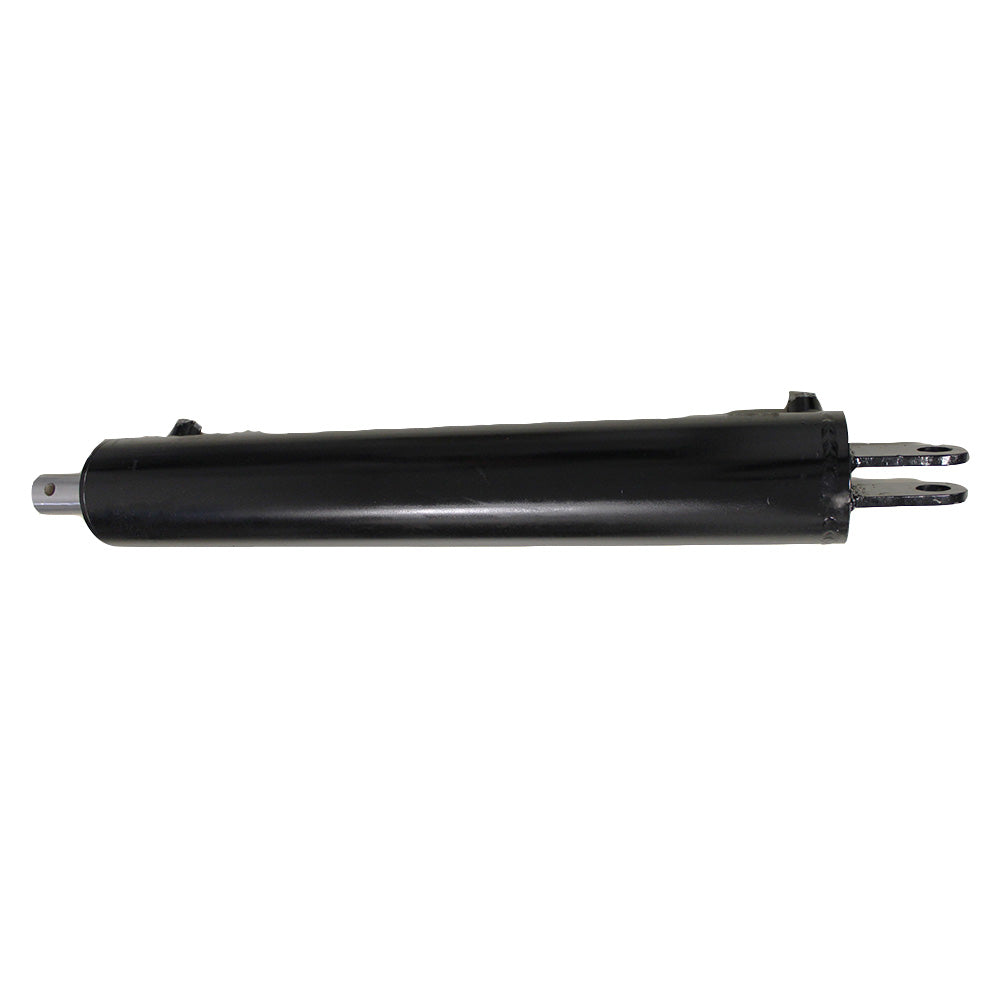

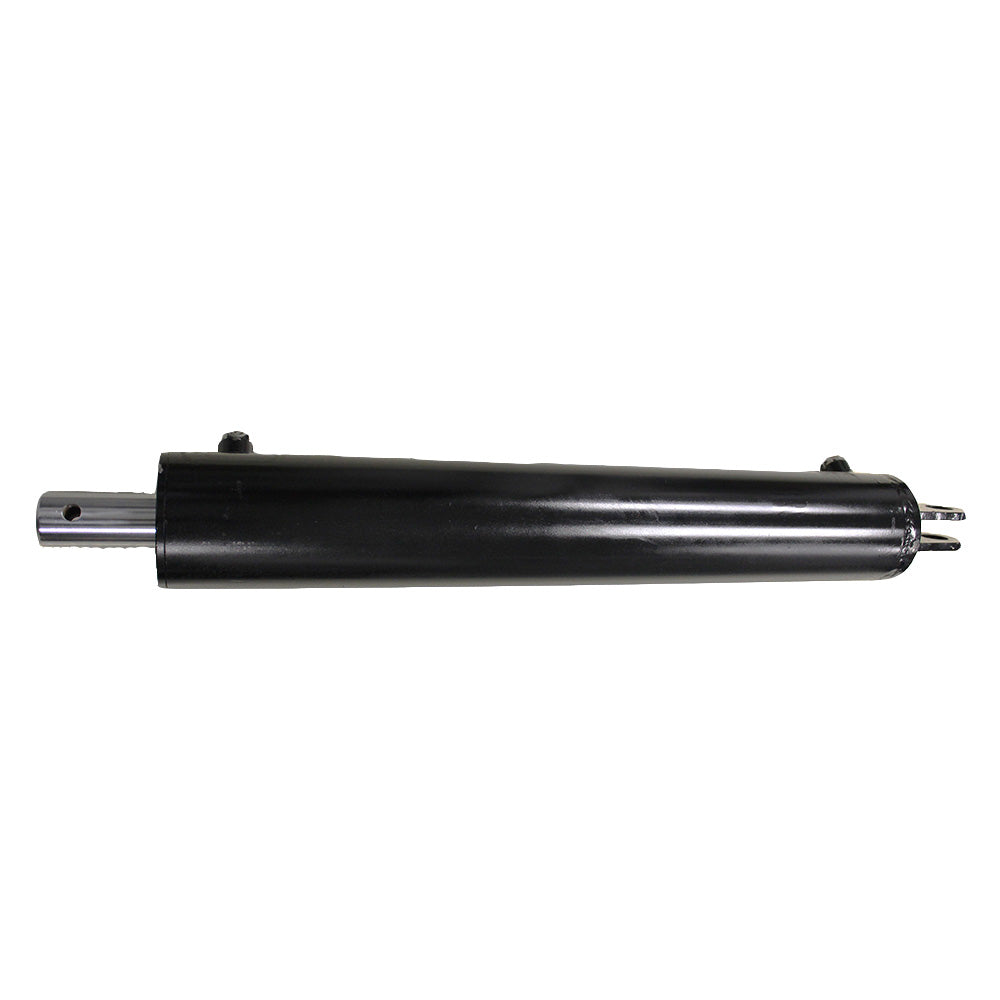

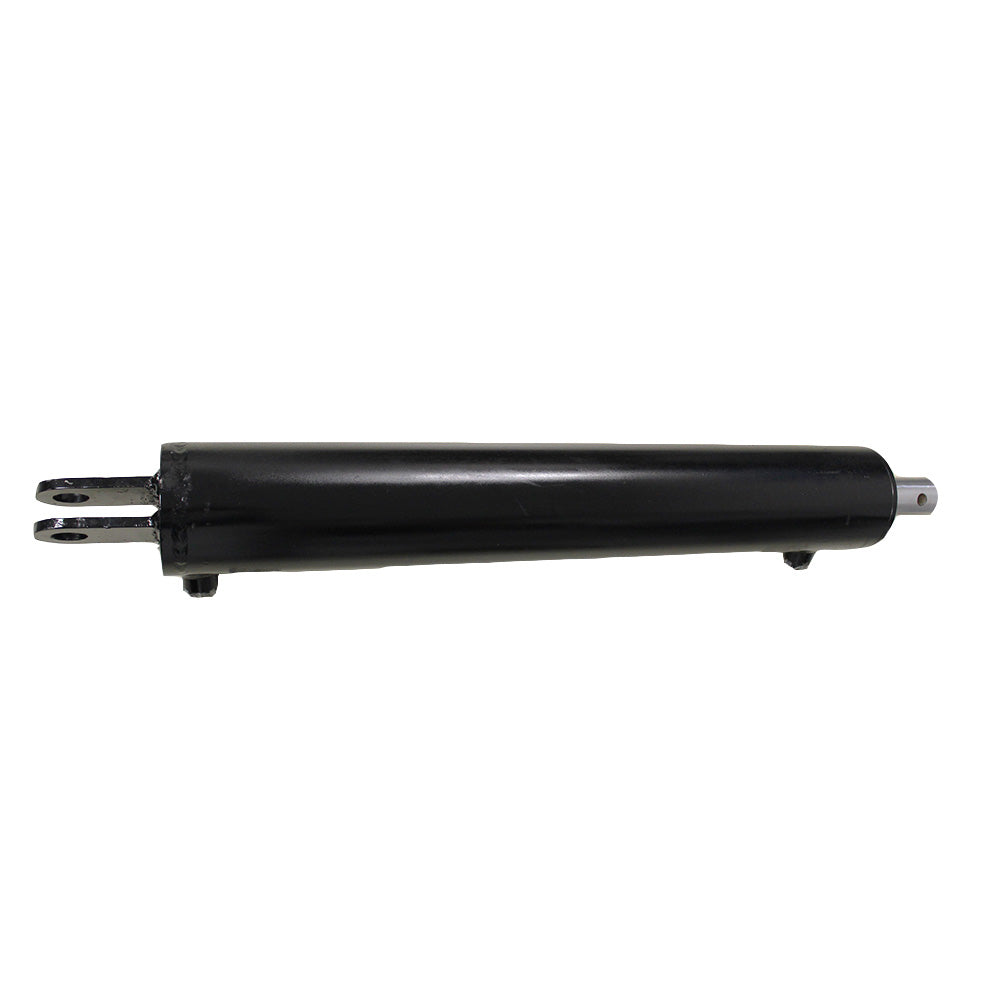

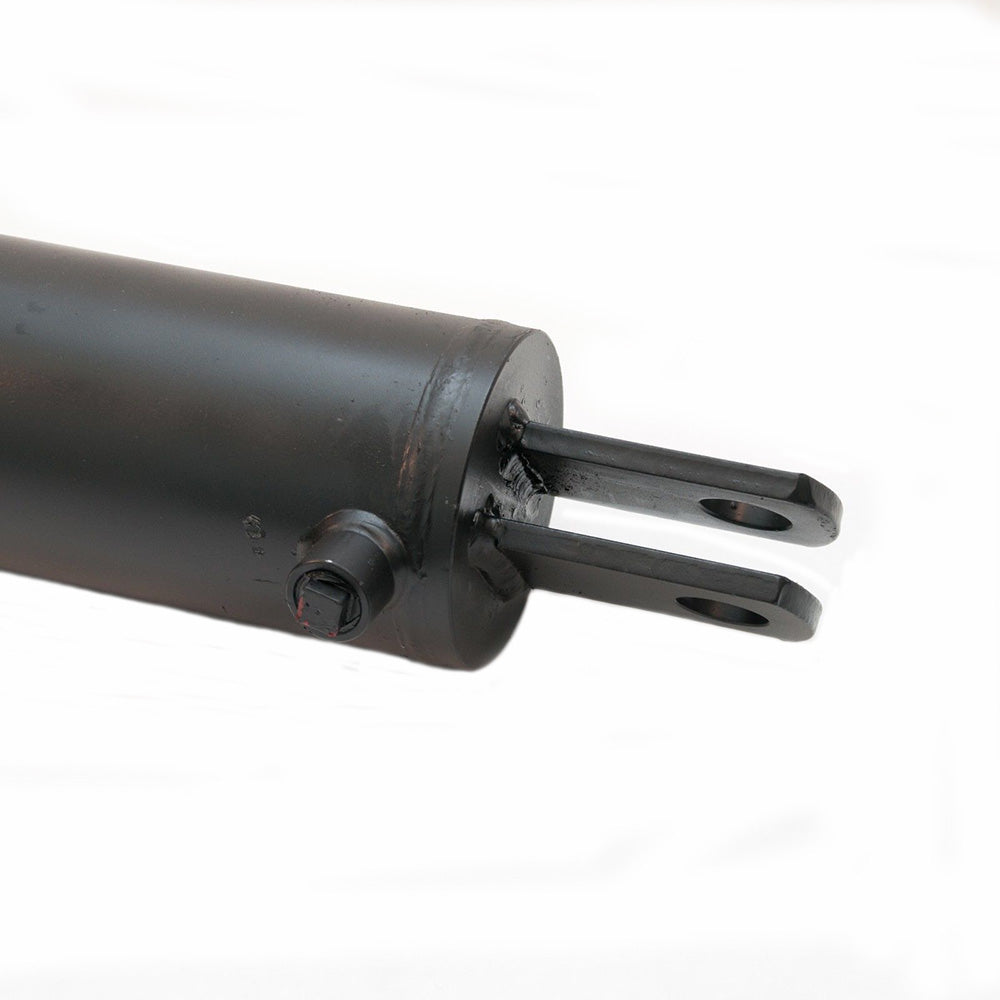

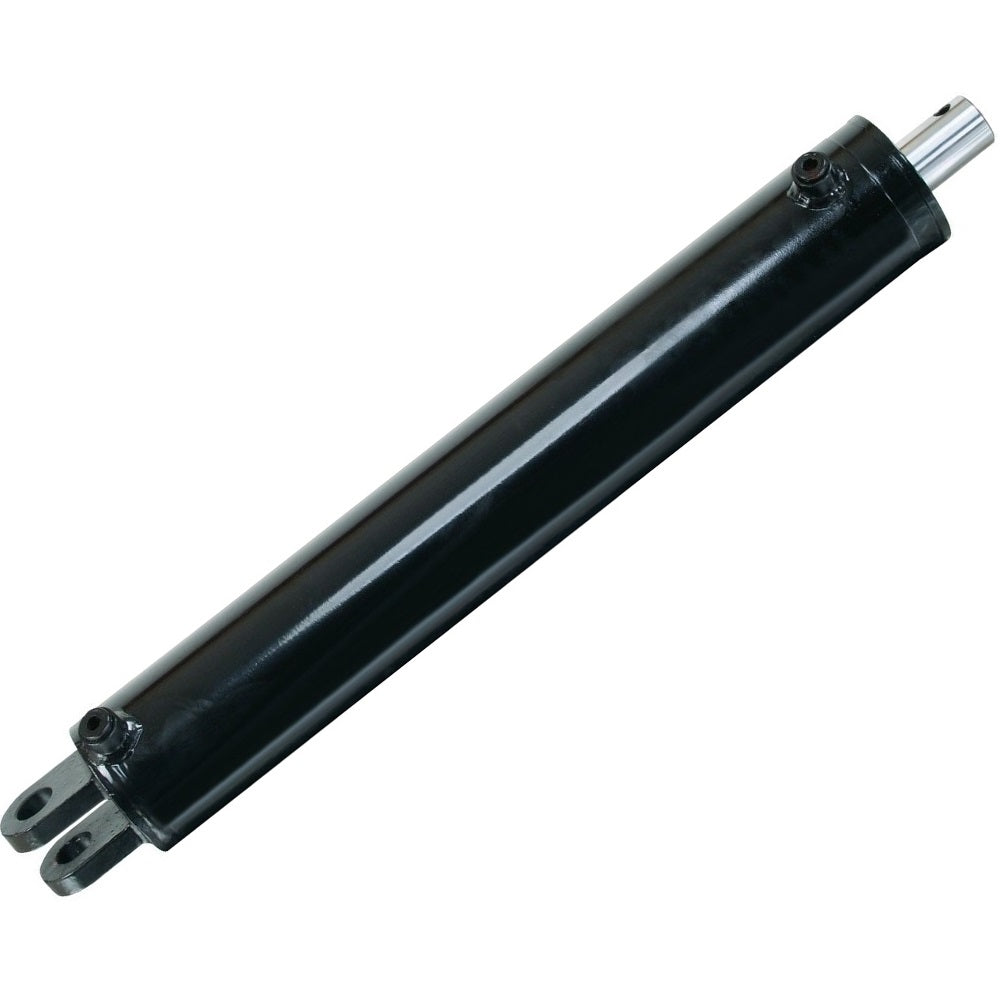

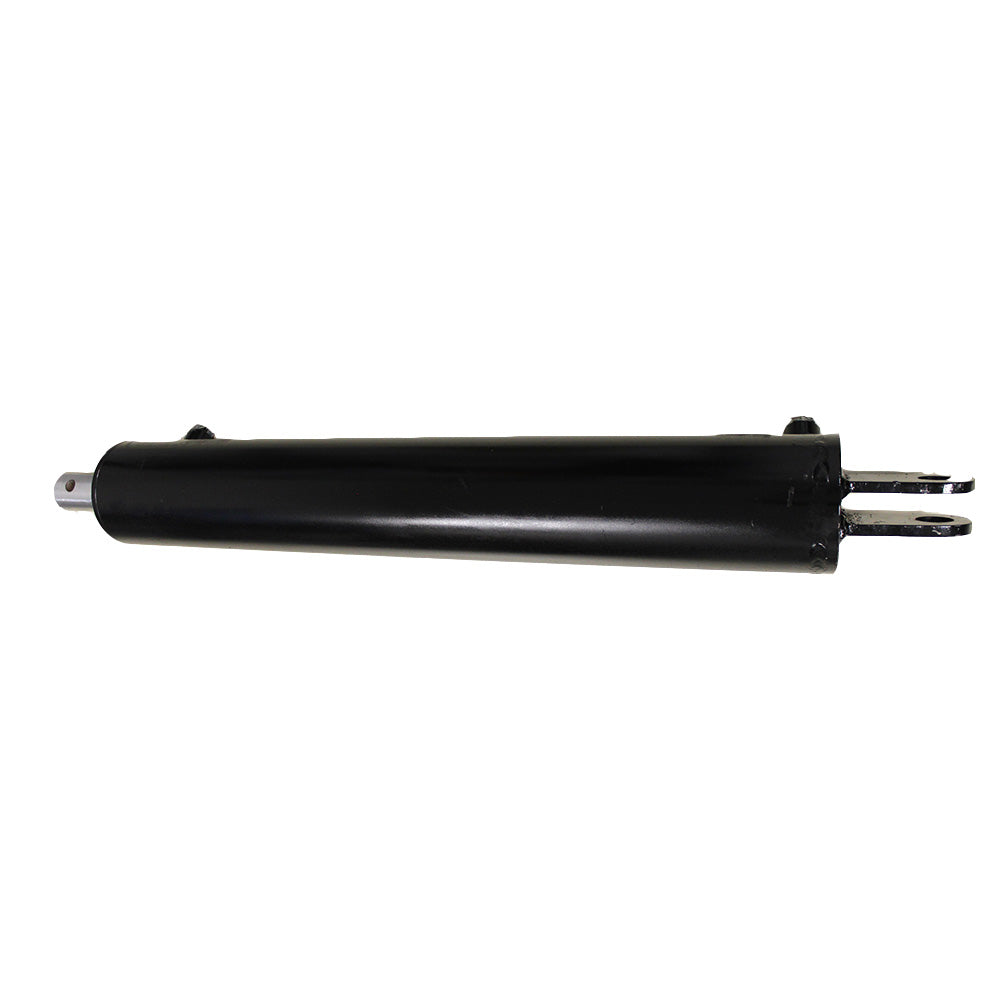

One New Aftermarket Replacement Double-Acting Hydraulic Cylinder for Swisher Log Splitter

This aftermarket replacement double-acting hydraulic cylinder is designed to restore full splitting power to your Swisher 22 Ton LS22E electric log splitter. The cylinder extends and retracts the wedge assembly to split wood, and features a double trunnion clevis mounting design rated for up to 3500 PSI maximum operating pressure. Built as a direct-fit replacement for the original cylinder, this unit is rebuildable and accepts standard replacement seal kits.

Specifications

• Type: Double-Acting Hydraulic Wood Log Splitter Cylinder
• Bore Diameter: 4" (4.0")
• Stroke: 24"
• Rod Diameter: 1-3/4" with 9/16" Mounting Hole for Wedge Mounting
• Hydraulic Ports: 1/2" NPT
• Clevis Mounting Holes: 1-1/8"
• Double Mounting Clevis Design to Accept 1-1/8"
• Center-to-Center Bolt Holes: 34.5"
• Maximum Operating Pressure: 3500 PSI

Compatible Models

Swisher: LS22E 22 Ton Timber Brute Eco Split Electric Log Splitter

Replaces Part Number(s):

718-0769, 918-0769A

Aftermarket Interchange Numbers

HYI40-1043

New aftermarket replacement part - not remanufactured, not used.
