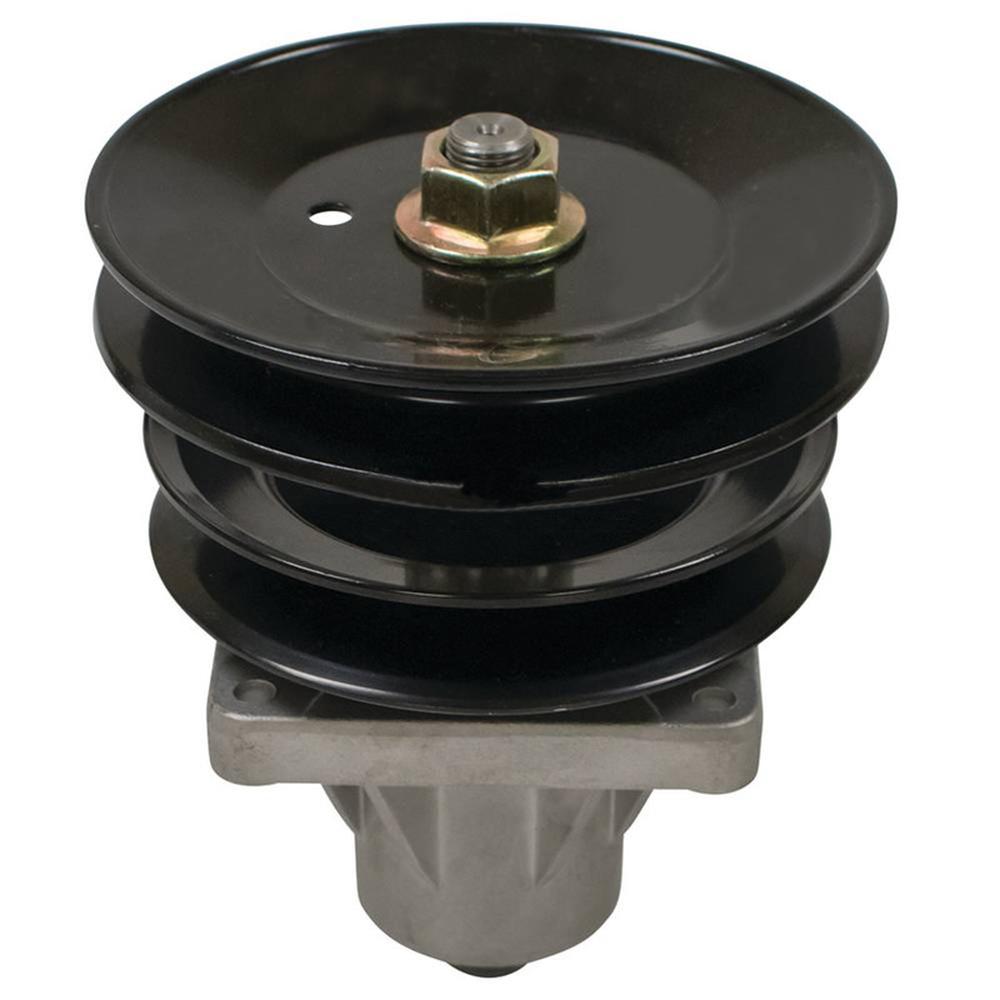

One New Aftermarket Replacement Double Pulley Deck Spindle Assembly for MTD, Yard Man, Yard Machines, Huskee, White, Brute, and Toro Lawn and Garden Tractors

This double pulley deck spindle assembly is a direct replacement for the blade mandrel on MTD (and MTD-built) 46-inch mowing decks used on lawn and garden tractors from 2005 to 2009. The spindle assembly mounts to the underside of the mowing deck and transfers power from the drive belt to the cutting blade via a 6-point star shaft pattern. Includes the integrated double pulley. Mounting screws are not included.

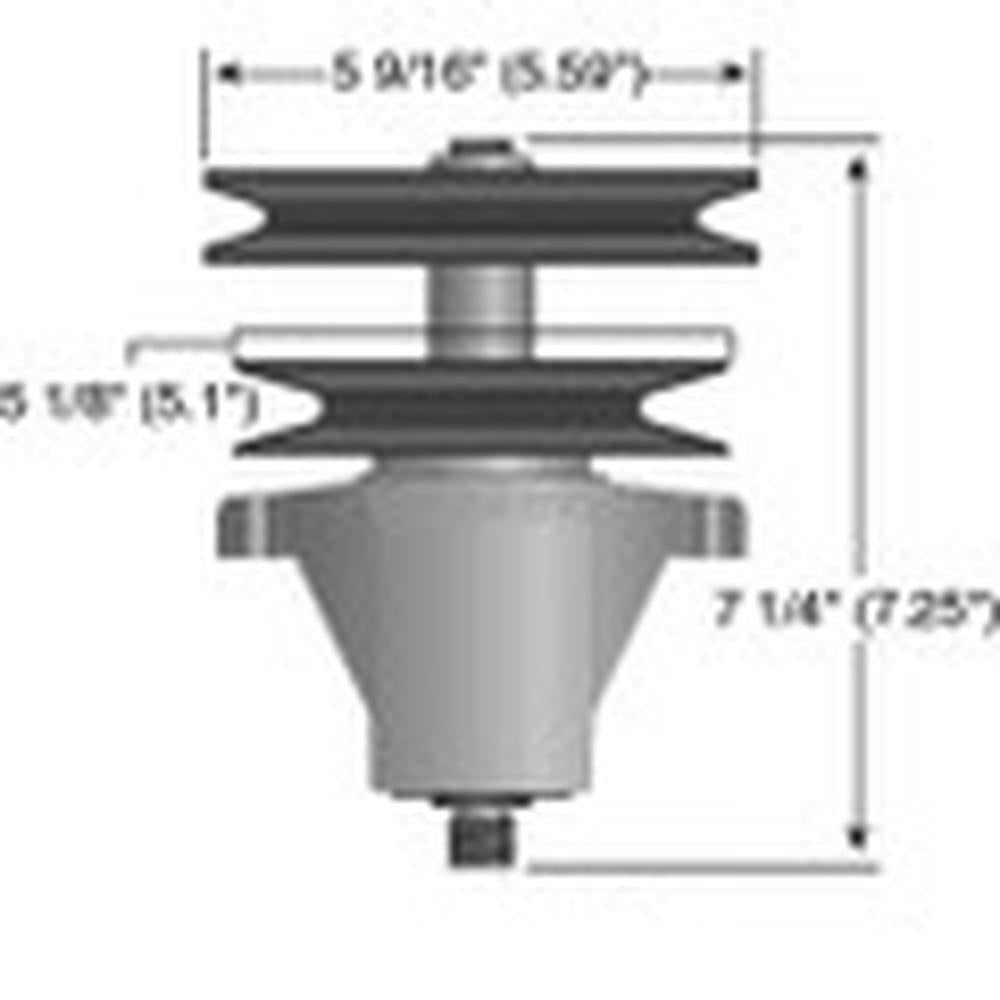

Specifications

• Top Pulley OD: 5-5/8 in.
• Bottom Pulley OD: 5 in.
• Deck Cutting Width: 46 in.
• Spindle Shaft Pattern: 6-Point Star
• Grease Zerk: Yes
• Mounting Screws: Not included

Compatible Models

MTD / Yard Man / Yard Machines / Huskee / White / Brute (46 in. Deck, 2005-2009): LT-546 G, LT-546 H, LT-4600 H, LT5 and RT99 series with 46 in. deck, 13RT61RH044, 13AT61RH044, 13AX605H730, 13AL771H004, 13AX60RH744, 13AT605H718, 13RT61RH244, 13AX775H031, 13RN771H729, 13AX60RH544, 13AX61RH544, 13RL771H229, 13AX775H730, 13AT61RH048, 13AX775H231, 13AT61RH544, 13AN771H729, 13AL795H004, 13AL605H057, 13AX61RH748, 13BP605H755, 13AL771H029, 13AN601H729, 13BX775H031, 13RL771H029, 13AO771H055, 13AX61RH744, 13AX615H730, 13AX615H731

Toro: LX460, LX465, LX466

Replaces Part Number(s):

918-04134D, 918-04134C, 918-04134B, 918-04134A, 918-04134, 91804134, 91804134A, 91804134B, 91804134C, 91804134D, 618-04134D, 618-04134C, 618-04134B, 618-04134A, 618-04134, 61804134, 61804134A, 61804134B, 61804134C, 61804134D, 112-0383, 1120383

Aftermarket Interchange Numbers

Stens: 285-748; Rotary: 14092

New aftermarket replacement part - not remanufactured, not used.
