E5500-63016 KIOTI STARTER AFTERMARKET REPLACEMENT NEW

E5500-63016 KIOTI STARTER AFTERMARKET REPLACEMENT NEW



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER

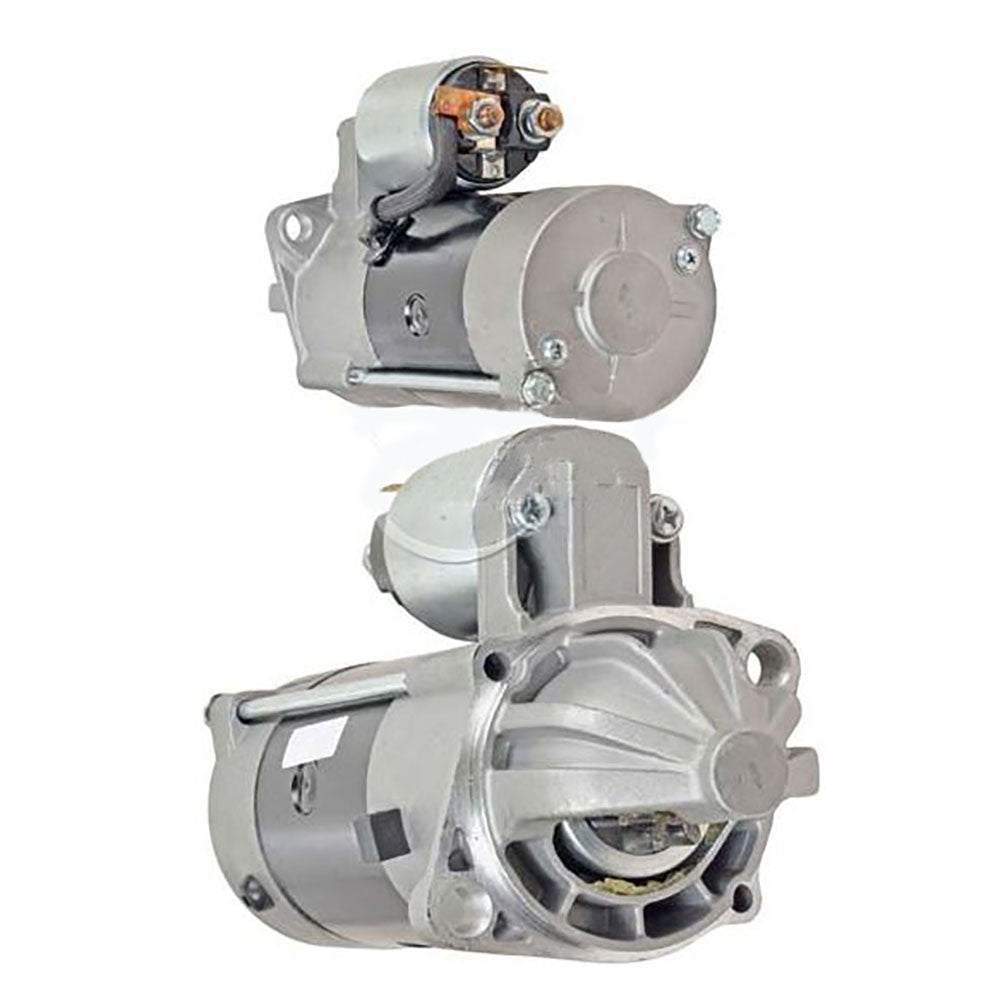

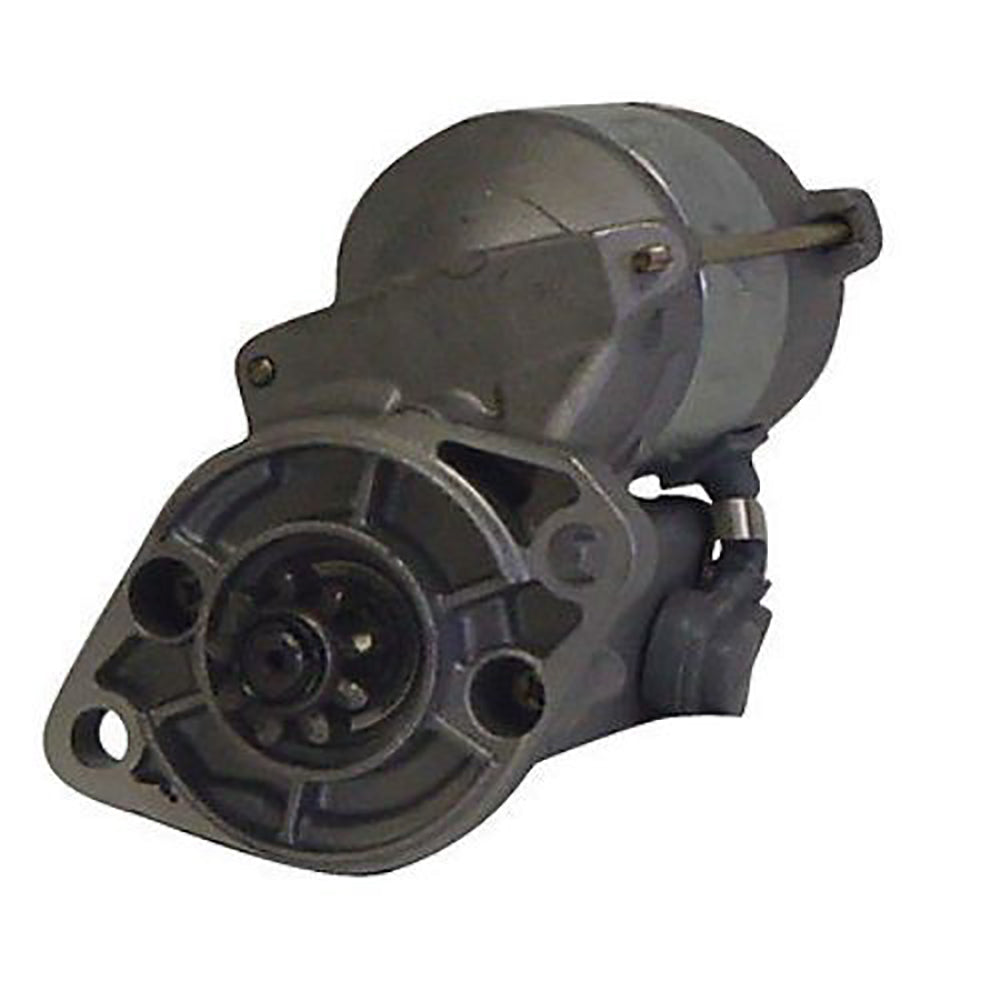

One New Aftermarket Replacement Starter for Kioti (KIOTI) Tractors

This aftermarket replacement starter fits Kioti (KIOTI) tractors equipped with Daedong 3-cylinder engines, including the 3A150 engine series. It is a direct-fit PLGR-type starter replacing the original Mando/Daedong unit on CK, DK, DS, LK, and NX series tractors. Also fits compatible Mahindra tractor models sharing the same Daedong drivetrain.

Specifications

  • Voltage: 12V
  • Power: 1.7 kW
  • Teeth: 9
  • Rotation: Clockwise (CW)
  • Starter Type: PLGR (Mando/Daedong replacement)
  • Gear OD: 1.331 in (33.8 mm)
  • Battery Stud: M8-1.25 Threaded
  • Mount: External Thru Bolts, 2-Ear Mount, 11.1 mm Unthreaded Holes

Compatible Models

Kioti CK Series: CK25, CK2510, CK2510H, CK25H, CK27, CK27H, CK30, CK30H, CK35, CK35H

Kioti DK Series: DK35, DK35CR, DK35SE, DK35SEH, DK40, DK40CR, DK40HSE, DK40SE, DK45, DK45C, DK45CSE, DK45HSE, DK45S, DK45SC, DK45SE, DK50, DK50C, DK55, DK55C, DK5010, DK5510

Kioti DS Series: DS3510, DS4110, DS4110HS, DS4510, DS4510HS

Kioti LK Series: LK2554, LK30, LK3054, LK3054XS, LK3504

Kioti NX Series: NX4510C, NX4510CH, NX5010C, NX5010CH, NX5510, NX5510C, NX5510CH, NX5510H, NX6010CH, NX6010H

Mahindra: 2810, 3510, 4110, 6110

Replaces Part Number(s):

E5500-63014, E5500-63015, E5500-63016, E550063014, E550063015, E550063016, DD-E5500-63015, DD-E5500-63016, 600931, MG117559, T50063014E, TM000A07101

Aftermarket Interchange Numbers

Lester: 19601; Mando: MG117559; Fits Valeo: TM000A07101; SMN0006; STR54183

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

DK45CSE, 2810, DK45S, DS3510, LK3054XS, NX5510CH, DK45HSE, LK30, DK40CR, DK55C, LK3054, CK25H, CK35, DS4110HS, CK30H, CK30, DK35, DK55, DK35SE, NX5010C, 6110, DK40SE, DK40, DK50SE, DS4510HS, DK45C, DK35CR, DK40HSE, DS4510, LK3504, CK2510H, DK45SC, DK5010, DS4110, NX5510H, DK50, NX6010H, NX5510, CK27, LK2554, CK35H, NX4510CH, CK2510, NX5010CH, CK25, CK27H, NX4510C, 4110, DK45, DK45SE, DK50C, NX6010CH, DK35SEH, NX5510C, DK5510, 3510

Additional Information:

Starter

Reference Numbers:

E5500-63015,E5500-63016, 600931, DD-E5500-63015, E5500-63014, E5500-63015, E5500-63016, E550063014, E550063015, E550063016, MG117559, T50063014E, TM000A07101
