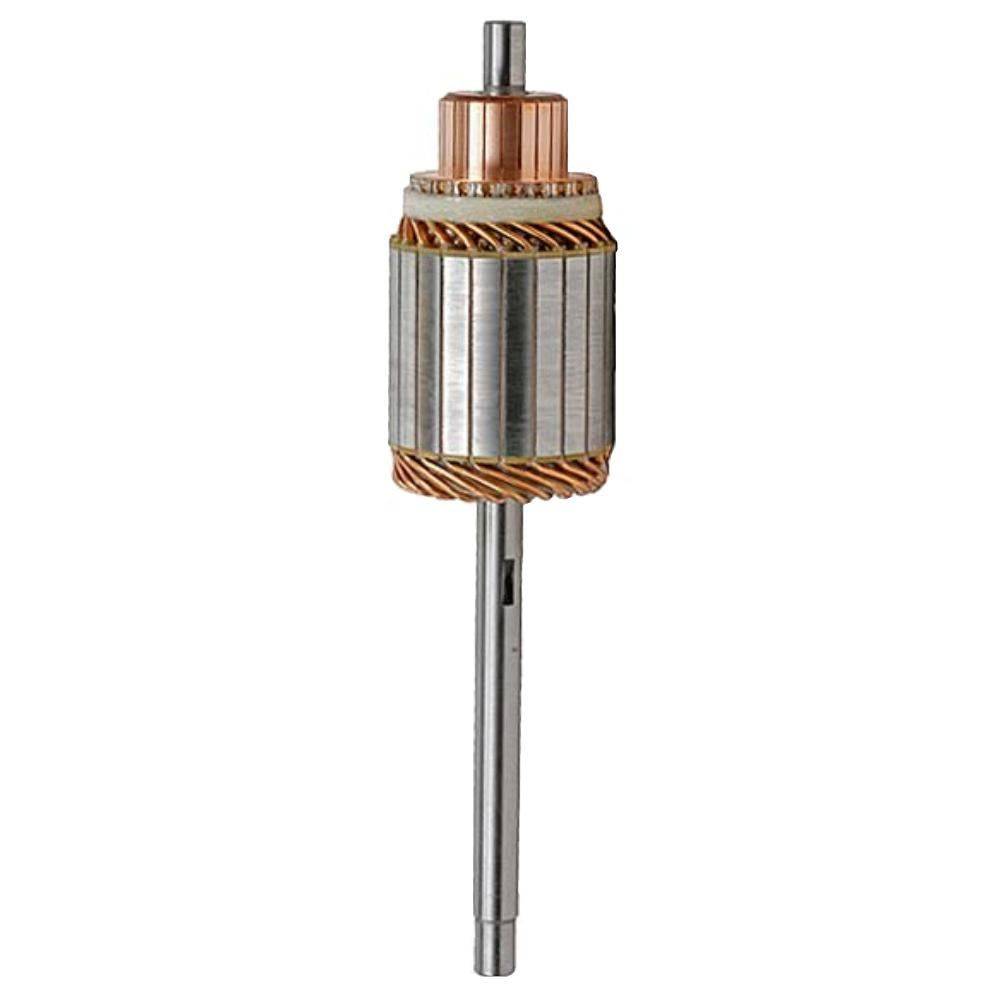

ELS60-1017 Starter Armature Fits John Deere 320 330 40 420 430 430C 440 440I M
ELS60-1017 Starter Armature Fits John Deere 320 330 40 420 430 430C 440 440I M
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
Aftermarket Starter ArmatureTech Info:
-Voltage: 6/12
-Rotation: CW/CCW
-Body OD: 2.937" (74.6mm)
-CE OD: 0.563" (14.3mm)
-DE OD: 0.563" (14.3mm)
-Length: 12.469" (316.7mm)
-CE to Bearing/Bushing Stop: 0.827" (21mm)
-DE to Bearing/Bushing Stop: 7.165" (182mm)
-Number of Comm Bars: 23
-Lam Stack Thickness: 2.614" (66.4mm)
-High Torque
-Set Screw & Keyway on DEFits John Deere:
Tractor Models: 320, 330, 40, 420, 430, 430C, 440, 440, 440I, M, MC, MT, M69, M70, M69, M70
Model Breaks: 320 (1956-1960, 2cyl Engine), 330 (1956-1960, 2cyl Engine), 40 (1953-1955, 2cyl Engine), 420 (1956-1960, 2cyl Engine), 430 (1957-1960, 2cyl Engine), 430C (1957-1960, 2cyl Engine), 440 (1957-1960, 2cyl Engine), 440 (1958-1960), 440I (1958-1960), M / MC / MT (1947-1953, All), M69 / M70 (1947-1953, All), M69 / M70 (1952-1958, All)
-Voltage: 6/12
-Rotation: CW/CCW
-Body OD: 2.937" (74.6mm)
-CE OD: 0.563" (14.3mm)
-DE OD: 0.563" (14.3mm)
-Length: 12.469" (316.7mm)
-CE to Bearing/Bushing Stop: 0.827" (21mm)
-DE to Bearing/Bushing Stop: 7.165" (182mm)
-Number of Comm Bars: 23
-Lam Stack Thickness: 2.614" (66.4mm)
-High Torque
-Set Screw & Keyway on DEFits John Deere:
Tractor Models: 320, 330, 40, 420, 430, 430C, 440, 440, 440I, M, MC, MT, M69, M70, M69, M70
Model Breaks: 320 (1956-1960, 2cyl Engine), 330 (1956-1960, 2cyl Engine), 40 (1953-1955, 2cyl Engine), 420 (1956-1960, 2cyl Engine), 430 (1957-1960, 2cyl Engine), 430C (1957-1960, 2cyl Engine), 440 (1957-1960, 2cyl Engine), 440 (1958-1960), 440I (1958-1960), M / MC / MT (1947-1953, All), M69 / M70 (1947-1953, All), M69 / M70 (1952-1958, All)
Models This Part Fits:
320, 330, 440, MT, 430, 40, MC, M, 440I, 420, M70, M69, 430CAdditional Information:
Voltage: 6/12 Rotation: CW/CCW Body OD: 2.937" (74.6mm) CE OD: 0.563" (14.3mm) DE OD: 0.563" (14.3mm) Length: 12.469" (316.7mm) CE to Bearing/Bushing Stop: 0.827" (21mm) DE to Bearing/Bushing Stop: 7.165" (182mm) Number of Comm Bars: 23 Lam Stack Thickness: 2.614" (66.4mm) High Torque Set Screw & Keyway on DE Starter ArmatureReference Numbers:
12072, 12072-A, 1872505, 1873354, 2027Makes This Part Fits:
Shop John Deere Wholesale PartsProduct Category:
Agriculture Replacement PartsProduct Group:
Product Sub Group:
