AIC Replacement Parts

**TO VIEW PRICE**

LOGIN or REGISTER

Models This Part Fits:

610DTE, 610C, 610, 2610SD-DTC, 2610SD, 2610

Additional Information:

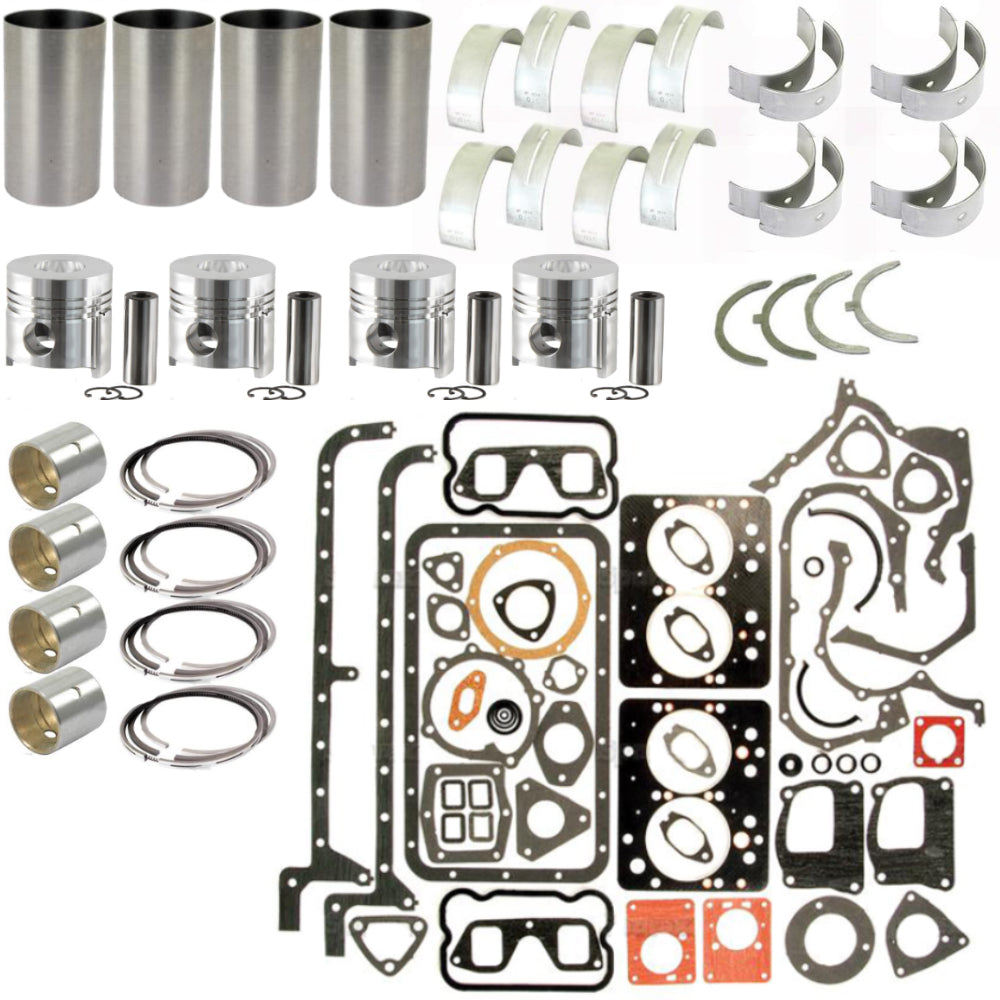

Kit Contains: (4) Standard Piston Piston Length: 3.99” (101.40mm) Compression Height: 2.34” (59.44mm) Bore: 4.01” (101.96mm) Bowl Depth: 0.96” (24.40mm) Chamber: 1.90” (48.46mm) Pin: 1.25” (31.93mm) No. of Rings: 3 Replaces Part Number: TX15107 (4) Liner Liner - 4.01” (102mm) Bore Replaces Part Number: TX12098 (4) Main Bearings (Pair) Main Bearing Kit (Std.) (4) Standard Connecting Rod Bearing Connecting Rod Bearing Pair (Std.) (4) Small End Bushing Inside Diameter 1.23” (31.4 mm) Wall Thickness 0.09” (2.35 mm) Overall Length 1.36” (34.7 mm) Lubrication Hole Yes Replaces Part Number: TX10196 (4) Piston Ring Set Replaces Part Number: TX15167 (1) Thrust Bearings Set Thrust Washer Set (Std.) (Centre Tab) (1) Full Gasket Set Replaces Part Number: TX16504

Reference Numbers:

TX15107, TX12098, TX16504, TX10196, TX15167

Makes This Part Fits:

Shop Long Wholesale Parts

Product Category:

Agriculture Replacement Parts

Product Group:

Product Sub Group:

View full details
