One New Aftermarket Replacement Alternator for Farmtrac and Mahindra Tractors

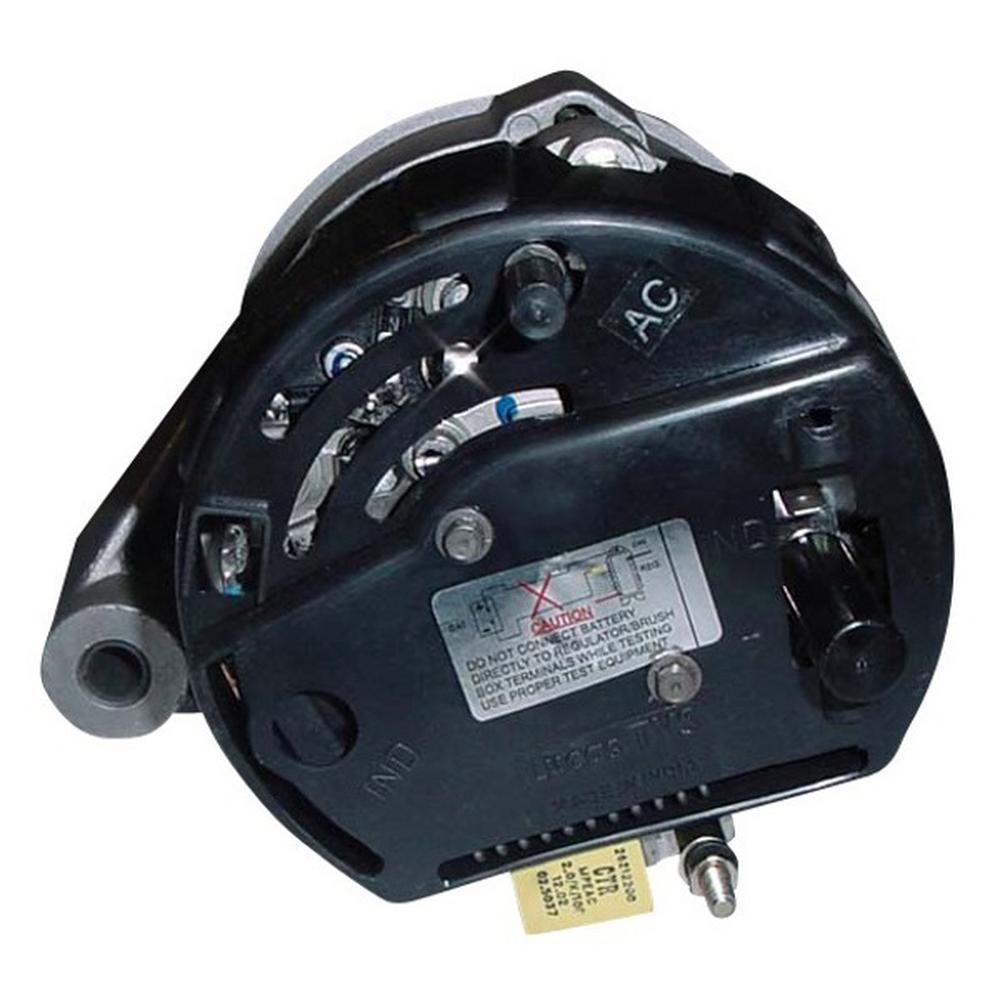

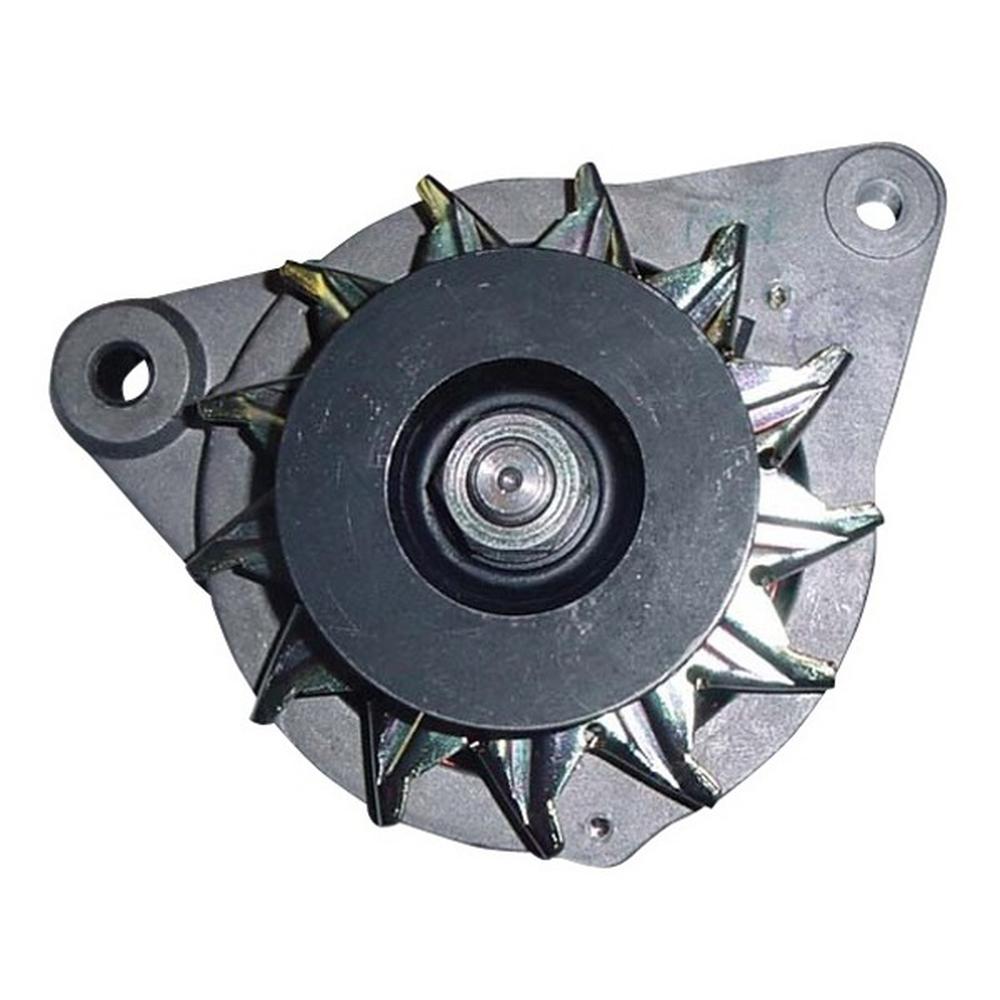

This aftermarket replacement alternator is a Fits Lucas A115-family unit designed to restore reliable electrical charging on Farmtrac and Mahindra diesel tractors. It features an external fan, internal voltage regulator, spool mount, and negative polarity -- a direct drop-in replacement for the original Fits Lucas alternator fitted to these machines.

Specifications

• Unit Type: Alternator (Fits Lucas A115 family)
• Voltage: 12V
• Amperage: 36 Amps
• Rotation: Clockwise (CW)
• Pulley Class: V1 (single V-belt)
• Fan Type: External
• Regulator: Internal
• Mount Type: Spool
• Mounting Ear 1 Hole: M10-1.5 Threaded
• Mounting Ear 2 Hole: 10.0mm Unthreaded
• B+ Terminal: M6-1.0
• Polarity: Negative
• Weight: 10.43 lbs / 4.74 kg

Compatible Models

Farmtrac: 435 (2.1L Diesel), 535 (2.1L Diesel), 545 (2.9L Diesel), 545 DTC (2.9L Diesel), 555 (3.1L Diesel), 555 DTC (3.1L Diesel)

Mahindra: 2810 (10 Series, 2002-2006), 3325 (25 Series, 2004-2008), 3505 (05 Series, 2004), 3510 (10 Series, 2002-2009), 3525 (25 Series), 4025 2WD T4 (25 Series, 2008-2012), 4035 Gear (35 Series, 2009-2012), 4110 (10 Series, 2002-2009), 4500 (00 Series, 2001-2008), 4500 4WD (00 Series, 2001-2008), 4505 (05 Series), 4525 2WD T4 (25 Series, 2008-2012), 475 DI (05 Series, 1995), 485 DI (05 Series, 1997), 5005 (05 Series), 5500 (00 Series, 2002-2008), 5500 4WD (00 Series, 2002-2008), 5530 2WD T3 (30 Series, 2008-2012), 5530 4WD (30 Series, 2008-2012), 5530 4WD T3 (30 Series, 2008-2012), 575 DI (05 Series, 1994), 6500 (00 Series, 2002-2008), 6500 4WD (00 Series, 2002-2008), 6530 2WD T3 (30 Series, 2008-2012), 6530 4WD (30 Series, 2008-2012), 6530 4WD T3 (30 Series, 2008-2012), E350 (05 Series)

Replaces Part Number(s):

ESL11954, 000040001C01, 004001C01, 40001C01, 5556267R91, 005557754R91, 26021276, 26021278, 26921168A

Aftermarket Interchange Numbers

Lester: 8826 | Arrowhead: 400-30023 | J&N: 400-30000, 400-30023 | Cargo: 113683 | Fits Lucas: 26921168, 26021276, 26021278, 26921168A

New aftermarket replacement part - not remanufactured, not used.
