Expansion Valve 3321511M91 Fits Massey Ferguson 2675 2705 2745 2775 2805

Name: Expansion Valve 3321511M91 Fits Massey Ferguson 2675 2705 2745 2775 2805
Brand: AIC Replacement Parts
SKU: zbox_1145182
Price: 13.51 USD
Availability: InStock

Expansion Valve 3321511M91 Fits Massey Ferguson 2675 2705 2745 2775 2805

AIC Replacement Parts

TO VIEW PRICE

LOGIN or REGISTER

Product variants

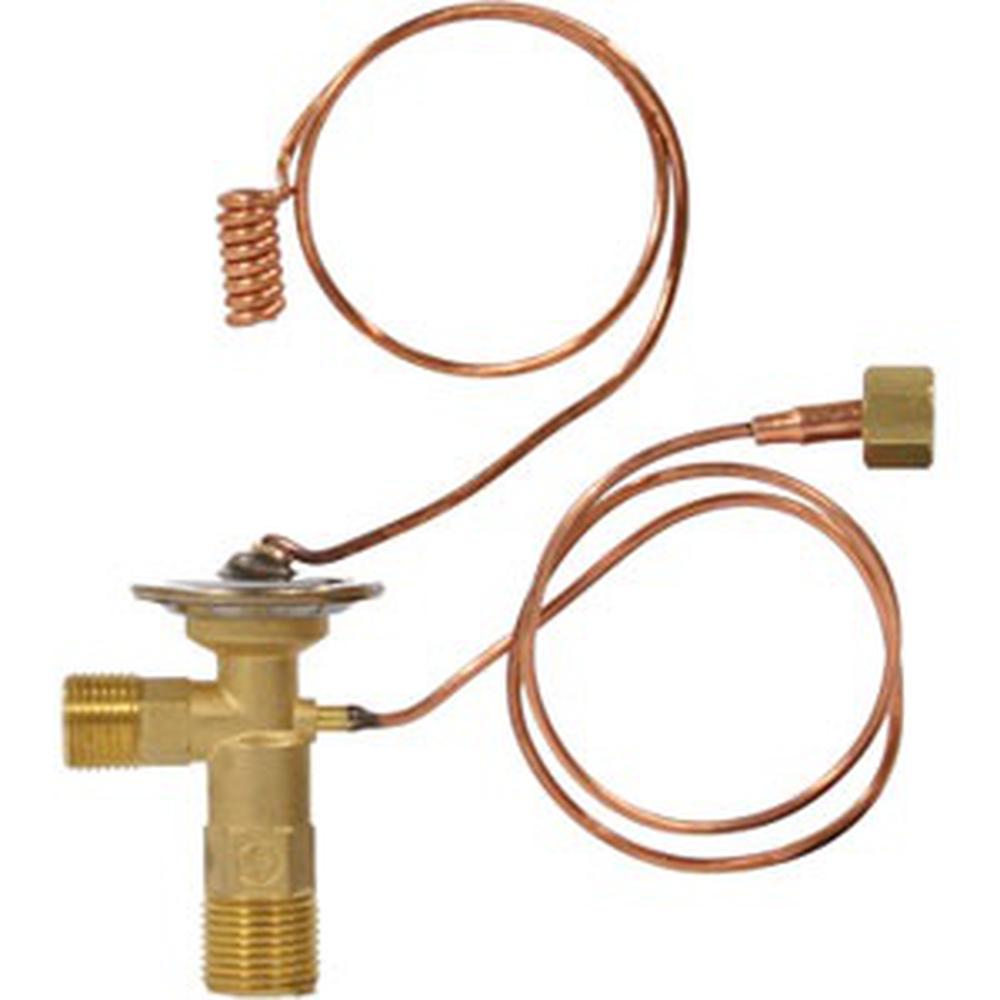

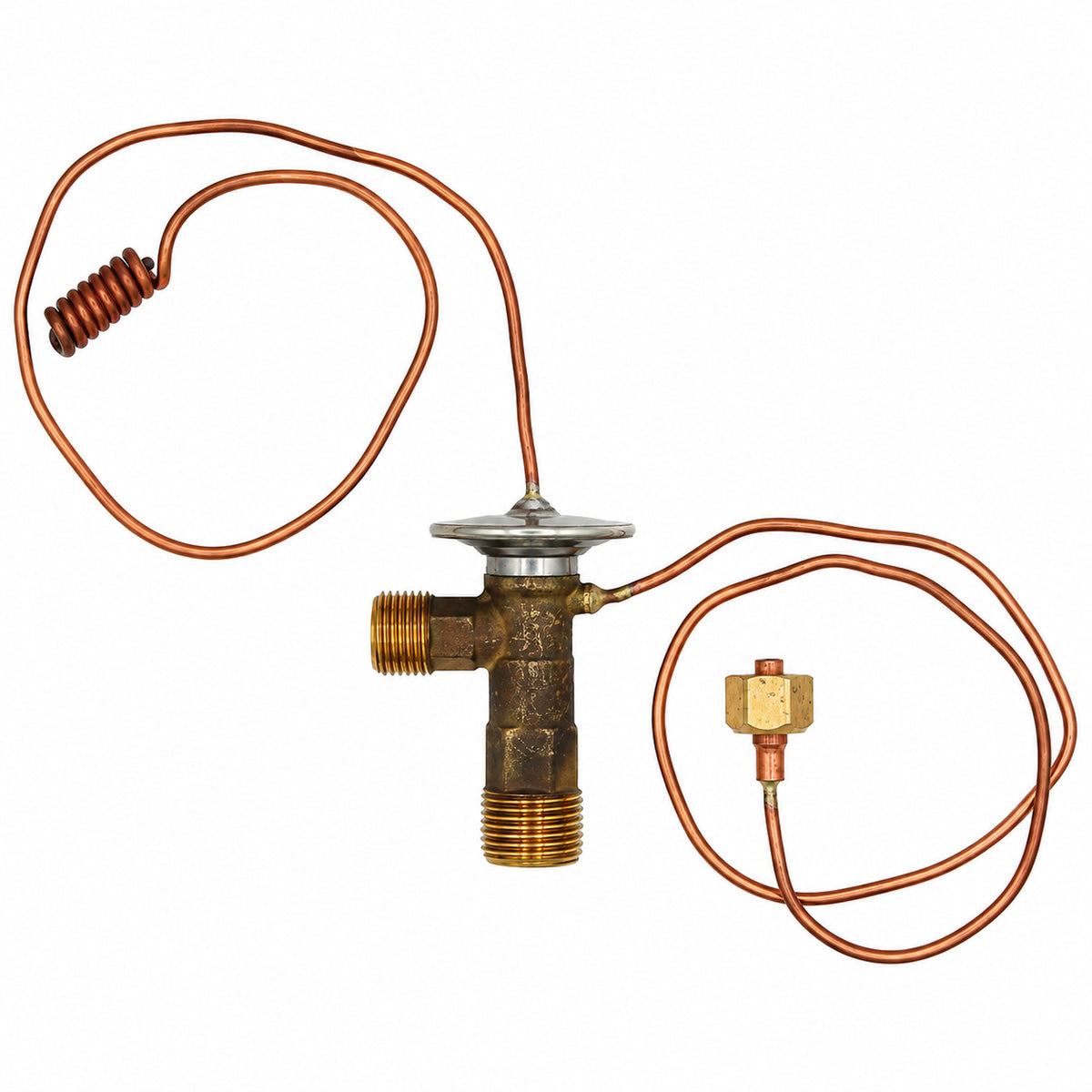

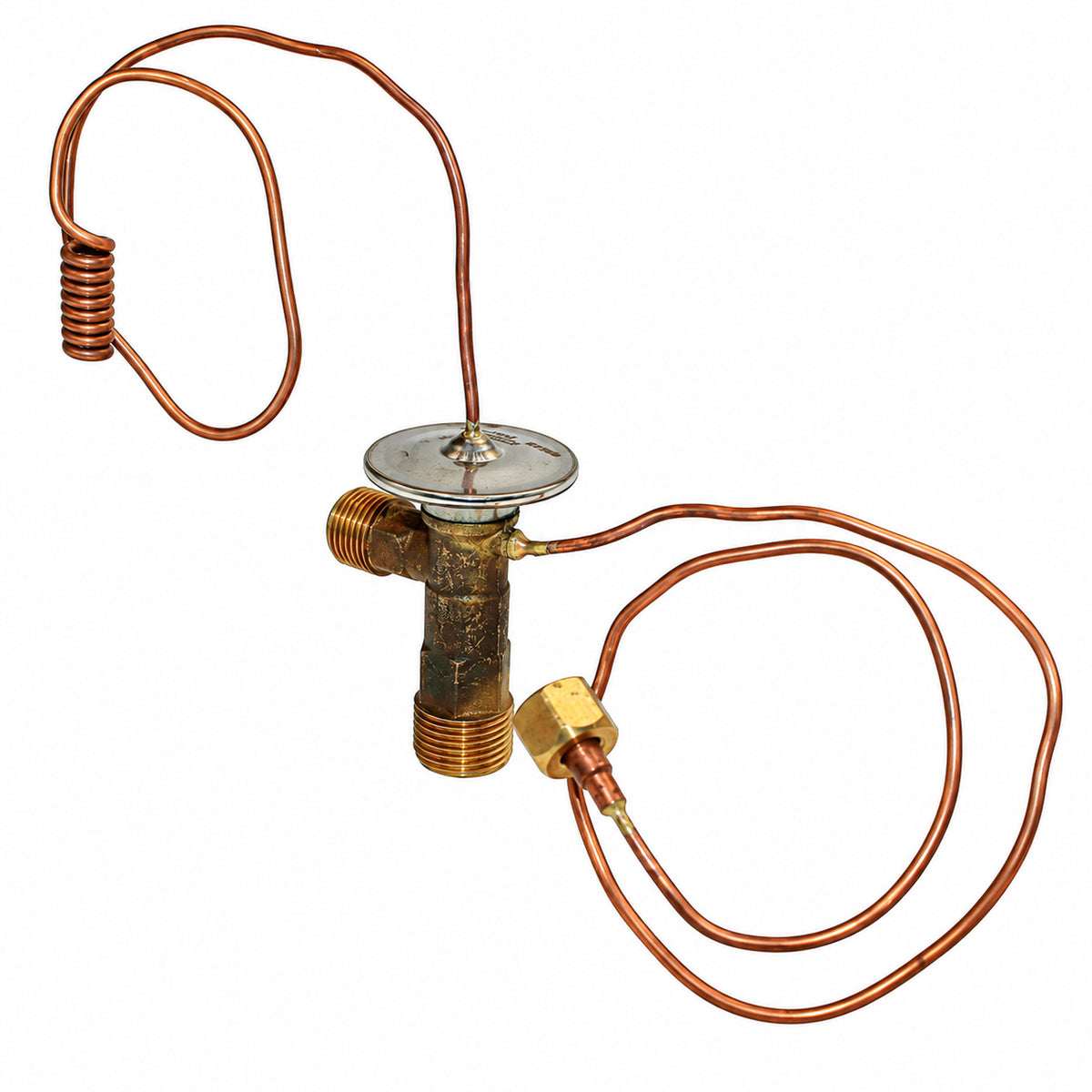

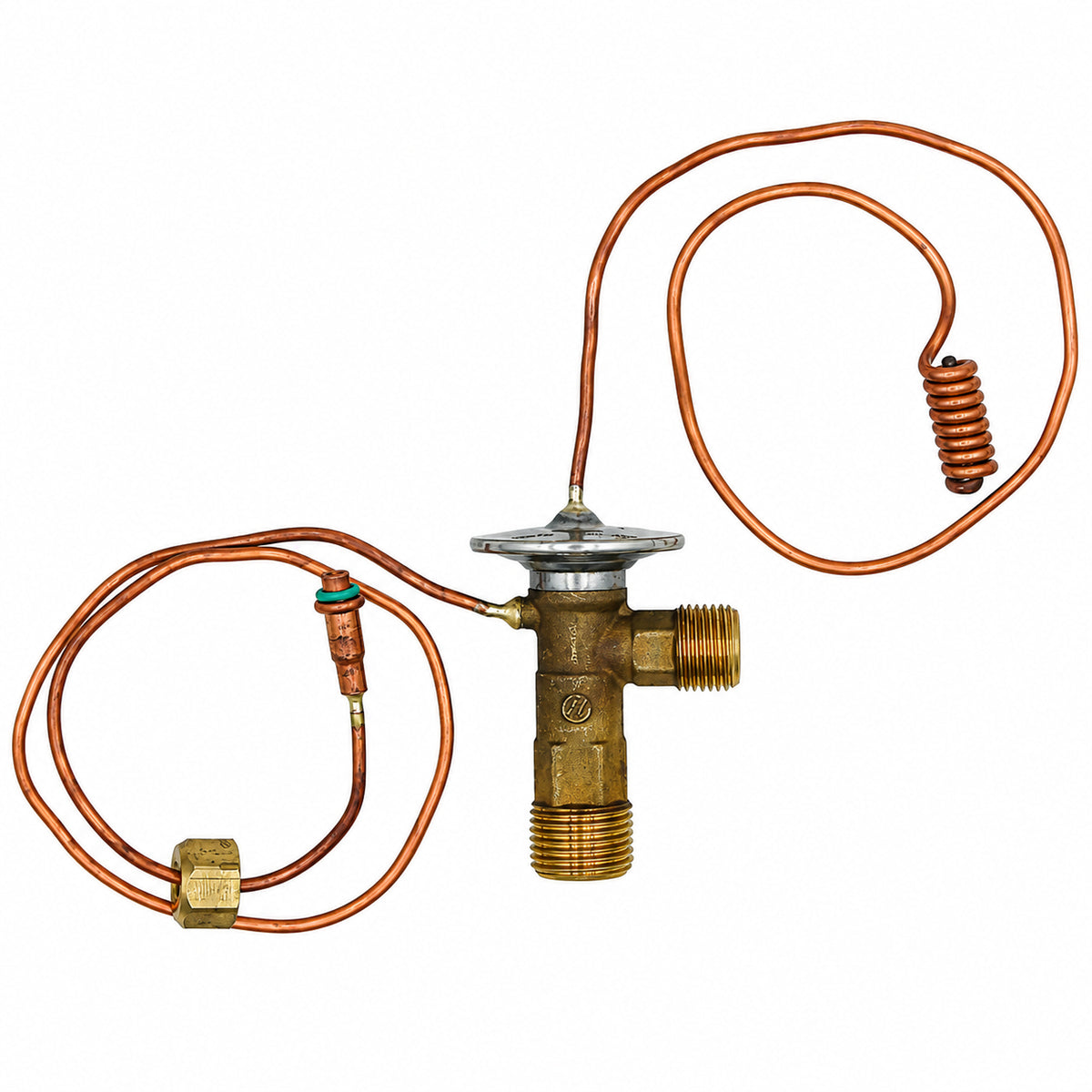

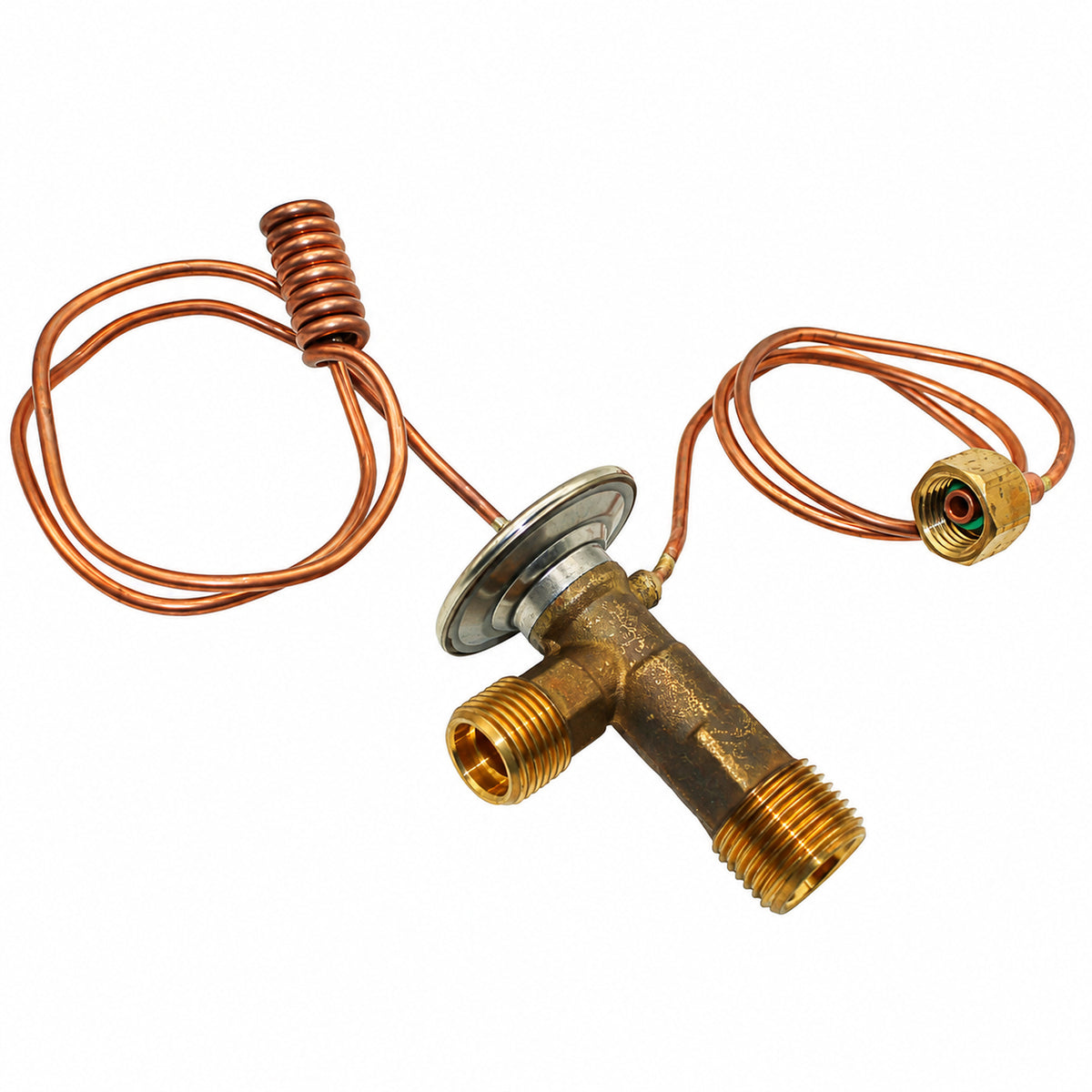

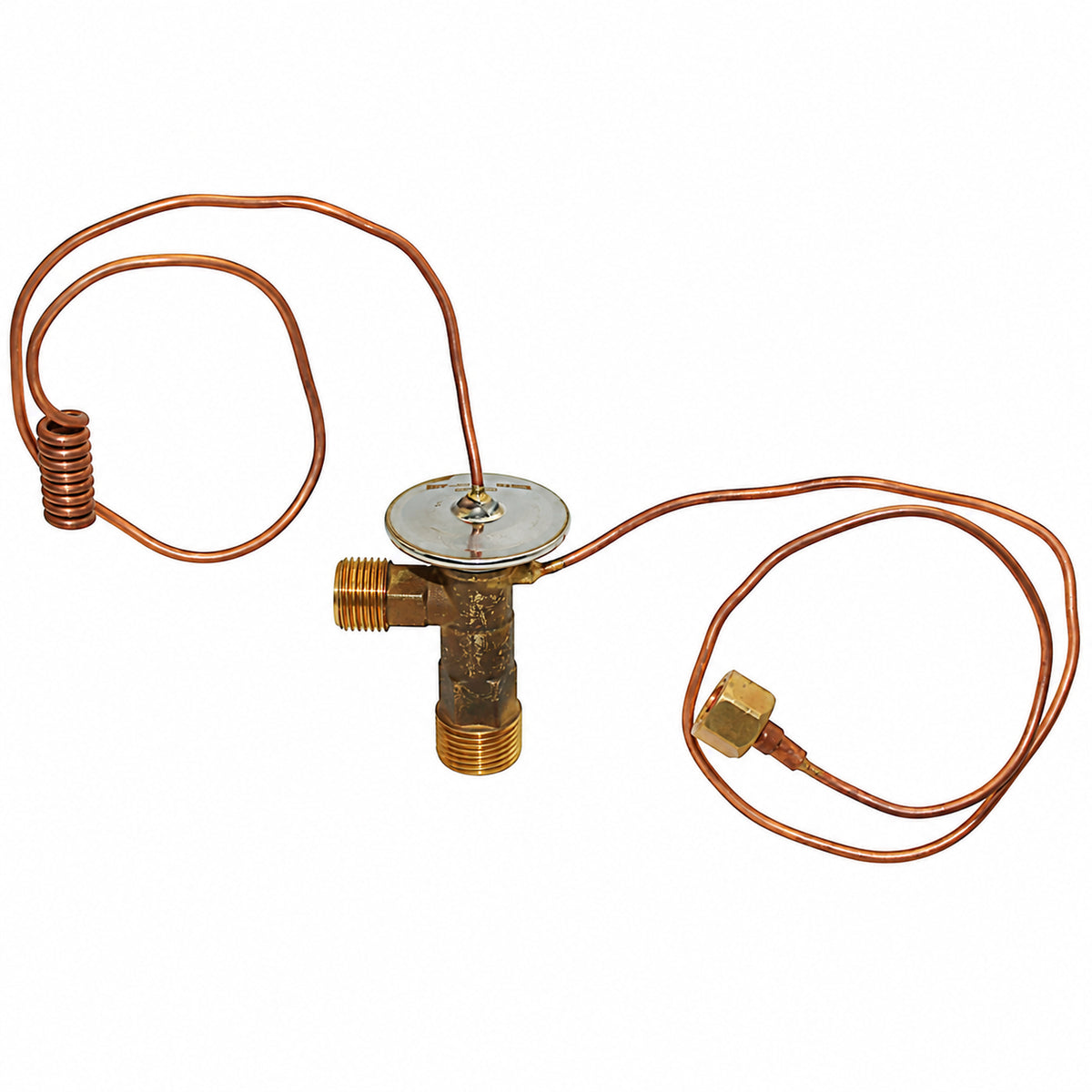

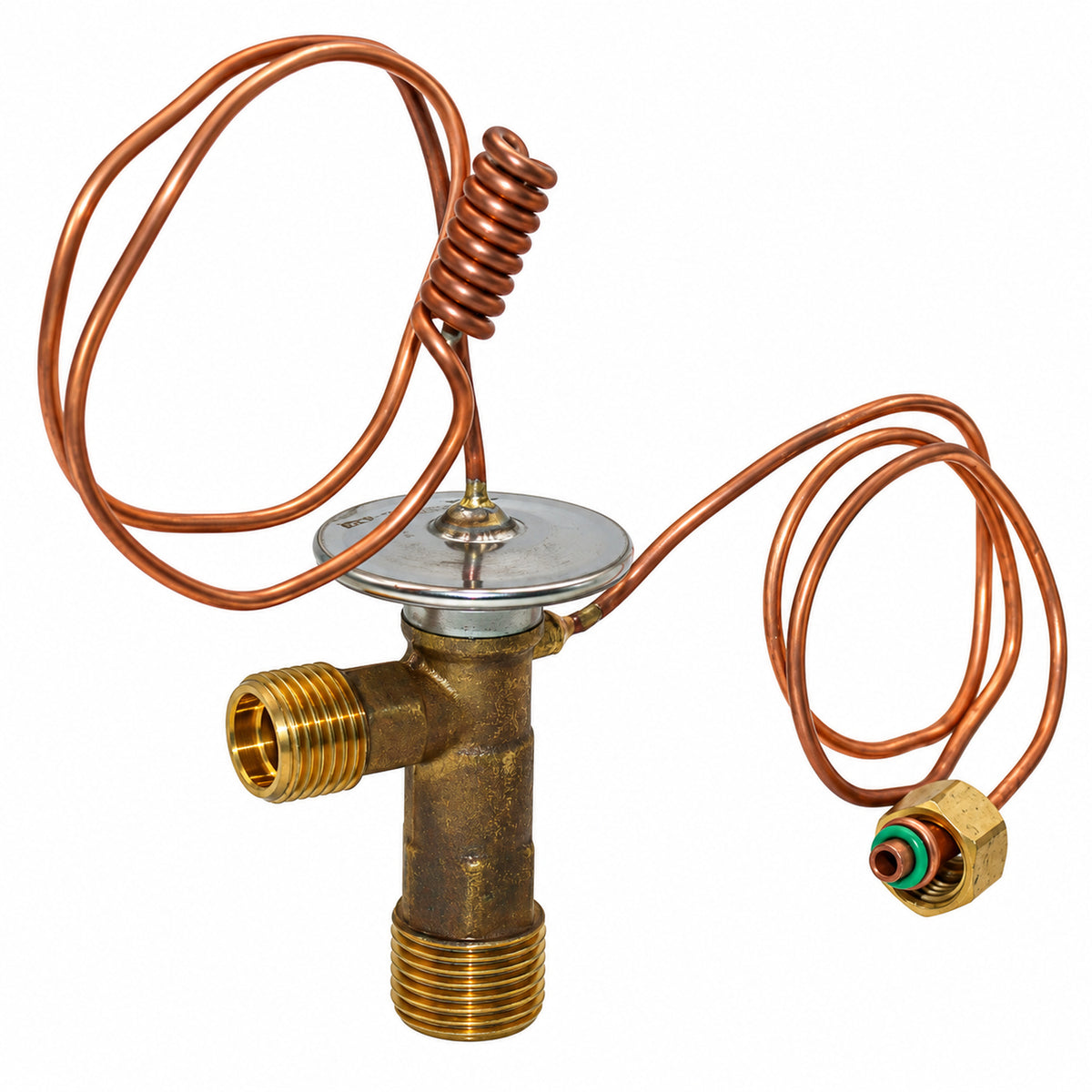

One New Aftermarket Replacement Externally Equalized Expansion Valve for Massey Ferguson Tractors

This aftermarket replacement peanut-style, externally equalized expansion valve (TXV) regulates refrigerant flow in the cab air conditioning system of Massey Ferguson (MF) tractors and is a direct replacement for OEM part number 3321511M91. The externally equalized design senses equalizing pressure at the evaporator outlet for stable refrigerant flow regardless of system pressure changes, maintaining efficient cab cooling. This valve uses O-ring connections at both the inlet and outlet for leak-free installation.

Specifications

Valve Type: Peanut
Inlet Size: #6
Inlet Type: O-ring
Outlet Size: #8
Outlet Type: O-ring
Tonnage: 2.0T
Superheat: 8
Capillary Length: 14-1/2"
Equalizer Length: 18"
Equalizer Fitting: 7/16-20 UNF

Compatible Models

Massey Ferguson Tractors: 2675, 2705, 2745, 2775, 2805

Replaces Part Number(s):

3321511M91, 1634663M1, 3038918M91, 3380223M1, 3551655M91, 773361M91, AH140818, AG726761, AL37525, AR58482, RE13886, RE206757, RE577432, 1280333C1, 1280333C2, 128033C1, 128033C2, 118305C3, 274571, 47597455, 47597457, 80449624, E3NN19849AA, V48724, V70267, BN69872, 86000562, 904-213, 904-304, 904-243, 904-288, 904-296, 909205, 909220, 909230, 9966200, 60012-5002, 70259379, 70259978, 70261764, 70268470, 261764, 700711760, 700712704, F205550050180, 176.713.0, 70741091, 82002793, 9966613, 9971586, AH204686, 2G0401, 2G-0401, 3E-9343, 128033C1, 128033C2

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

4050, 484, 7445, 7080, 3650, 3788, E3, L, 4450, SPX2130, TR96, 2755, 200, 2640, 4040S, 4250, 3525, 72-94, 2040S, 4000, 4960, 8550, SPX3200B, 160, 110-90DT, 2955, 210, 1188HY/4, 2775, 2750, 260, 1420, 890A, 4840, 1400, 82-94DT, 240, 1166HY/4, 2850, SPX4260, 4760, 3140, 3830, Hydro 186, 270, 4650, 1065, 2115, 2-105, 782, 2355, 8440, 7010, 4040, 6700, 1068H, 1896, 2-180, 9030V, 88-94DT, 7000, GH, 2040, 276II, 8825HP, F115, F120, F, 2675, 3505, 655B, 8080, 2650, 60-90DT, 9910, 2550, Dominator 96, SPX3185, T4050, 1177, 800, M, 9930, 2250, 208, 60-94, 1440, 8840, F100, 6620, 1166, 4440, TL100, 4560, 2855, 115-90, 130-90DT, 3185, 100-90DT, 250, 3050, K, 7720, 5500, 1157, 4425, 655A, 675, F130, 1486, 444E, 7580, 1174HY/4, 344E, 5820, 698, 1915, 8640, 8070, 2-115, 4435, 8825, 6080, 5730, 2805, 2100, 209, 7045, T5040, 2840, 655, 1169, 1072, 9030, 3155, 60-94DT, 275, 4240S, 205, 786, 4186, TL90A, 2-135, 8450, 100-90, SPX3200, 6600, 4850, G, 2705, 72-94DT, 1086, 85-90, 150, 3030, 4455, TR95, 203, 4230, 595, F140, 6500, 6070, 220, 2-150, 7450, 544 ROGATOR, 160-90, 140-90DT, 8830, 4055, 3040, 65-94DT, 4555, 8650, 7440, 4955, 892DLC, 2855N, TR88, 70-90DT, 585, 2350, 110-90, 9030E, 8060, 4700, TL80A, TL90, 8430, 180-90, 1075HY/4, 695, 95, TL70, 670, 8850, 2450, 2950, 115-90DT, 6100, 3210, 4750, 622, 886, 256V, 90-90DT, 3350, 9960, Dominator 76, 4240, 65-90DT, 3255, 55-90, 755A, 1174, 1085, 3055, 88-94, 1466, 9920, 4030, 268, 9965, 3430, 130-90, 65-90, 555, 7050, 80-90DT, 3150, 7722, 4430, 160-90DT, 690, 1188, 986, 1586, 555B, TR75, 8030, 895, 915, 207, T5050, Challenger 65, 3640, 2-155, 82-94, TL100A, 8820, 3388, 65-94, 3588, 6060, 2320, 1470, 5830, 7030, 1169HY/4, 7040, 2420, 815, 256, 3545, 2-110, E, 9940, 1460, TL80, 4166, 3640S, 140-90, 180-90DT, 280 Farmer, 554 ROGATOR, 8040, 1158, Dominator 86, 6000 Hi-Cycle, 9970, 1085HY/4, 644C, 755B, 6622, 616, 9935, 8630, 85-90DT, 7455, 715, 60-90, 4255, 7020, 9976, SPX3150, 7060, 4755, 206, 2940, 5000, 80-90, 5720, 1480, 2745, 1155, 276, 8050, 1055, 1690, 4640, TR85, 2140, T5070, 90-90, 1075, 1900, 1640, 276V, 1594, 699, 690B, 4630, Challenger 75, 201, 70-90, 4350, 885, 2555, 555A, 9950, 3130, 685

Additional Information:

Valve Type: Peanut Inlet Size: #6 Inlet Type: O-ring Outlet Size: #8 Outlet Type: O-Ring Tonnage: 2.0T Superheat: 8 Capillary Length: 14-1/2" Equalizer Length: 18" Equalizer Fitting: 7/16-20 UNF Externally Equalized Expansion Valve

Reference Numbers:

AG726761, 1634663M1, 3038918M91, 3321511M91, 3380223M1, 773361M91, 3551655M91, 1634663M1, 3038918M91, 3321511M91, 3380223M1, 773361M91, 3551655M91, 60012-5002, 70741091, 82002793, 9966613, 9971586, AH204686, 2G0401, 2G-0401, 3E-9343, 904-213, 904-304, 904-243, 904-288, 904-296, 909205, 909220, 909230, 86000562, V48724, V70267, 118305C3, 1280333C2, 274571, 47597455, 47597457, 274571, 47597455, 47597457, 80449624, E3NN19849AA, 70268470, 70261764, 70259978, 70259379, 700712704, 700711760, 261764, AH140818, AG726761, AL37525, AR58482, RE13886, RE206757, RE577432, 80449624, E3NN19849AA, V70267, 274571, 47597455, 47597457, BN69872, 176.713.0, F205550050180, AG726761, 118305C3, 1280333C1, 1280333C2, 274571, 47597455, 47597457, 128033C1, 128033C2, 274571, 9966200

Makes This Part Fits:
