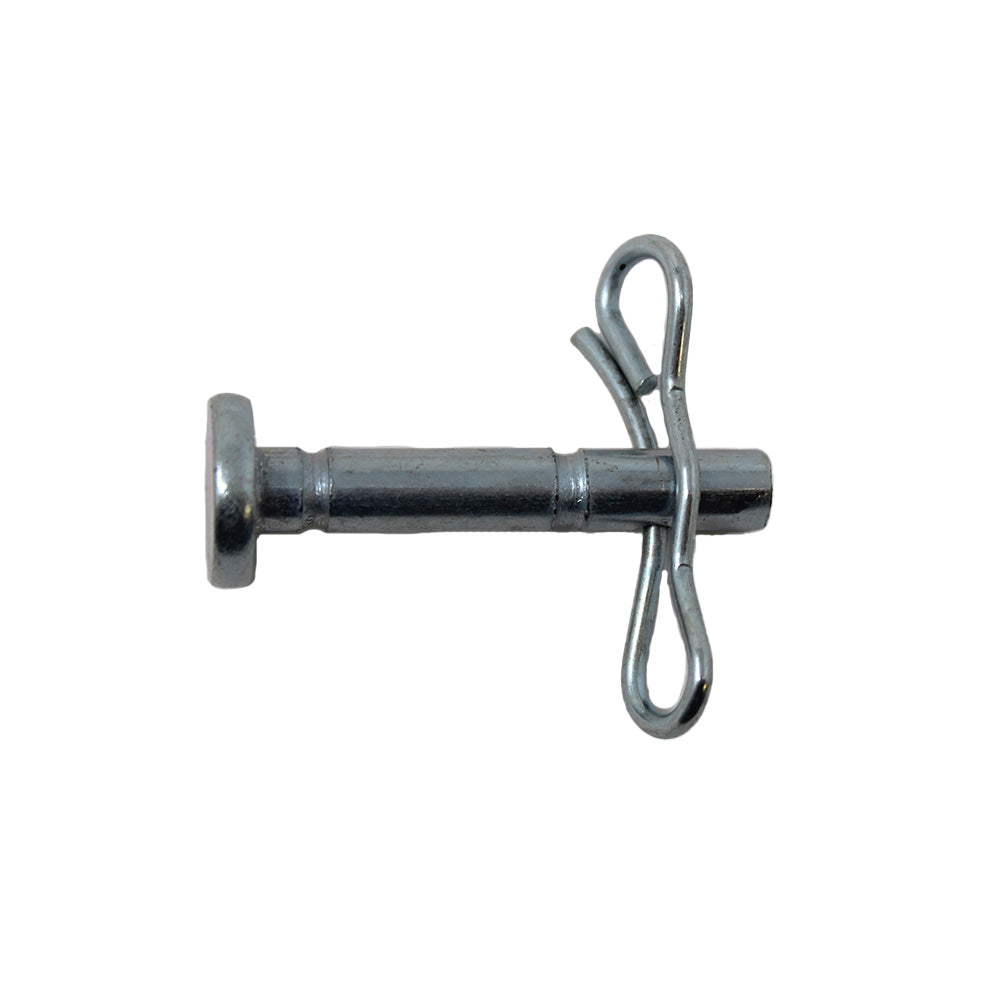

One New Aftermarket Replacement Shear Pin & Bow Tie Cotter Pin Set for Cub Cadet, MTD, Troy-Bilt, and Craftsman Snow Blowers

This aftermarket replacement shear pin and bow tie cotter pin set is a critical auger safety component for 2-stage and 3-stage snow blowers. The shear pin secures the auger to the drive shaft and is engineered to break under overload, protecting the gearbox and drivetrain when the auger strikes ice or debris. The bow tie cotter pin (714-04040) locks the shear pin in place. Both pins are consumed parts that should be kept on hand throughout the snow season for fast, easy field replacement.

Specifications

• Includes: One Shear Pin and One Bow Tie Cotter Pin
• Shear Pin Diameter: 0.25 in. (1/4 in.)
• Shear Pin Length: 1.5 in.
• Material: Grade 2 Steel

Compatible Models

Cub Cadet Snow Blowers (2-Stage and 3-Stage): 2X 24, 2X 26, 2X 28, 2X 30, 3X 24, 3X 26, 3X 30, 524SWE, 526SWE, 528SWE, 530SWE, 900 Series, 928SWE, 930SWE, 933SWE, 945SWE, XT1, XT2, XT3, LTX, RZT series

MTD Snow Blowers: Models 31A-3BAD700 through 31AS6LEG752 (2005 and newer)

Troy-Bilt Snow Blowers: Storm 2410, Storm 2840, Storm 3090 series

Craftsman Snow Blowers: 22 in., 24 in., 26 in. 2-stage and 3-stage models

Also fits: Yard-Man, Yard Machines, Murray, Huskee, White, Bolens snow blowers using the same auger shear pin specification

Replaces Part Number(s):

738-04124A, 738-04124, 73804124A, 714-04040, 71404040, 938-04124A, 938-04124, 02-901

Aftermarket Interchange Numbers

Oregon 80-749, Stens 780-241, YS-714-04040

New aftermarket replacement part - not remanufactured, not used.
