Fits John Deere 20 30 40 Series Push-Pull Hydraulic Coupler Conversion Kit
Fits John Deere 20 30 40 Series Push-Pull Hydraulic Coupler Conversion Kit
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

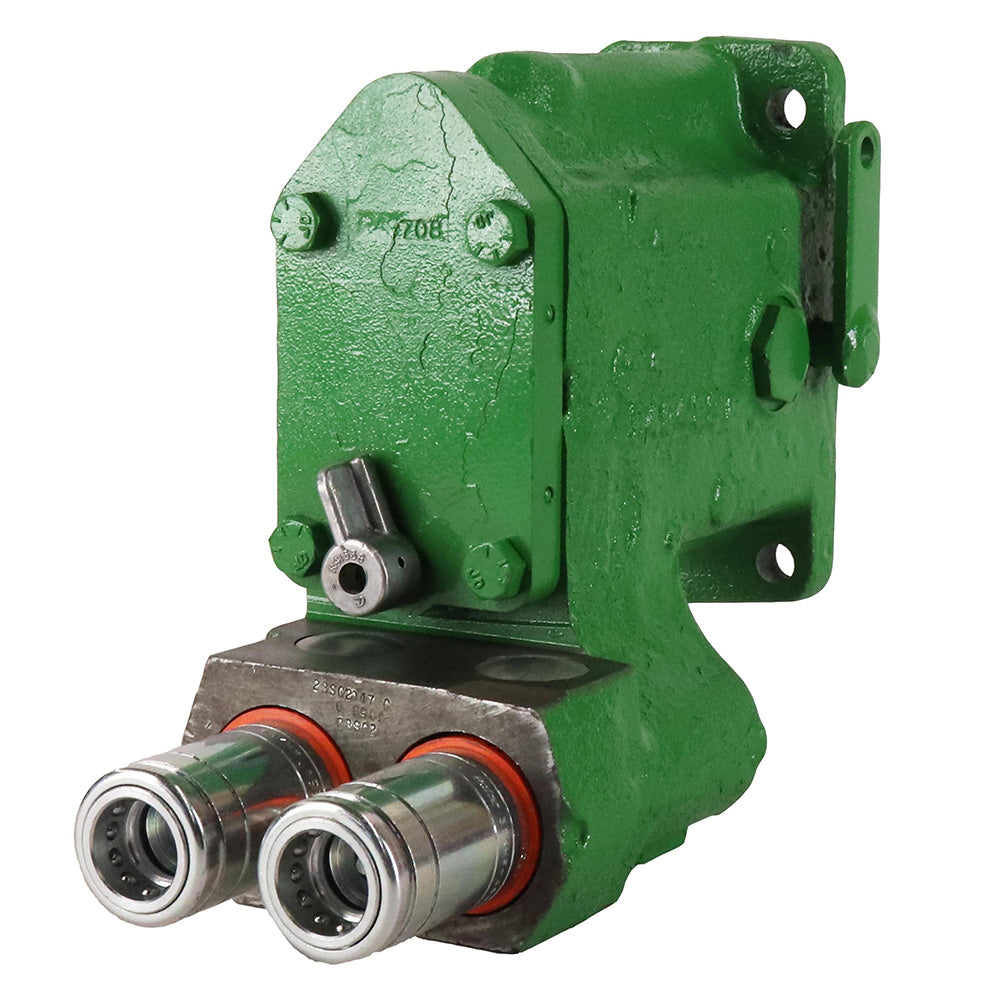

One New Aftermarket Hydraulic Coupler Kit Fits John Deere 20, 30, 40 Series, Push-Pull Coupler
Compact push-pull coupler for applications with higher flow rate and limited space.
Connectable under residual pressure.
Reduced dimensions, 15mm shorter than standard version.
Updated coupler design, push-pull coupling Easy installation Additional o-ring installed to prevent premature leaking Breakaway function

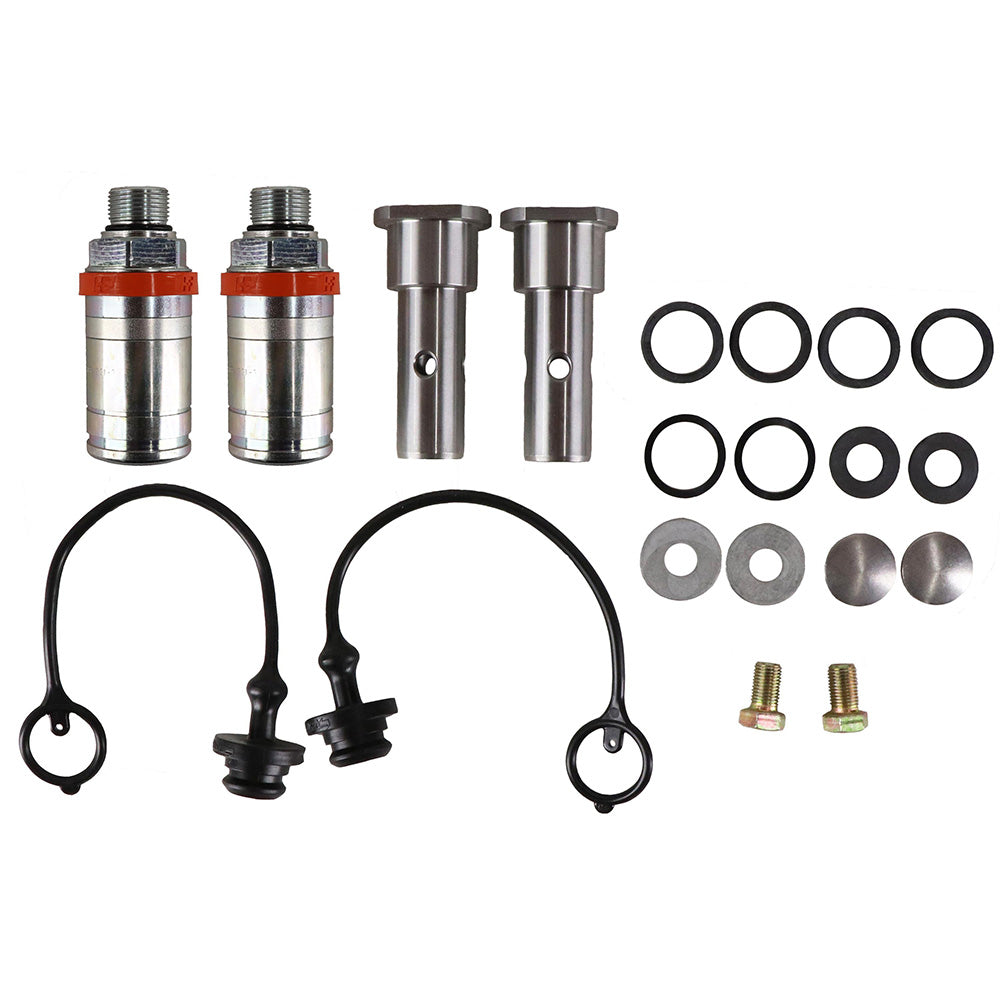

Includes 2-Couplers,
2-Internal Adapters,
2-Plugs, Bolts,
O-Rings & Seals
Fits John Deere 20, 30, 40 Series
Tech Info:
-Style: Push-Pull
-Max Pressure (PSI): 3625
-Body Size: 1/2"
-ISO: 7241A
-New/Reman: New
-Sold As: Pkg. of 2
-Thread Size: Male; 22mm x 1.5" ORB
Replaces Part Number(s): 8302335
Models This Part Fits:
3010, 1020, 4430, 2040, 7020, 8440, 2030, 4020, 2940, 3130, 3020, 5020, 4240, 4840, 4320, 4030, 4000, 6030, 2240, 8430, 2520, 1530, 4230, 2630, 1030, 4520, 2020, 3030, 8630, 8640, 1520, 7520, 4640, 4620, 4040, 1630, 2130, 4630, 2440, 2640, 4440, 4010, 1130, 2840Additional Information:
Style: Push-Pull Max Pressure (PSI): 3625 Body Size: 1/2" ISO: 7241A Thread Size: Male; 22mm x 1.5" ORB Hydraulic Coupler KitReference Numbers:
8302335Makes This Part Fits:
Shop John Deere Wholesale PartsProduct Category:
Agriculture Replacement PartsProduct Group:
Product Sub Group:
View full details
