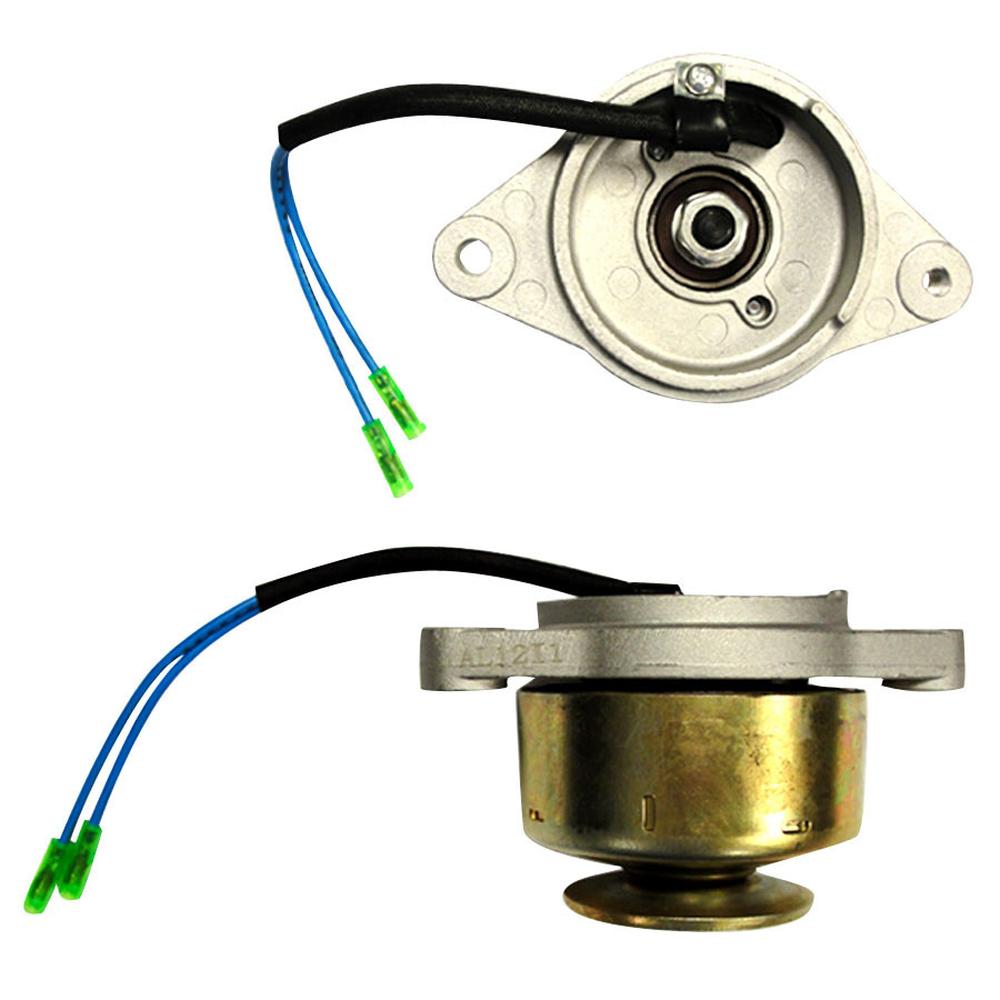

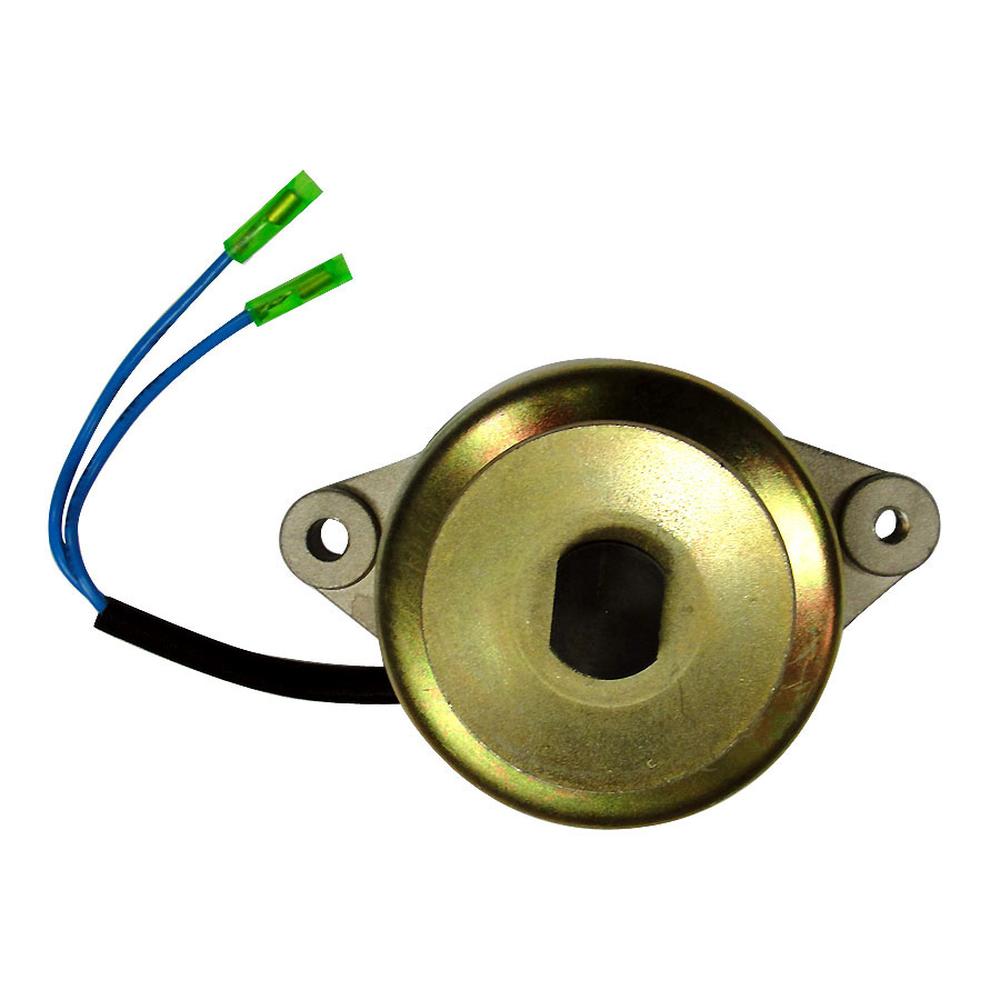

One New Aftermarket Replacement Alternator (Dynamo) Fits Kubota B-Series Compact Tractors

This aftermarket replacement alternator (permanent magnet dynamo) restores charging system function on Fits Kubota B-Series compact tractors powered by the Fits Kubota D1105 diesel engine. It mounts to the engine and keeps the tractor's 12-volt electrical system charged during operation.

Specifications

• Voltage: 12V
• Output: 14 Amps
• Type: Permanent Magnet Dynamo
• Polarity: Negative Ground
• Pulley: Single-groove solid pulley, 2.598 in (66 mm) OD
• Mounting Ear 1: M8x1.25 threaded, 0.61 in (15.5 mm) thick
• Mounting Ear 2: 8.5 mm unthreaded, 0.61 in (15.5 mm) thick
• Harness exits rear at 10:00 position

Compatible Models

Fits Kubota B-Series Compact Tractors: B2301HSD, B2320DT, B2320DTN, B2320DTN-1, B2320DTWO, B2320HSD, B2320HSDN, B2601HSD, B2620HSD, B2650HSD, B2920HSD, B3150HD, B3150SUHD, B3200HSD, B3200HSDWO, B3300SUHSD

Replaces Part Number(s):

6A830-59250, 6A830-59250-A

Aftermarket Interchange Numbers

1900-0511

New aftermarket replacement part - not remanufactured, not used.
