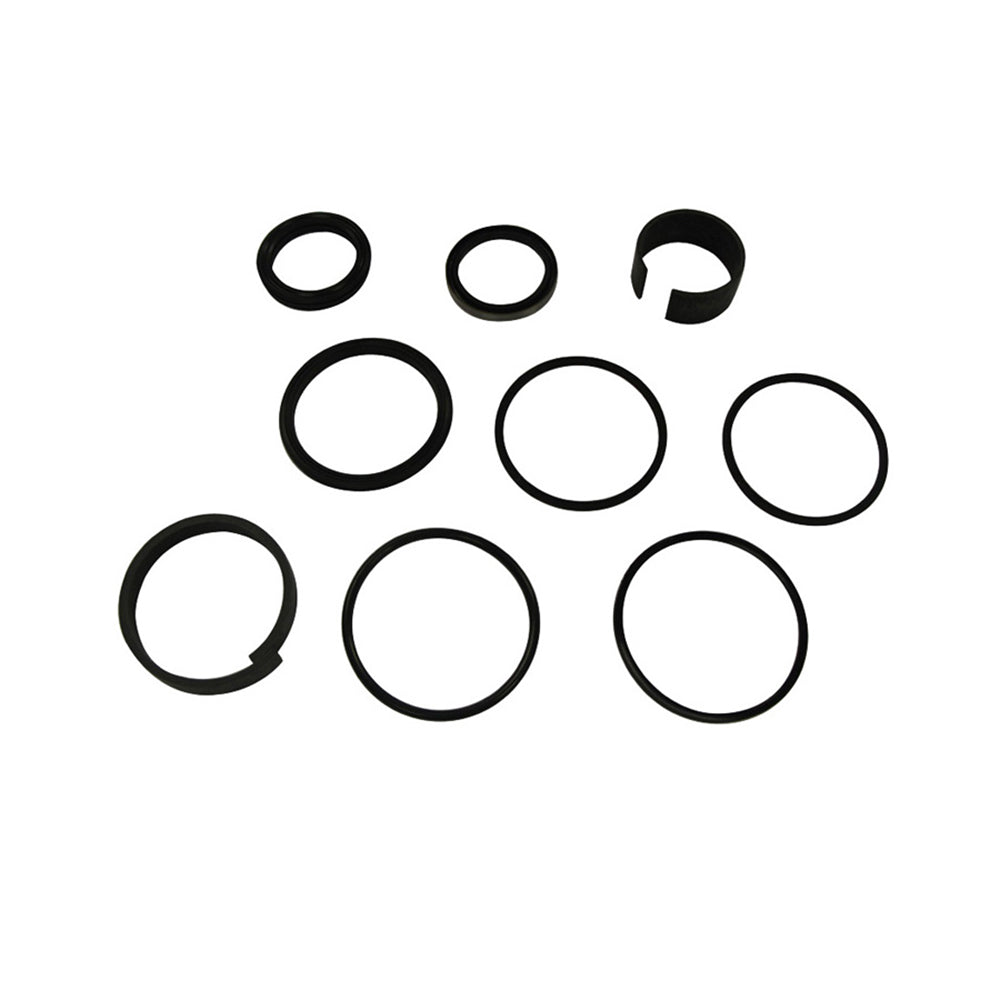

One New Aftermarket Replacement Boom (Lift Arm) Cylinder Seal Kit for New Holland Skid Steer Loaders

This aftermarket replacement boom lift arm cylinder seal kit restores hydraulic cylinder function on New Holland skid steer and track loader models. Designed to seal the lift arm (boom) hydraulic cylinder, this kit replaces worn or leaking seals on cylinders with a threaded gland design. Rod diameter is 1-3/8 in. (34.9 mm); bore diameter is 2-1/2 in. (63.5 mm).

Specifications

• Rod Diameter: 1-3/8 in. (34.9 mm)
• Bore Diameter: 2-1/2 in. (63.5 mm)
• Cylinder Style: Threaded gland (verify on LX485 - confirm 2.50 in. bore before ordering)

Compatible Models

New Holland Skid Steer Loaders:

• C175 (SN: N7M466429-; N7M467969-, Cyl #: 87675772; SN: N7M467969-, Cyl #: 87459207)
• L150 (SN: -N7M461810; -N7M466067, -N7M466068, Cyl #: 87038975)
• L160 (SN: -N7M448359; N7M448360-, Cyl #: 87038977; 86633432)
• L170 (Cyl #: 86633432 or 87038977 - Before SN N7M456356; After SN N7M456357; After SN N7M468800)
• L175 (SN: N7M470572-; N7M470553-, Cyl #: 87459207; 87460855; 87675772)
• L565
• LS150 (Cyl #: 86590848 or 87038975 - After Sept 1999)
• LS160 (Cyl #: 86633432 or 87038977 - After Sept 1999)
• LS170 (Cyl #: 86633432 or 87038977 - After Sept 1999)
• LX485 (with 2.50 in. bore - verify before ordering)
• LX565 (with threaded gland)
• LX665 (with threaded gland; Cyl #: 86528677 Between Jan 1994 - Sept 1999)

Note: Verify your cylinder number and serial number before ordering. Fitment is cylinder-specific and serial-number-dependent on several models.

Replaces Part Number(s):

86570922, 86527694, 86527695

Aftermarket Interchange Numbers

A-86570922, NH-86570922

New aftermarket replacement part - not remanufactured, not used.
