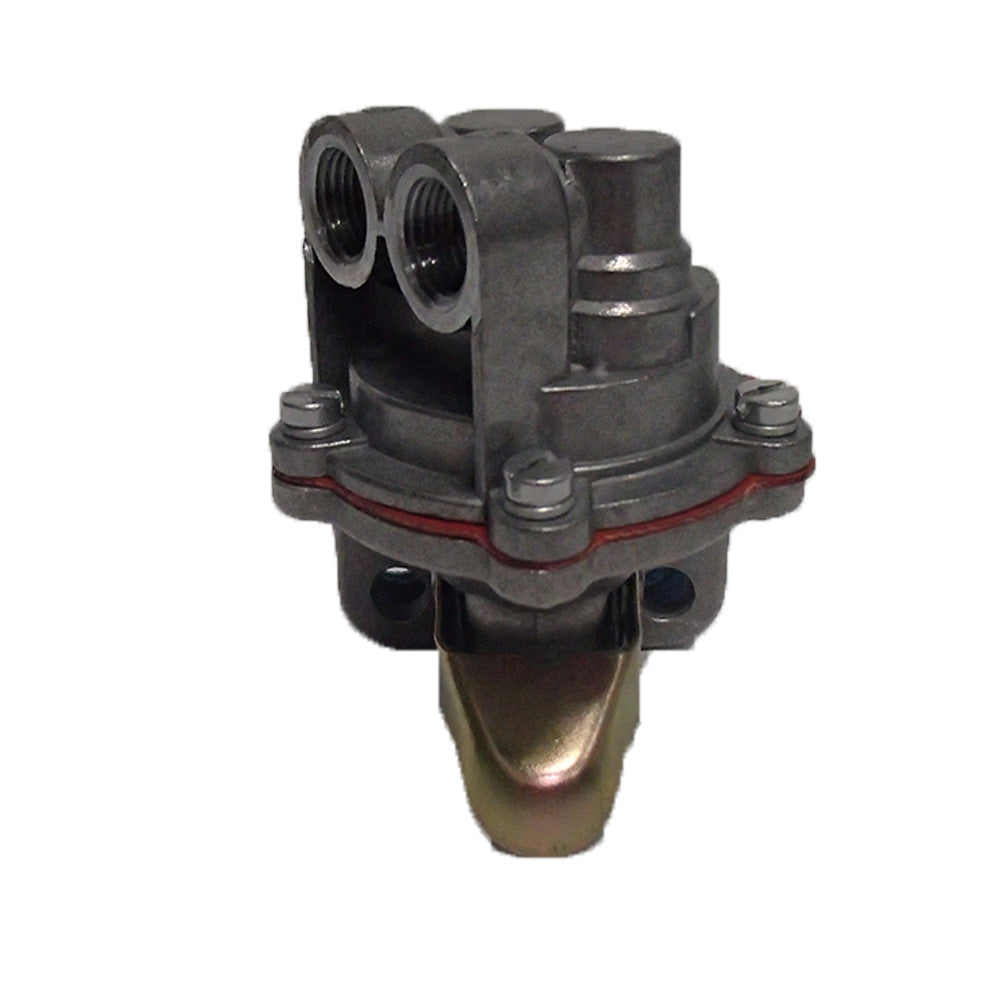

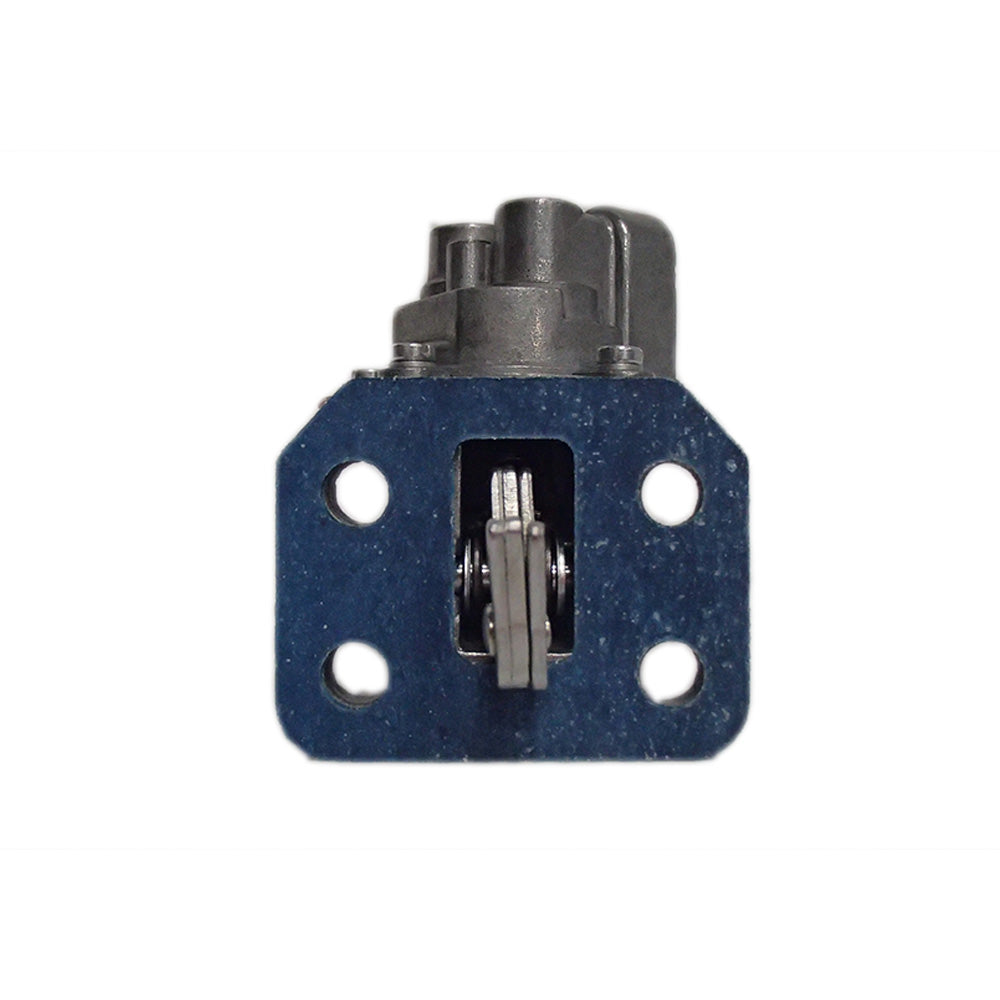

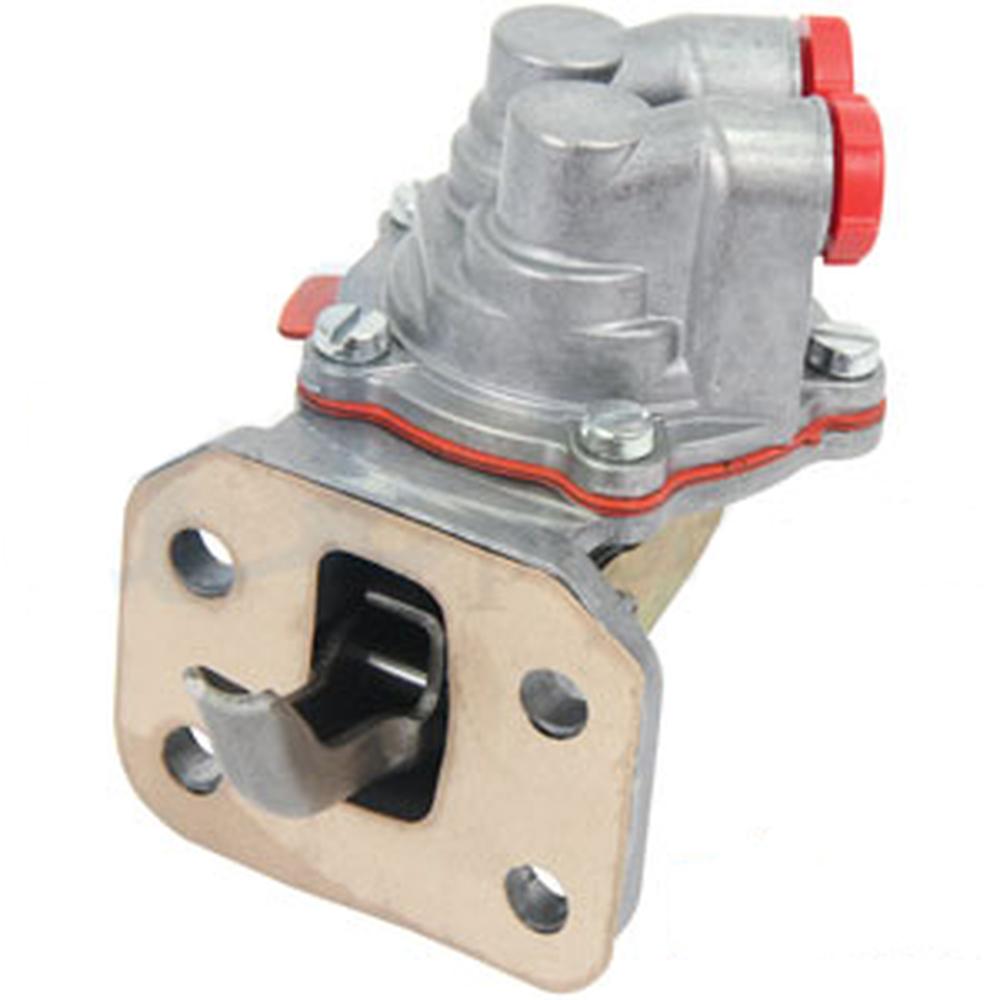

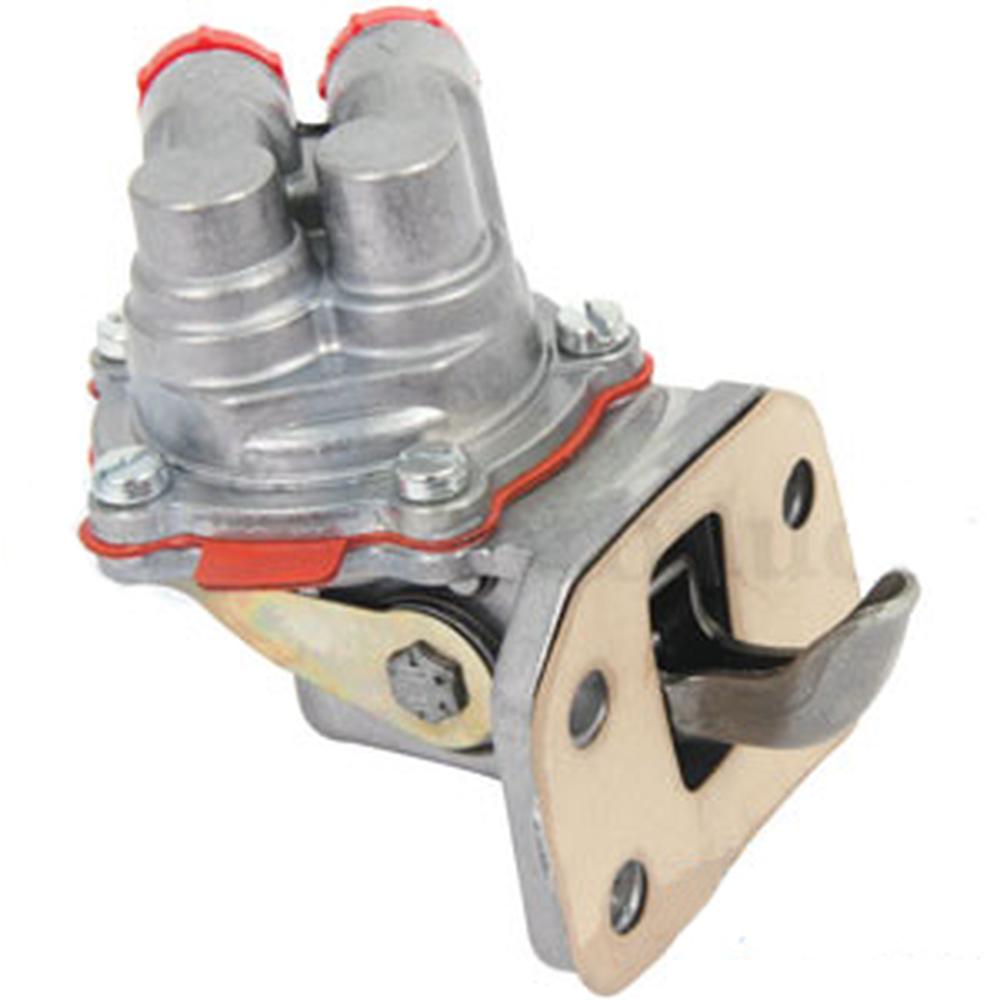

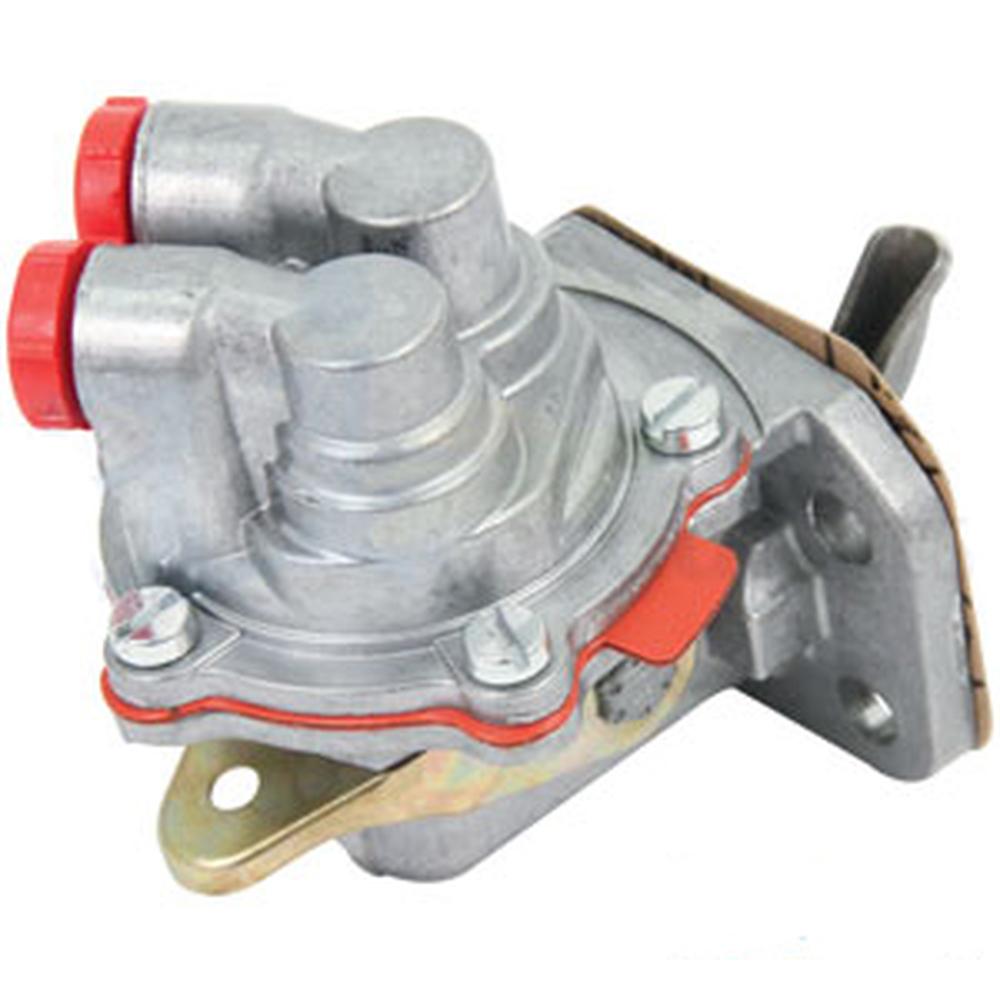

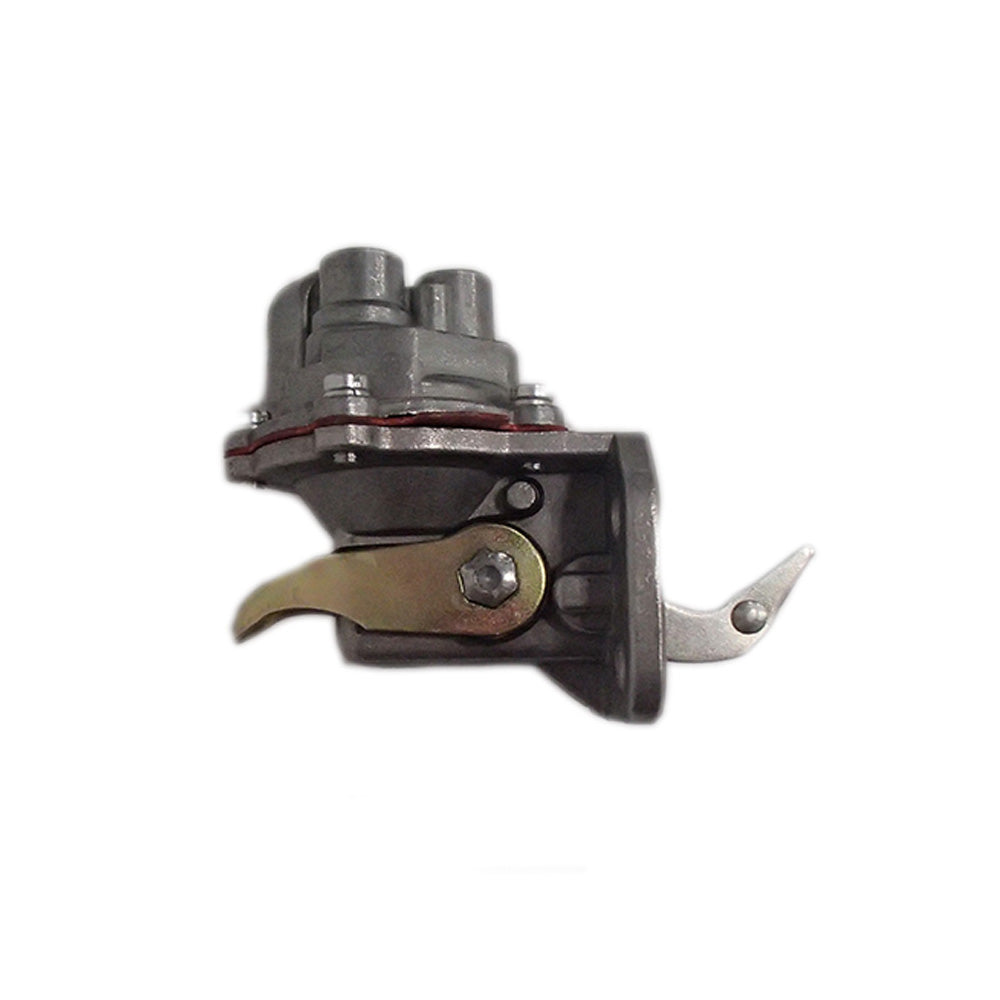

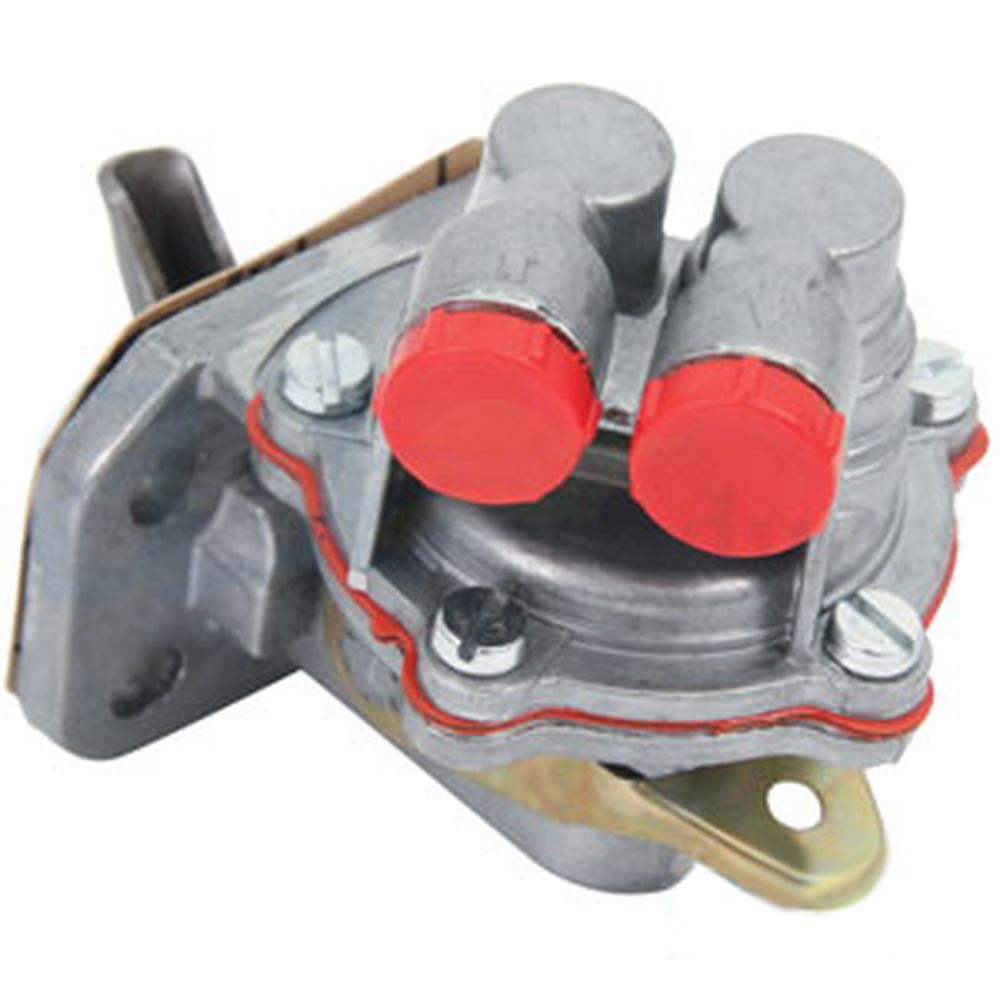

One New Aftermarket Replacement Fuel Lift Pump for Case IH and McCormick Tractors

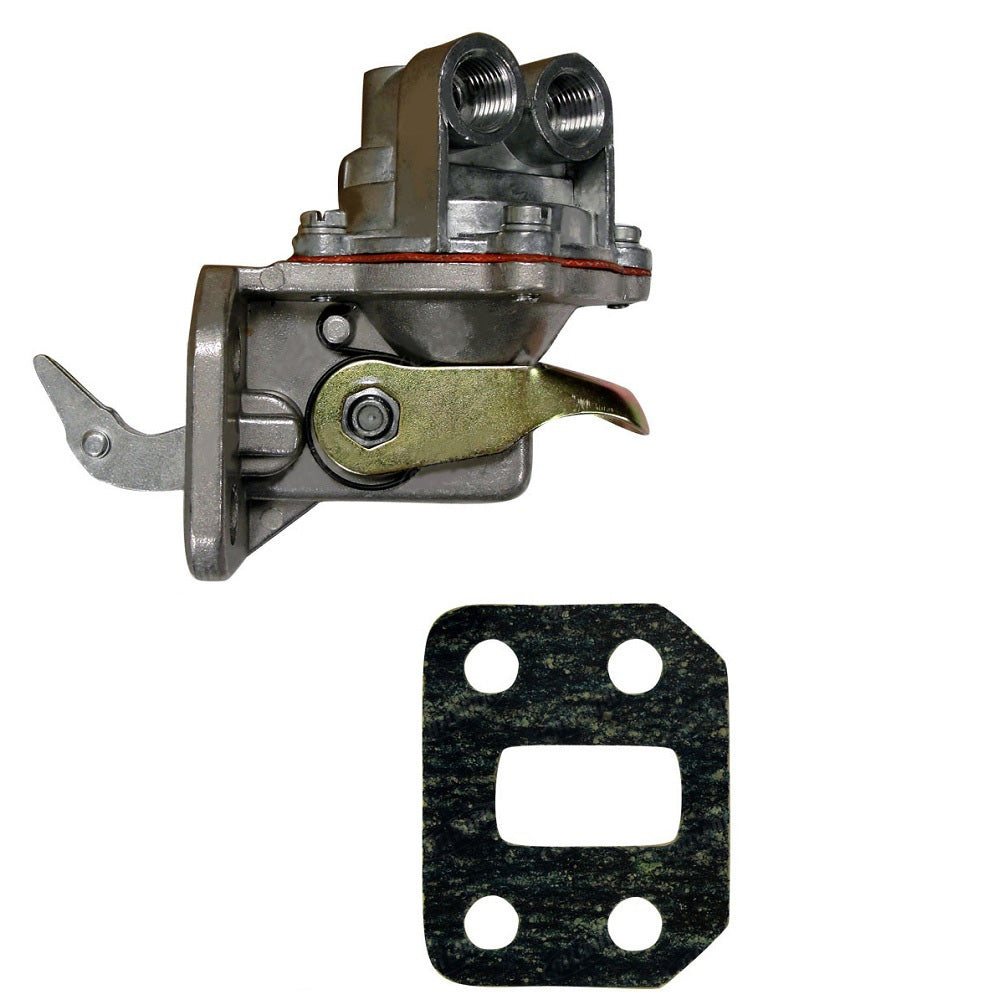

This aftermarket replacement fuel lift pump (also called a fuel transfer pump) draws diesel from the tank and delivers it to the injection pump. It is a direct replacement for OEM part number 296265A1 and fits Perkins 903.27 and 903.27T engines used across Case IH, McCormick, Massey Ferguson, and Landini equipment. Four-hole mount with gasket included.
Specifications
- Number of Bolt Holes: 4
- Fixing Hole Diameter: 8.5 mm
- Hole Centers: 45/25 mm
- Gasket: Included
- Engine Compatibility: Perkins 3.152 Series and 900 Series (903.27, 903.27T)
Compatible Models
Case IH Tractors: CS48, CS52, CS58, CS63, CX50, CX60, C50, C60
McCormick Tractors: CX50, CX60
Massey Ferguson Tractors: 135, 140, 145, 148, 154, 154-4, 154-4S, 200, 203, 205, 230, 231, 235, 240, 243, 245, 250, 250X, 253, 254, 254-4, 254-4S, 333, 340, 342, 350, 352, 353, 353S, 354S, 355, 360, 363, 364S, 406, 451
Massey Ferguson Construction and Industrial: 20, 20B, 20C, 20D, 20E, 20F, 2135, 2200, 2244, 2500, 30, 30B, 30D, 30E, 30H, 40, 40E, 4215, 4220, 4315, 4320, 4500
Landini Tractors: 4830, 4830FC, 5500, 5530, 5530F, 5830, 5830FC, 5840, 5860, 6030FC, 6070
Other Compatible Models: 85 CE21575, 85CFM, CE95231, DRP85S, DT5500, 263
Replaces Part Number(s):
296265A1, 296142A1, 2641712, 2641712R, 2641808, 2641808R, 12641808, 17401400, 1447582M91, 3637292M91, 3637292M92, 4222090M91, 4222090V91, 73321344, 130300080717, 130300080739, ULPK0004
New aftermarket replacement part - not remanufactured, not used.
Models This Part Fits:
231, 30H, 20D, 263, 360, 352, 5530F, 5530, 4830, 4320, 5830FC, CE95231, 20E, 6030FC, 2244, 40E, 5840, DT5500, 154-4S, 4220, 5830, 253, 4500, 20, 85 CE21575, 342, 451, 30E, 254-4, 355, C50, 230, 20B, 148, 200, 2500, 30B, 235, 254-4S, 20C, 203, DRP85S, 4315, 40, C60, 350, 240, 245, CX60, 4830FC, 2200, 250X, 140, 154-4, 205, 353S, 364S, 353, 243, 6070, 2135, 340, 154, 85CFM, 406, 30D, 354S, 145, CX50, D3.152, 20F, 333, 5500, 250, 135, 5860, 363, 4215, 254Additional Information:
Number Of Bolt Holes: 4 Fixing Hole Diameter: 8.5 mm Hole Centers: 45/25 mm Fuel Lift PumpReference Numbers:
296265A1, 296265A1, 2641712, 4222090M91, 2641808, ULPK0004, 1447582M91, 3637292M91, 12641808, 1447582M91 3637292M91 4222090M91 2641704 2641712 2641808 ULPK0004 93151069 461-312 1987 AK - 083 AK - 083, 1 25061608 25066379 FP312 994183 994295, 296142A1, ULPK0004, 73321344, 130300080717, 2641808, 296265A1, 130300080739, 17401400, 4222090M91, 4222090V91, 3637292M92, 3637292M91, 1447582M91, 2641712R, 2641808R, 2641712, 2641808, 2641712, ULPK0004, 2641808Makes This Part Fits:
