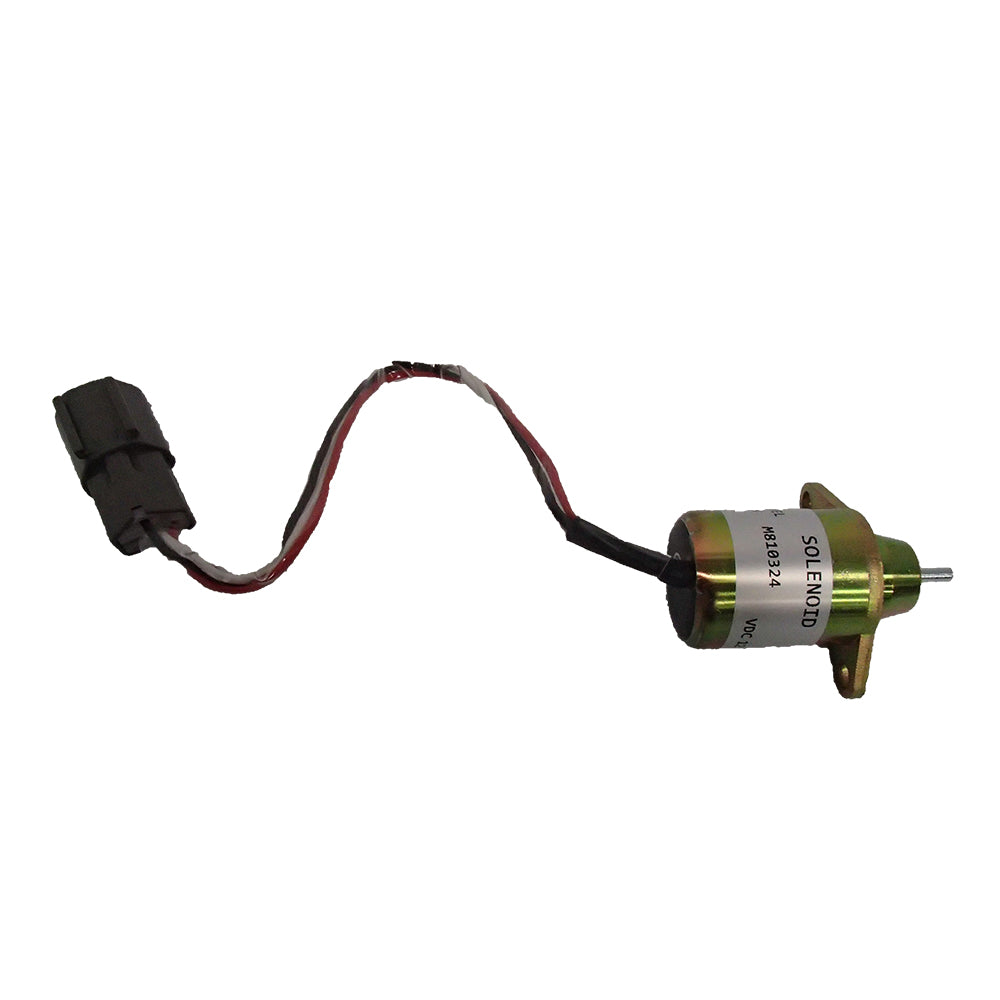

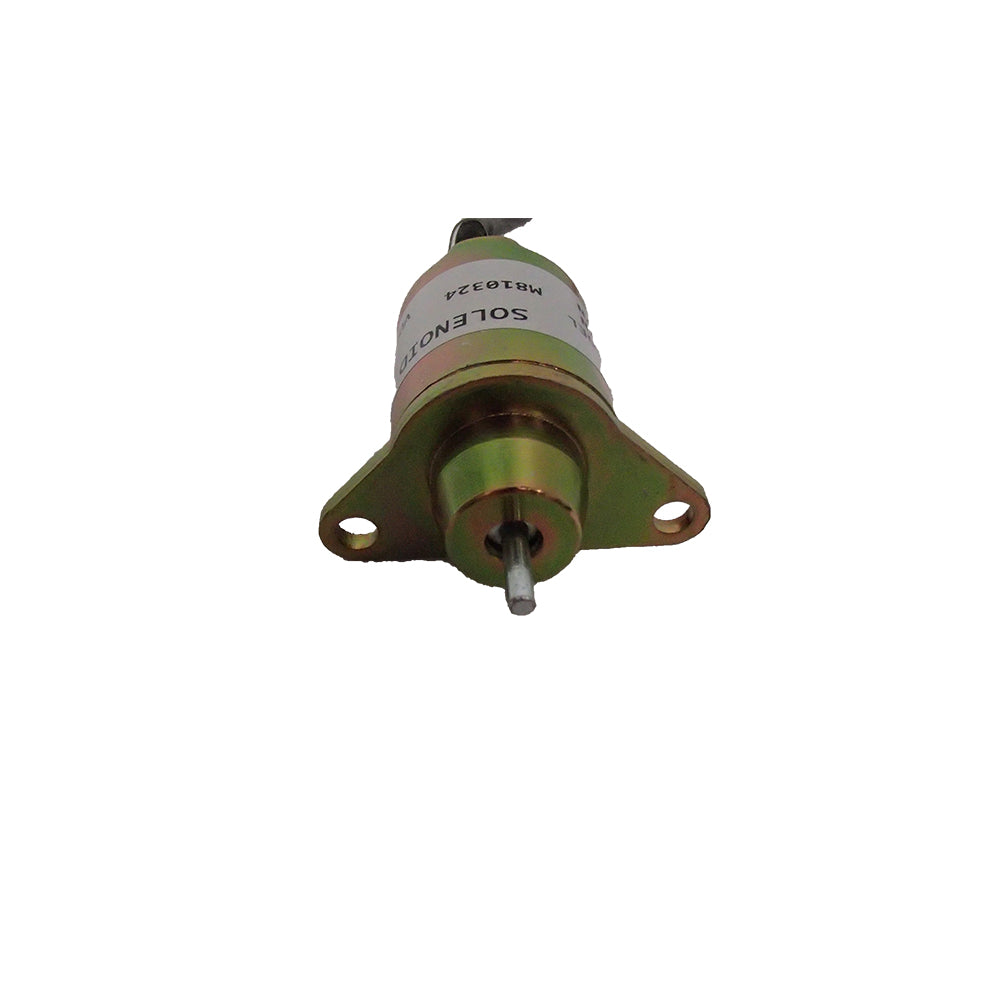

One New Aftermarket Replacement Fuel Shut-Off Solenoid for John Deere (JD) Tractors, Compact Excavators, and Backhoe-Loaders

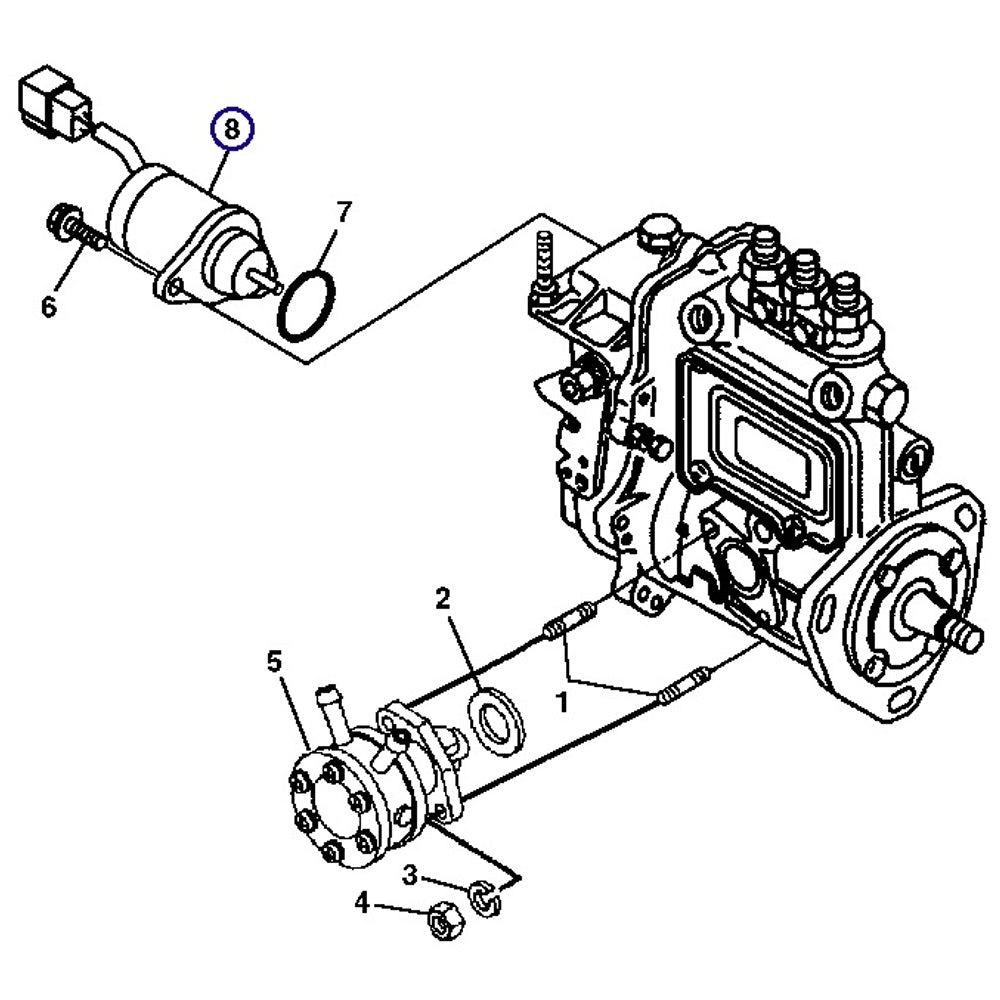

This 12-volt fuel shut-off (stop) solenoid mounts to the back of the diesel fuel injection pump and cuts off fuel supply when the ignition is turned off, preventing engine run-on and protecting the fuel system. It is a direct-fit replacement for the Woodward-style 1503ES-12S5SUC12S solenoid used across a wide range of John Deere, Yanmar, Hyundai, and Hitachi equipment powered by 3TNE, 3TNV, 4TNE, and 4TNV series Yanmar engines.

Note for John Deere 790: This solenoid fits 790 units with engines marked EJKD or EJKS only. Verify engine code before ordering.

Specifications

• Voltage: 12V DC

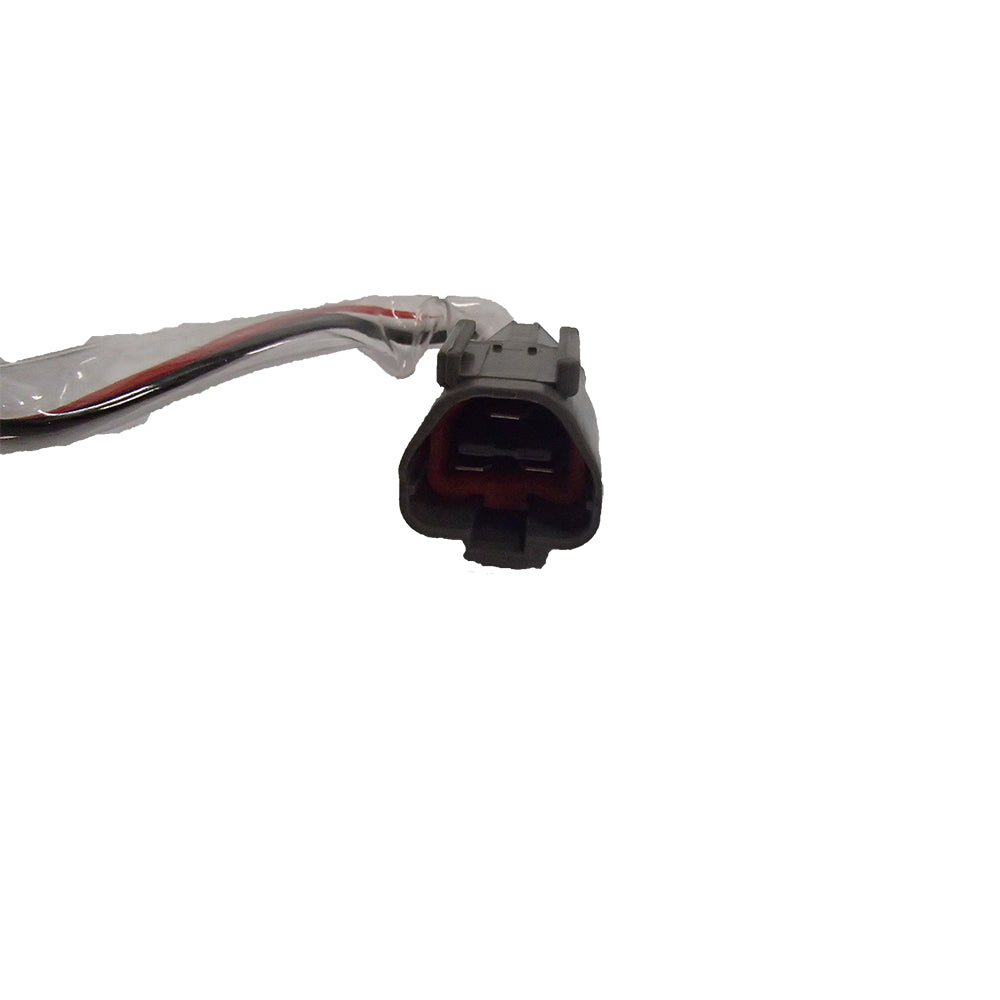

• Connector: 3-wire plug
• Location: Fuel injection pump (shut-off position)
• Woodward Style: 1503ES-12S5SUC12S

Compatible Models

John Deere Utility Tractors: 790 (EJKD/EJKS engine only), 2025R, 2027R, 2032R, 2036R, 3032E, 3036E, 3036EN, 3038E, 3120, 3203, 3320, 3520, 3720, 4105, 4200, 4210, 4300, 4310, 4400, 4410, 4500, 4510, 4600, 4610, 4700, 4710

John Deere Backhoe-Loaders: 110, 110TLB

John Deere Compact Excavators: 17D, 17G, 26G, 27D, 35D, 50D

Hyundai Excavators: R55-5, R60-5

Hitachi Excavators: ZAXIS17U-5N, ZAXIS26U-5N

Komatsu Excavators: PC4

Yanmar Engines: 2TNV, 3TNE, 3TNV, 4TNE, 4TNV series; 3028EN

Replaces Part Number(s):

M810324, M808284, 119233-77932, 11923377932, YM119233-77932, 1503ES-12S5SUC12S, 1503ES12S5SUC12S, 4626346, HD04100615

New aftermarket replacement part - not remanufactured, not used.
