One New Aftermarket Replacement Fuel Shutoff Solenoid Fits John Deere (Fits JD) Compact Tractors and Excavators with Yanmar Engines

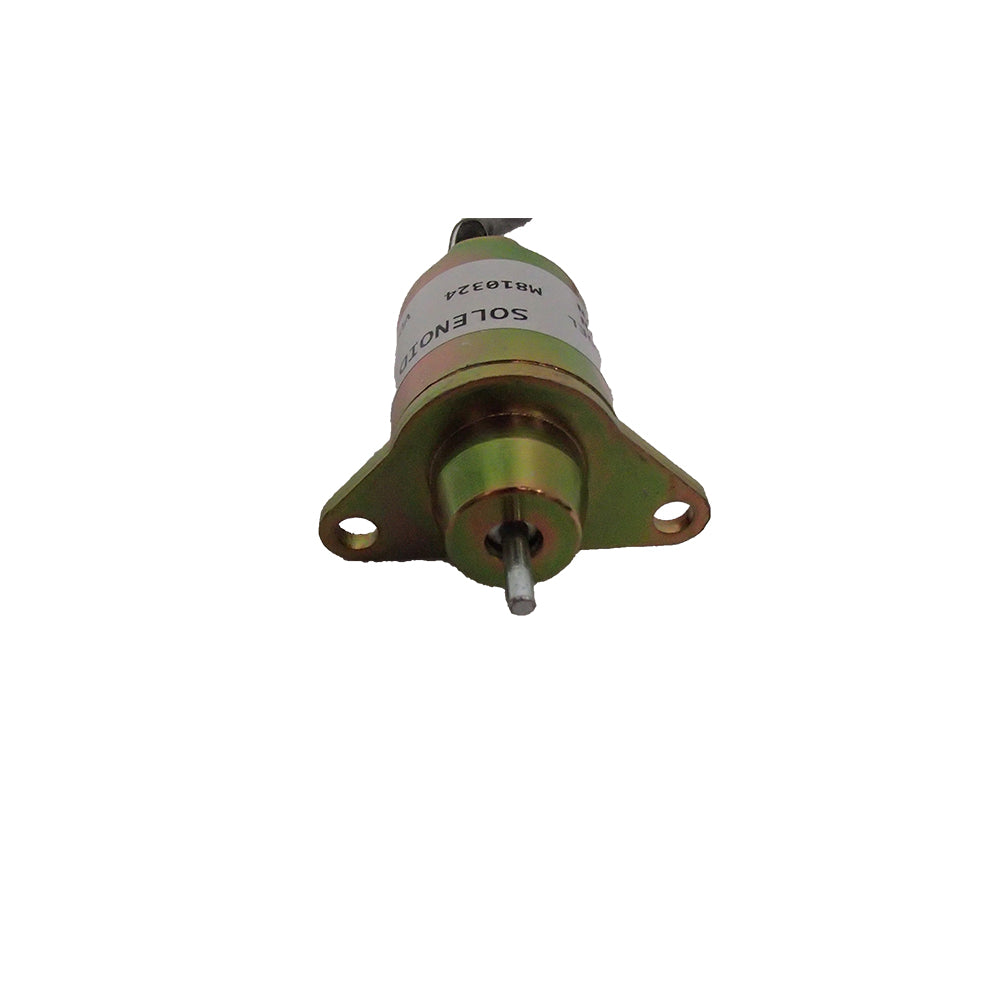

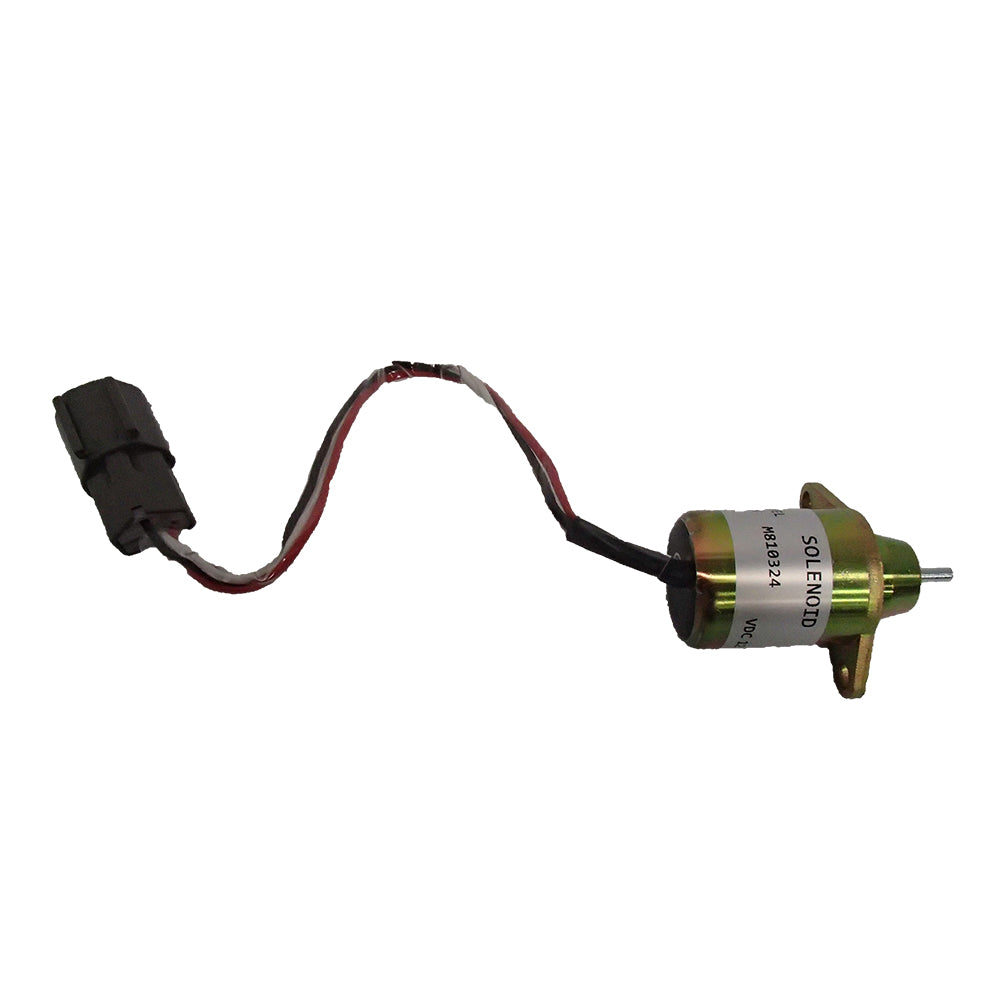

This 12VDC fuel shutoff stop solenoid mounts on the fuel injection pump and controls fuel flow to the Yanmar diesel engine. When energized, it opens to allow fuel delivery; when de-energized, it cuts fuel to stop the engine. It is a direct-fit replacement Fits John Deere compact utility tractors, mini excavators, and TLB models equipped with Yanmar 2TNV, 3TNE, 3TNV, 4TNE, and 4TNV series engines, as well as compatible Fits Hyundai and Hitachi excavators. The solenoid uses a 3-wire connector plug and is a direct drop-in replacement requiring no modification.

Specifications

• Voltage: 12VDC

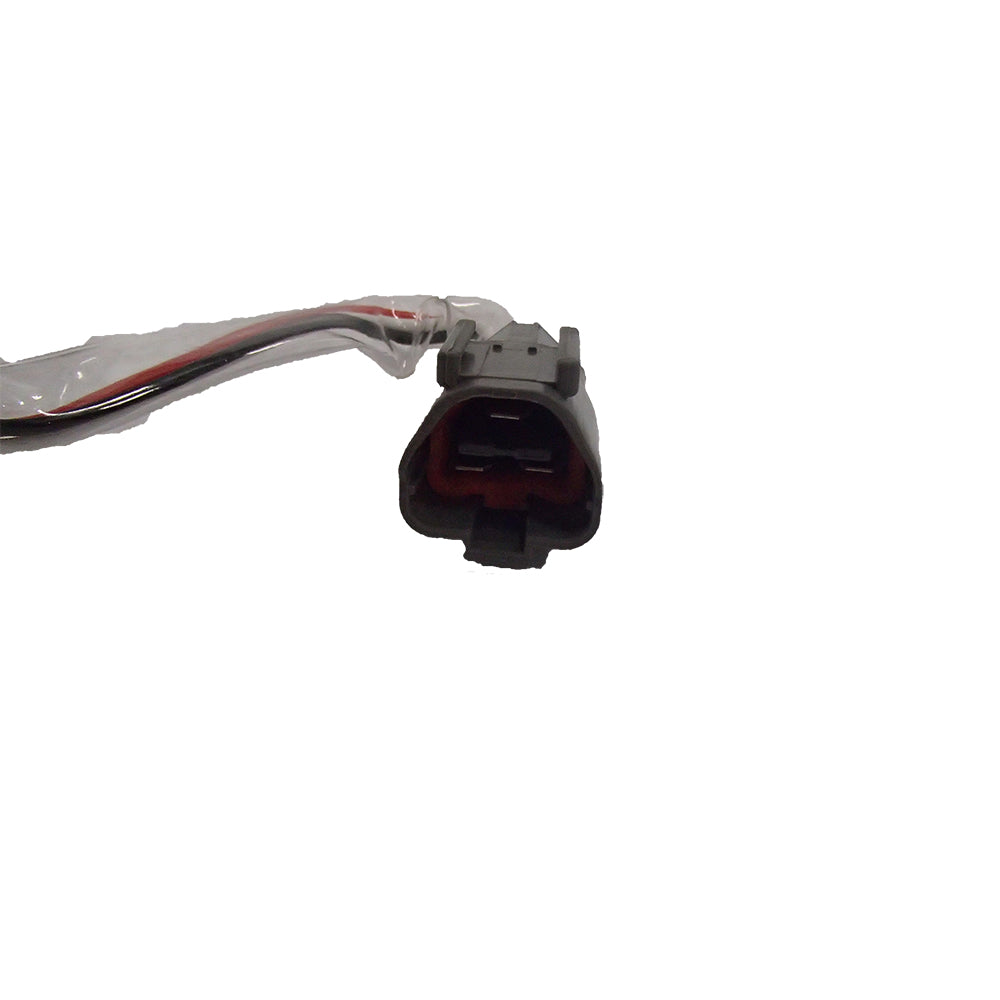

• Connector: 3-wire plug

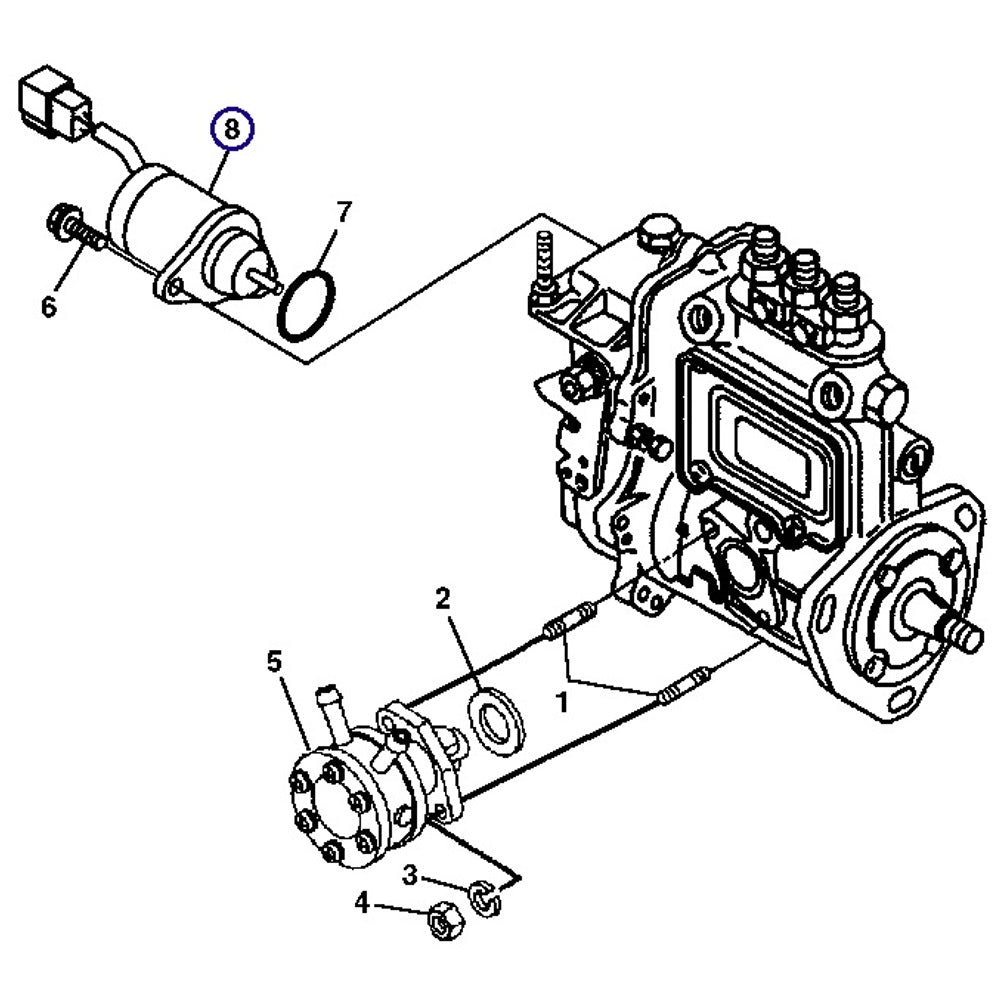

• Location: Fuel injection pump (fuel shut-off circuit)
• Compatible engine families: Yanmar 2TNV, 3TNE, 3TNV, 4TNE, 4TNV series

Compatible Models

Fits John Deere Compact Utility Tractors: 790, 2025R, 2027R, 2032R, 2036R, 3032E, 3036E, 3036EN, 3038E, 3120, 3203, 3028EN, 3320, 3520, 3720, 4105, 4200, 4210, 4300, 4310, 4400, 4410, 4500, 4510, 4600, 4610, 4700, 4710

Fits John Deere Mini Excavators and TLB: 17D, 17G, 26G, 27D, 35D, 50D, 110, 110TLB

Fits Hyundai Excavators: R55-5, R60-5

Hitachi Excavators: ZAXIS17U-5N, ZAXIS26U-5N

Komatsu Excavators: PC4

Yanmar Engines: 2TNV, 3TNE, 3TNV, 4TNE, 4TNV series (including 3TNE84, 3TNE88, 4TNE84, 3TNV70, 3TNV76, 4TNV84)

Replaces Part Number(s):

M810324, M808284, 119233-77932, 11923377932, YM119233-77932, 1503ES-12S5SUC12S, 1503ES12S5SUC12S, HD04100615, 4626346

Aftermarket Interchange Numbers

Woodward/Synchro 1503ES-12S5SUC12S; also referenced as SA-4563-T, SA-4564-T, 41-6383, 41-4306, 425-35925

New aftermarket replacement part - not remanufactured, not used.
