One New Aftermarket Replacement Ball Bearing Fits John Deere (Fits JD) Combines, Air Drills, and Grain Drills

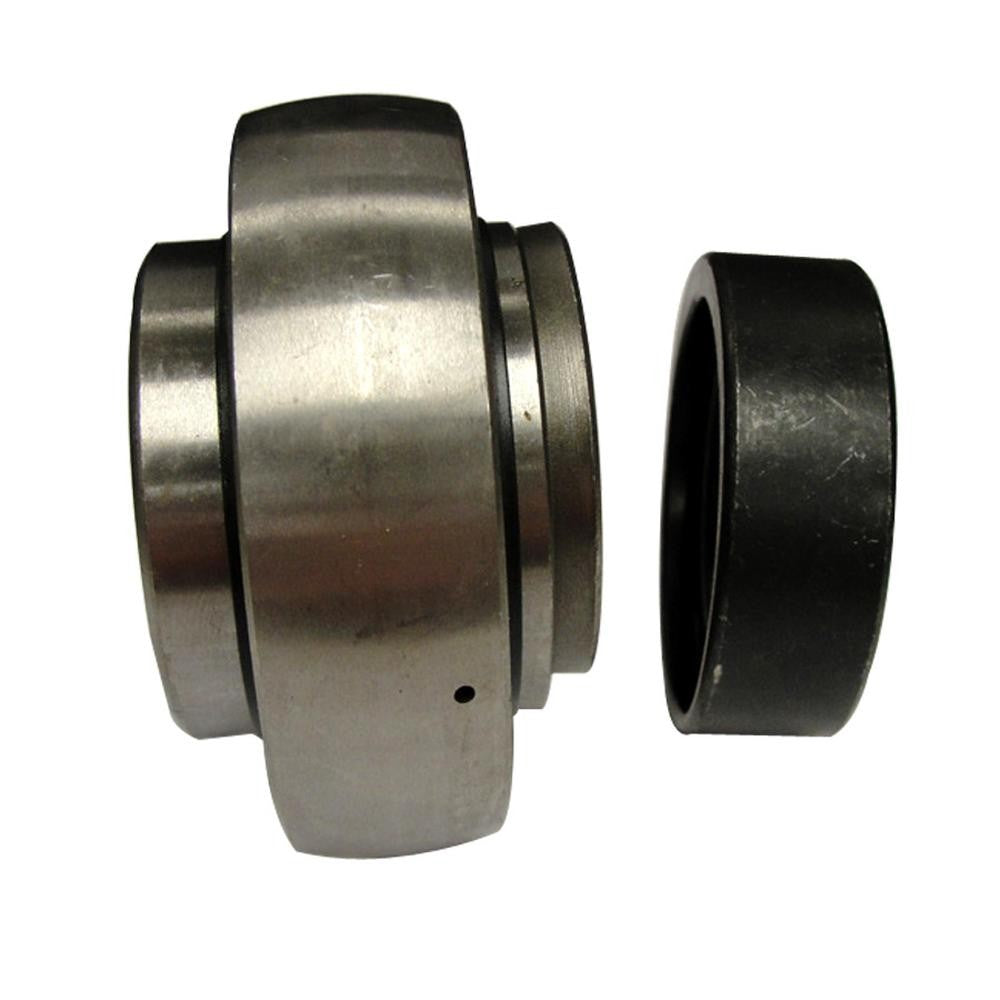

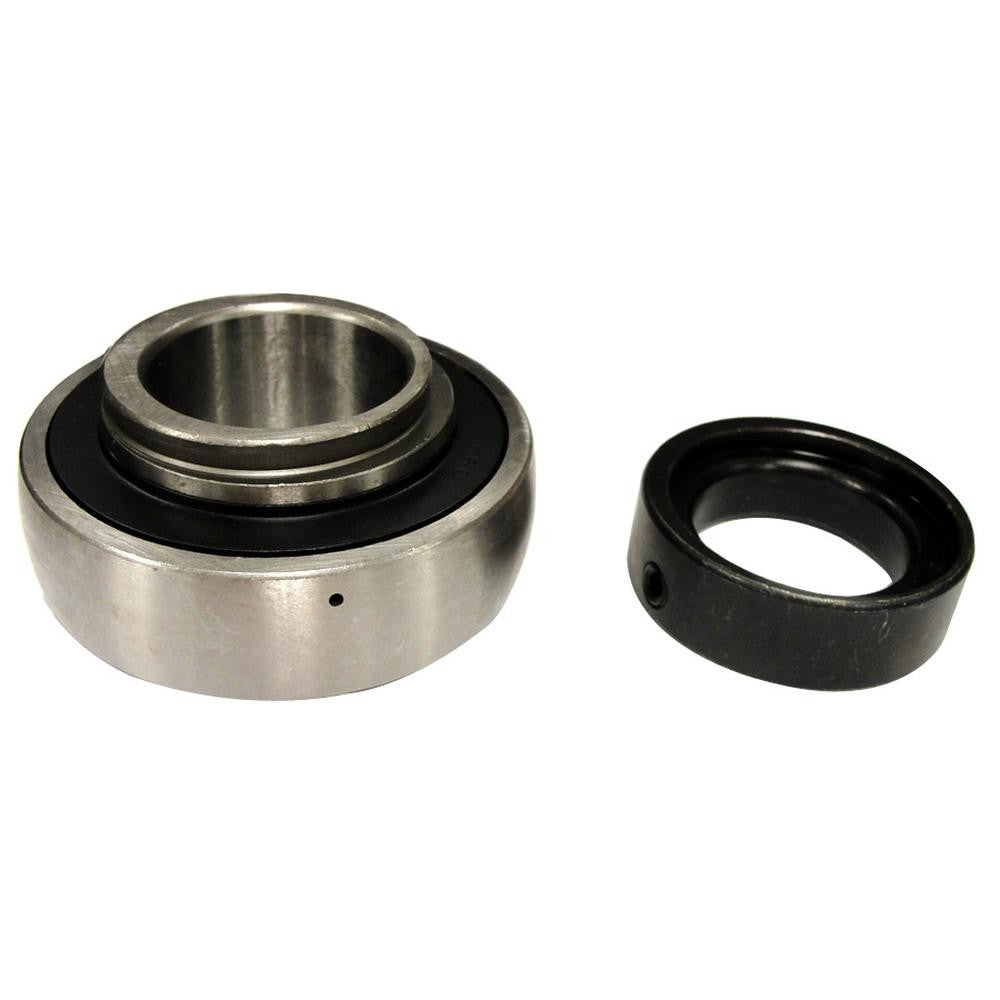

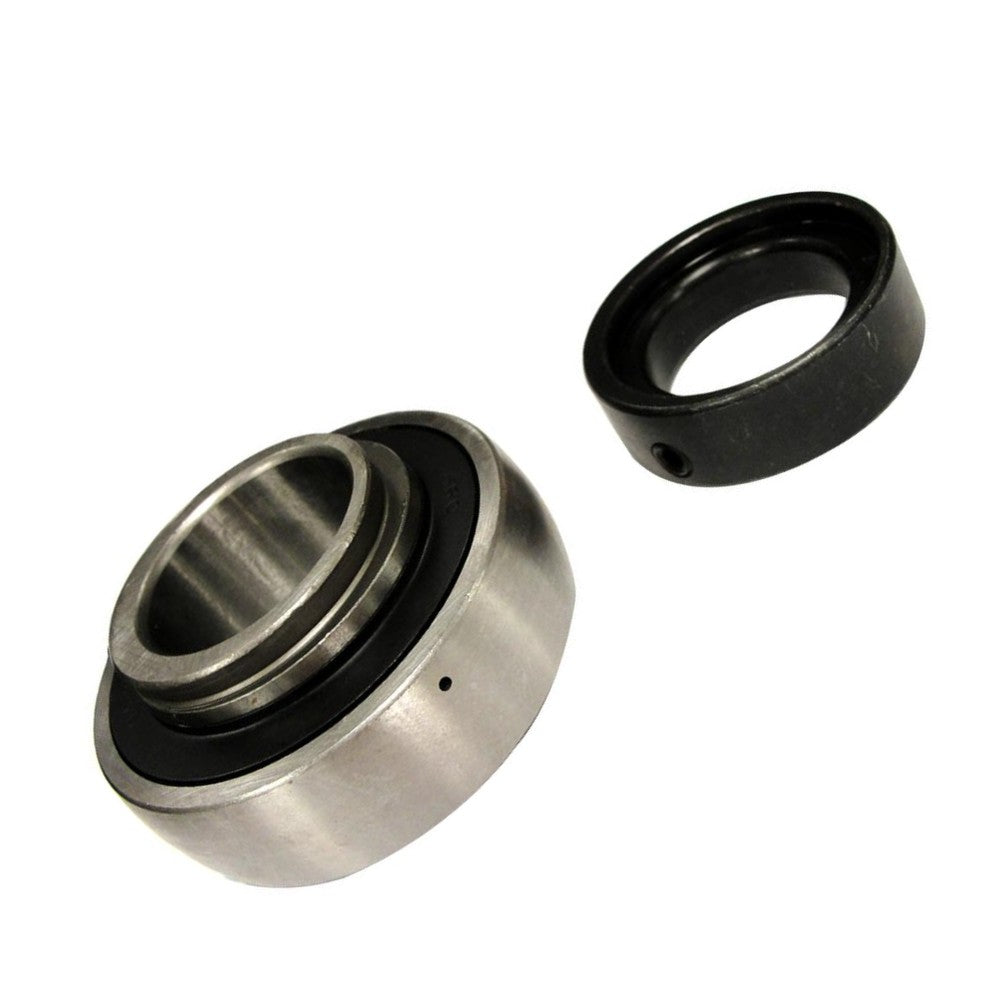

This wide inner ring insert ball bearing with eccentric locking collar serves as the upper feeder house shaft bearing on Fits John Deere (Fits JD) combines and as a drive wheel bearing on Fits John Deere grain drills. It features a spherical outer diameter for housing misalignment tolerance, double rubber seals, and a relubricatable design for extended service life in demanding harvest conditions. Replaces OEM part number JD10020 and the Timken/Fafnir G1108KRRB.

Specifications

• Bore (Inner Diameter): 1.500 in (38.1 mm)
• Outside Diameter: 3.1495 in (80 mm)
• Bearing Width (Outer Race): 0.709 in (18 mm)
• Inner Race Width: 1.687 in
• Overall Width: 2.219 in
• Locking Type: Eccentric collar
• Seal Type: Double rubber seals
• Bore Type: Round (cylindrical)
• Weight: approx. 1.70 lbs

Compatible Models

Fits John Deere Combines: CTS, CTS II, 7720, 7722, 8820, 9400, 9410, 9450, 9500, 9500SH, 9510, 9510SH, 9550, 9550SH, 9560, 9560SH, 9560STS, 9570STS, 9600, 9610, 9650, 9650CTS, 9650STS, 9660, 9660CTS, 9660STS, 9670STS, 9750STS, 9760STS, 9770STS, 9780CTS, 9860STS, 9870STS, S550 (SN 745100-764999), S650 (SN 765000+), S660 (SN 745100+), S670 (SN 745100+), S680 (SN 745100+), S690 (SN 745100+), S760, S770, S780, S785, S790, C670

Fits John Deere Air Drills: 1690, 1890, 1990

Fits John Deere Grain Drills: 750, 1560, 1565, 1590

Replaces Part Number(s):

JD10020, G1108KRRB-IMP, G1108KRRB

Aftermarket Interchange Numbers

1108KRRB, 1108KRRB-I, A-1108KRRB-I, A-1108KRRB-P, AE50458 (AGCO 71122510, Z10970), WPS108GRC, WPS108TPN, A-JD9434, A-050328, A-051227, 051-227, 1925CSA, 455111R91, 450627R91, 251531221, 599601R91, F84032, A-F84032, A-1925CSA

New aftermarket replacement part - not remanufactured, not used.
