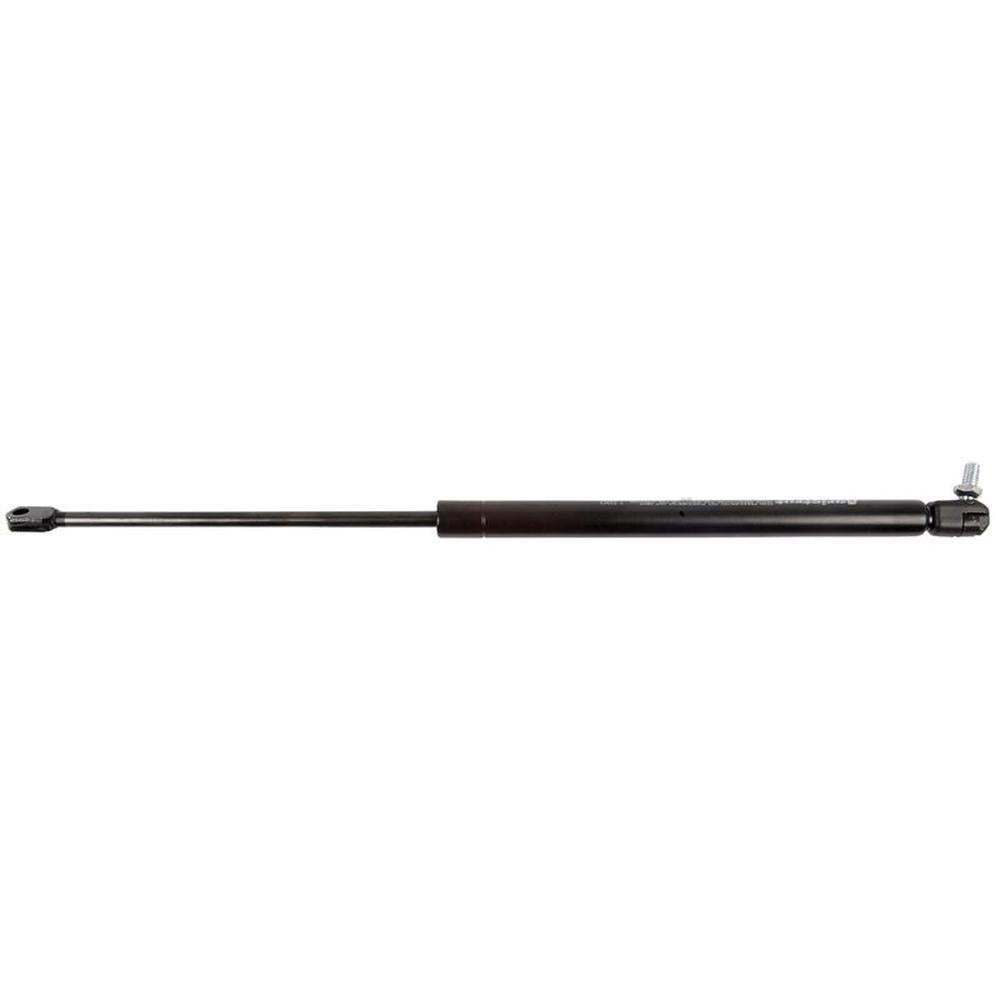

One New Aftermarket Replacement Gas Strut Spring Cylinder Fits Case IH (Fits Case/International Harvester) 3200 and 4200 Series Tractors

This gas strut spring cylinder supports and holds open the rear windscreen (rear cab window) on Fits Case IH 3200 and 4200 series tractors. The strut uses a ball joint plastic end fitting on one end and a metal eyelet on the other, providing controlled, dampened movement for safe and convenient cab access.

Specifications

• Total Length: 450mm
• Stroke: 185mm
• Pressure: 150 N
• Cylinder Outer Diameter: 18mm
• Ram Diameter: 8mm

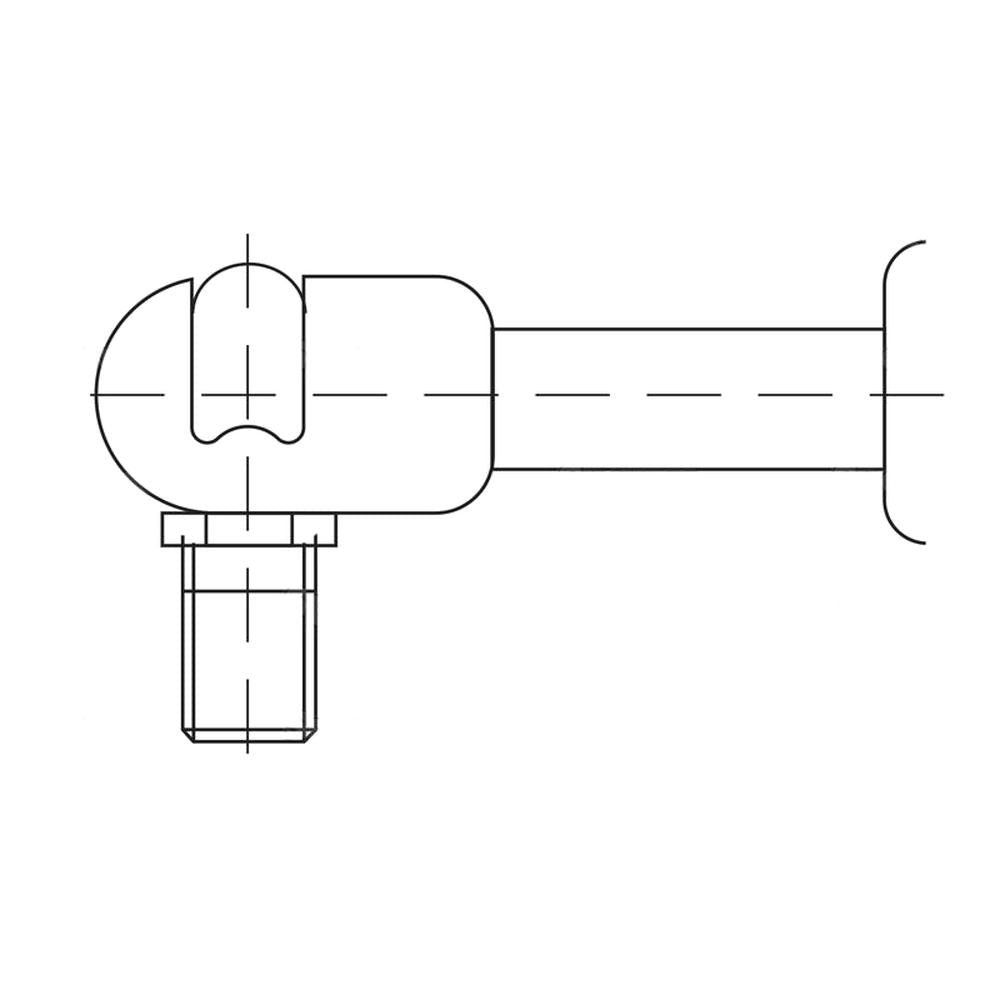

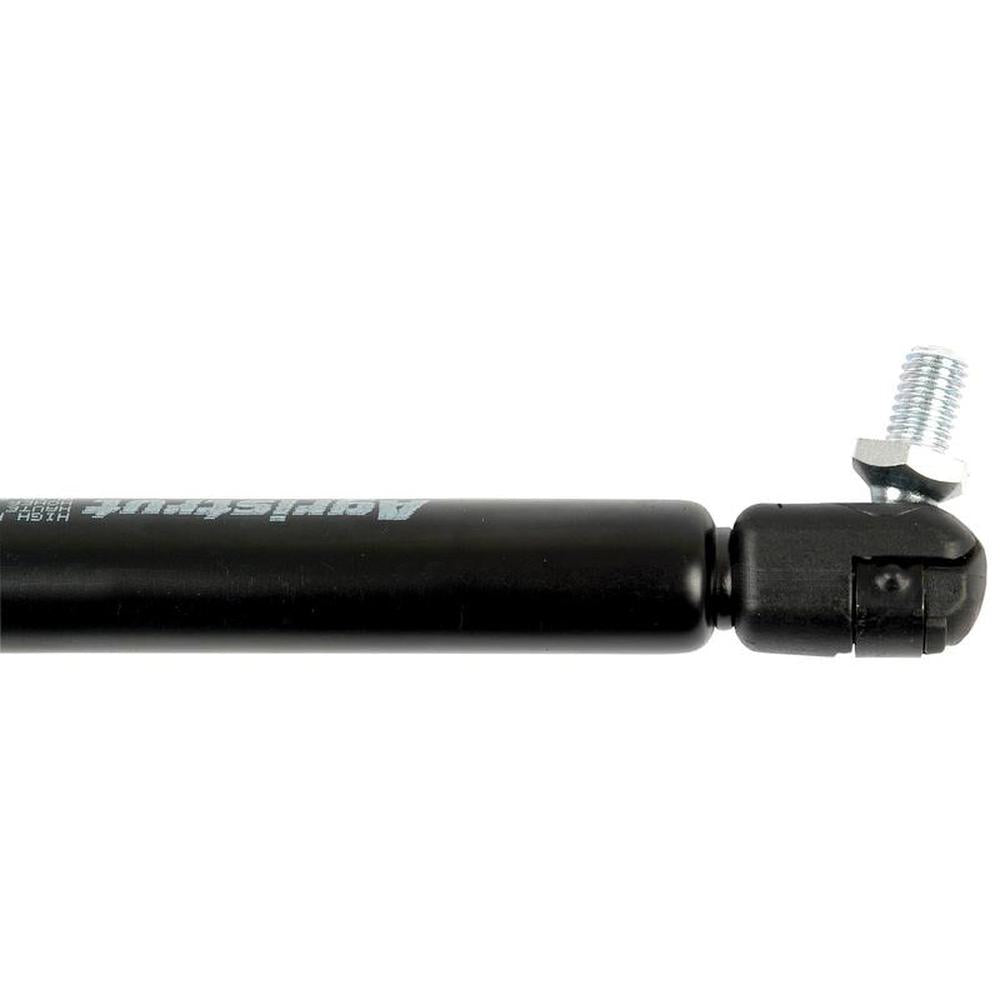

• End Fitting 1: Ball Joint (Plastic) M8 x 13mm Thread

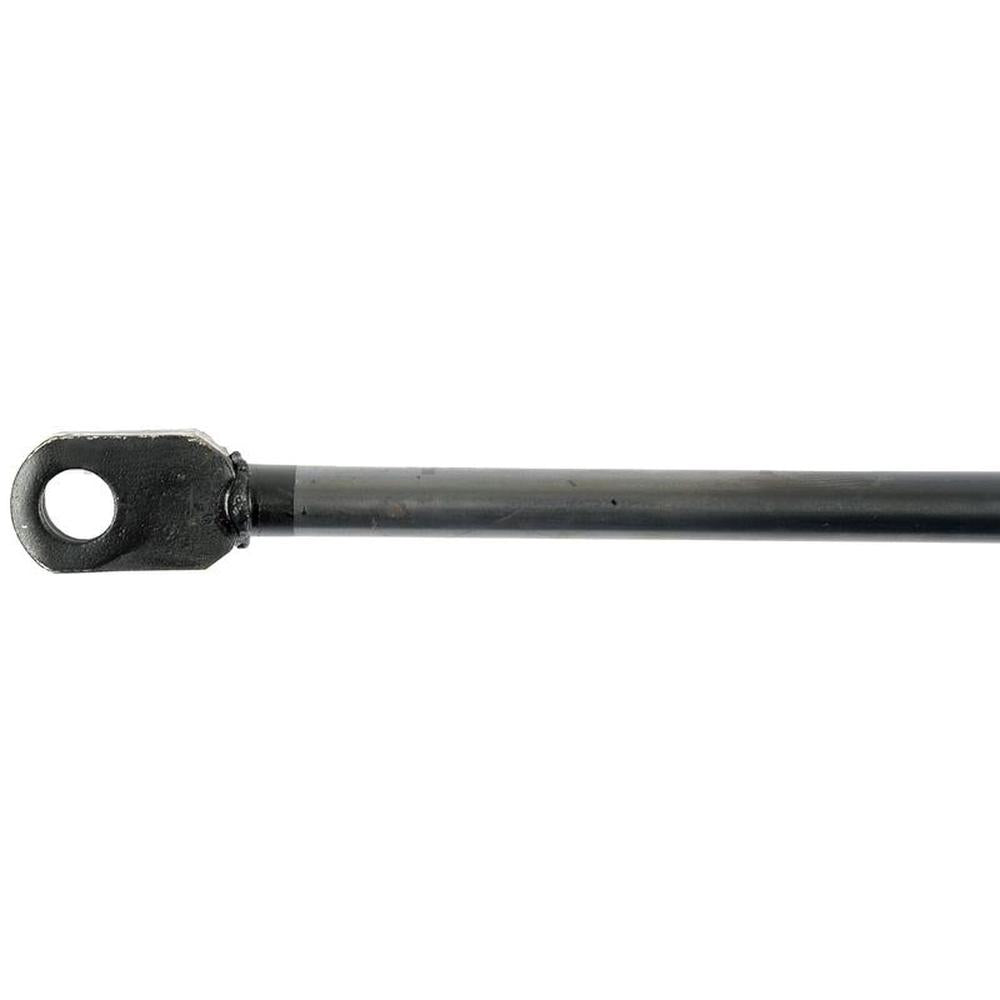

• End Fitting 2: A6 Eyelet (Metal) 8mm Diameter, 8mm Wide
• Fits: Rear Windscreen

Compatible Models

Fits Case IH 3200 Series: 3210, 3220, 3230

Fits Case IH 4200 Series: 4210, 4220, 4230, 4240

Replaces Part Number(s):

144947A1, 144947A2

Aftermarket Interchange Numbers

S.52903, S.52903-SPX

New aftermarket replacement part - not remanufactured, not used.
