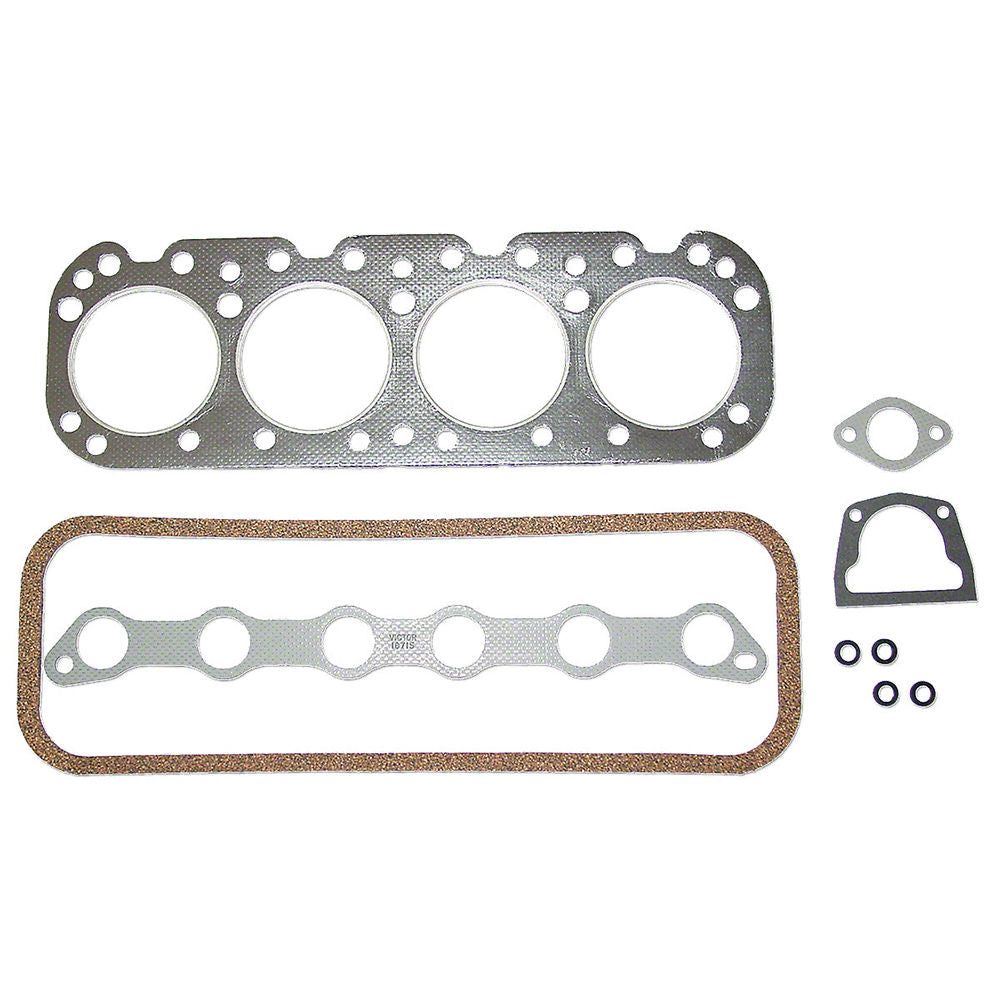

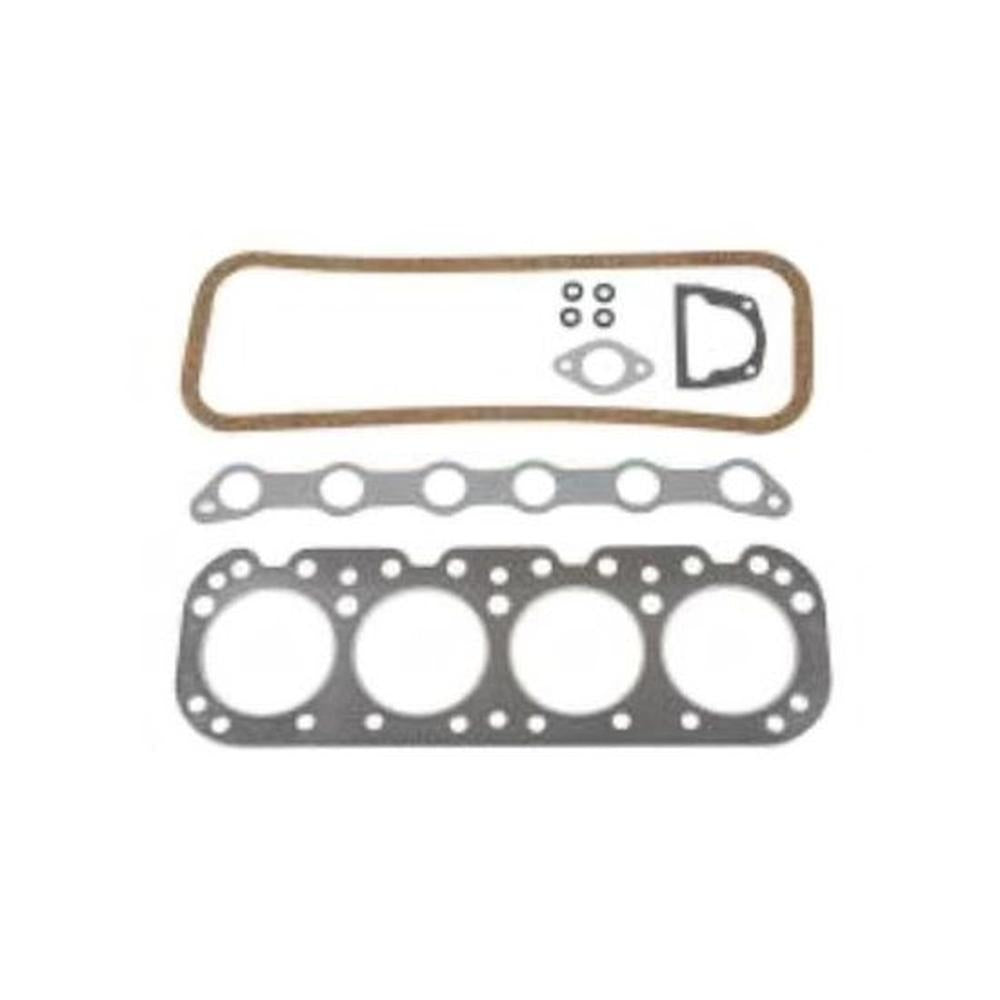

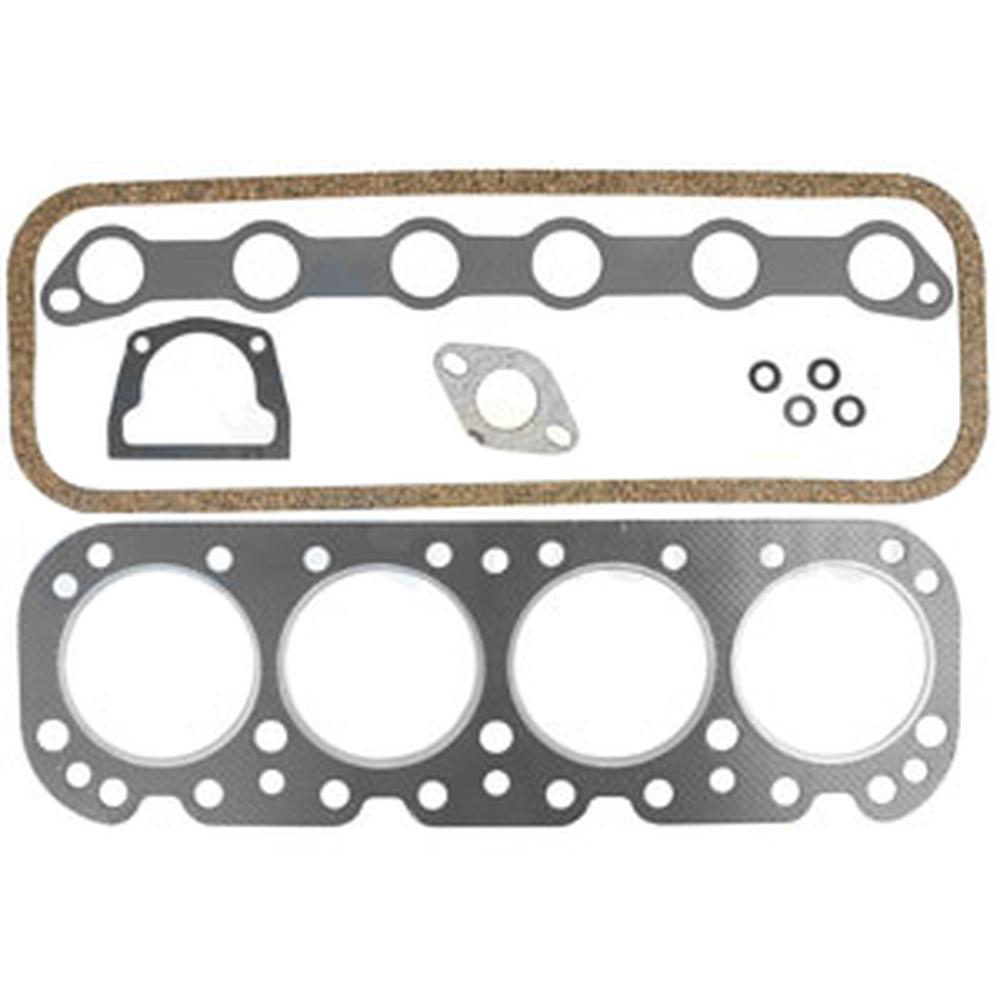

One New Aftermarket Replacement Upper Gasket Set for Allis Chalmers Tractors and Combines

This upper (cylinder head) gasket set includes all gaskets required when replacing the cylinder head on Allis Chalmers tractors and combines equipped with the 116 or 125 cubic inch 4-cylinder gasoline engine (up to 3.625" bore). The set provides a complete sealing solution for the cylinder head assembly, preventing combustion leaks and coolant loss during and after head reconditioning or valve grinding. Torque head bolts to 60 ft-lbs during installation.

Specifications

• Application: 116 or 125 C.I. 4-cylinder gasoline engine
• Maximum bore: 3.625"
• Head gasket overall length: 18"
• Head bolt torque: 60 ft-lbs
• Includes: All gaskets required for cylinder head replacement

Compatible Models

Allis Chalmers Tractors: B, B15, C, CA, IB, RC

Allis Chalmers Combines: 60, 60H

Replaces Part Number(s):

224768, 70224768, 70225768, ENH10-0129

New aftermarket replacement part - not remanufactured, not used.
