GENERATOR REBUILD KIT 12 VOLT FOR IH Fits International 100 130 300 350 400 450

GENERATOR REBUILD KIT 12 VOLT FOR IH Fits International 100 130 300 350 400 450



AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


Aftermarket GENERATOR REBUILD KIT 12 VOLT FOR IH Fits International 100 130 300 350 400 450

Tech Info:
-FOR 12V GENERATORS ON THE LISTED MODELS
-FITS 3 BRUSH Fits Delco GENERATORS
-PLEASE NOTE THAT YOUR AC Fits Delco GENERATOR NUMBER NEEDS TO BE ON THIS LIST FOR THIS KIT TO WORK IN YOUR APPLICATION: 1100468, 1100526, 1100541, 1100973, 1100990, 1101000, 1101002, 1101004, 1101006, 1101011, 1101359, 1101409, 1101429, 1101729, 1101734, 1101744, 1102423, 1102538, 1101539, 1102546

Replaces Part Number(s): 10467830, 10473403, 12320060, 16-7503, 1850761, 1850768, 1850786, 1853611, 1857962, 1857963, 1860344, 1865831, 1866148, 1906925, 1906929, 1906950, 1906955, 1906984, 1933194, 2995036, 3203-1, 3203-2, 3203S1446, 812823, 900529, 904751, 904759, 907503, 907996, 908419, 954378, 954938, D1634, D711, D712, D716, D720, D721, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C

Models This Part Fits:

1101007, 1101004, 1102988, 1101731, 1101735, 1101734, 1102997, 1101730, 1101707, 1100979, 1100993, 1101766, 1101009, 1101716, 1101750, 1100960, 1100961, 968X, 1101714, 1101767

Additional Information:

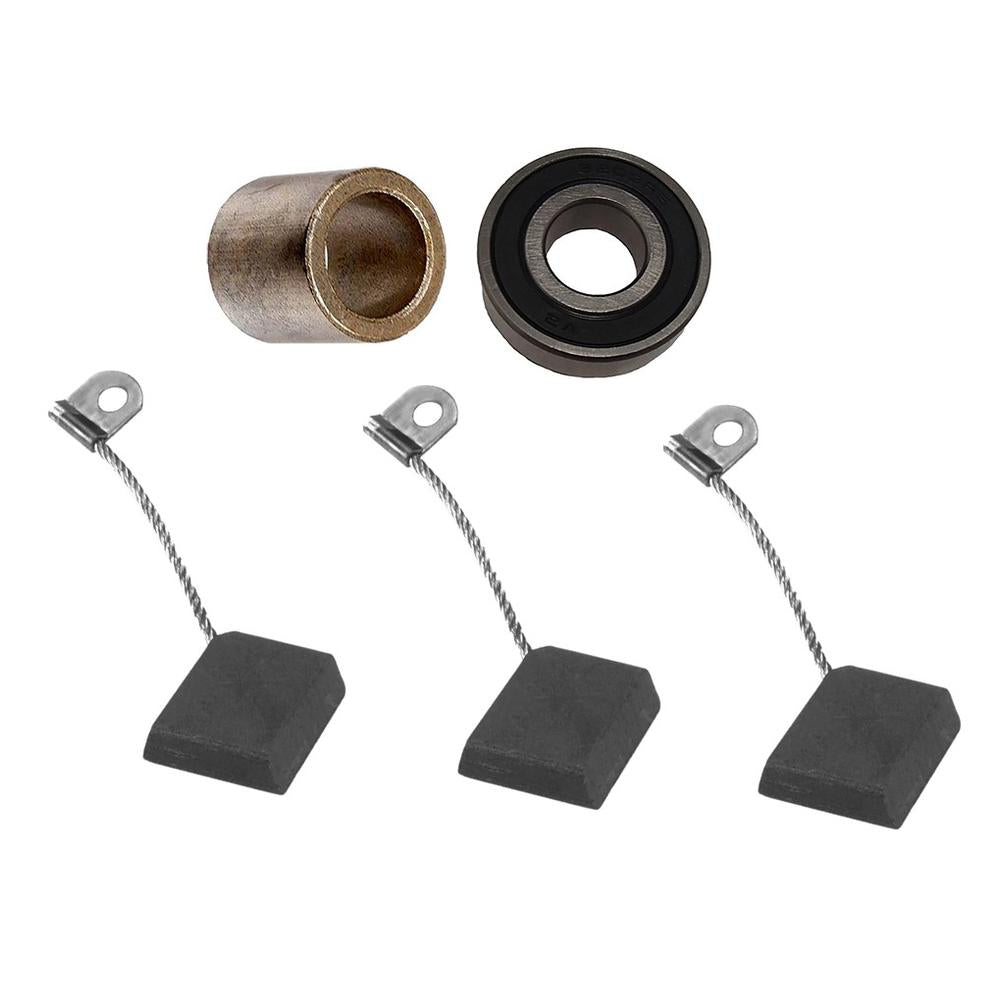

(1) Generator Bushing: Bushing Size: Standard Inner Diameter: 0.563" (14.300 mm) Location Used: CE Housing Outer Diameter: 0.783" (19.900 mm) Width: 0.801" (20.350 mm) Replaces Part Numbers: 1850786, 812823, D1634, GDR7100 (1) Sealed Ball Bearing (Econ Version) ID: 0.669" (17mm) OD: 1.575" (40mm) Width: 0.472" (12mm) Bearing Type: Double Sealed Replaces Part Numbers: 100-1048, 109966, 112-0423, 38-7820, 702581, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C (3) Generator Brush Tech Info: Voltage: 12 Length: 0.787in / 20mm Width: 0.866in / 22mm Height: 0.256in / 6.5mm Lead Length: 1.378in / 35mm Replaces part Number: 1850761,1850768,1853611,1857962, 1850761, 1850768, 1853611, 1857962, 1857963, 1860344, 1865831, 1866148, 1906925, 1906929, 1906950, 1906955, 1906984, 1933194, D711, D712, D716, D720, D721

Reference Numbers:

2098478,601, GE12, GE16, GE2, GE21, 10467830, 10469092, 10473403, 12320060, 16-7503, 1974861, 2995036, 3203-1, 3203-2, 3203S1446, 900529, 904751, 904759, 905920, 907503, 907996, 908419, 954298, 954378, 954938, Z9503, Z99503, Z99503-6, Z99503XR, Z99503XR1C, 1850761, 1850768, 1853611, 1857962, 1857963, 1860344, 1865831, 1866148, 1906925, 1906929, 1906950, 1906955, 1906984, 1933194, D711, D712, D716, D720, D721, 1850786, 812823, D1634, GDR7100

Makes This Part Fits:
