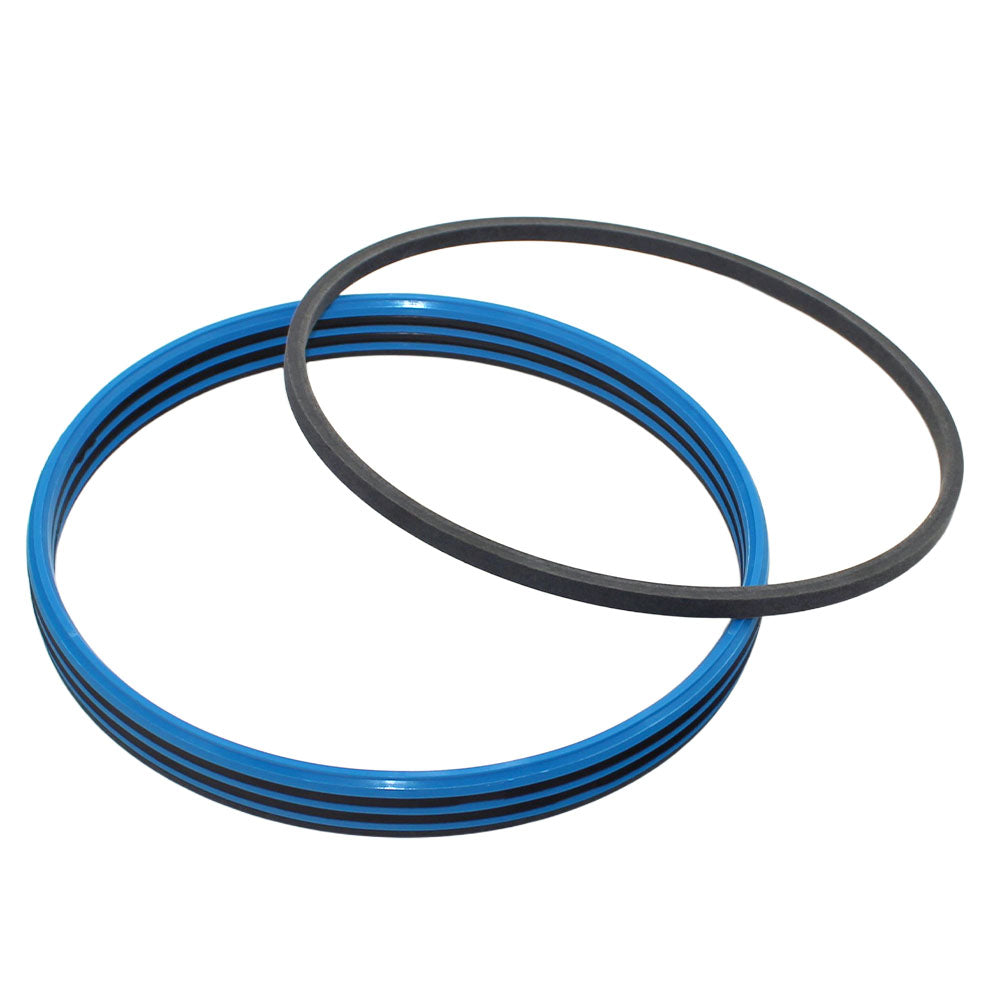

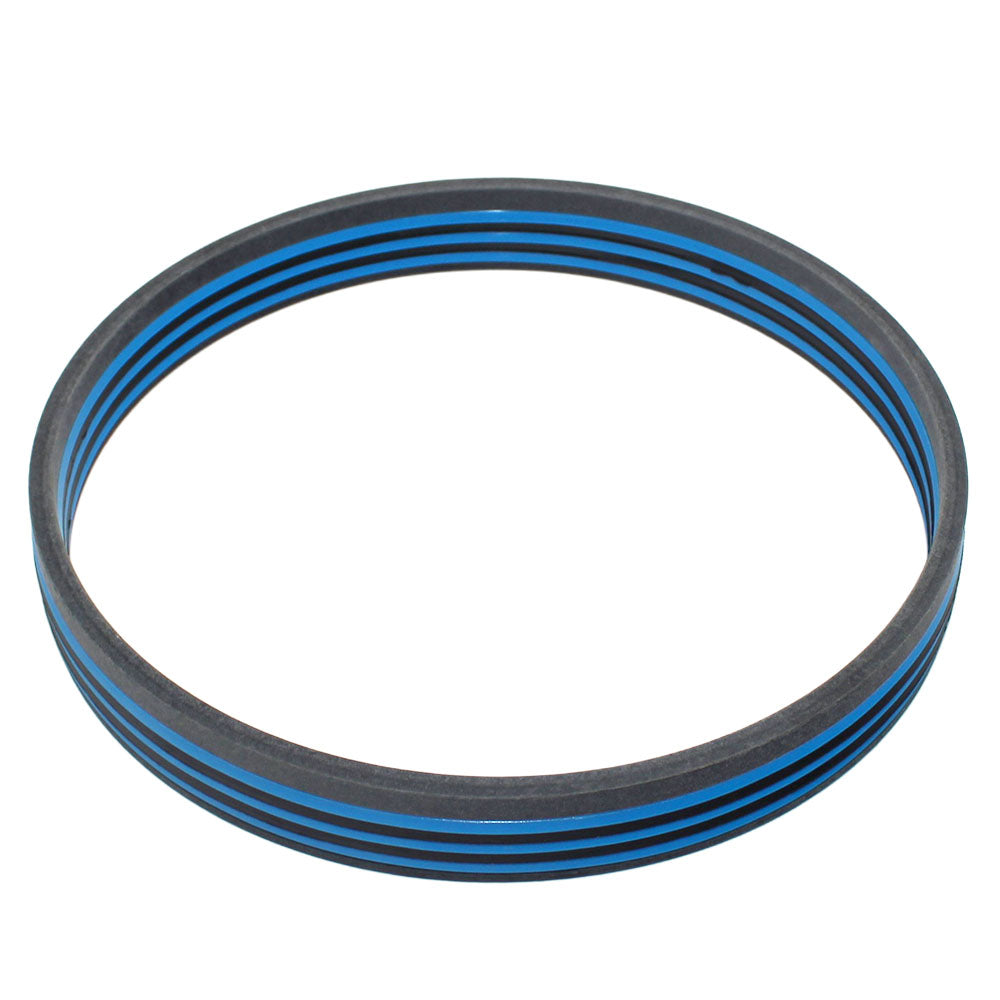

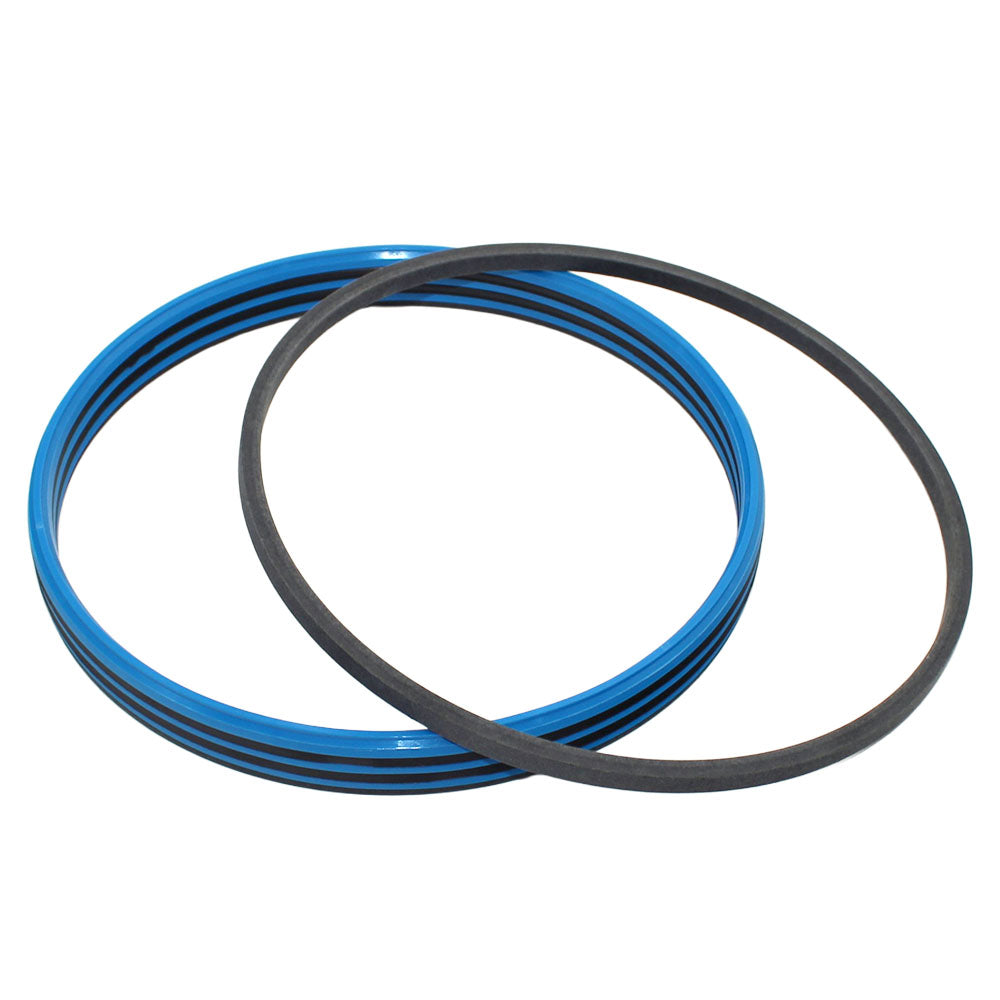

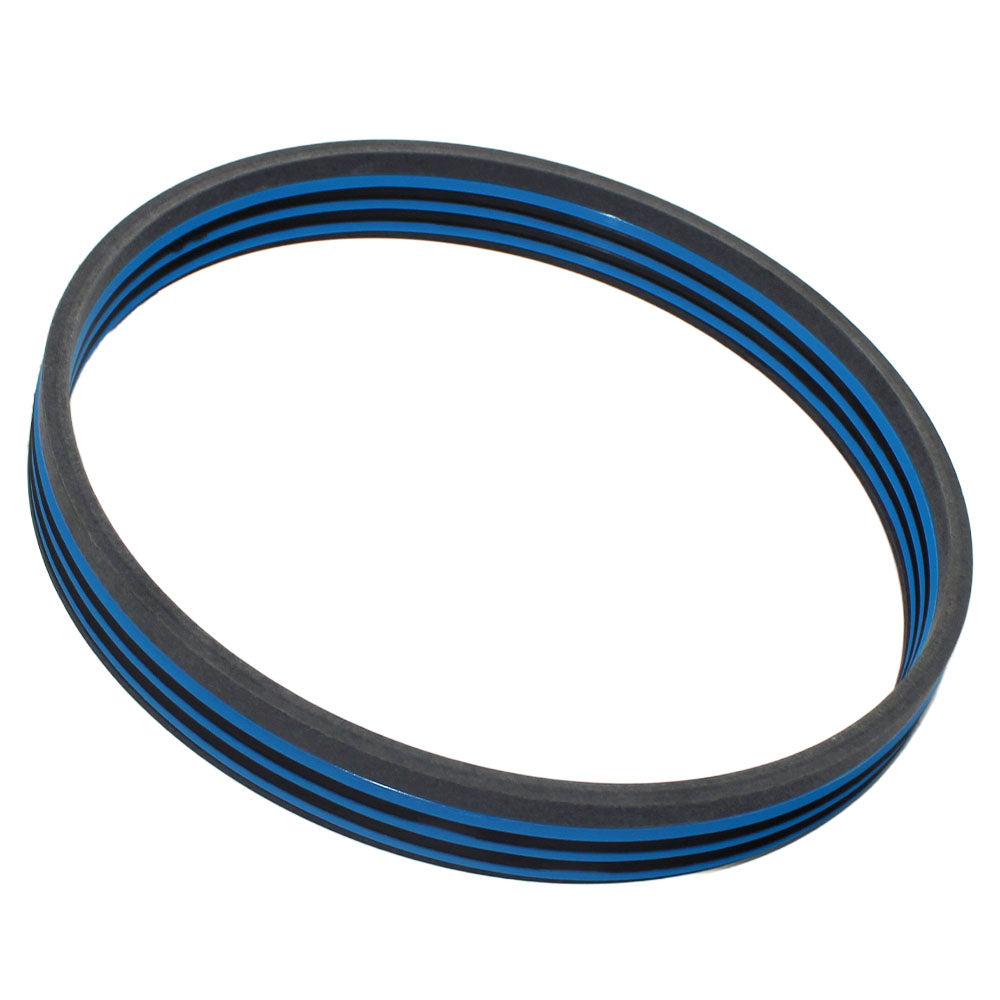

HDLV-1742-900 STANDARD VEE PACKING
HDLV-1742-900 STANDARD VEE PACKING
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket STANDARD VEE PACKING
Tech Info:
-A Nom ID: 8-1/2
-SKU: HDLV-1742-900
-Weight: 0.39191000 lbs
-A Nom ID: 8-1/2
-B Nom OD: 9
-C Nom Height: 1
-H Groove Diameter: 8.500
-D Groove Width: 1.000
-MATERIAL: HYTREL & NYLON
-TEMPERATURE RANGE: -40° to +220° F
-PRESSURE RANGE: 0 to 6,000 PSI
-SPEED: 1.5 FT/SEC
-PART NUMBER: (Prefix) - (# of vees) - (OD) - (Bearing Height)
-D2 Base Groove Width: .377
-J Bore Diameter: 9.000
Tech Info:
-A Nom ID: 8-1/2
-SKU: HDLV-1742-900
-Weight: 0.39191000 lbs
-A Nom ID: 8-1/2
-B Nom OD: 9
-C Nom Height: 1
-H Groove Diameter: 8.500
-D Groove Width: 1.000
-MATERIAL: HYTREL & NYLON
-TEMPERATURE RANGE: -40° to +220° F
-PRESSURE RANGE: 0 to 6,000 PSI
-SPEED: 1.5 FT/SEC
-PART NUMBER: (Prefix) - (# of vees) - (OD) - (Bearing Height)
-D2 Base Groove Width: .377
-J Bore Diameter: 9.000
Models This Part Fits:
Additional Information:
Nom ID - 8 1/2" Nom OD - 9" Nom Height - 1" Groove Diameter - 8.5" Groove Width - 1" Bore - 9" Base Groove Width - 0.377" Bearing Groove Diameter - 8.125" Temperature Range - -40° TO +220°F Pressure Range - 0 TO 6,000 PSI Speed - 1.5 FT /SEC Material - Hytrel and Nylon Standard Vee PackingReference Numbers:
Makes This Part Fits:
Product Category:
Agriculture Replacement PartsProduct Group:
Product Sub Group:
View full details
