Heater Glow Plug Fits Allis-Chalmers Tractor 5040 5045 5050 Thermostart 72089442
Heater Glow Plug Fits Allis-Chalmers Tractor 5040 5045 5050 Thermostart 72089442
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

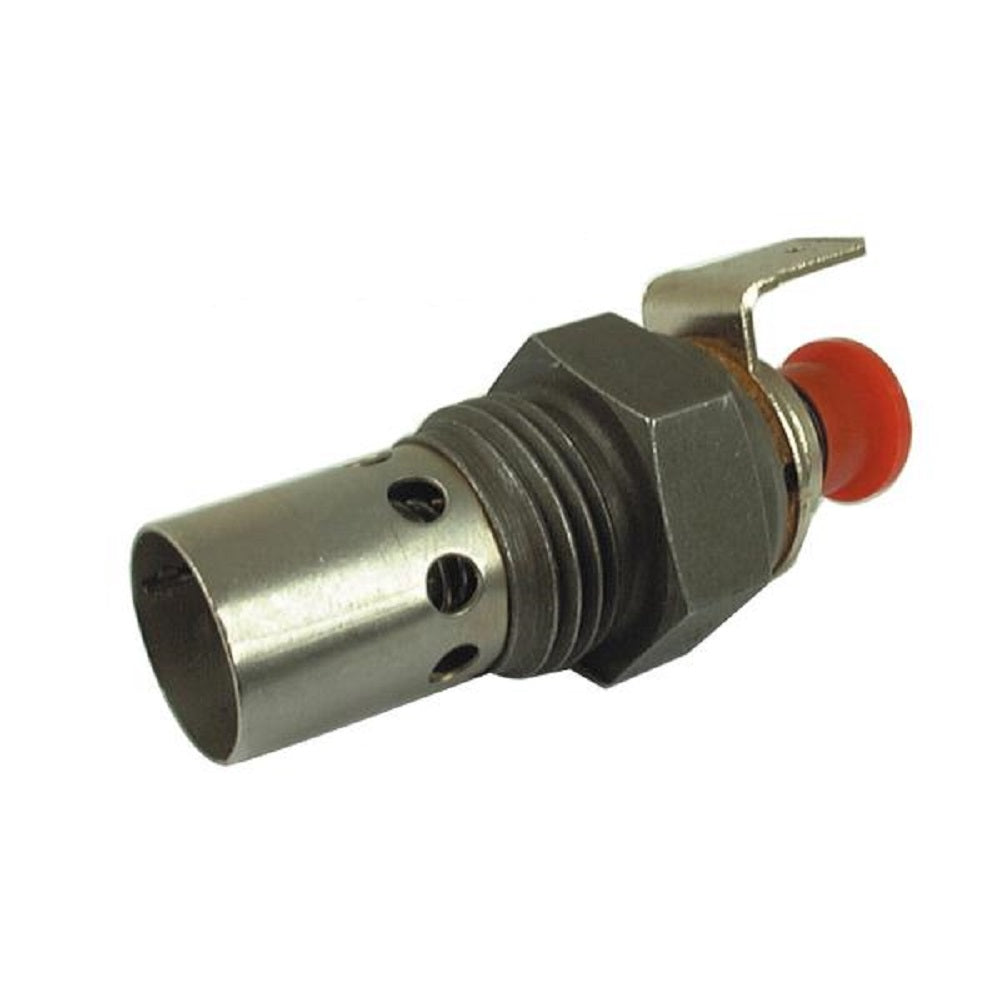

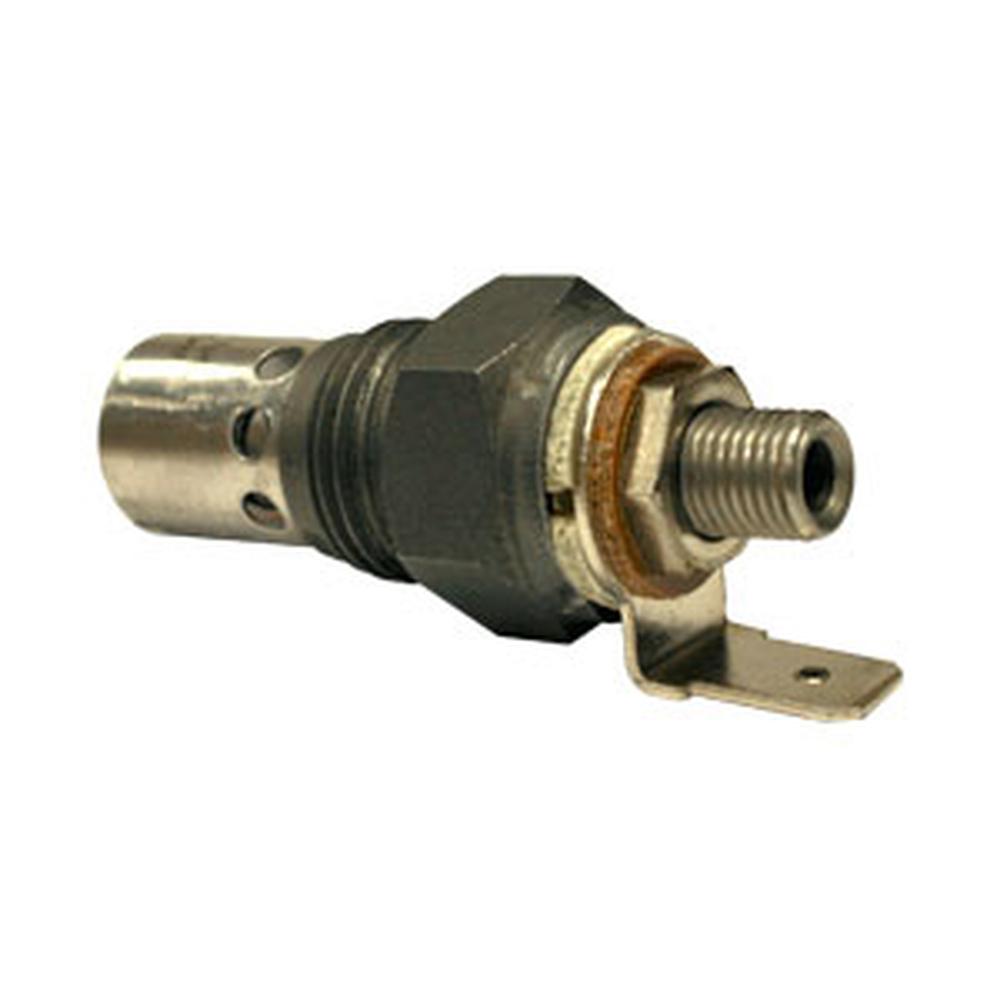

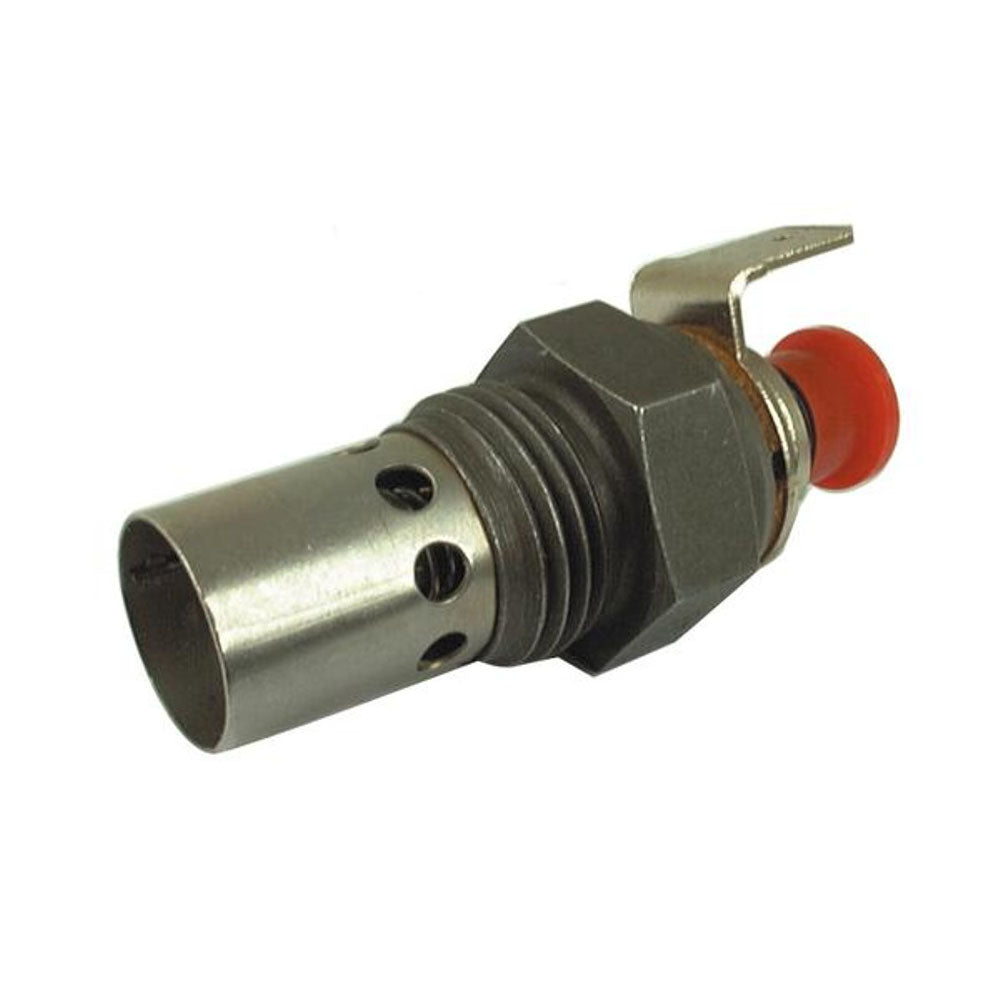

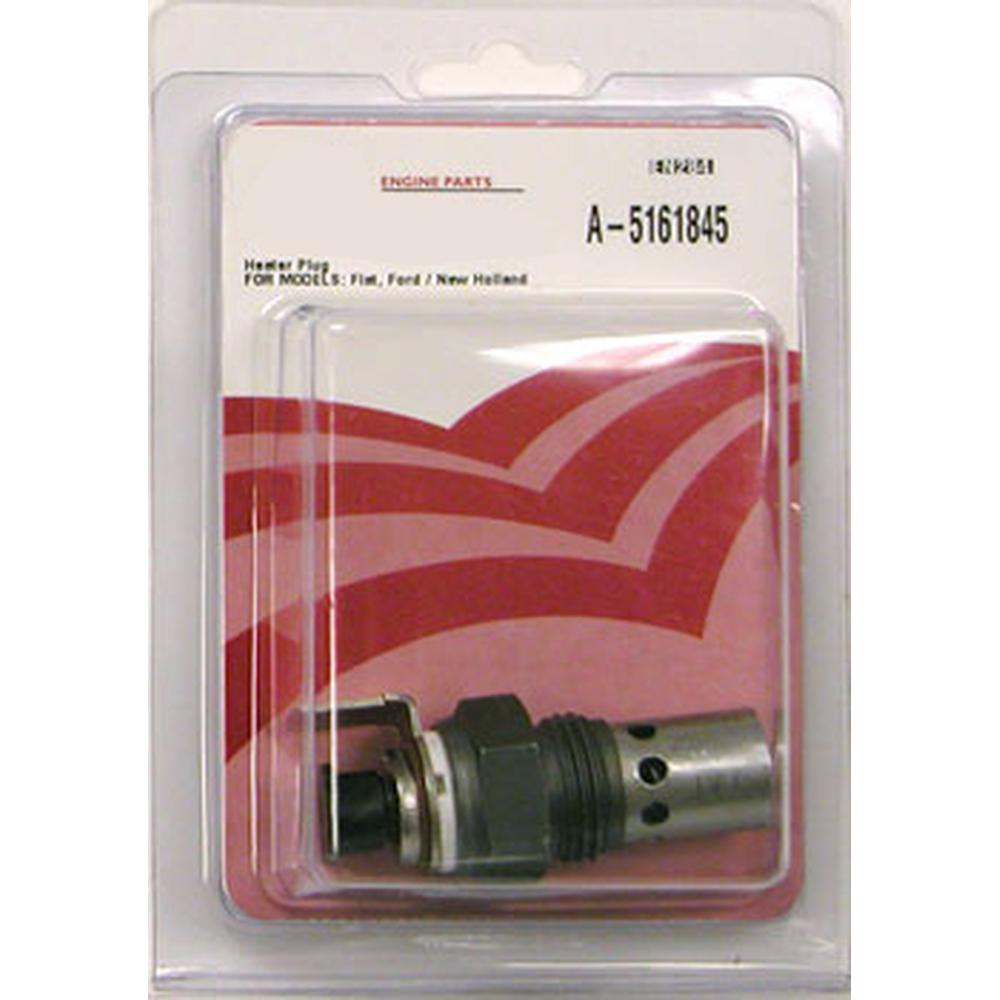

One New Aftermarket Replacement Thermostart Intake Manifold Heater Glow Plug for Allis-Chalmers Tractors
This intake manifold pre-heater (Thermostart) glow plug mounts in the diesel engine intake manifold and assists cold-weather starting by heating incoming air. It operates on a Fiat/UTB-built diesel engine platform and is shared across a wide range of agricultural tractor brands built on the same engine family. The plug uses a spade terminal and threads into the intake manifold with a 1/2" BSP thread.
Specifications
- Overall Length: 67.46mm
- Thread Size: 1/2" BSP
- Voltage: 12V
- Terminal Type: Spade
Compatible Models
Allis-Chalmers: 5040, 5045, 5050
Case/International Harvester (IH): JX55, JX60, JX65, JX70, JX70U, JX75, JX80, JX80U, JX85, JX90, JX90U, JX95, JX100U, JX110, JX1060V, JX1070C, JX1070N, JX1070V, JX1075C, JX1075N, JX1075V, JX1095N, JX1095V, TD3.50, TD4.70F, TD4.80F, TD4.90F, TD4020F, TD4030F, TD4040F, TD5.65, TD5.75, TD5.80, TD5.85, TD5.90, TD5.95, TD5.100, TD5.105, TD5.110, TD5.115, TD55D, TD60, TD60D, TD65, TD65B, TD65D, TD65F, TD70, TD70D, TD75D, TD75F, TD80, TD80D, TD85D, TD85F, TD90, TD90D, TD95, TD95D, TD95D HC PLUS, T3.50F, T3.55F, T3.65F, T3.75F, T5.100, T5.110, TK65F, TK65V, TK70FA, TK70VA, TK75F, TK75FA, TK75M, TK75MA, TK75V, TK75VA, TK76, TK76M, TK80A, TK80MA, TK85, TK85M, TK90A, TK90MA, TK95M, TK100A, TL60, TL60E, TL65, TL70, TL75, TL75E, TL80, TL85, TL85E, TL90, TL95, TL95E, TL100, TN55, TN55D, TN55S, TN55V, TN60A, TN60DA, TN60SA, TN60VA, TN65, TN65D, TN65F, TN65N, TN65S, TN65V, TN70, TN70A, TN70D, TN70DA, TN70NA, TN70S, TN70SA, TN70VA, TN75, TN75A, TN75D, TN75DA, TN75F, TN75FA, TN75N, TN75NA, TN75S, TN75SA, TN75V, TN75VA, TN80F, TN85FA, TN90F, TN95A, TN95F, TN95FA, TN95NA, TN95VA, TT4.55, TT4.75, TT50, TT55, TT65, TT65D, TT75, AVJ55, AVJ60, AVJ70, VJ60, VJ70, VJ80
Fiat: 55-46, 60-46, 65-46, 50-66, 55-56, 55-65, 55-66, 55-75, 55-76, 55-85, 55-86, 55-88, 55-90, 60-56, 60-65, 60-66, 60-75, 60-76, 60-85, 60-86, 60-88, 60-90, 60-93, 60-94, 62-85, 62-86, 65-56, 65-66, 65-88, 65-90, 65-93, 65-94, 70-56, 70-66, 70-75, 70-76, 70-86, 70-88, 70-90, 72-85, 72-86, 72-93, 72-94, 80-65, 80-66, 80-75, 80-76, 80-88, 80-90, 82-85, 82-86, 82-93, 82-94, 85-55, 85-90, 88-85, 88-93, 88-94, 90-90, 95-55, 100-55, 100-90, 110-90, 115-90, 130-90, 140-90, 160-90, 180-90, 2-60, 65A, 65C, 75A, 75C, 85A, 85A, 95A, 105A, 115A, L60, L65, L75, L85, L95, L521, L624, F100, F110, F115, F120, F130, F140, 300, 310, 320, 340, 350, 350DT, 360, 360C, 360DT, 400, 450, 453, 466, 480, 500, 510, 510DT, 530, 540, 550, 553, 560, 560DT, 560DTE, 570, 580, 600, 610, 610C, 610DT, 610DTE, 640, 643, 650, 666, 670, 680, 683, 700, 703, 766, 780, 833, 850, 880, 900, 980, 1000, 1010, 1033, 1280, 1355, 1365, 1370, 1380, 1580, 1880, 2260, 2310, 2360, 2360DTC, 2460, 2460DTC, 2460SD, 2460SD-DTC, 2510, 2510DTC, 2510SD, 2510SD-DTC, 2610, 2610DTC, 2610SD, 2610SD-DTC, 3010S, 3400, 3435, 3500, 3550, 3830, 3935, 4010S, 4030, 4135, 4230, 4430, 4635, 4835, 5010S, 5635, 5635, 6500, 6635, 7635, 8430, 8630, 8830
Long/Universal: 260C, 310, 310C, 310DT, 320, 340, 350, 350DT, 360, 360C, 360DT, 445, 445DT, 445SD, 445V, 446, 460, 460DT, 460SD, 460V, 510, 510DT, 550, 550DT, 560, 560DT, 560DTE, 610, 610C, 610DT, 610DTE, 2260, 2310, 2360, 2360DTC, 2460, 2460DTC, 2460SD, 2460SD-DTC, 2510, 2510DTC, 2510SD, 2510SD-DTC, 2610, 2610DTC, 2610SD, 2610SD-DTC
White/Oliver: 1355, 1365, 1370, 2-60, 700
Replaces Part Number(s):
4154748, 05161845, 5140702, 4232051, 4176086, 4724602, 321156100, 5141702, 5161845, 5155859, 87569382, 4724601, 82982431, 5093612, 5118152, 153630667, 5161844, 710203290, 4037017, TS11 00 00, TS110000, 40 37 017, TX12346, 72089442, 30-3010813, 31-2900014, 72094378
Aftermarket Interchange Numbers
Also cross-references: 5161845-A, 87569382-A, 4176086-A, 5140702-A, 5155859-A, 82982431-A, 710203290-A, 72089442-A, 4037017-A, TX12346-A
New aftermarket replacement part - not remanufactured, not used.
Models This Part Fits:
50-66, TN65F, 2510SD, 70-56, 1370, TL85E, 400, 2460SD-DTC, 310, 75A, JX1075N, 45-66, 780, 75C, TK75M, 2310, VJ60, TD4.90F, T3.75F, 85-90, TD5.80, 1010, 1380, 88-94, TK90MA, 2610, 62-85, 360C, TK85M, 72-94, 6500, 353, 70-66, TN65S, 680, 2510, TD85D, 460V, 466, TD60, T3.65F, 65C, 60-90, 82-93, 300, TD95, 65-88, 8430, TD5.105, TD3.50, F120, 2510DTC, AVJ60, L65, TL80, TN60VA, TN95NA, 115-90, 2610SD, TT4.55, TL70, TL95E, 510DT, F130, JX1070V, TD90D, 1355, 60-46, 553, 82-86, L521, 4835, JX70, TN75S, L95, TT4.75, TK80A, 666, JX70U, 60-65, 683, TD65F, T5.100, 60-56, AVJ55, 60-76, TD80D, TN75VA, 4135, TD80, JX1070N, 65A, TN75D, TD4030F, TD60D, JX1095V, TN60A, 55-56, 55-65, TK75MA, 360, 610, 55-85, 2460DTC, L85, TN70SA, TN90F, 446, TL100, TN70D, TN85FA, 62-86, TN70DA, 60-88, 460, 4010S, 105A, JX55, 85A, 65-93, 65-66, 2260, TD75F, TD70, 65-46, 610DTE, 766, TN75V, 3400, 88-85, 70-65, 340, 3435, 445DT, TN65D, 1000, 566, 640, L624, 670, 3935, F110, 550DT, TK65F, JX95, 1280, 580, 500, 80-88, VJ80, 4635, 450, 72-85, TN70A, 570, 55-88, TN65V, L75, 60-94, 55-90, TD90, 980, 80-76, 55-86, TN65N, TD95D, 5045, 530, JX90, 5010S, 80-75, 445V, 1580, L60, 900, JX90U, 4430, 95-55, TN55D, 60-86, 2360, 60-85, TD5.65, 45-76, 100-55, 350, F140, JX1075C, TL95, 50-86, TN55, TD65B, 260C, 643, TK100A, TN70NA, TN70F, 833, TD5.115, JX80, TN65, TD5.95, T5.110, 70-88, AVJ70, 82-94, JX110, 3830, 510, 2460, 310C, JX85, TK76, 80-65, TN95A, JX80U, 95A, TD4.80F, 460DT, TL60E, 65-56, 610C, TN75N, 70-86, TD5.85, TD5.110, TN75FA, JX75, 55-46, 65-94, TD5.100, JX100U, 3550, 610DT, 70-76, TT75, JX1060V, TD4020F, 5040, 3500, 4030, 703, TK95M, TN60SA, 180-90, TN60DA, TL85, TT50, 140-90, 8830, TN75A, TN75, 88-93, 320, 65-90, 80-90, 55-66, 85-55, TL60, TN95VA, 1880, TD65, TD75D, 6635, TK75F, TT65D, 350DT, JX1070C, TK75V, TT55, TN95F, TL65, F115, 2610DTC, TN75NA, 2460SD, 130-90, JX60, 1365, 850, TN95FA, 7635, TD65D, TK75VA, TD85F, 55-76, 445, 1033, 70-75, 2510SD-DTC, TN70, 2360DTC, TD95D HC PLUS, JX1095N, 115A, TL75, 72-86, 560DTE, 453, TD4.70F, F100, TK80MA, 160-90, TK85, 4230, TN70VA, TN55S, 60-66, TK76M, 5635, 60-75, TN70S, TD5.75, 880, 540, 90-90, TK65V, 5050, 2-60, 700, 550, TD5.90, 600, T3.55F, 8630, TD55D, TK90A, 72-93, T3.50F, TL90, 110-90, 480, 2610SD-DTC, TN80F, VJ70, TK75FA, 70-90, 560, JX1075V, 360DT, TN55V, JX65, 100-90, 310DT, TD70D, 82-85, TT65, 80-66, TN75F, TN75SA, TL75E, TN75DA, TK70FA, 60-93, TK70VA, 560DT, 445SD, 55-75, 460SD, 3010S, TD4040FAdditional Information:
Overall Length: 67.46mm Thread Size: 1/2" BSP Volts: 12V Heater PlugReference Numbers:
4724602, 4724601, 82982431, 4154748, 5141702, 5161845, 5093612, 5118152, 153630667, 4176086, 4232051, 321156100, 5161844, 710203290, 5155859, 5140702, TX12346, 4176086, 87569382, 5141702, 5161845, 5155859, 4154748, 05161845, 5140702, 4232051, 4176086, 4724602, 321156100, 5141702, 5161845, 5155859, 87569382, 4037017, TS11 00 00, TS110000, 40 37 017, 72089442, 30-3010813, 31-2900014Makes This Part Fits:
