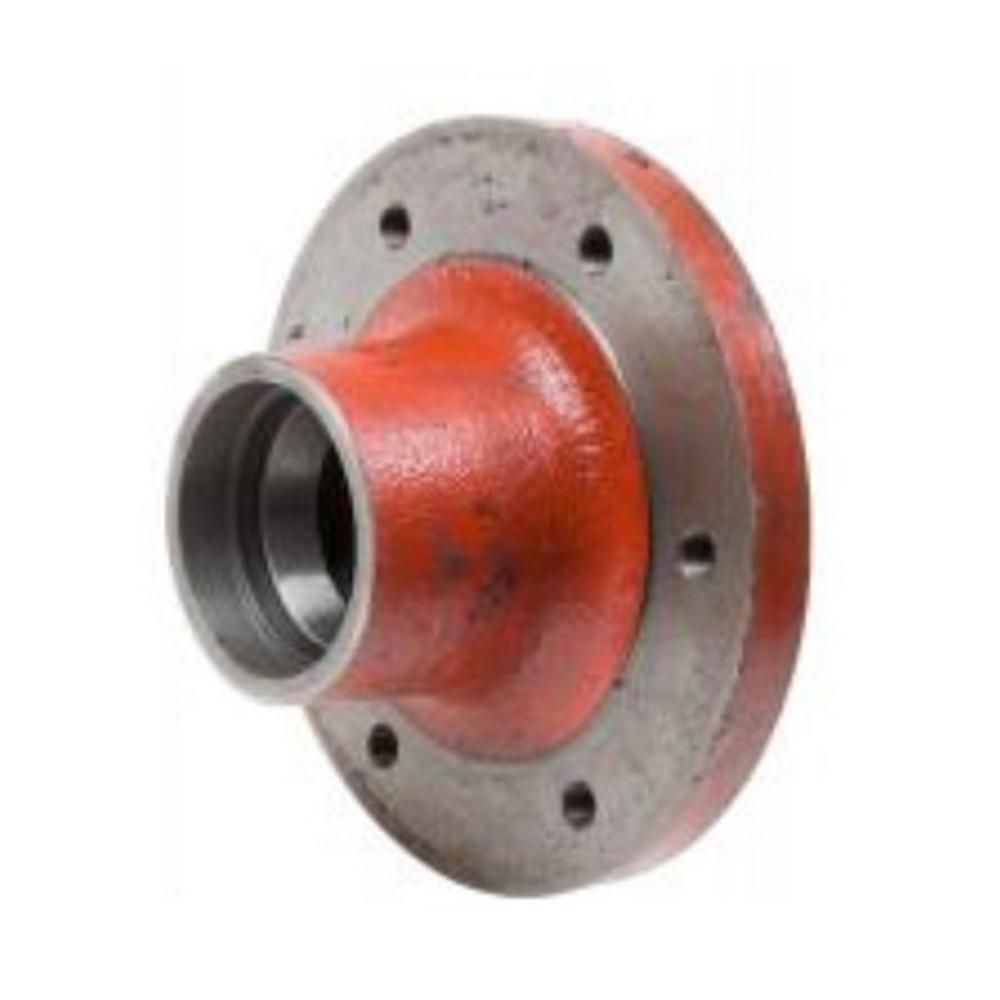

One New Aftermarket Replacement Hub with Cups Fits Case IH and Fits International Harvester Tillage Equipment

This aftermarket replacement hub with pre-installed bearing cups is a transport wheel hub used on the lift axle and wheel axle assemblies of Fits Case IH (Fits Case/International Harvester) disk harrows, chisel plows, and related tillage implements. The hub mounts on a 1-3/4 in. diameter spindle and features six bolt holes on a 6 in. bolt circle, with a grease fitting included. Please confirm spindle diameter before ordering.

Specifications

• Spindle Diameter: 1-3/4 in.
• Bolt Holes: 6
• Bolt Circle: 6 in.
• Inner Diameter: 42.9 mm
• Outer Diameter: 187.45 mm
• Length: 111.76 mm
• Includes bearing cups and grease fitting

Compatible Models

Fits Case IH Tillage: 14, 475, 485, 496, 501, 596, 700, 720, 730, 735, 760, 770, 800

Fits International Harvester: 781, 881

Fits International Tillage: 48, 315, 470, 475, 480, 490, 500, 510, 610, 700, 710, 760

Replaces Part Number(s):

465493R2, 465493R2-A

Supersedes: 465493R1

New aftermarket replacement part - not remanufactured, not used.
