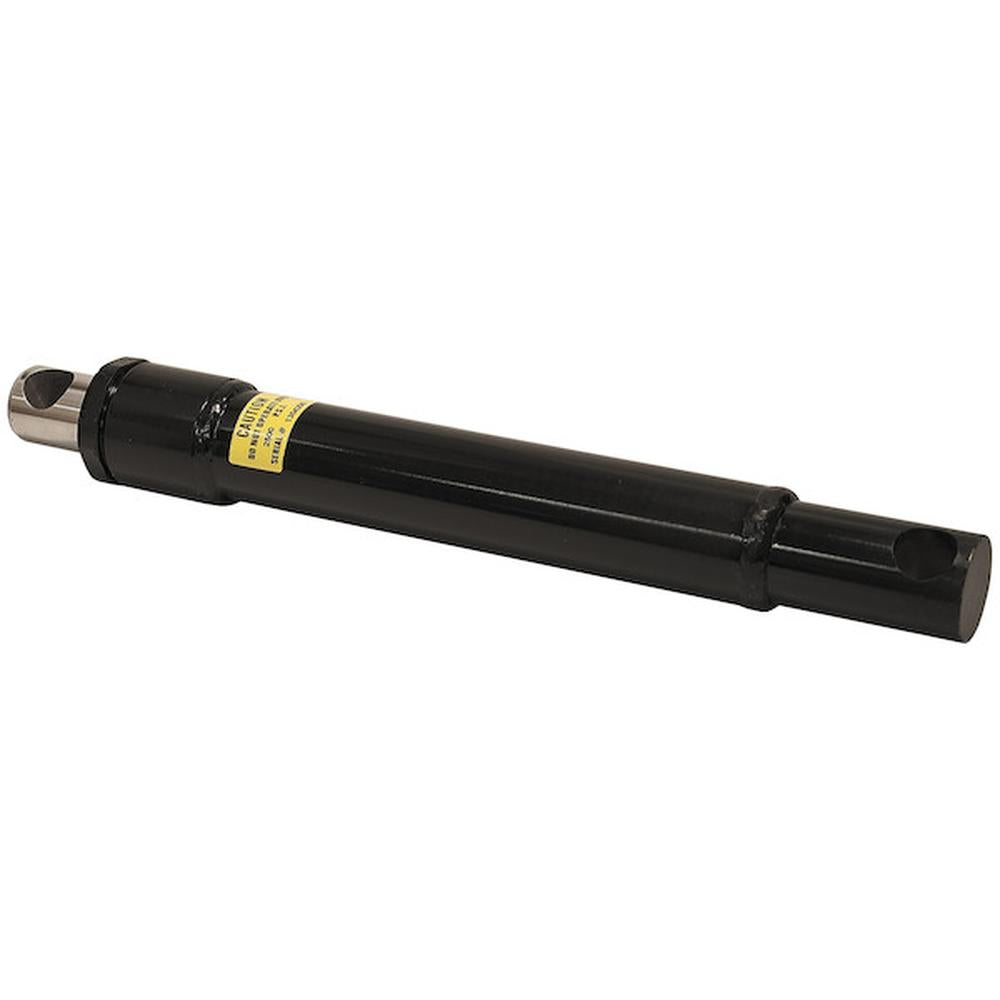

LIFT AND ANGLE CYLINDER Fits BOSS Replaces HYD01603
LIFT AND ANGLE CYLINDER Fits BOSS Replaces HYD01603
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
One New Aftermarket LIFT AND ANGLE CYLINDERTech Info:
-Base Diameter/Thickness 2.375 "
-Center To Center Extended 27.000 "Center To Center Retracted 17.000 "
-Pin Size .625 "
-Port Location Inline
-Rod Diameter/Thickness 1.500 "
-Stroke 10.000 "
-Bore 1.500 "
-Port Size 3/8 NPTMade to Fit BOSS:
Replaces Part Number(s): HYD01603
-Base Diameter/Thickness 2.375 "
-Center To Center Extended 27.000 "Center To Center Retracted 17.000 "
-Pin Size .625 "
-Port Location Inline
-Rod Diameter/Thickness 1.500 "
-Stroke 10.000 "
-Bore 1.500 "
-Port Size 3/8 NPTMade to Fit BOSS:
Replaces Part Number(s): HYD01603
Models This Part Fits:
Additional Information:
Base Diameter/Thickness 2.375 " Center To Center Extended 27.000 "Center To Center Retracted 17.000 " Pin Size .625 " Port Location Inline Rod Diameter/Thickness 1.500 " Stroke 10.000 " Bore 1.500 " Port Size 3/8 NPT LIFT AND ANGLE CYLINDERReference Numbers:
HYD01603Makes This Part Fits:
Product Category:
Snow Removal Replacement PartsProduct Group:
Product Sub Group:
