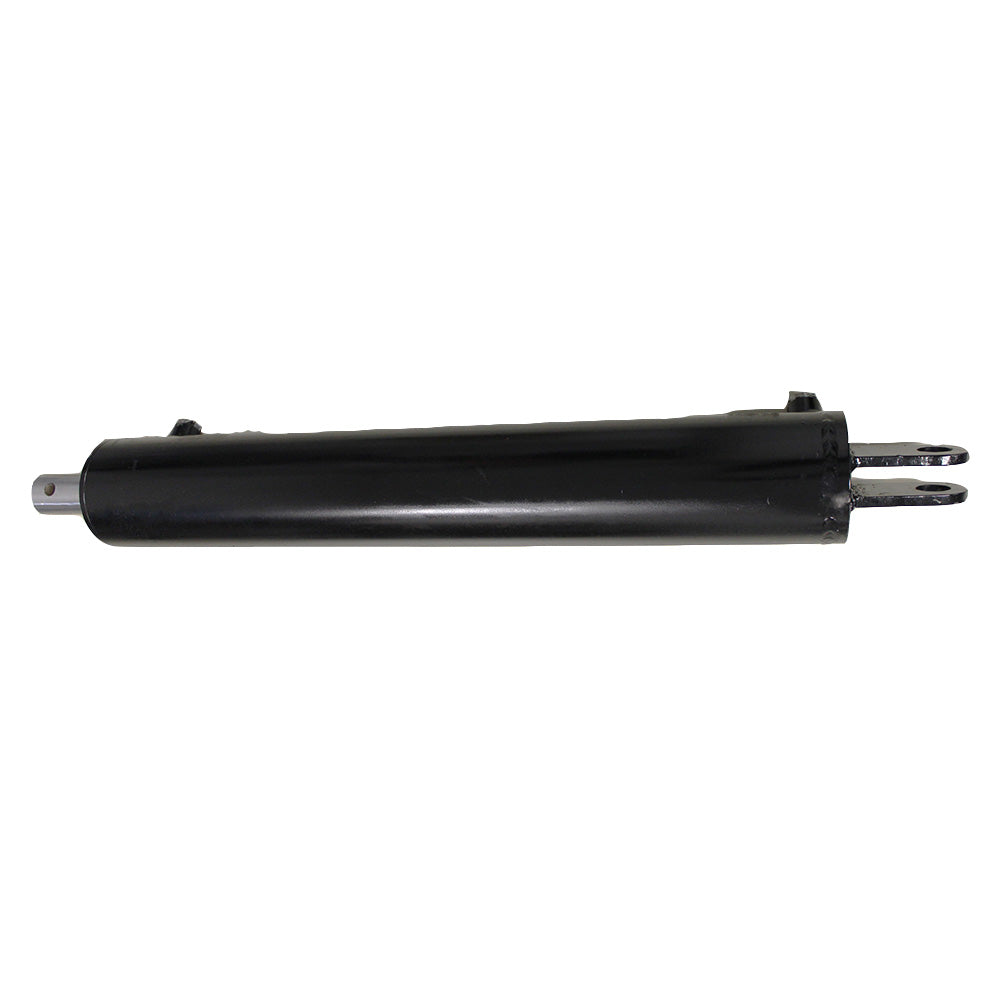

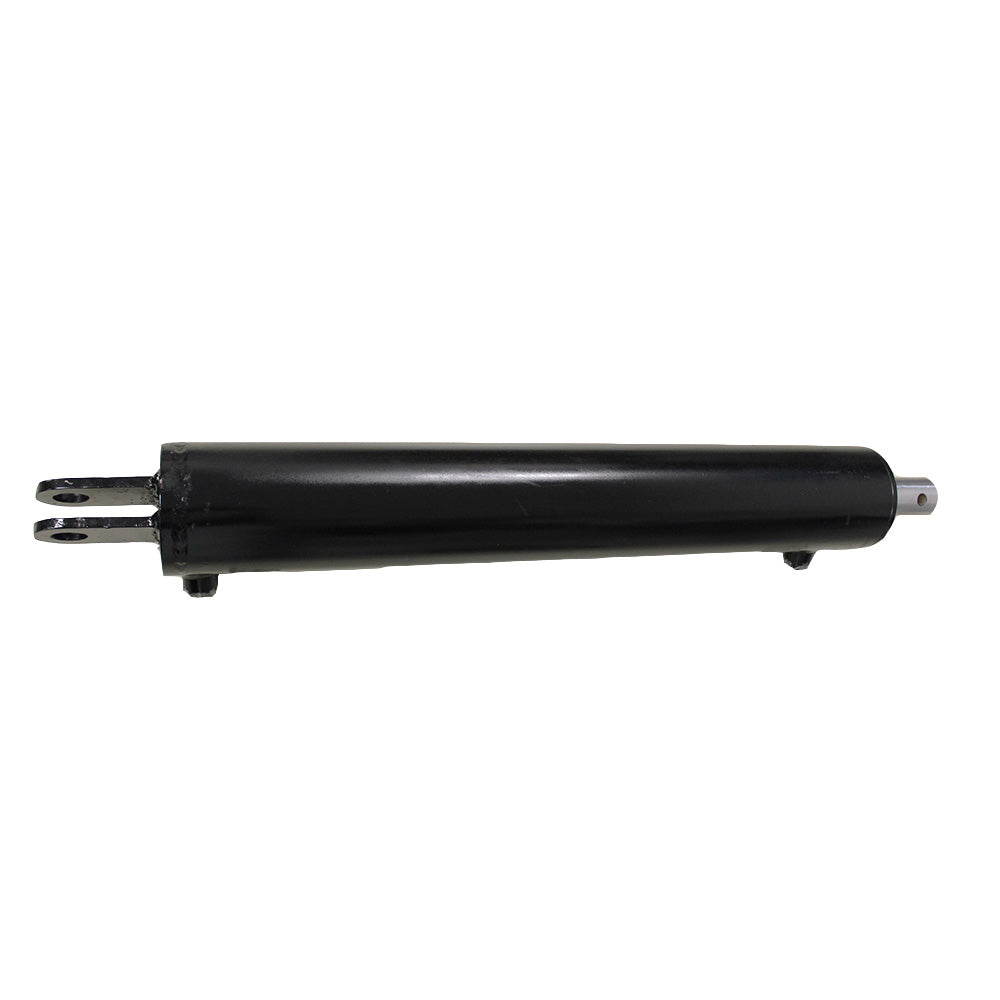

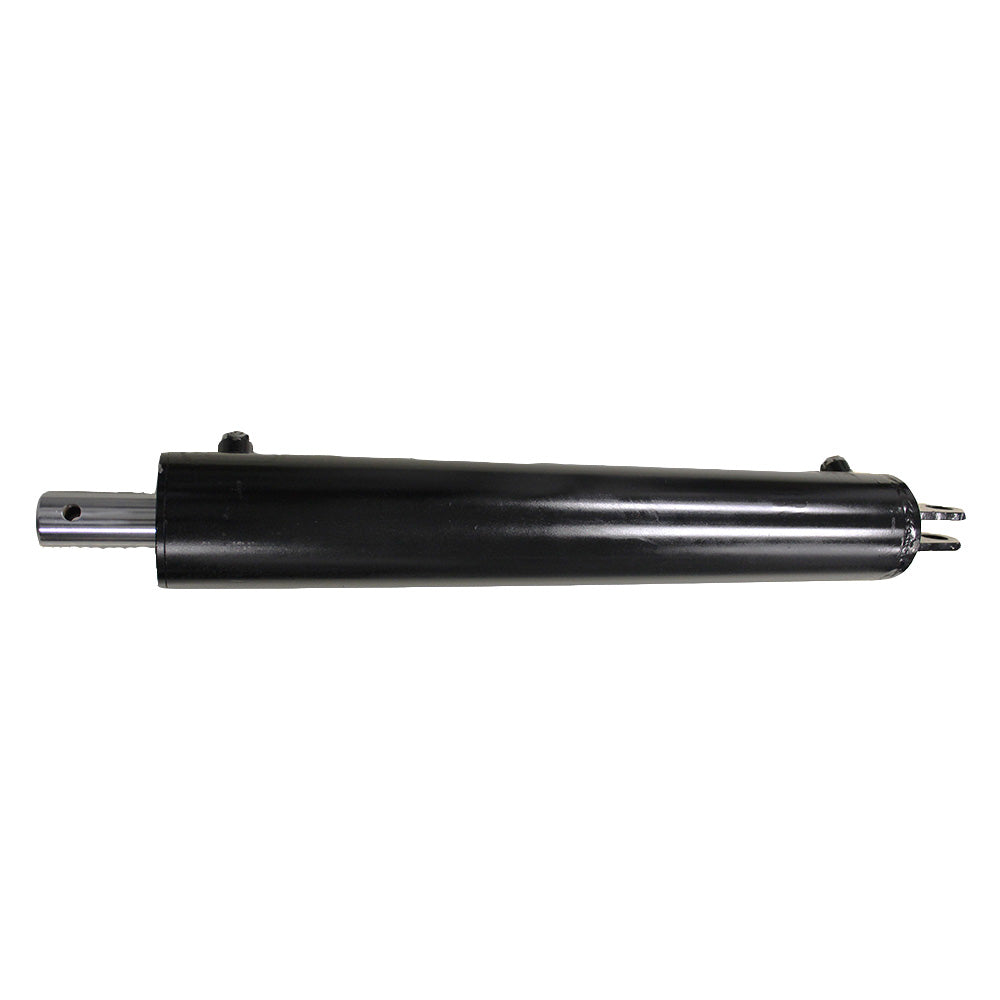

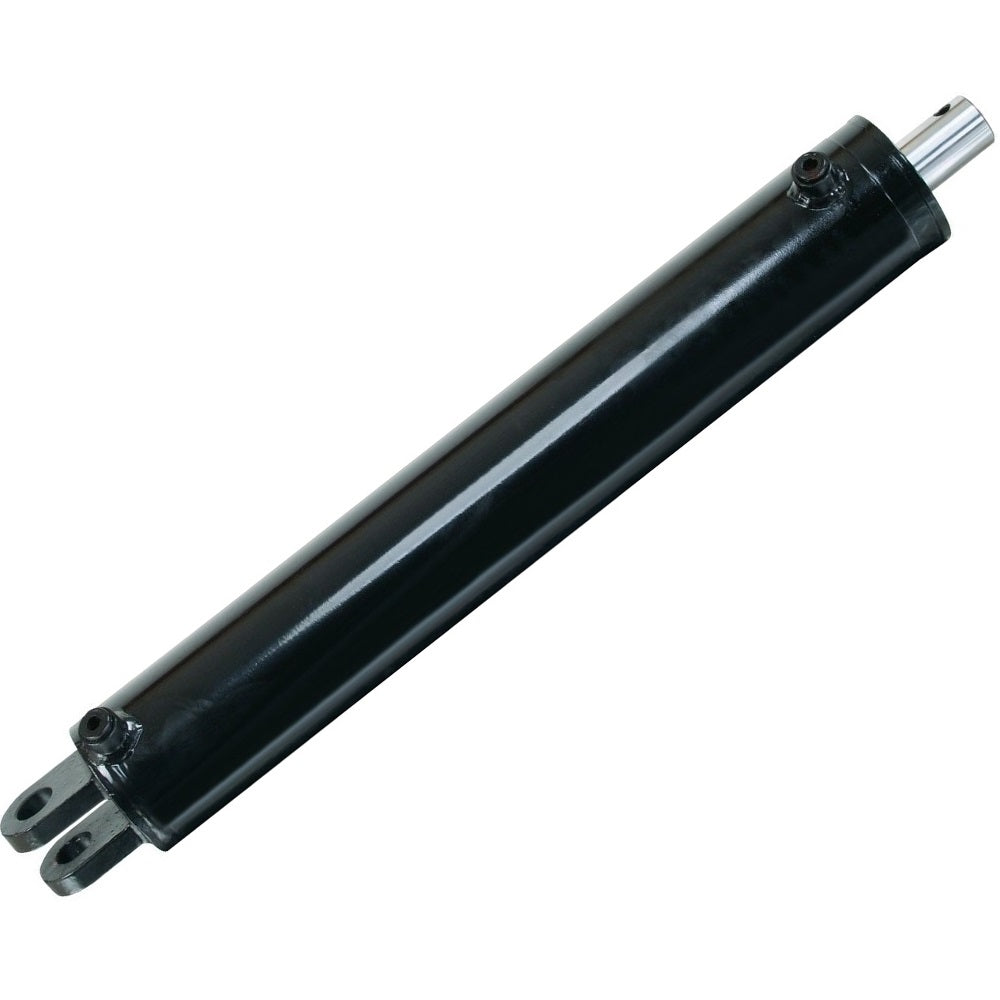

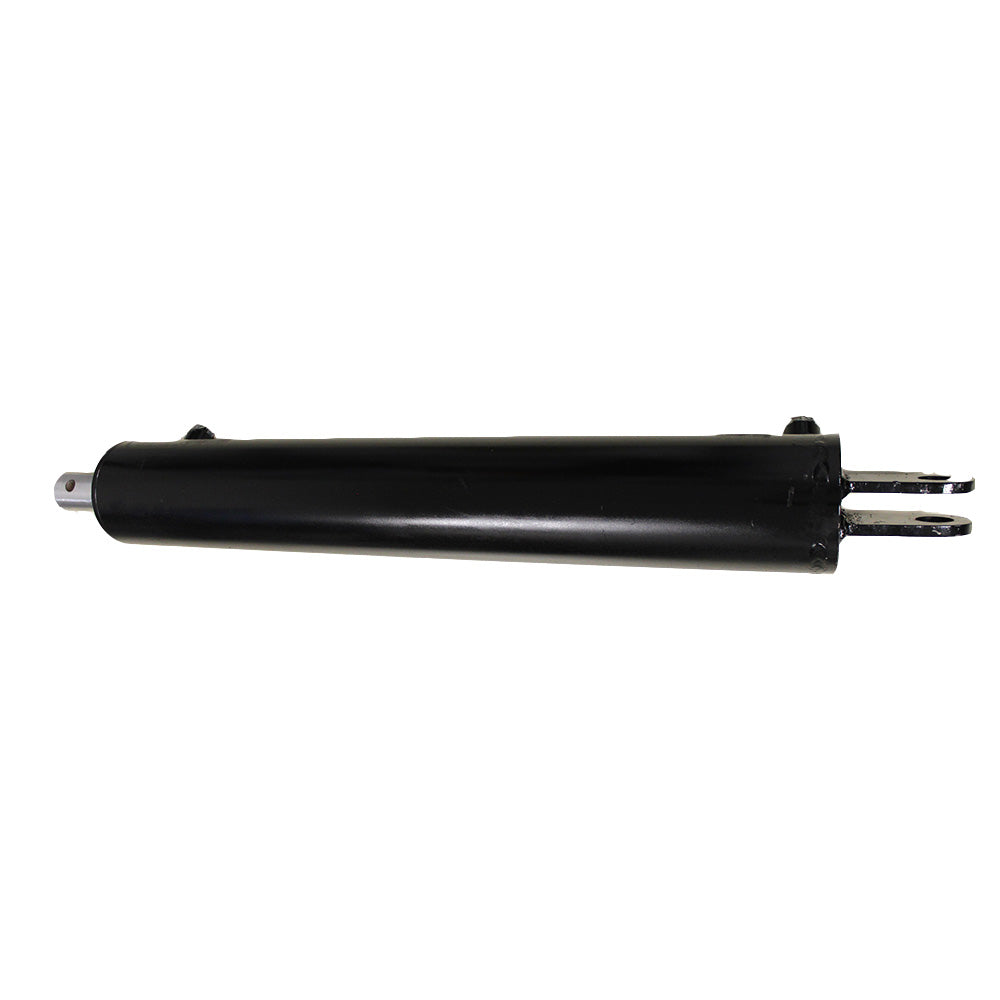

One New Aftermarket Replacement Double-Acting Hydraulic Cylinder for Dirty Hand Tools, MTD, Huskee, and Other 22-25 Ton Log Splitters

This double-acting hydraulic cylinder is a direct replacement for the splitting cylinder used on Dirty Hand Tools, MTD, Huskee, County Line, TSC, Oregon, SpeeCo, and SplitMaster log splitters in the 22-25 ton range. Featuring a 4" bore and 24" stroke with a double mounting clevis design, it is engineered for high-cycle wood splitting applications and rated to 3500 PSI maximum operating pressure. The cylinder is rebuildable and uses standard 1/2" NPT hydraulic ports.

Specifications

• Type: Double-Acting Log Splitter Cylinder
• Bore: 4" Diameter
• Stroke: 24"
• Center-to-Center Bolt Holes: 34.5"
• Maximum Operating Pressure: 3500 PSI
• Hydraulic Ports: 1/2" NPT
• Rod Diameter: 1-3/4" with 9/16" Wedge Mounting Hole
• Clevis Mounting Holes: 1-1/8"

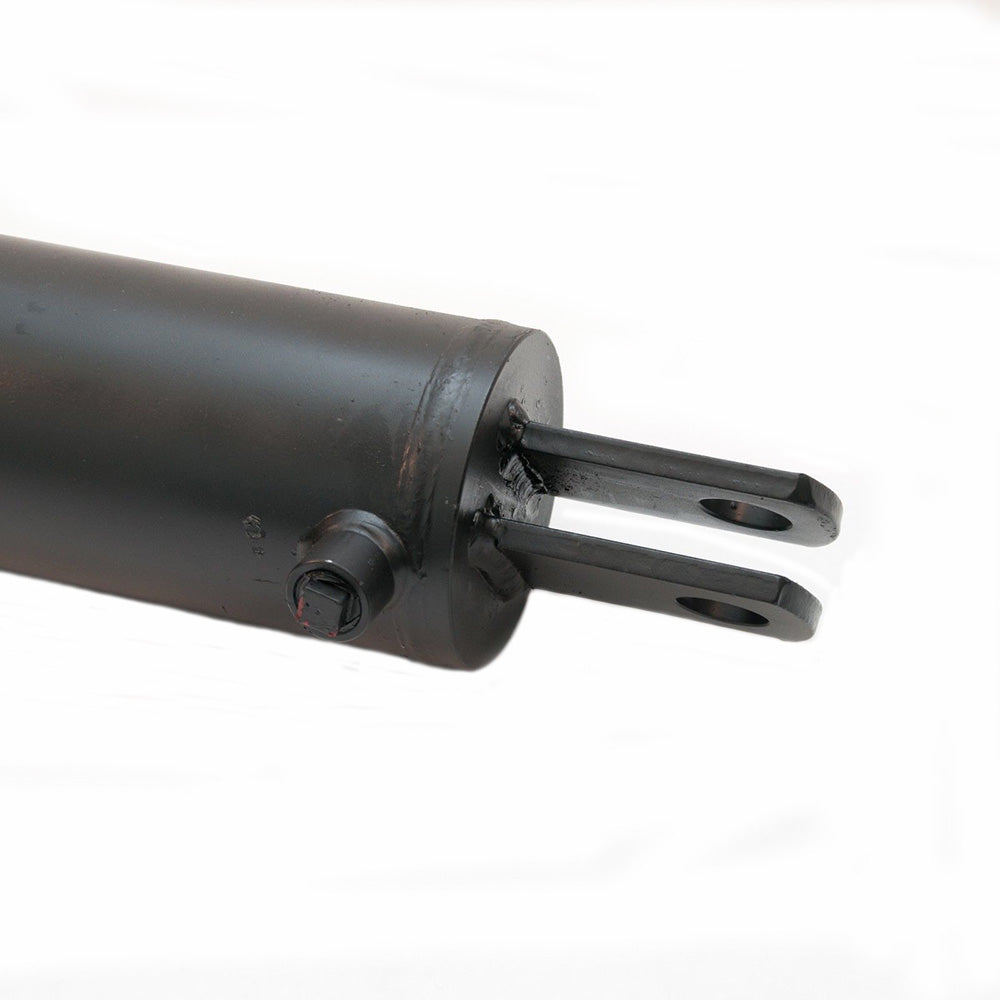

• Double Mounting Clevis Design (accepts 1-1/8")

Compatible Models

Dirty Hand Tools: 100171 (22-Ton), 100950

MTD / Fits Cub Cadet: 22-25 Ton Log Splitters (25-Ton to 28-Ton range)

Also fits: Tractor Supply Co. (TSC) / CountyLine, Huskee, Oregon, SpeeCo, and SplitMaster log splitters in the 22-25 ton class. Verify bore, stroke, port size, and clevis dimensions before ordering.

Replaces Part Number(s):

718-0769, 7180769, 918-0769A, 9180769A

New aftermarket replacement part - not remanufactured, not used.
