Aftermarket HYDRAULIC LIFT PUMP CYLINDER ASSEMBLY Fits Massey Ferguson MF 135 UK 150 165 35

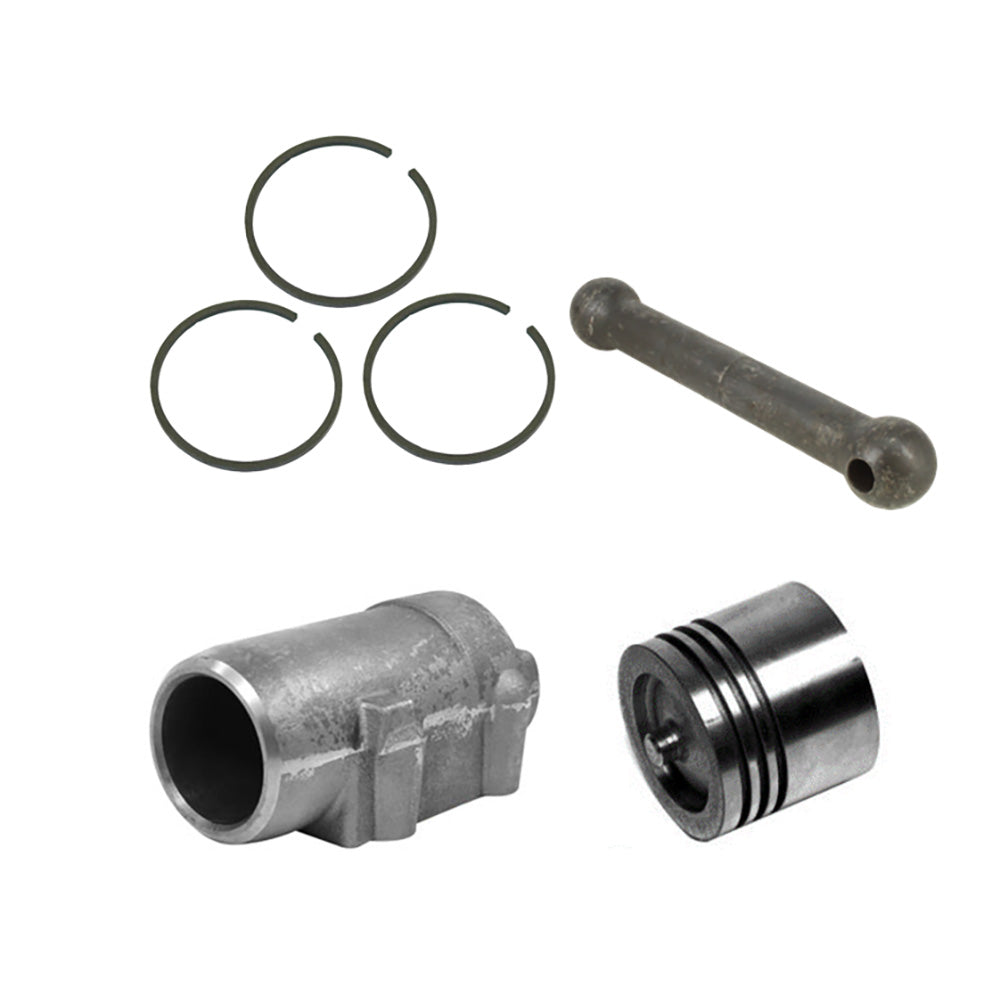

Tech Info: INCLUDES 3'' HYDRAULIC CYLINDER, RAM ROD, PISTON AND SET OF PISTON RINGS AS PICTUREDNOTE : THE CYLINDER IN THIS KIT WILL FIT EARLIER SERIAL NUMBERS FOR THE MODELS SPECIFICALLY NOTED ABOVE ONLY IF THAT TRACTOR HAS A NEWER HYDRAULIC LIFT HEAD COVER INSTALLED. TO IDENTIFY IF THIS CYLINDER WILL FIT THOSE MODELS, CHECK THAT THE LEVER SUPPORT BRACKET MOUNTING HOLES ARE 1'' ON CENTER FROM THE SURFACE OF THE CYLINDER THAT MOUNTS TO THE LIFT HEAD. PLEASE ALSO REFER TO THE PICTURE THAT SHOWS THIS INFORMATION AS WELL.
Replaces Part Number(s): 184443M91, 190859M1, 191211M1, 830741M91
Models This Part Fits:
205, 165, 135, 203, 150, 50, 304, 204, 2135, 202, 302, 65Additional Information:
Kit Contains: (1) Hydraulic Lift Piston 3" Diameter Replaces Part Numbers: 184443M1, 184443M91, 828607M91 (1) 3" Rockshaft Lift Cylinder Dim A (1) 3.00" Diameter Dim B (2) 8.187" Long Replaces Part Numbers: 190859V1, 190859M1 (1) Lift Piston Rod 7.750" Long Replaces Part Number: 191211M1 (3) Hydraulic Piston Ring Used With 184443M1 Piston 1/8" Thick Replaces Part Number(s): 830741M1, 830741M91, 184447M1Reference Numbers:
184443M1, 184443M91, 828607M91, 190859V1, 190859M1, 191211M1, 830741M1, 830741M91, 184447M1Makes This Part Fits:
