Hydraulic Pump Adapter Plate Fits Massey Ferguson 235 30 135 150 65 35 245 40 50
Hydraulic Pump Adapter Plate Fits Massey Ferguson 235 30 135 150 65 35 245 40 50
AIC Replacement Parts - FEDEX2DAY
**TO VIEW PRICE**
LOGIN or REGISTER

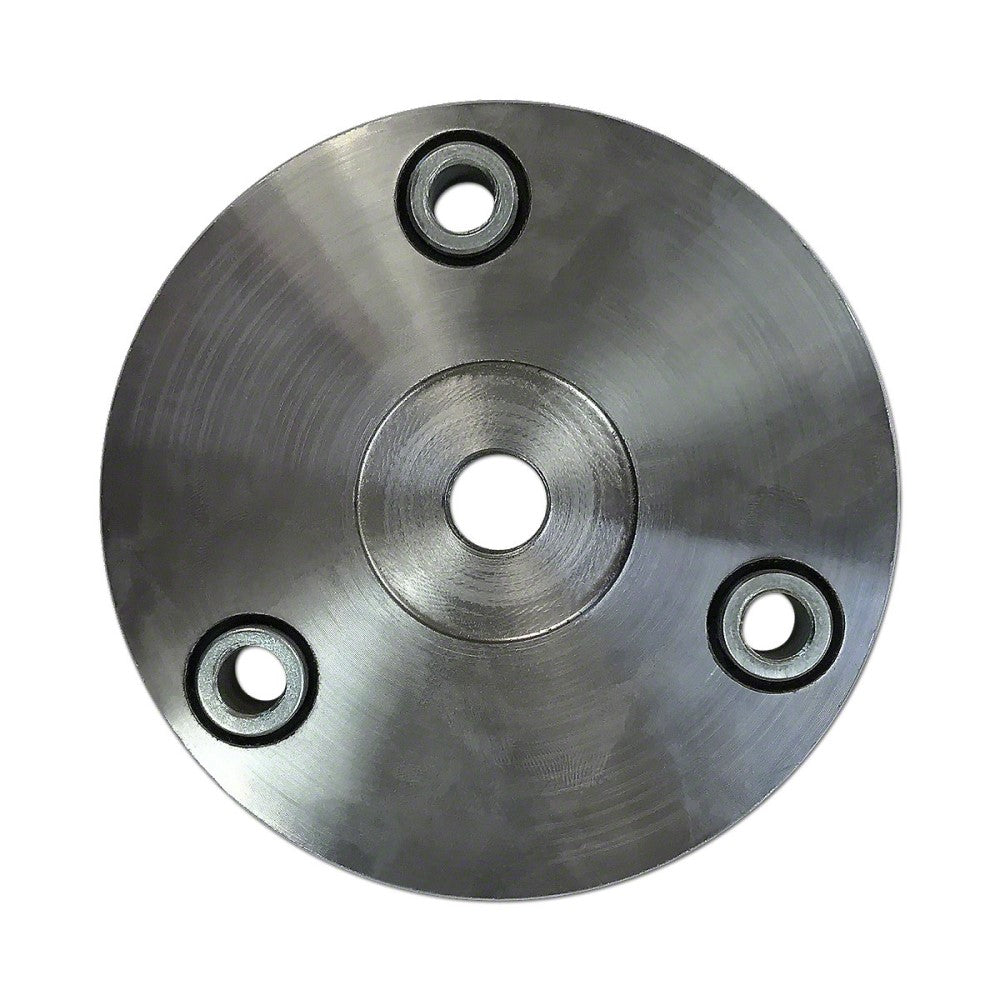

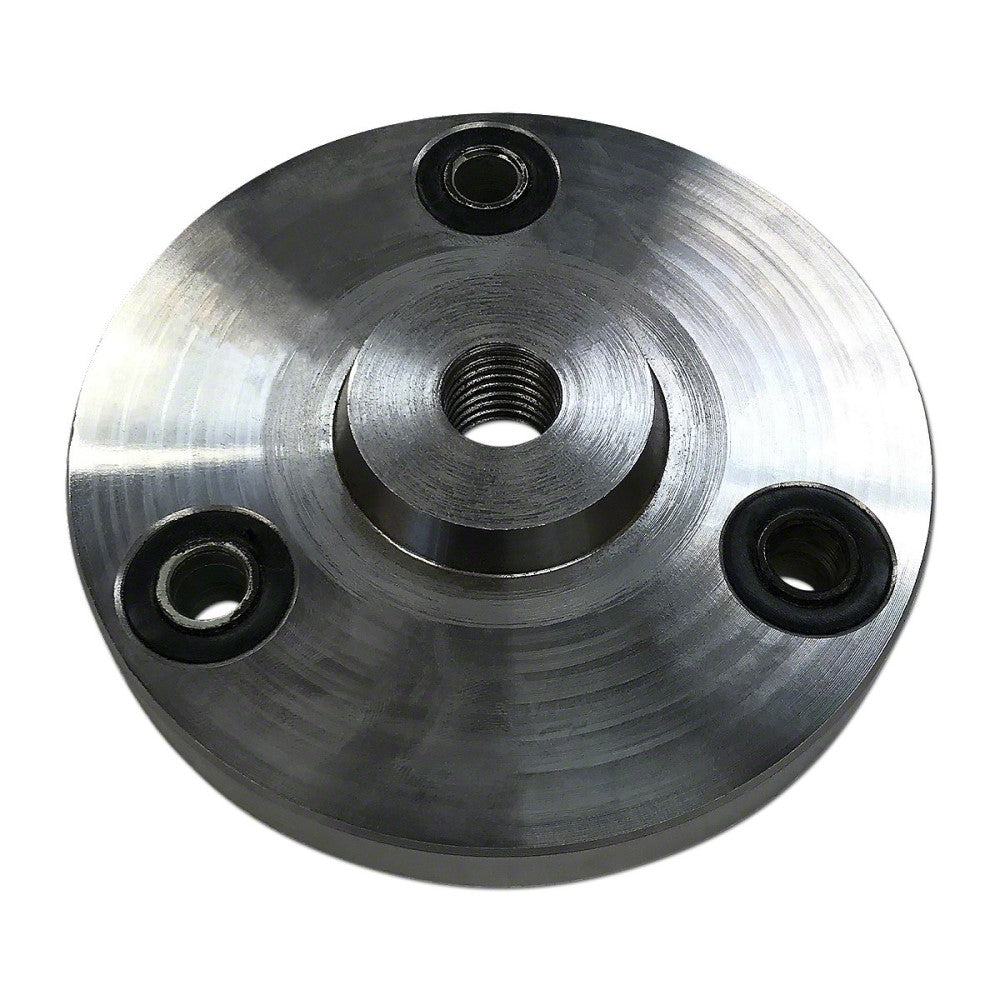

One New Aftermarket Hydraulic Pump Drive Adapter Plate
Fits Massey Ferguson Tractor Models:
35, 50, 65, 135, 150, 235, 245
Fits Massey Ferguson Construction & Industrial Models:
20, 20C, 30, 30B, 30D, 40, 202, 203, 204, 205, 2135, 2200
Tech Info:
3/4"-10 UNC L.H. thread
5-1/4" O.D.
3 bushings with mounting holes 3.465" on center
4" bolt circle
Replaces Part Numbers:
704812M93, MFS3746
Models This Part Fits:
2200, 65, 50, 203, 30E, 235, 2500, 30, 204, 40, 230, 135, 150, 2135, 245, 202, 20C, 30D, 30B, 35, 40B, 20F, 4500, 205, 20Additional Information:
3/4"-10 UNC LH thread 5-1/4" outside diameter 3 bushings with mounting holes 3.465" on center Bushing hole is .460" I.D. 4" bolt circle Note: This adapter plate bolts to the crankshaft pulley. Hydraulic Pump Drive PlateReference Numbers:
704812M93, 704812M92, 1753723M91, 1753723M92, 704812M93, 1753723M91, 1753723M92, 704812M92Makes This Part Fits:
