Hydraulic Pump Fits 433 533 633 644 733 743 744 745 745S 833 844 844S 1986964C1
Hydraulic Pump Fits 433 533 633 644 733 743 744 745 745S 833 844 844S 1986964C1
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

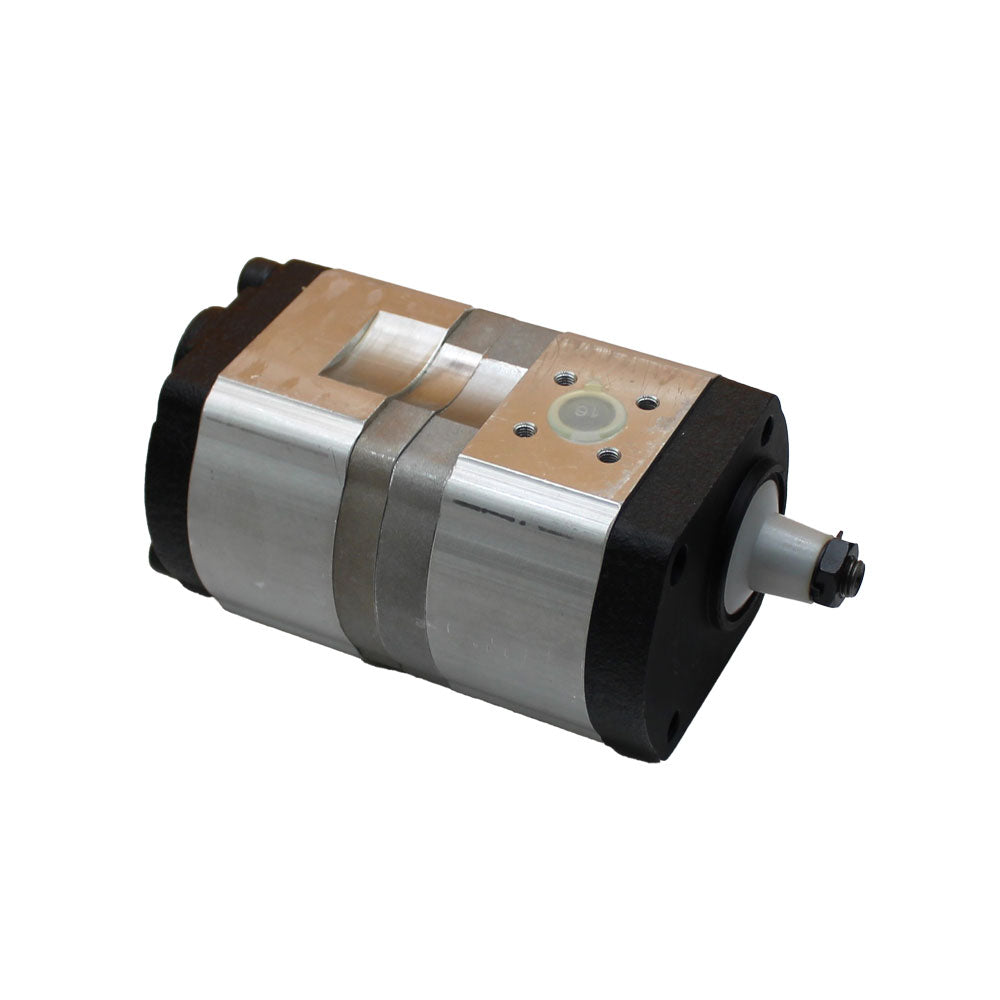

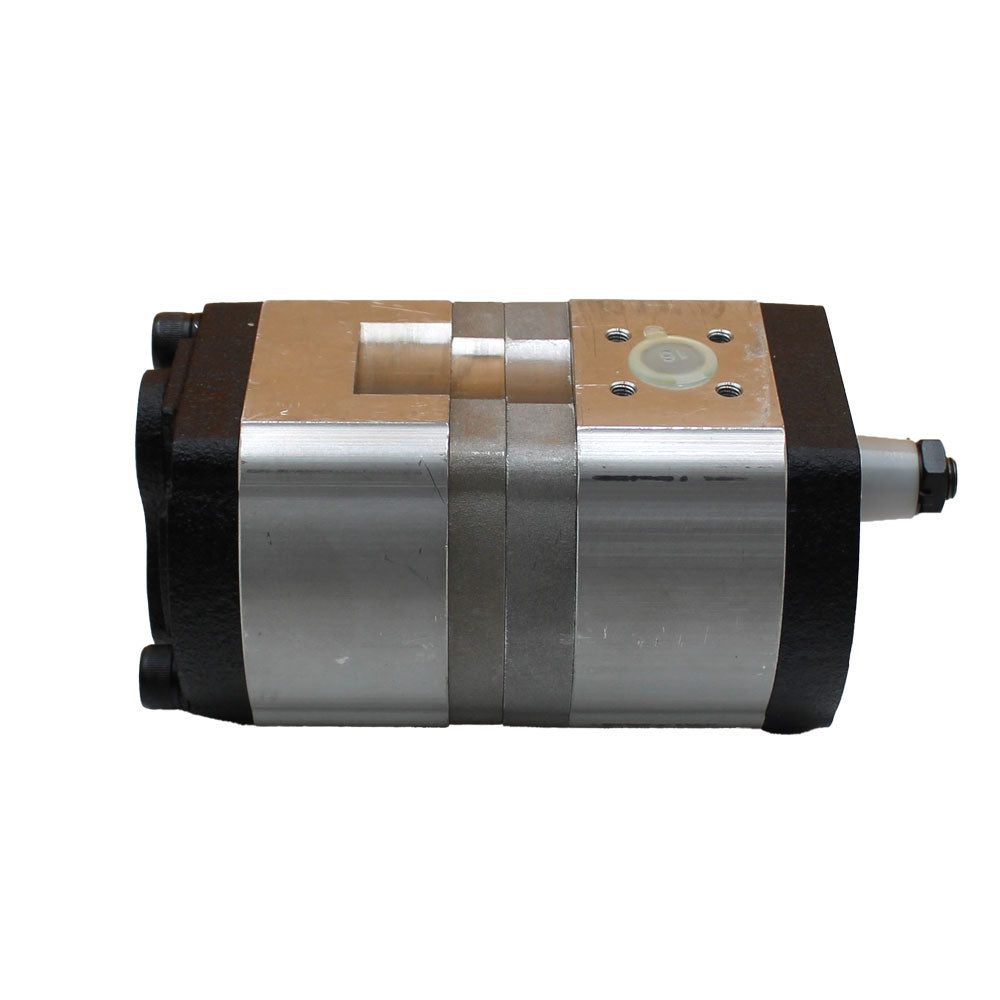

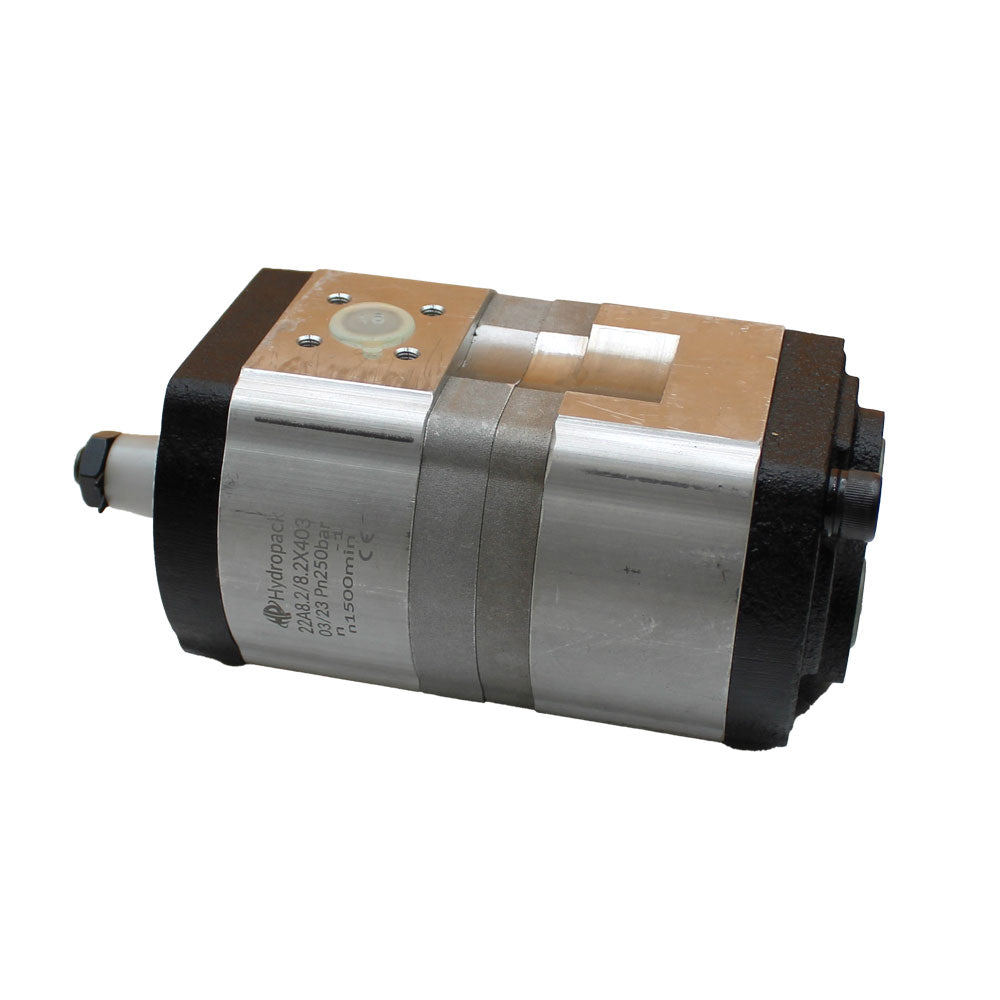

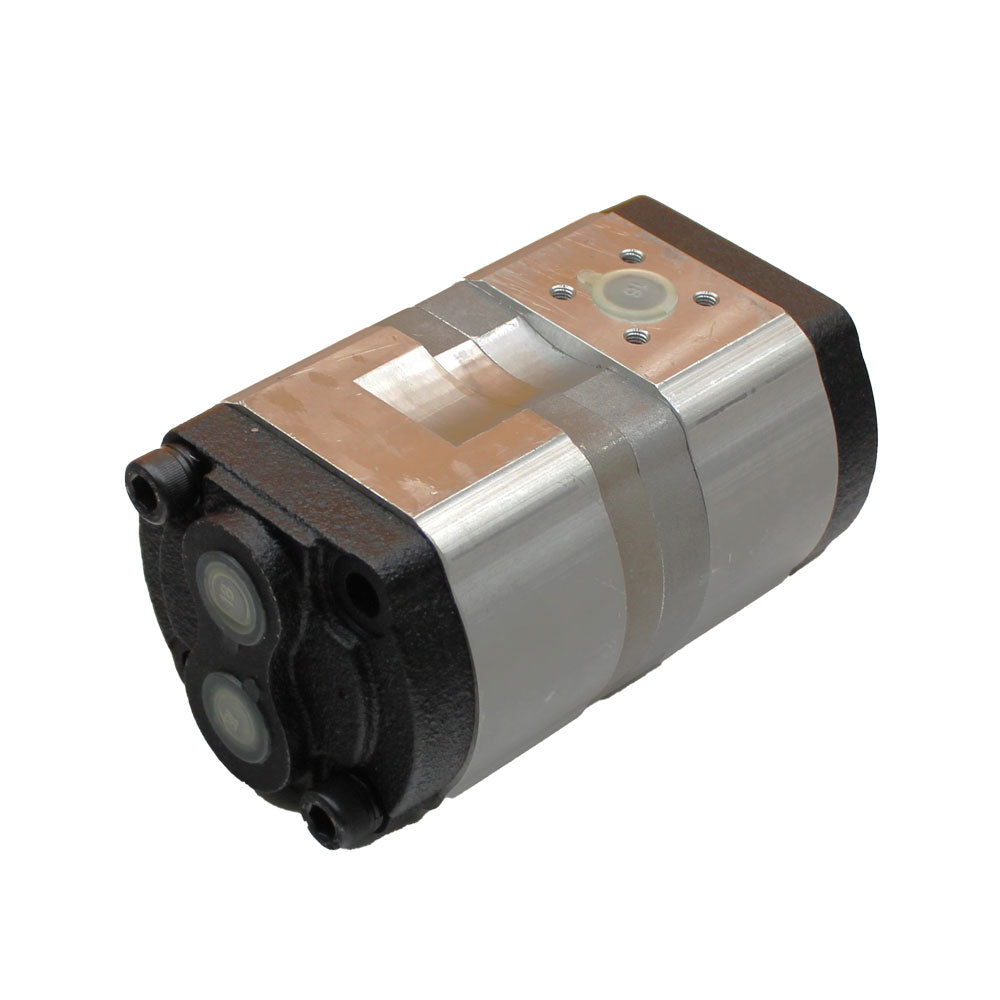

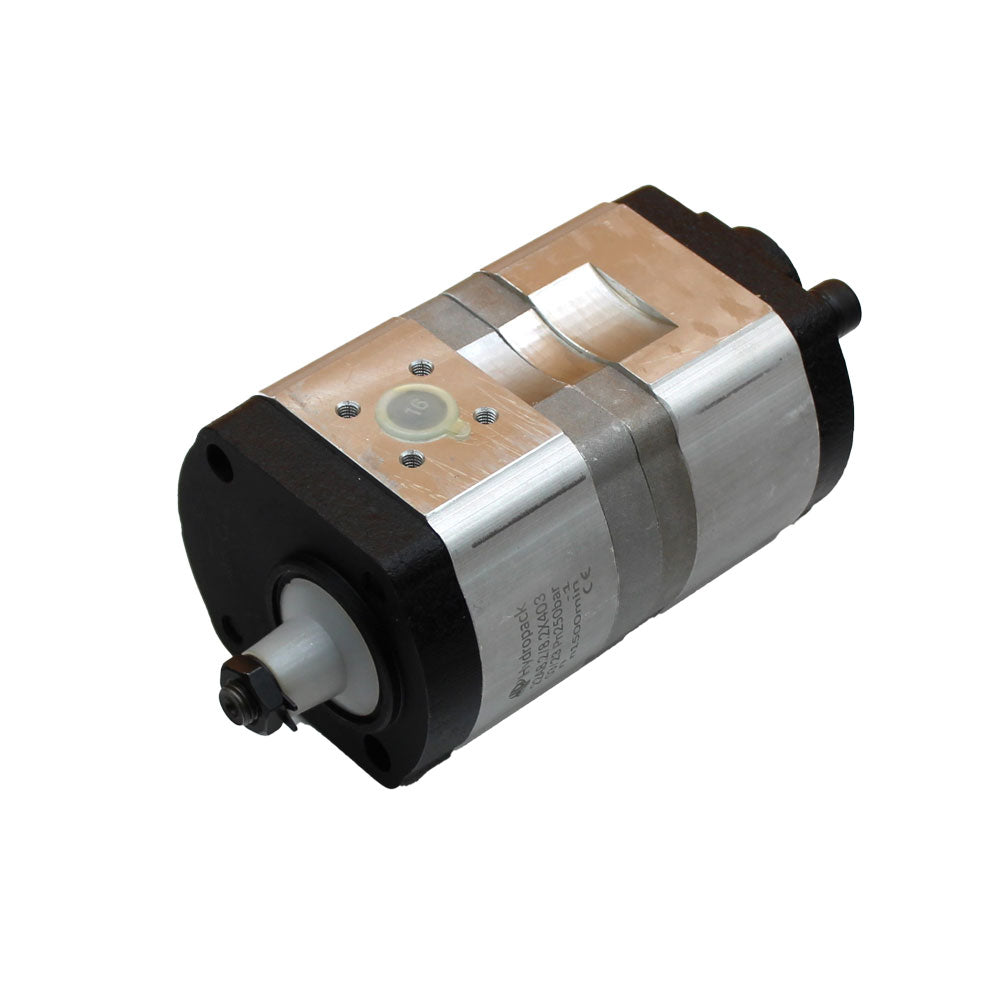

One New Aftermarket Replacement Hydraulic Pump. Fits Case IH, Fits International Harvester Replacement Part. Fits 433 533 633 644 733 743 744 745 745S 833 844 844S. Made to Replace 1986964C1 1986964C1-A 3147535R91 3147535R92 3147535R93 3147535R94 HYI60-0014 VPK0103.
Models This Part Fits:
733, 644, 745, 743, 533, 633, 844S, 744, 433, 745S, 833, 844Additional Information:
Front inlet hole fixing hole size: M6 Front inlet hole fixing hole spacing: 40mm Front inlet hole size: 20mm Front outlet hole fixing hole size: M6 Front outlet hole fixing hole spacing: 35mm Front outlet hole size: 15mm Inner max. GPM: 6.3 Inner max. LPM: 24 Length: 161.8mm Maximum Pump Speed rpm: 3000 Outer max. GPM: 6.3 Outer max. LPM: 24 Pump rotation: Anti-Clockwise Pump type: Tandem Pump Rear Inlet Hole Size: M18 x 1.5mm Rear Outlet Hole Size: M18 x 1.5mm Side hole spacing: 60mm Top hole spacing: 60mm Hydraulic PumpReference Numbers:
1986964C1, 3147535R91, 3147535R92Makes This Part Fits:
Product Category:
Product Group:
Product Sub Group:
View full details
