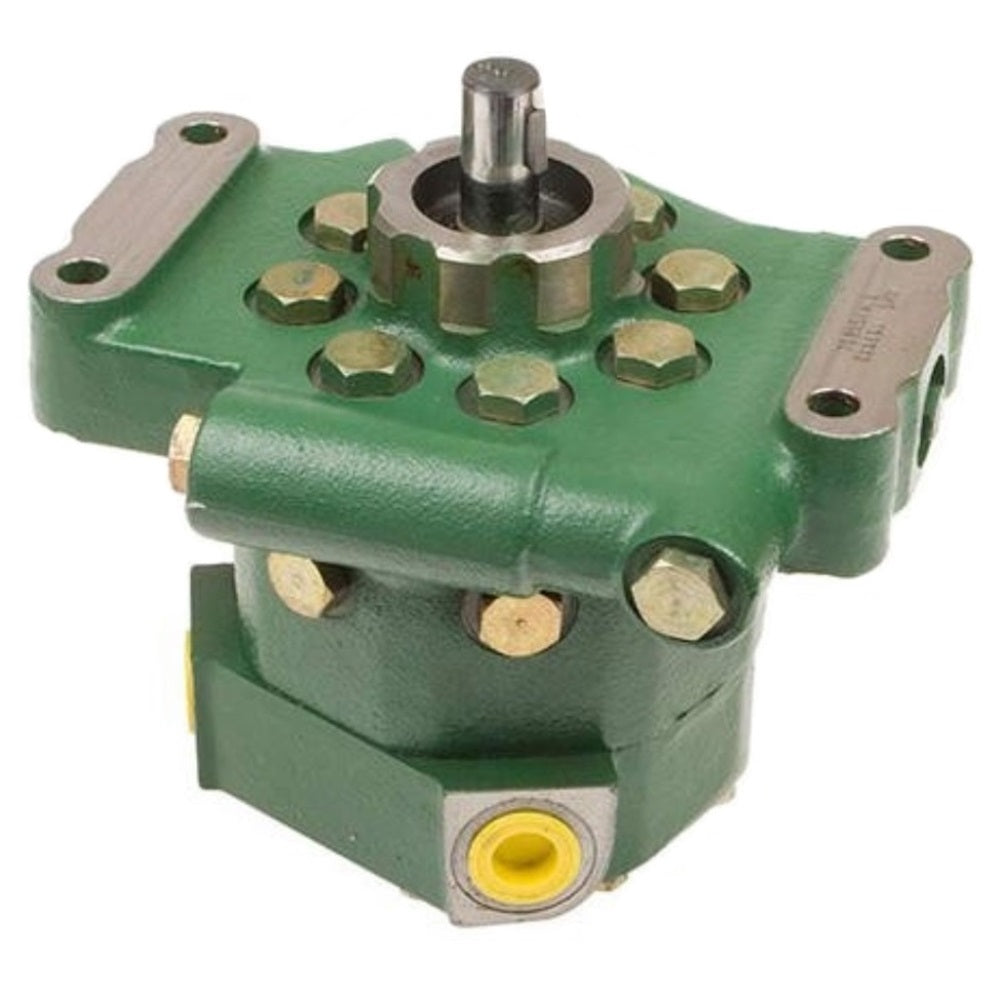

Hydraulic Pump Keyed Shaft 8 Piston Fits John Deere Tractors 2040, 2240, 2440+

Name: Hydraulic Pump Keyed Shaft 8 Piston Fits John Deere Tractors 2040, 2240, 2440+
Brand: AIC Replacement Parts
SKU: AR103033_17
Price: 490.0 USD
Availability: OutOfStock

Hydraulic Pump Keyed Shaft 8 Piston Fits John Deere Tractors 2040, 2240, 2440+

AIC Replacement Parts

TO VIEW PRICE

LOGIN or REGISTER

Product variants

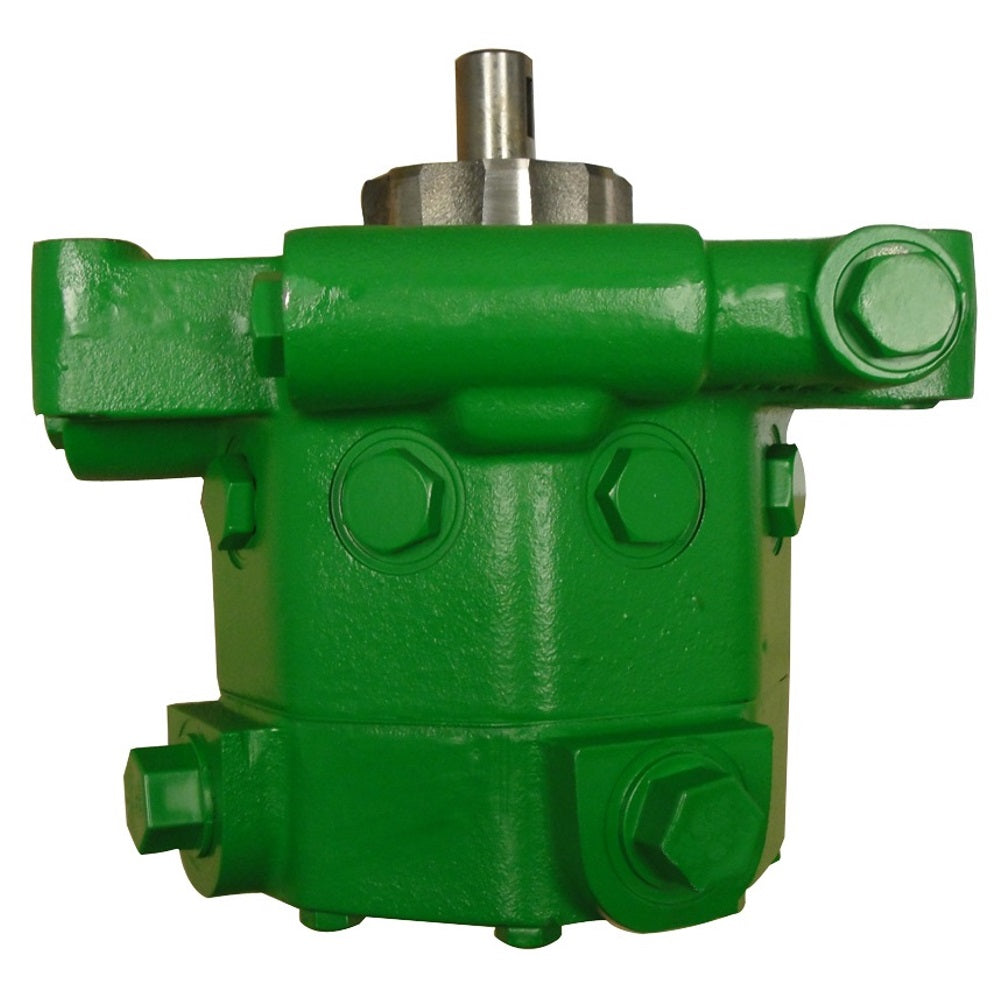

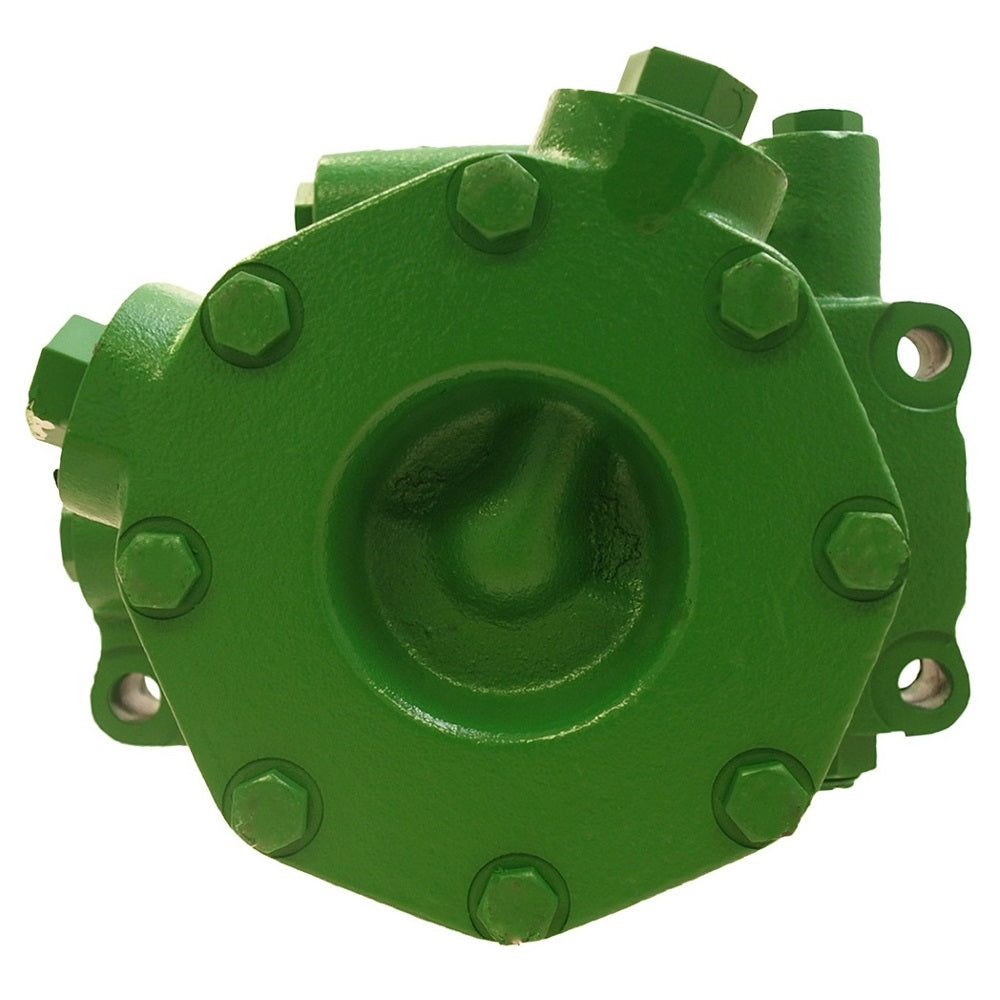

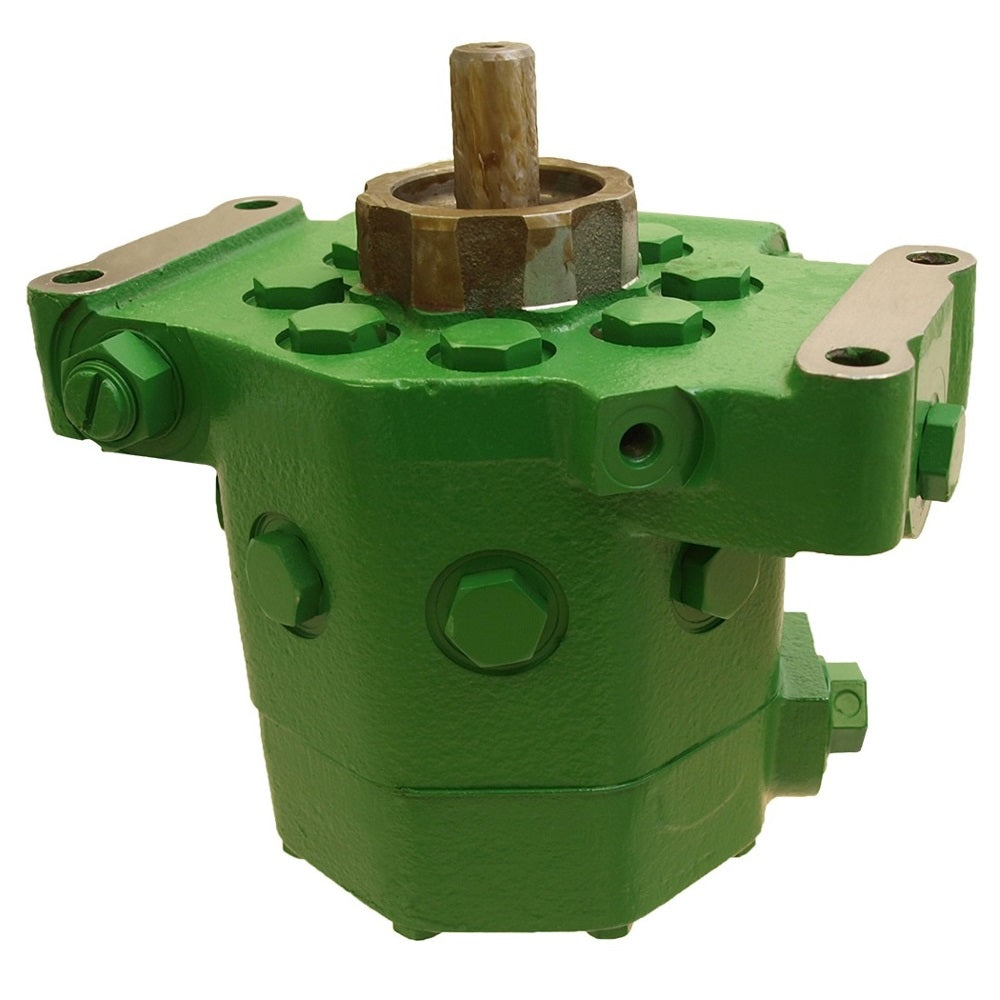

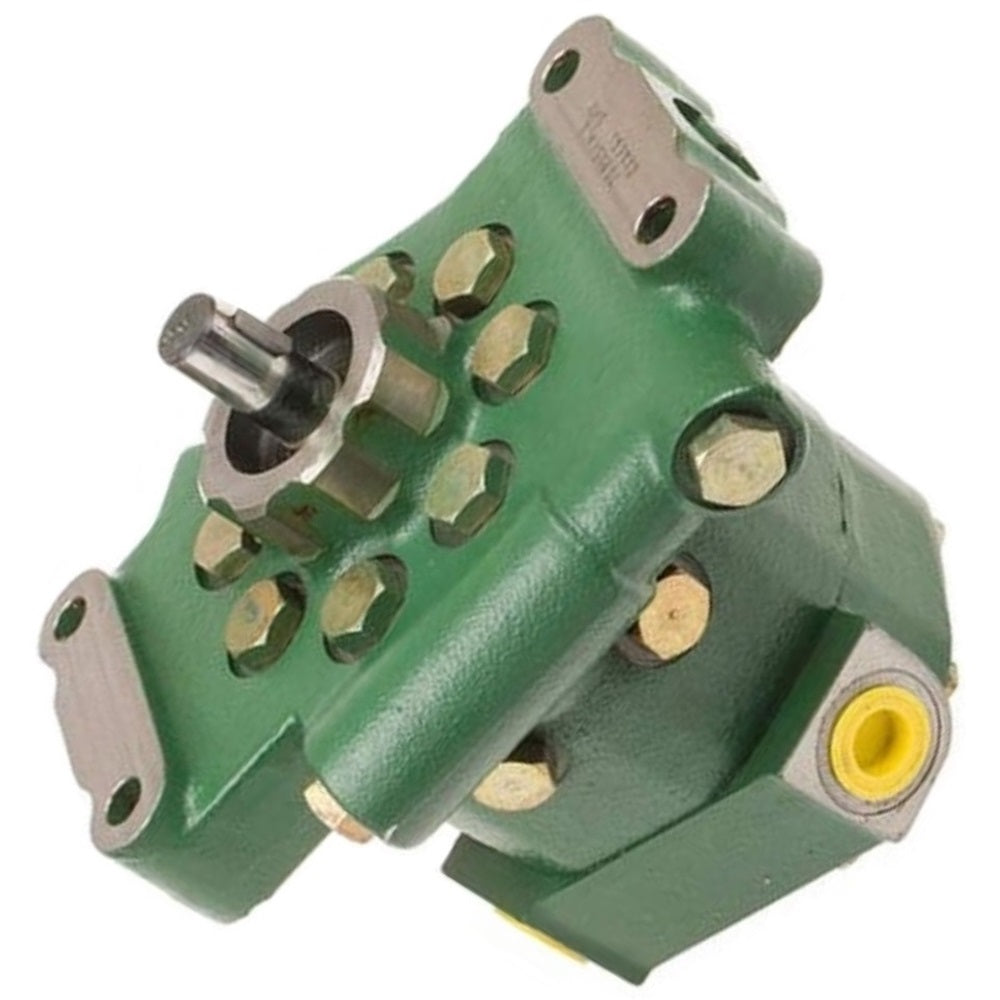

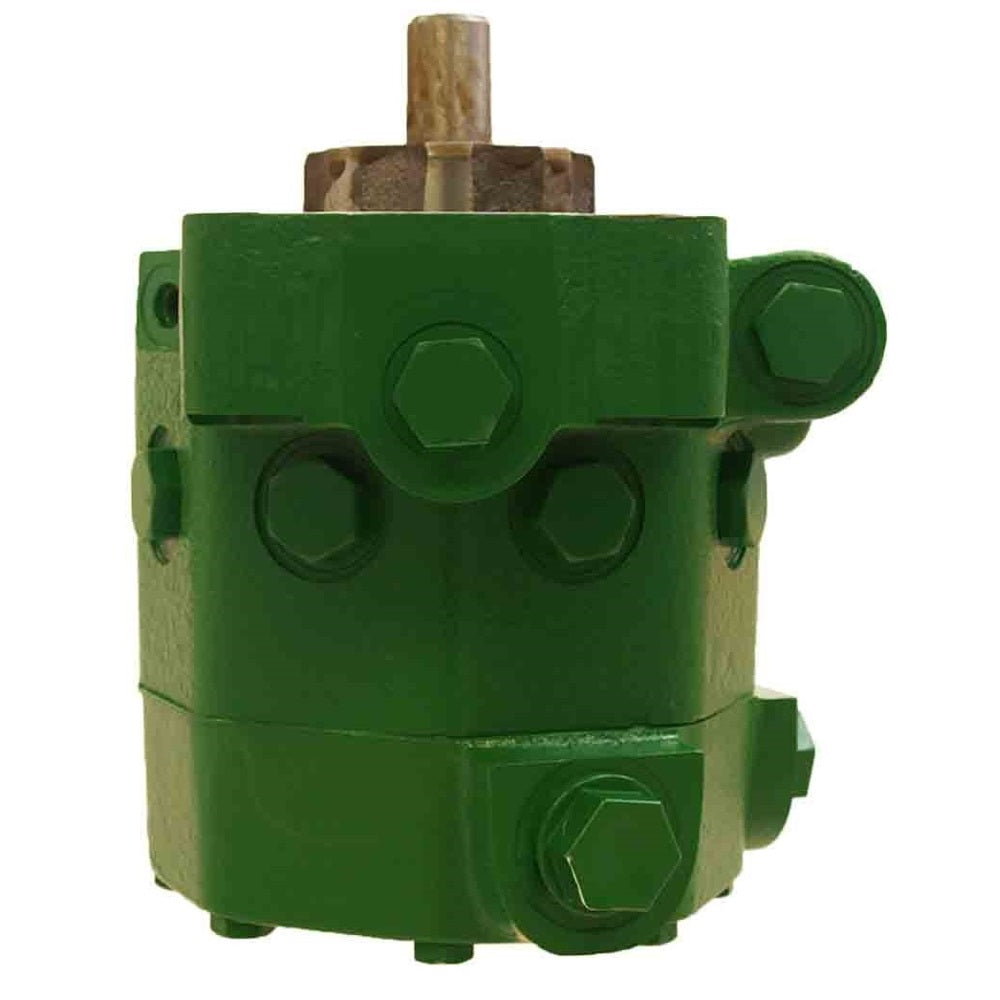

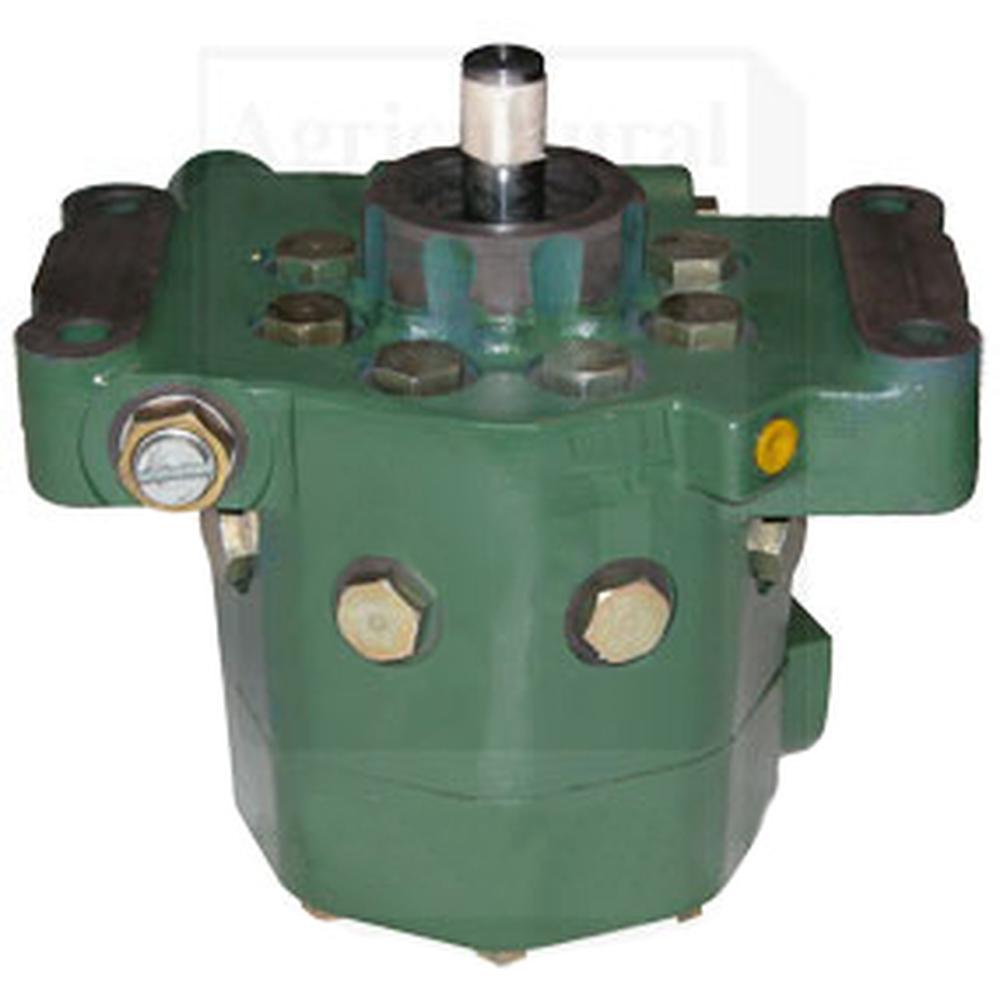

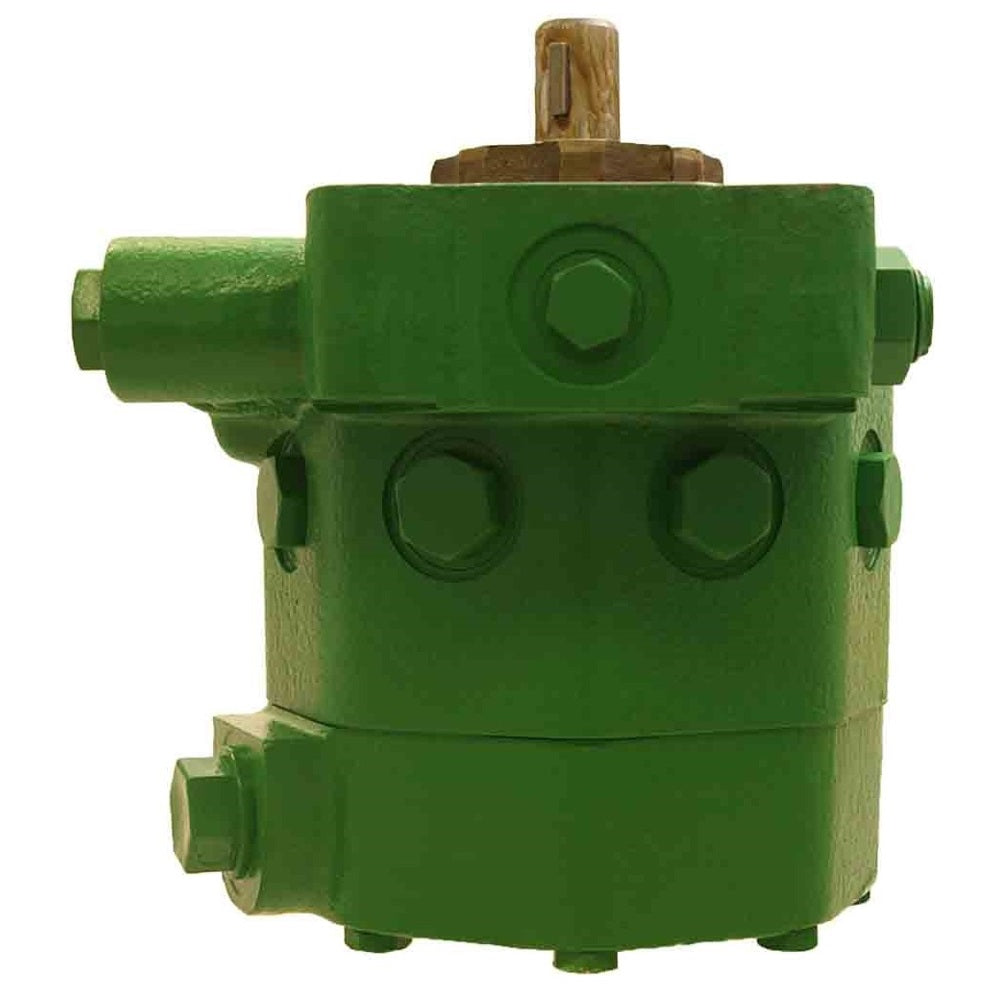

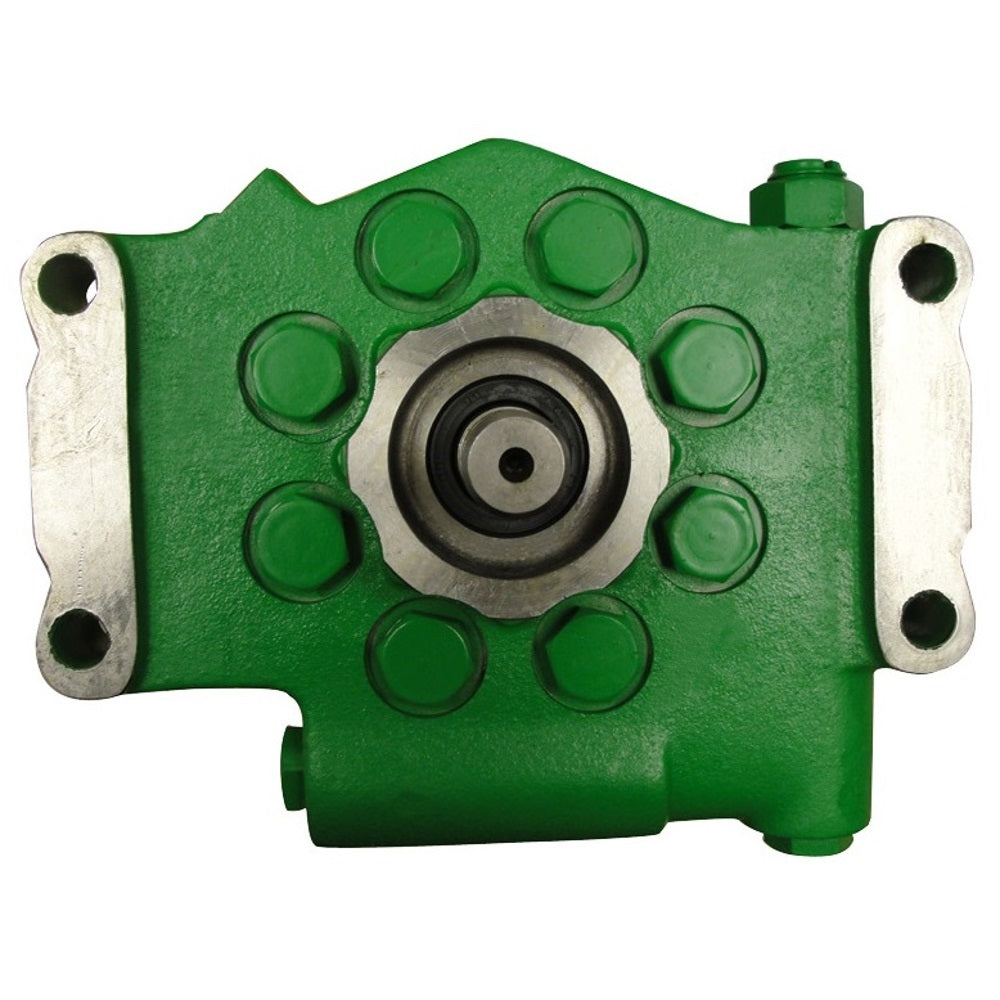

One New Aftermarket Replacement Hydraulic Pump - Keyed Shaft, 8 Piston for John Deere (JD) Tractors, Cotton Strippers, and Industrial/Construction Equipment

This aftermarket replacement hydraulic lift pump supplies pressurized fluid to the hydraulic system on a wide range of John Deere (JD) agricultural tractors, cotton strippers, and industrial/construction machines. The 8-piston axial piston design with keyed shaft delivers reliable flow and pressure for hydraulic lift, remote, and power steering circuits. Flush the system and refill with clean, fresh hydraulic fluid upon installation.

Specifications

Pump Type: Single, 8-Piston Axial Piston
Drive Type: Keyed Shaft (Woodruff Key)
Displacement: 23 cc (1.4 ci)
Max Pressure: 2600 PSI
Shaft O.D.: 7/8 in.

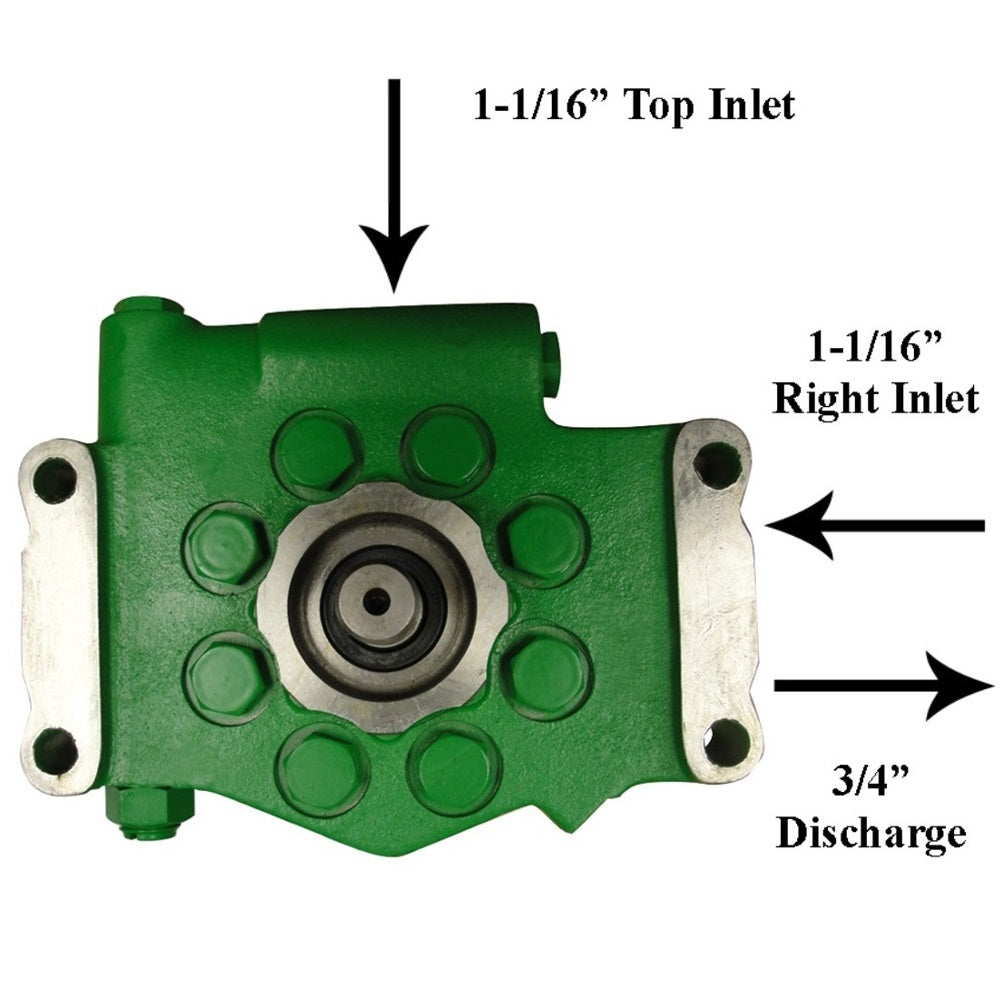

Top Inlet: 1-1/16 in.
Right Inlet: 1-1/16 in.
Discharge Port: 3/4 in.
Relief Valve: Included

Compatible Models

John Deere Tractors: 830 (3-Cylinder), 840, 930, 940, 1020, 1030, 1030OU, 1035, 1035EF, 1040, 1040V, 1120, 1130, 1140, 1140F, 1140V, 1350, 1520, 1530, 1550, 1630, 1630OU, 1635, 1635EF, 1640, 1750, 1830, 1840, 1850, 1850N, 1950, 1950N, 2020, 2030, 2035, 2040, 2040S, 2120, 2130, 2135, 2140, 2150, 2155, 2240, 2250, 2255, 2350, 2355, 2355N, 2440, 2450, 2550, 2555, 2630, 2640, 2650, 2750, 2755, 2840, 2850, 2855N, 2940, 2950, 3030, 3040, 3050, 3120, 3130, 3135, 3140, 3150, 3340, 3350, 3640, 3650, 4030, 4040, 4050, 4230, 4240, 4250, 4430, 4440, 4450, 4630, 4640, 4650, 4840, 4850, 8450

John Deere Cotton Strippers/Pickers: 7440, 7445, 9920, 9930, 9940, 9950

John Deere Industrial/Construction: 300, 301, 301A, 302, 400, 401, 401B, 401D

Replaces Part Number(s):

AR103033, AR103035, AR103036, AR39019, AR39168, AR89061, AR89064, AL70641, 640-217B

Aftermarket Interchange Numbers

703132AT, A-AR103033, TP-AR103033

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

3120, 3650, 2030, 4250, 1635, 2150, 2255, 2130, 1635EF, 3150, 400, 3040, 4850, 1950N, 1020, 2240, 940, 1140F, 4650, 1140, 2940, 2440, 1040V, 2020, 301A, 9930, 4230, 1850, 3130, 840 940 1040 1140 1350 1550 1640 1750 1840 1850 1950 1950N 2040 2040S 2140 2150 2155 2250 2255 2350 2355 2355N 2450 2550 2555 2650 2750 2755 2850 3040 3050 3140 3350 3640 3650, 1640, 2750, 4840, 4450, 2755, 1750, 2640, 4630, 2155, 1140V, 2135, 1950, 3640, 1830, 1550, 401B, 4040, 830 3 cylinder, 3340, 4640, 1630, 300, 2840, 2355, 3140, 4440, 1030, 2140, 1035EF, 2550, 2350, 840, 9940, 2040S, 4030, 3030, 302, 2650, 2555, 401D, 930, 401, 2850, 301, 1530, 2120, 2950, 9950, 2630, 4050, 1030OU, 8450, 9920, 1840, 2355N, 830, 2040, 7445, 1040, 2855N, 2450, 3350, 2035, 3050, 1035, 1120, 1130, 4430, 2250, 4240, 3135, 7440, 1350, 1520, 1630OU

Additional Information:

Keyed shaft The system needs be flushed and replaced with clean, new fluid Drive Type Keyed Max PSI 2600 Pump Type Single Relief Valve Included Volume 23 cc Hydraulic Pump

Reference Numbers:

AR103036, AR39168, AR103035, AR103036, AR89064, AR39019, AR103033, AR89061, AL70641, 640-217B, AR103036, AR89064, AR103033, AR103033, AR103036, AR39019, AR39168, AR89064
