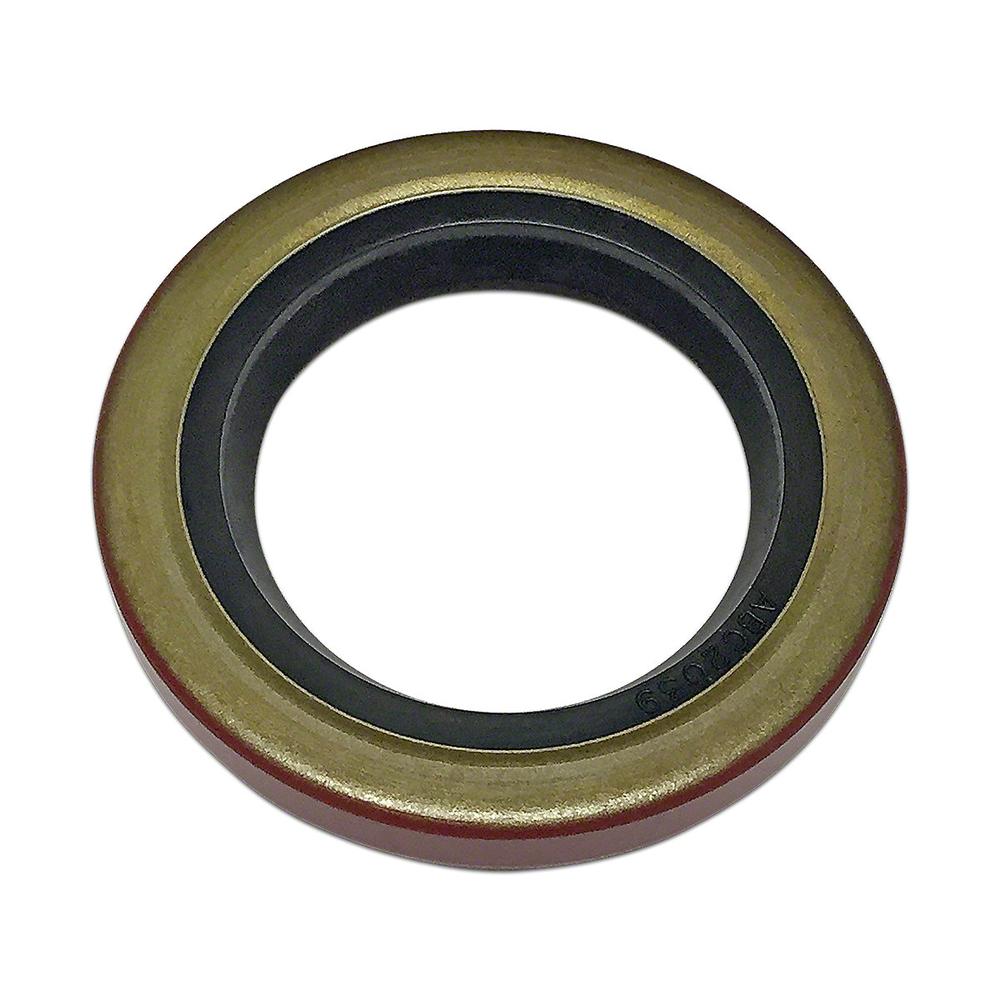

HYDRAULIC PUMP SEAL FOR PART 674771R91 70241D 938294R91 M86688
HYDRAULIC PUMP SEAL FOR PART 674771R91 70241D 938294R91 M86688
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
Tech Info:
-FOR USE AS A COUNTERSHAFT DRIVEN HYDRAULIC PUMP SEAL ON THE LISTED MODELS UNLESS NOTED
-ID : 1.375''
-BORE : 2.125''
-THICKNESS : 0.313''
-
Fits IH :
1440 COMBINE (AS A HYDRAULIC INPUT BEARING SEAL), 1460 COMBINE (AS A HYDRAULIC INPUT BEARING SEAL), 1470 COMBINE (AS A HYDRAULIC INPUT BEARING SEAL), 1480 COMBINE (AS A HYDRAULIC INPUT BEARING SEAL), 315 COMBINE (AS A HYDRAULIC INPUT BEARING SEAL), 503 COMBINE (AS A HYDRAULIC INPUT BEARING SEAL), 544 (AS A HYDRAULIC CHARGE PUMP SEAL), 615 COMBINE (AS A HYDRAULIC INPUT BEARING SEAL), 656 (AS A HYDRAULIC CHARGE PUMP SEAL), 666 (AS A HYDRAULIC CHARGE PUMP SEAL), 715 COMBINE (AS A HYDRAULIC INPUT BEARING SEAL), Fits FARMALL 544 (AS A HYDRAULIC CHARGE PUMP SEAL), Fits FARMALL 656 (AS A HYDRAULIC CHARGE PUMP SEAL), Fits FARMALL 666 (AS A HYDRAULIC CHARGE PUMP SEAL), Fits FARMALL H, Fits FARMALL HV, Fits FARMALL HYDRO 70 (AS A HYDRAULIC CHARGE PUMP SEAL), Fits FARMALL M, Fits FARMALL MD, Fits FARMALL MDV, Fits FARMALL SUPER H (SERIALS : START - 19233), Fits FARMALL SUPER HV (SERIALS : START - 19233), Fits FARMALL SUPER M (EARLY), Fits FARMALL SUPER MD (EARLY), Fits FARMALL SUPER MDV (EARLY), Fits FARMALL SUPER MV (EARLY), HYDRO 70 (AS A HYDRAULIC CHARGE PUMP SEAL), HYDRO 86 (AS A HYDRAULIC CHARGE PUMP SEAL), INDUSTRIAL 2544 (AS A HYDRAULIC CHARGE PUMP SEAL), INDUSTRIAL 2656 (AS A HYDRAULIC CHARGE PUMP SEAL)
Replaces Part Number(s): 35451D, 357970R91, 357976R91, 380184R91, 43509D, 43509DA, 527829R91, 536895R1, 536895R91, 61103D, 659124R91, 674771R91, 70241D, 938294R91, M86688
Models This Part Fits:
8050, 303, 4W305, 2030, 1635, 615, Super WD9, HV, 200, 2130, MD, M, D10, 1032, 40, 3150, 3040, Lift Shaft Housings, 1020, 190XT, 2240, D15, 940, 190XTIII, 1140, Super MD, 330, 2440, D17, 7060, 2020, 1010, 503, CA, 9910, 185, 1850, Super W9, MI, 315, 920, 1640, 5420, Super H, 942, Super MDV, 945, 2656, 1750, 925, 7045, 2640, 430, Super WDR9, 2135, 970, 1950, Power Take-Off Systems, 650, Super M, G550, H3, 1830, 1550, 420, MT, B, MDV, 1641, I40, 830 3 cylinder, Hydro 70, WD9, 1052, 1630, 3140, 715, 1030, 2140, I400, 1144, I4, 8010, 4-78, 7580, 2040S, WR9S, 4400, C, 656, MV, 4420, I60, 175, 2650, Braking Systems, 820, D12, 1440, 930, 1470, 2850, I9, 1600, 600, 1530, 2120, 2630, 320, 7000, D14, W9, 544, Super HV, 1840, 440, 8070, 830, 2040, 1042, 403, 932, 190, 2450, 1133, I600, 3350, 2544, 666, 2035, Hydro 86, 3050, 7700, IB, 1120, 1130, 1555, 180, WR9, 5440, 2250, 952, ID9, MC, 435, 170, 820 3 cylinder, 1460, Wheel Hubs, 1520, 1480, 4W220, H, Super MV, 935, 2-78, D19, 8030, WDR9, 7080Additional Information:
Bore: 2.125" Outside Diameter: 2.129" Shaft Size: 1.375" Type: CRWH1 Width: .437" Oil SealReference Numbers:
35451D, 357970R91, 357976R91, 380184R91, 43509D, 43509DA, 527829R91, 60454D, 659124R91, 70241D, 938294R91, 938294R92, M86688, CR13649, 450135, T22069, AM253T, AP24021, AL56820, AH14076, AL2094T, N71730N, AN30648, AN32717, 0511073, 224810, 230608, 241779, 340214, 511073, 70224810, 70230608, 70241779, AH14076, AL2094T, AL56820, AM253T, AN30648, AN32717, AP24021, N71730N, T22069, A36711, F36775, F7618, F9743, K15177, N7291, T26573, 257970R91, 567829R1, 567829R91, 659107R91, 35451D, 357970R91, 357976R91, 380184R91, 43509D, 43509DA, 527829R91, 60454D, 659124R91, 70241D, 938294R91, 938294R92, M86688, 1K1590, K1590, 43509DA, 35451D, 357970R91, 527829R91, M86688, 380184R91, 60454D, 938294R91, 938294R92, 357976R91, 70241D, 43509D, 659124R91, 70230608, 511073, 230608, 70224810, 340214, 241779, 70241779, 0511073, 224810Makes This Part Fits:
