One New Aftermarket Replacement 3-Point Hitch Hydraulic Cylinder Seal Kit for Case IH Loader / Backhoe Loader

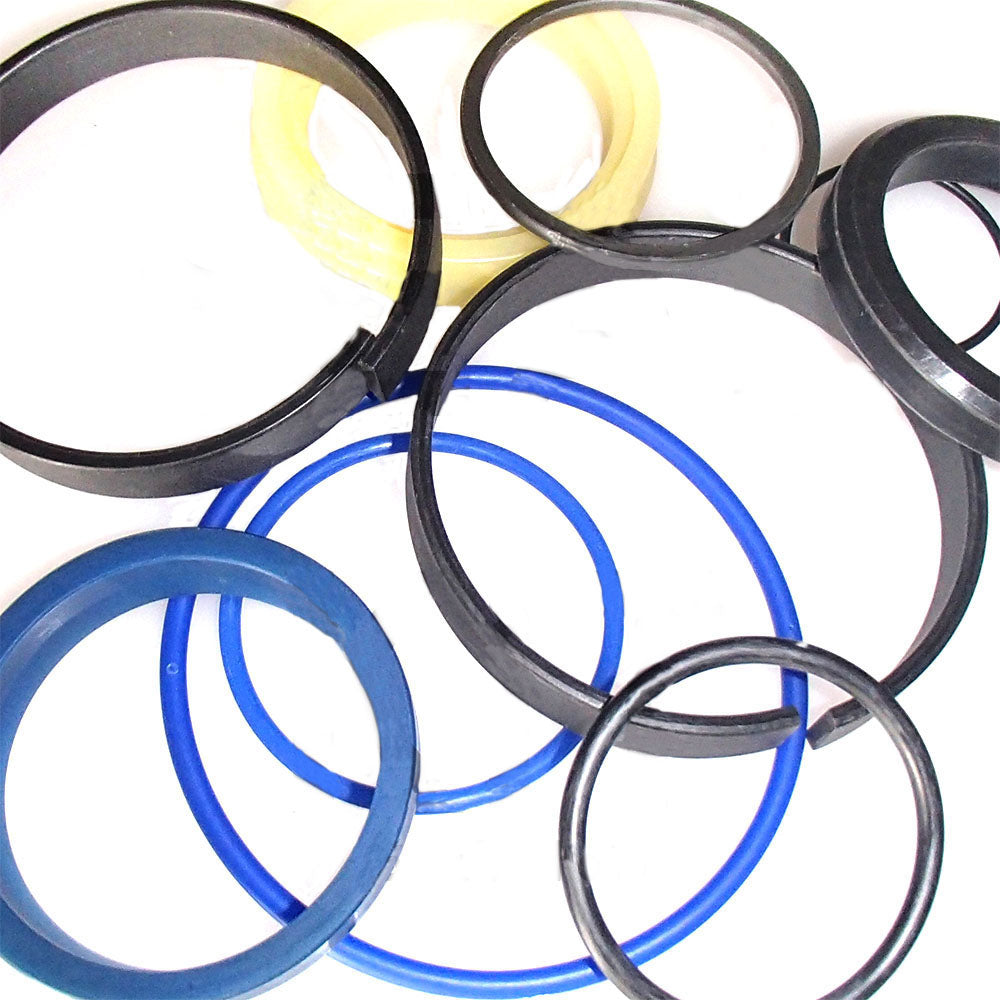

This aftermarket replacement hydraulic cylinder seal kit (replaces OEM part number 183286A1) services the 3-point hitch lift, tilt, and pitch cylinders on Case IH (Case) Loader Landscaper and Loader Backhoe equipment. It is a complete seal kit including all necessary seals, O-rings, wiper seals, and back-up rings required to rebuild the cylinder.

Specifications

• Rod Diameter: 1-1/4" (1.25" / 31.75 mm)
• Bore Diameter: 2-1/2" (2.50" / 63.5 mm)
• Rod Seal Type: U-Seal
• Piston Type: 1-Piece Press-In
• Compatible Cylinder Numbers: 137912A1, 137912A2, 138235A1, 84214699, 84214713, 86981818, 86982482, 87602156
• Application: 3-Point Hitch Lift Cylinder, 3-Point Hitch Tilt Cylinder, 3-Point Hitch Pitch Cylinder

Compatible Models

Case IH Loader Landscaper Series: 570LXT, 570LXT Series II, 570MXT, 570MXT Series III, 570N EP, 570N EP NC, 570NXT, 570NXT Tier 4A

Case IH Loader Backhoe Series: 580L, 580L Series II, 590SM

Case IH Backhoe Loader (may also fit): 480E

Replaces Part Number(s):

183286A1, HYI40-0158, 86982384, 86982374

Aftermarket Interchange Numbers

183286A1-A, JIC-183286A1, CS-183286A1, ASI # 25093

New aftermarket replacement part - not remanufactured, not used.
