Hydraulic Seal Kit - Tilt Cylinder Fits John Deere 310 450 410 700 750 550 850

Hydraulic Seal Kit - Tilt Cylinder Fits John Deere 310 450 410 700 750 550 850

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER

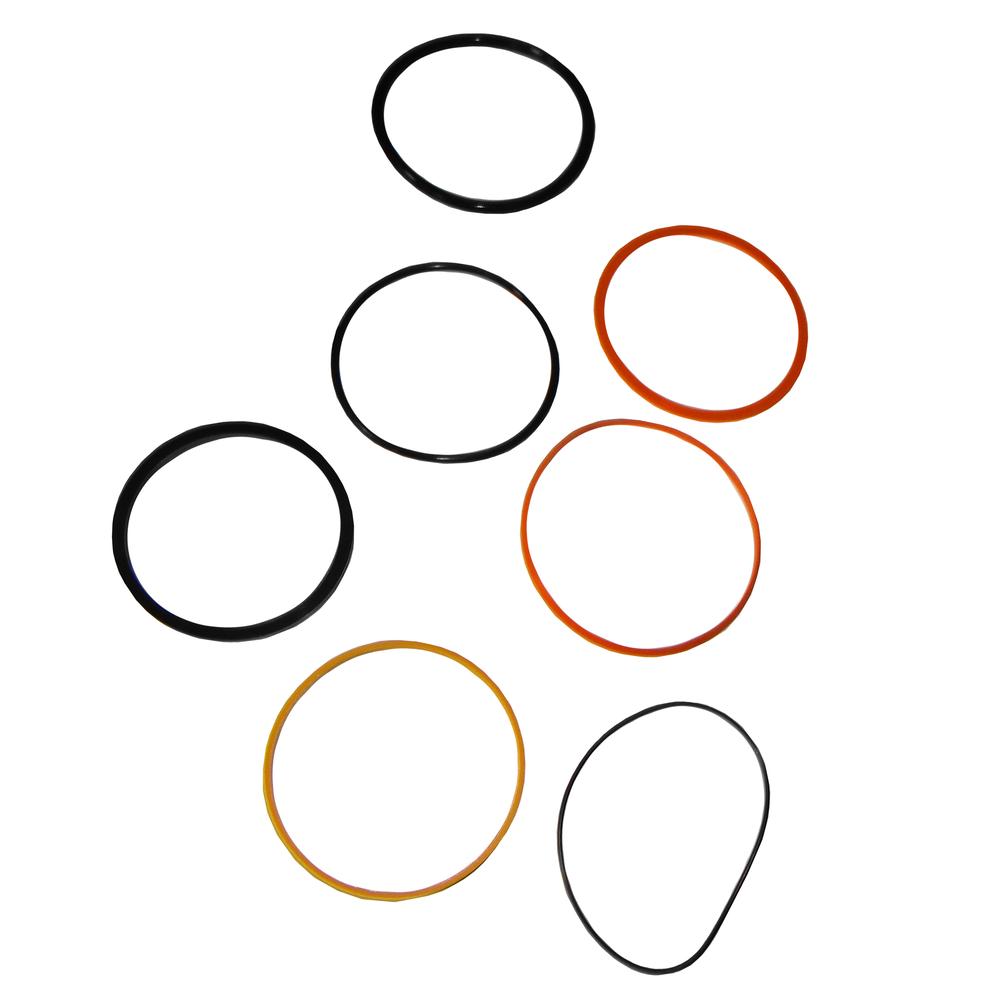

One New Aftermarket Replacement Hydraulic Tilt Cylinder Seal Kit for John Deere Backhoe Loaders, Crawler Dozers, and Motor Graders

This aftermarket replacement hydraulic cylinder seal kit (90 mm bore) restores proper function to tilt, stabilizer, loader bucket, dozer tilt, dozer angle, ripper, and blade lift/slide cylinders on a wide range of John Deere (JD) construction and industrial equipment. The kit includes a piston seal; no wiper rod seal.

Specifications

  • Bore: 90.00 mm
  • Piston Seal: Included
  • Wiper/Rod Seal: None

Compatible Models

Important: Several models have serial number restrictions. Verify your machine serial number before ordering.

John Deere Backhoe Loaders:

  • 310J - Loader Bucket Tilt
  • 310SE - Loader Bucket Tilt
  • 310SG - Loader Bucket Tilt (S/N 955726 and up); Backhoe Stabilizer (S/N 926207 and up)
  • 310SJ - Backhoe Stabilizer
  • 310SK - Backhoe Stabilizer (S/N 208446 and up); Backhoe Thumb (S/N 207436 and up); Loader Bucket Tilt (S/N 202928 and up)
  • 410J - Loader Bucket Tilt
  • 410K - Backhoe Stabilizer (S/N 208446 and up); Backhoe Thumb (S/N 207436 and up); Loader Bucket Tilt (S/N 202928 and up)
  • 410K TC - Backhoe Thumb (S/N 207436 and up)

John Deere Crawler Dozers:

  • 450H - Dozer Tilt
  • 450J - Dozer Tilt
  • 550H - Dozer Tilt
  • 550J - Dozer Tilt (S/N prior to 151203; S/N 154818 and up)
  • 655K - Multi-Purpose (S/N 233169 and up)
  • 700H - Dozer Angle
  • 700J - Dozer Angle
  • 700K - Dozer Angle
  • 750J - Ripper
  • 750K - Ripper (S/N 216966 and up)
  • 850J - Ripper
  • 850JR - Ripper
  • 850K - Ripper (S/N 178122 and up)

John Deere Crawler Tractor-Loaders:

  • 650H - Blade Tilt (Cylinder AH212097 - S/N 925556 and up)

John Deere Motor Graders:

  • 670D - Blade Lift, Blade Slide, Circle Sideshift
  • 672D - Blade Lift, Blade Slide, Circle Sideshift
  • 770D - Blade Lift, Blade Slide, Circle Sideshift
  • 772D - Blade Lift, Blade Slide, Circle Sideshift

OEM Cylinder Numbers This Kit Services

AH150351, AH158633, AH210901, AH210902, AH211335, AH211381, AH215949, AH216652, AH219537, AH219538, AH219634, AH220550, AH232327, AH232328, AH233825, AHC11107, AHC11115, AHC11116, AHC12643

Replaces Part Number(s):

AH212097, AH212097-A, AHC22108, AH202290, AH149812, 0611378477

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

670D, 8870, 660R, 410L, 8300, 8770, 9520RX, 310SG, 680R, 770C II, 310SE, 640G, 748GIII, 750K, 750L, 850J-II, 670CH II, 672G, 8110, 870GP, 909K, 640H, 8245R, 750J, S680, 540G, CH330, 331G, 450H, 700K, 740E, 772CH, 332G, 746, 640E, 859M, 8310R, 648H, 8200, 959J, 843, 8360R, 560D, 620G, 210LJ, 903MH, 959M, 870D, 853M, 640R, 7260R, 872G, 850J II, 8270R, 8210, 8570, S685, 770CH, 540GIII, 310L, 8260R, 7280R, 315SL, 7200R, 670G, 332E, 548G, 450J, 770C, 748GII, 903J, 9420RX, 9620RX, 853J, 650H, 325SL, 7230R, 903JH, 748E, 850L, 909MH, 8520, 8210T, 620R, 770D, 770GP, 770B, 909JH, 840, 310SL, 672GP, 315SE, 750J-II, 670B, 410J, 648G, 8100T, 8410, 672CH II, 550J, 859MH, 548E, 310K EP, 210L, 803M, 460D, 872D, 643R, 8970, 8310T, H480, 110, 772D, 850J, 550H, 548H, 740G, 909KH, 770BH, 770G, 903KH, 953K, 8300T, 953MH, 280, 9570RX, 8335R, 9470RX, 909J, 903M, 8420, 670C, 622GP, 959MH, 648E, 333G, 909M, S690, 672B, 650J, 872GP, 333E, 748G, 959K, 670GP, 8225R, 8400T, 8235R, 853MH, 310L EP, 764, 648L, 850K, 672D, 670CH, 853JH, 8285R, 8400, 953M, 8310, 648HTJ, 772GP, 663R, 700J, 315SG, 329E, 953J, 315SK, 903K, 8220, 310G, 8320, 772BH, 8120, 622G, 700H, 310SJ, 210K, 7215R, 870G, 310SL HL, 210LE, 332D, 8110T, 648GII, 8400R, 410E, 540E, 850JR, 640GII, 8100, 315SJ, 8370R, 410K, 683R, 310E, 8345R, 410G, 548GIII, 772B, 310K, 325SK, 620GP, 8320R, 714PR, 670C II, 540H, 310SK, 803MH, 672CH, 8200T, 8410T, 310J, 329D, 772G, 360D, 8295R, 333D, H380

Additional Information:

Bore: 90.00 mm Cylinder Seal Kit

Reference Numbers:

AH212097, AHC22108, AH202290, AH212097, 0611378477

Makes This Part Fits:
