HYDRAULIC SELECTOR VALVE Fits Massey Ferguson MF 270 275 282 283 285 290 35 360
HYDRAULIC SELECTOR VALVE Fits Massey Ferguson MF 270 275 282 283 285 290 35 360
AIC Replacement Parts - FEDEX2DAY
**TO VIEW PRICE**
LOGIN or REGISTER

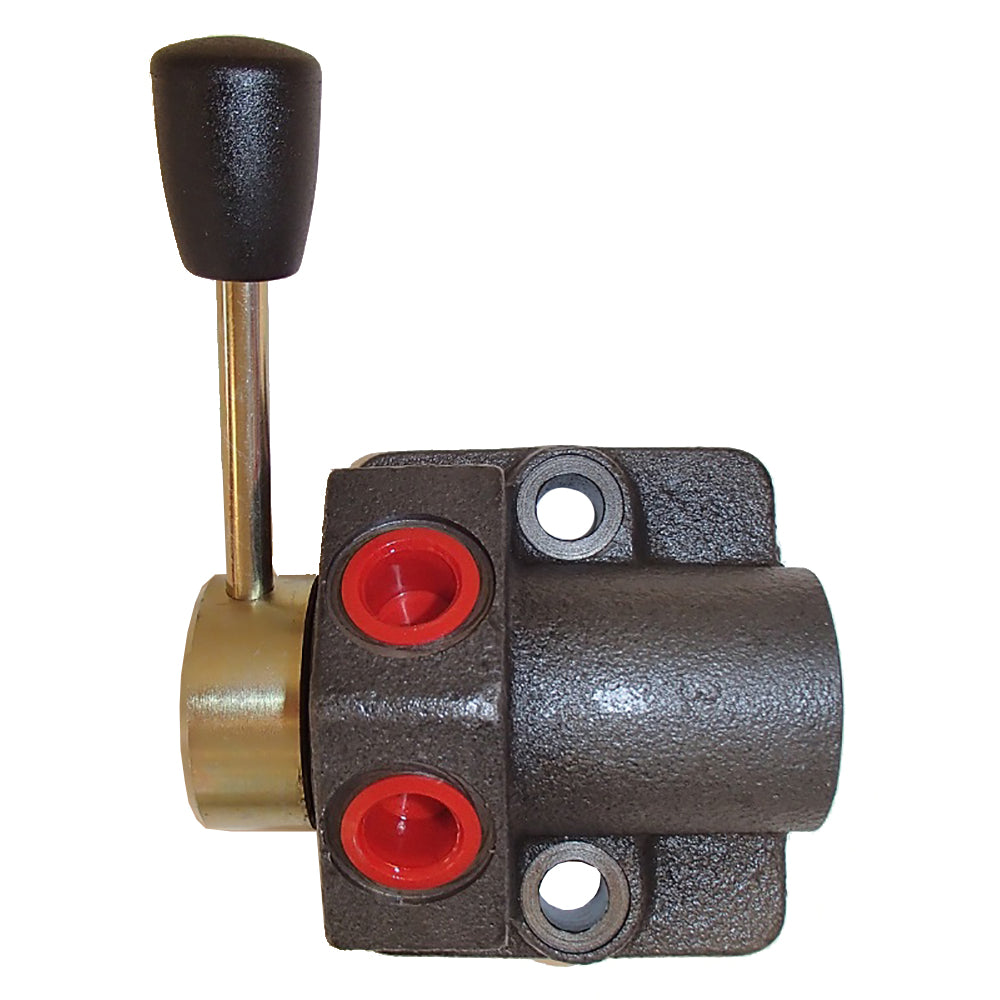

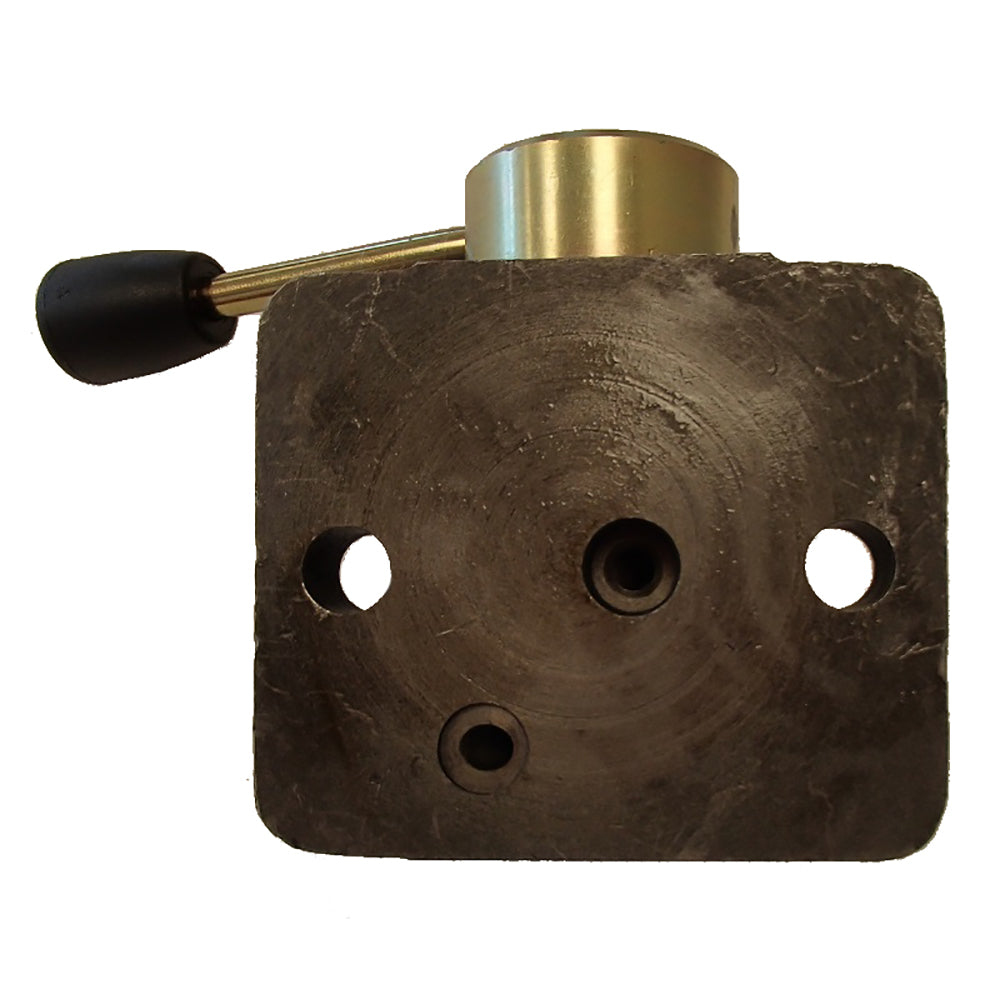

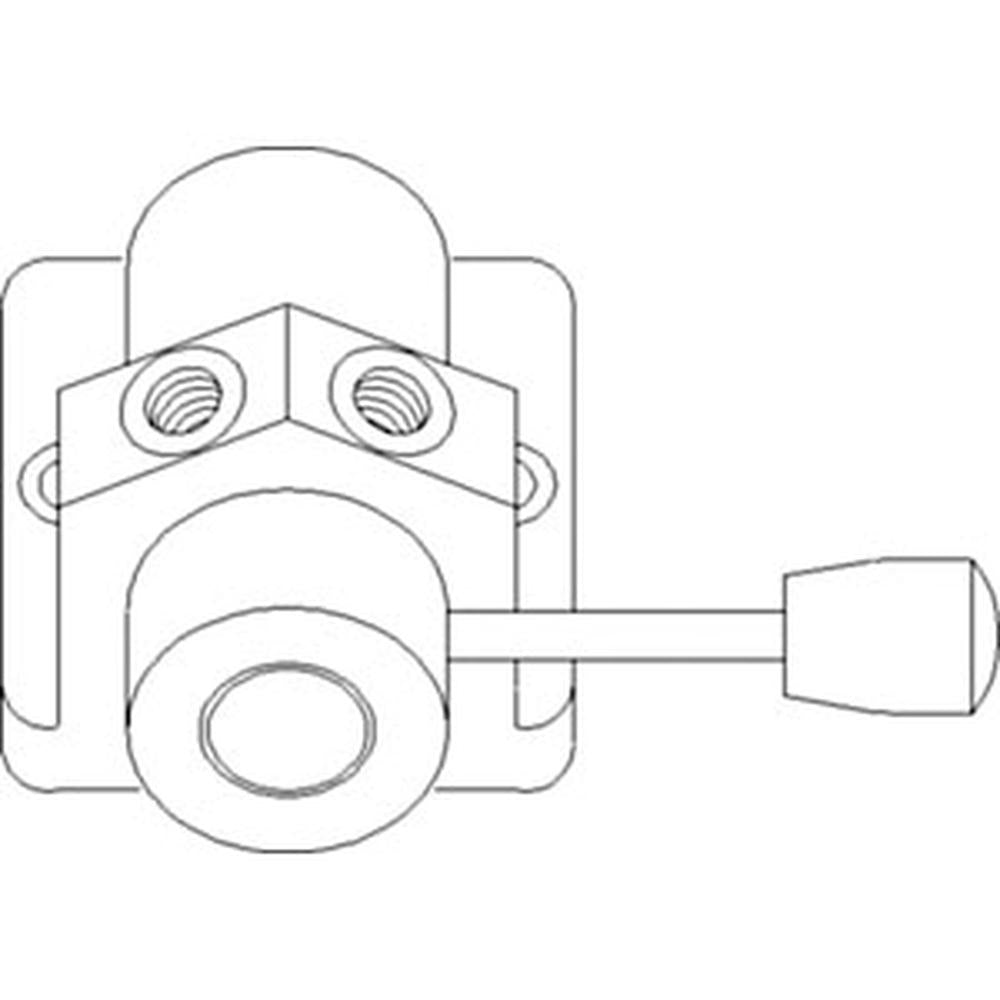

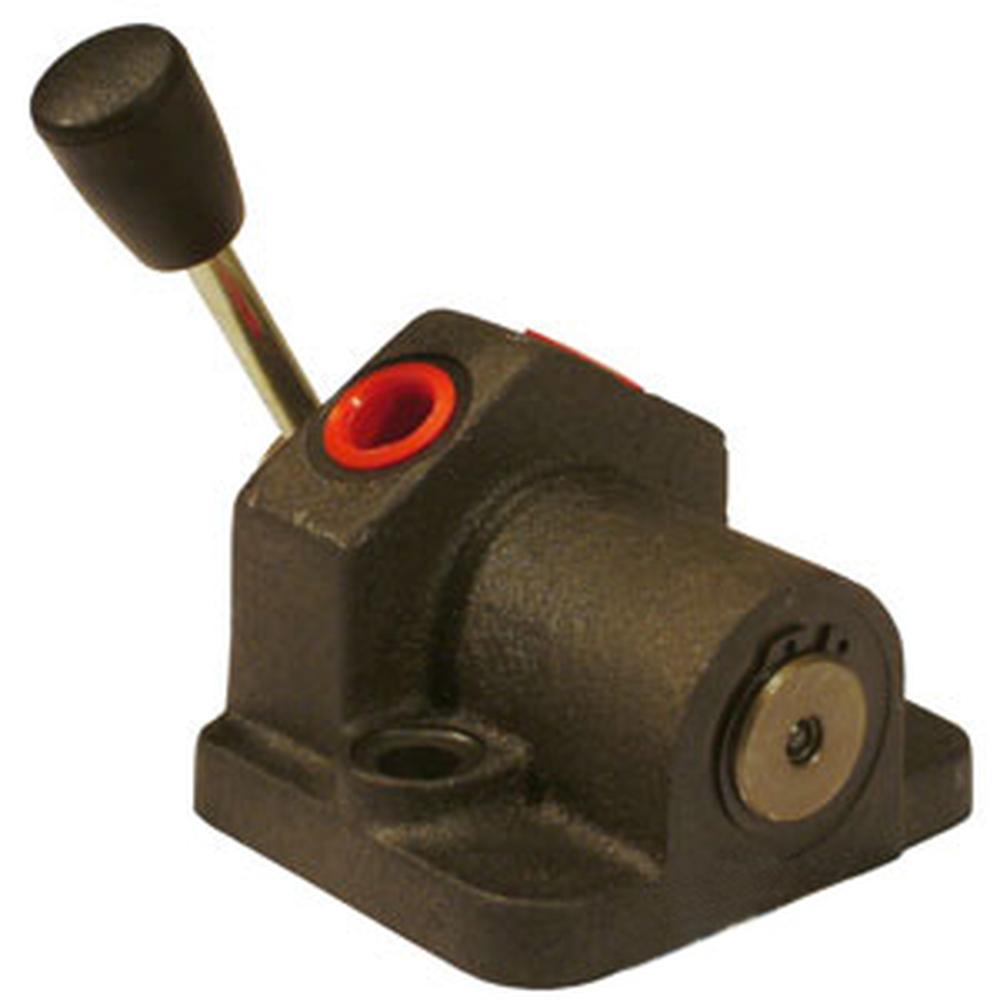

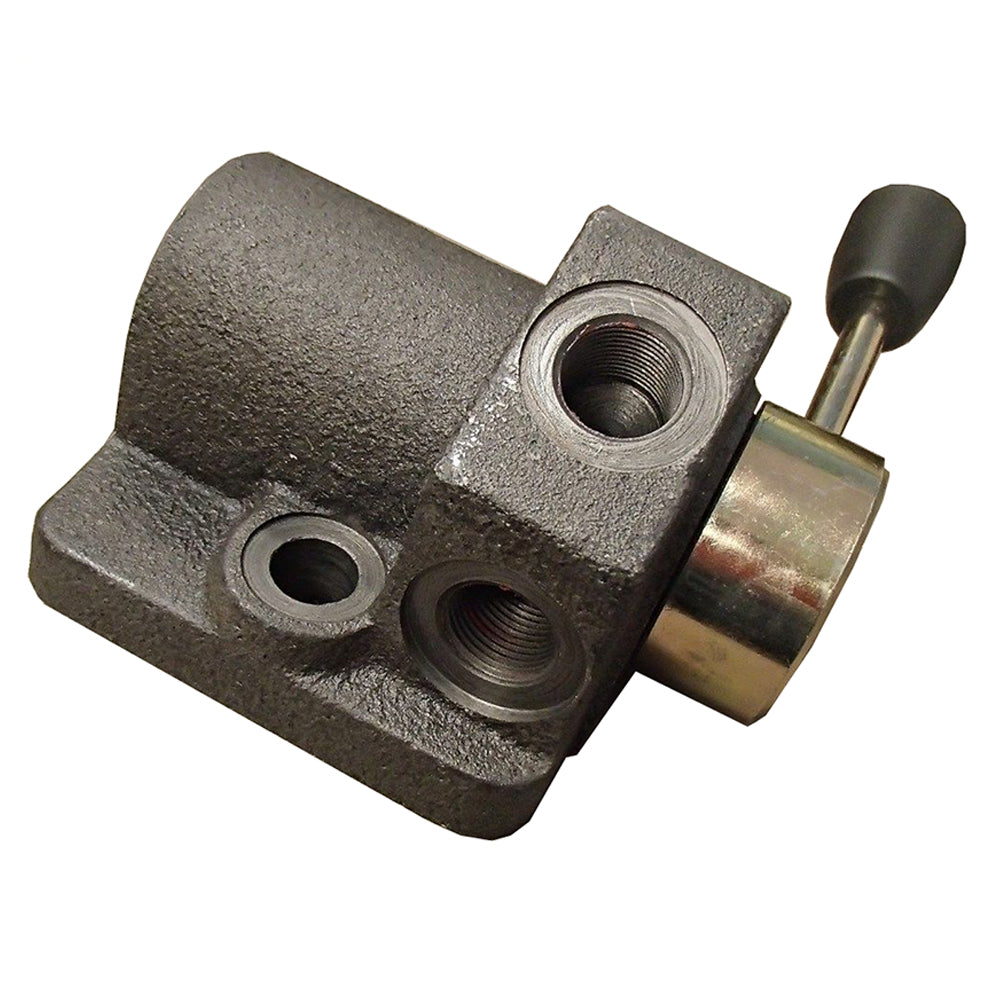

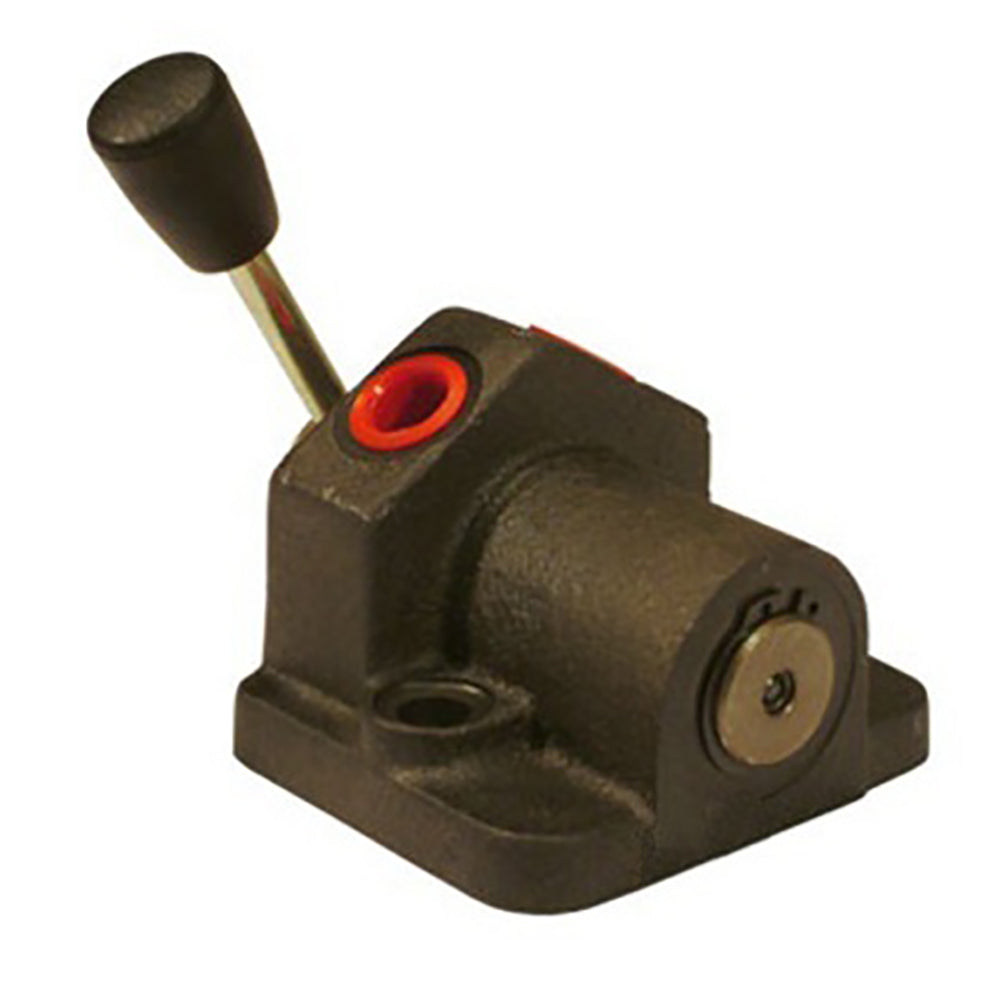

Tech Info: BASE IS 3-3/4'' X 3-1/4''.MOUNTING HOLES ARE 1/2'' DIAMETER, 2-3/4'' CENTER TO CENTER.CONVERTS Fits Massey HYDRAULIC TO EXTERNAL SERVICE (VALVE HAS A BSP THREAD IN THE PRESSURE PORTS).THIS 2-WAY SELECTOR VALVE IS DESIGNED TO FIT IN PLACE OF 180908M1 INTERFACE COVER PLATE WHICH IS LOCATED ON THE HYDRAULIC LIFT COVER.ADVANTAGESPROVIDES A POSITIVE CHANGE OVER FROM TRACTOR HYDRAULICS TO EXTERNAL SERVICE.DOES AWAY WITH NEED TO FIX THE TRACTOR LIFT ARM IN THE LOWER POSITION WHEN EXTERNAL SERVICE IS IN USE.THE 3-POINT LINKAGE OF THE TRACTOR CAN BE FREE FOR USE WHILE THE EXTERNAL SERVICE REMAINS CONNECTED SIMPLY BY OPERATING THE VALVE.SERVICES LIFT ARM PLUS TWO (2) EXTERNAL PORTS WITH RETURN GOING BACK TO REAR END. PORTS CAN ONLY BE USED ONE AT A TIME.
Replaces Part Number(s): 44A1, VFD1104
Models This Part Fits:
270, 20D, 2200, 283, 255, 65, 50, 130, 203, 235, 30E, 175, TO35, 393, 302, 50C, 290, 265, 1080, 30, 50D, 231, 360, 304, 375, 180, 204, 230, 25, 40, 50E., 362, 135, 40E, 150, 2135, 245, 285, 202, 3165, 240, 165, 20C, 30D, 30B, 282, 275, 390, 253, 35, 40B, 85., 20F, 1085, 31, 383, 205, 250, 398, 20, 392SAdditional Information:
Pressure ports are 3/8’’ BSP female threads Selector ValveReference Numbers:
VFD1104Makes This Part Fits:
