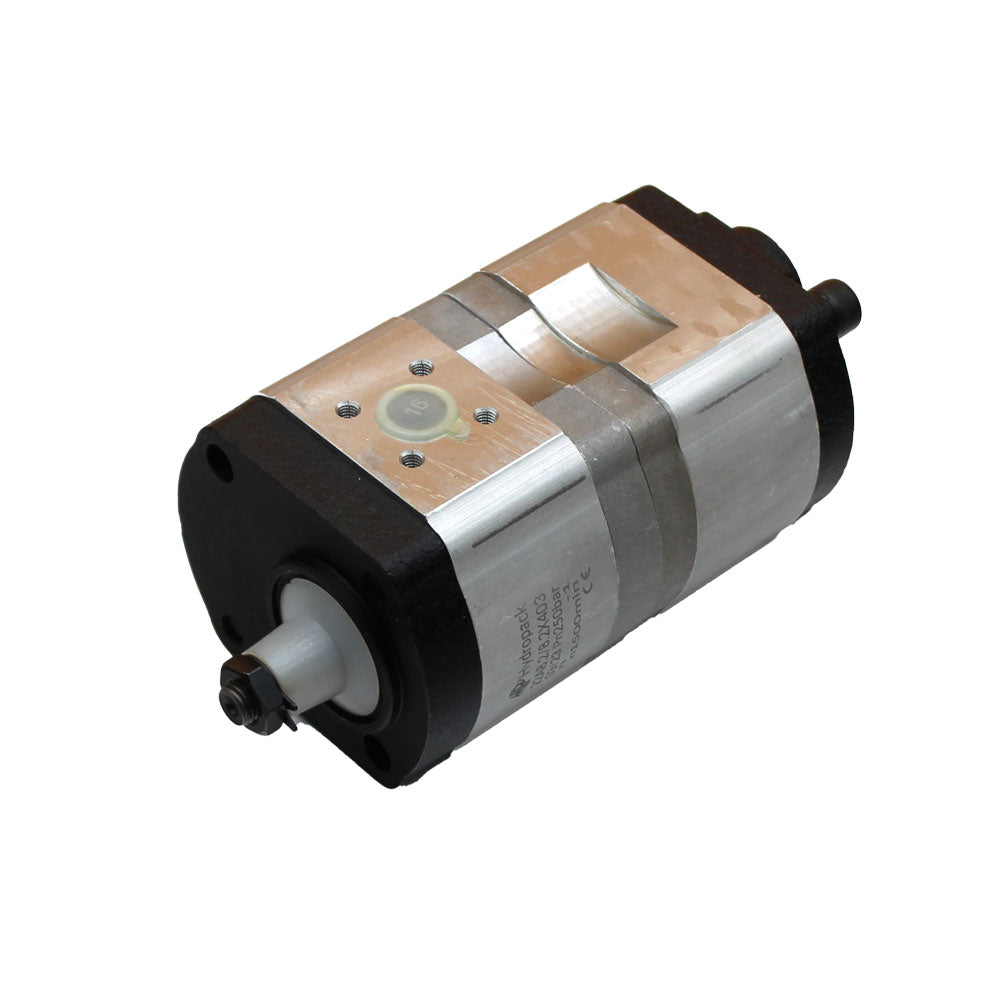

HYI60-0014 - Hydraulic Pump

Name: HYI60-0014 - Hydraulic Pump
Brand: AIC Replacement Parts
SKU: HYI60-0014
Price: 360.0 USD
Availability: InStock

TO VIEW PRICE

LOGIN or REGISTER

Product variants

One New Aftermarket Hydraulic Pump

Tech Info:
-Front inlet hole fixing hole size: M6
-Front inlet hole fixing hole spacing: 40mm
-Front inlet hole size: 20mm
-Front outlet hole fixing hole size: M6
-Front outlet hole fixing hole spacing: 35mm
-Front outlet hole size: 15mm
-Inner max. GPM: 6.3
-Inner max. LPM: 24
-Length: 161.8mm
-Maximum Pump Speed rpm: 3000
-Outer max. GPM: 6.3
-Outer max. LPM: 24
-Pump rotation: Anti-Clockwise
-Pump type: Tandem Pump
-Rear Inlet Hole Size: M18 x 1.5mm
-Rear Outlet Hole Size: M18 x 1.5mm
-Side hole spacing: 60mm
-Top hole spacing: 60mm

Made to Fit Case/International Harvester:
Tractor Models: 433, 533, 633, 644, 733, 743, 744, 745, 745S, 833, 844, 844S
Replaces Part Number(s): 1986964C1, 3147535R91, 3147535R92

Models This Part Fits:

745, 745S, 644, 633, 744, 433, 733, 743, 833, 844S, 844, 533

Additional Information:

Front inlet hole fixing hole size: M6 Front inlet hole fixing hole spacing: 40mm Front inlet hole size: 20mm Front outlet hole fixing hole size: M6 Front outlet hole fixing hole spacing: 35mm Front outlet hole size: 15mm Inner max. GPM: 6.3 Inner max. LPM: 24 Length: 161.8mm Maximum Pump Speed rpm: 3000 Outer max. GPM: 6.3 Outer max. LPM: 24 Pump rotation: Anti-Clockwise Pump type: Tandem Pump Rear Inlet Hole Size: M18 x 1.5mm Rear Outlet Hole Size: M18 x 1.5mm Side hole spacing: 60mm Top hole spacing: 60mm Hydraulic Pump
