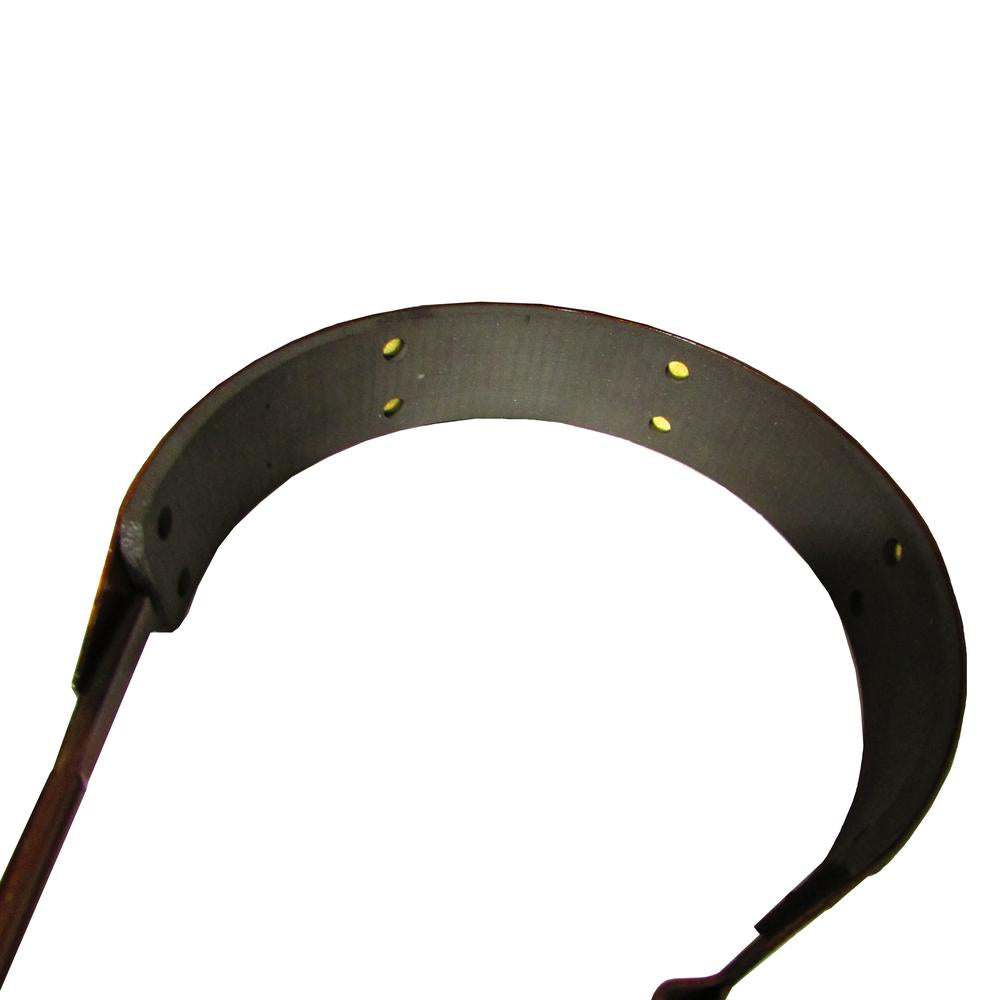

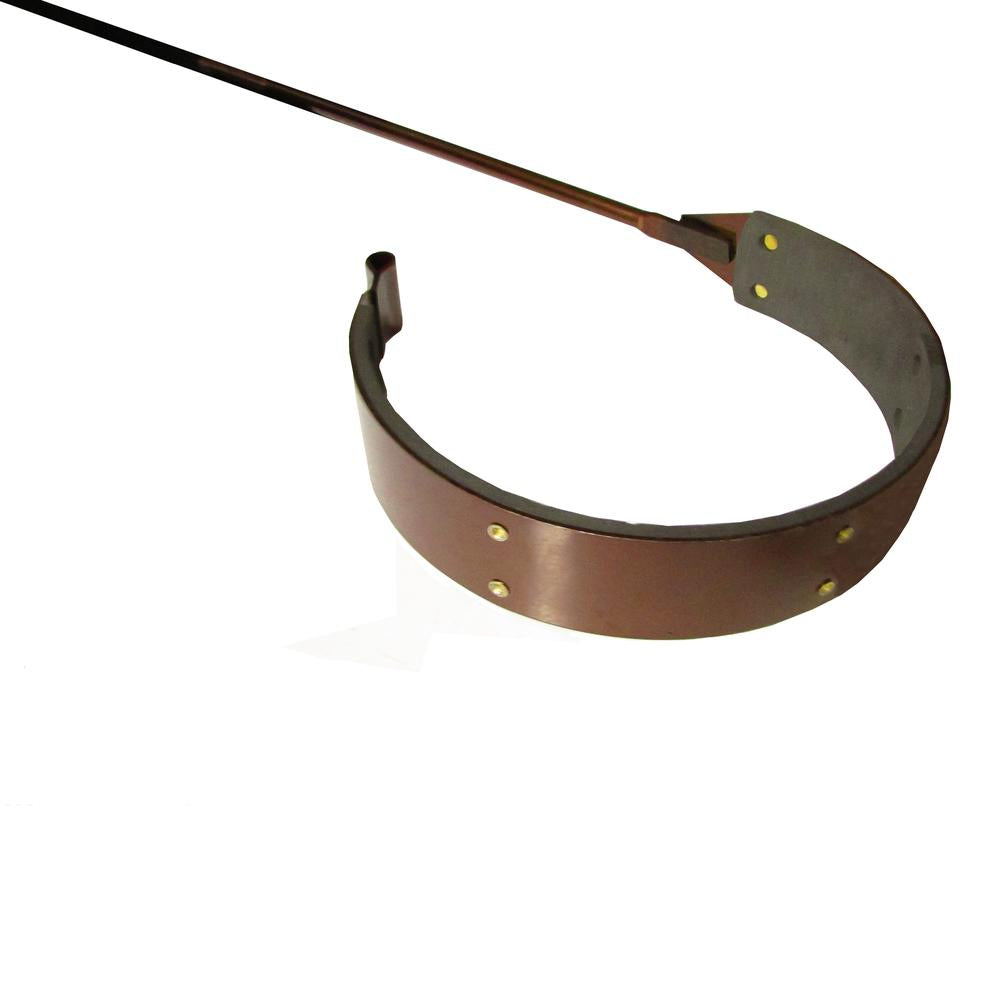

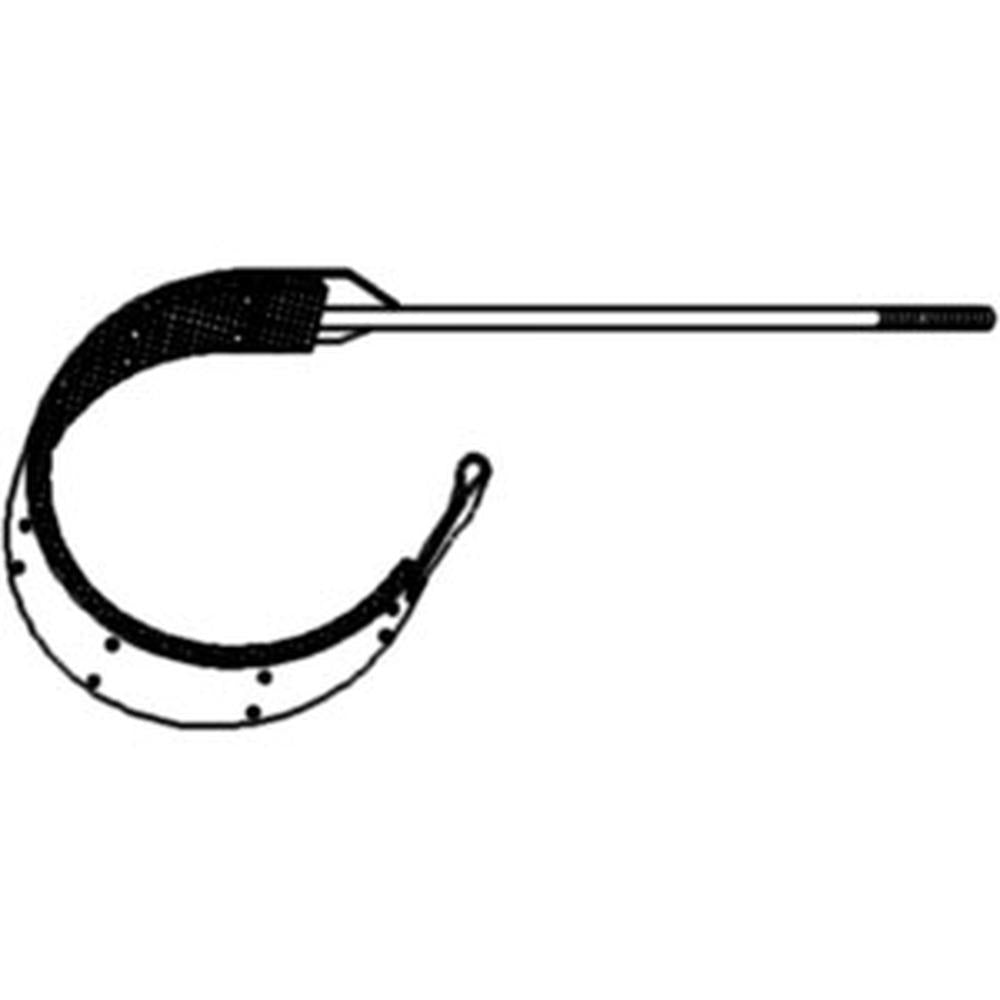

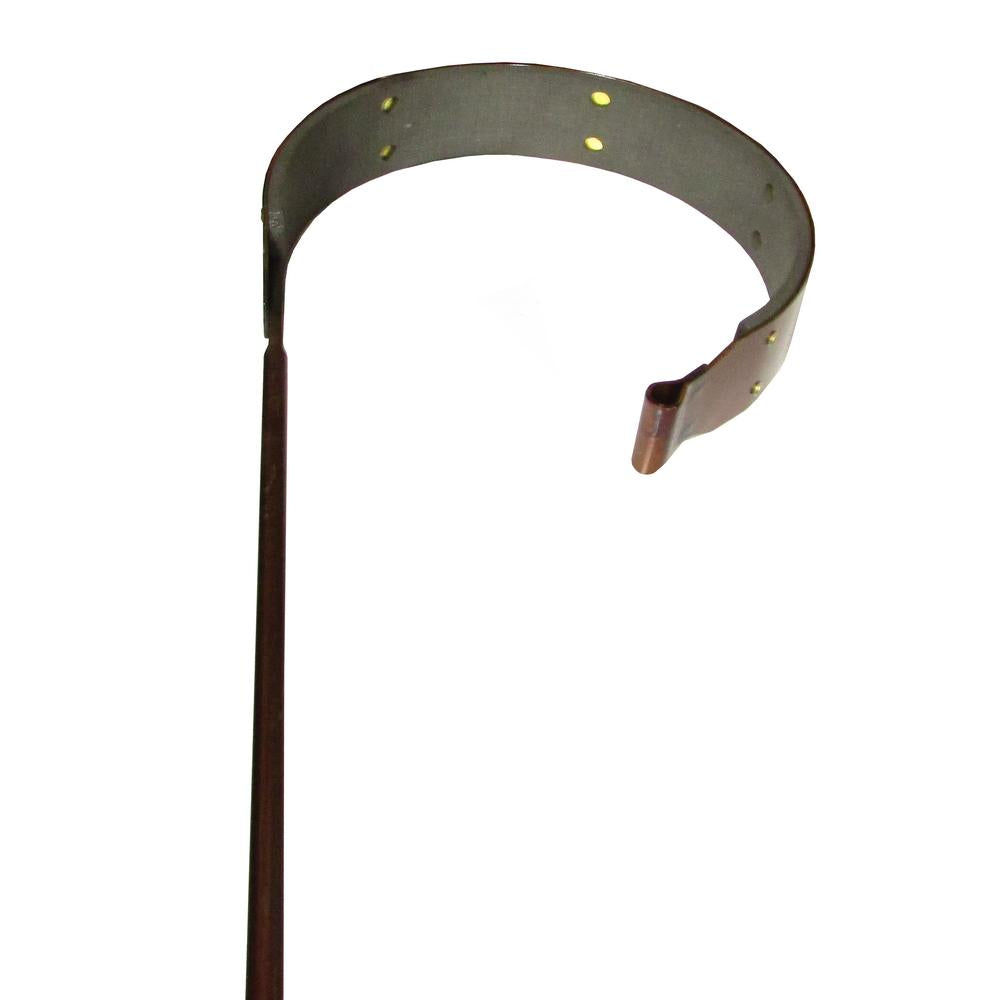

One New Aftermarket Replacement Brake Band with Lining for International Harvester (IH) / Farmall Tractors

This lined brake band assembly is a direct aftermarket replacement for the band-style drum brake system used on early Farmall letter-series tractors. The brake band wraps around a drum splined to the bull pinion shaft, providing stopping force when the brake pedal is applied. One lined brake band is required per wheel; two are required per tractor. Sold individually.

Important Serial Number Restriction: Fits Farmall Super A tractors with serial numbers up to 339641 (early production only). Super A tractors after s/n 339641 use a different brake design.

Specifications

• Includes woven brake lining
• Brake rod attached to lining
• 1 lined brake band per wheel
• 2 required per tractor
• Sold individually

Compatible Models

International Harvester (IH) / Farmall: A, A-I (Industrial), A1, AV, AV-1, B, BN, Super A (s/n 339641 and earlier), Super A1, Super AV

Replaces Part Number(s):

51582DBX, 51582DDXAF, 51582DDX, 1342796C1

Aftermarket Interchange Numbers

1702-2034, 1702-2034-A

New aftermarket replacement part - not remanufactured, not used.
