IHS111 Outer Tie Rod End Fits International
IHS111 Outer Tie Rod End Fits International
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

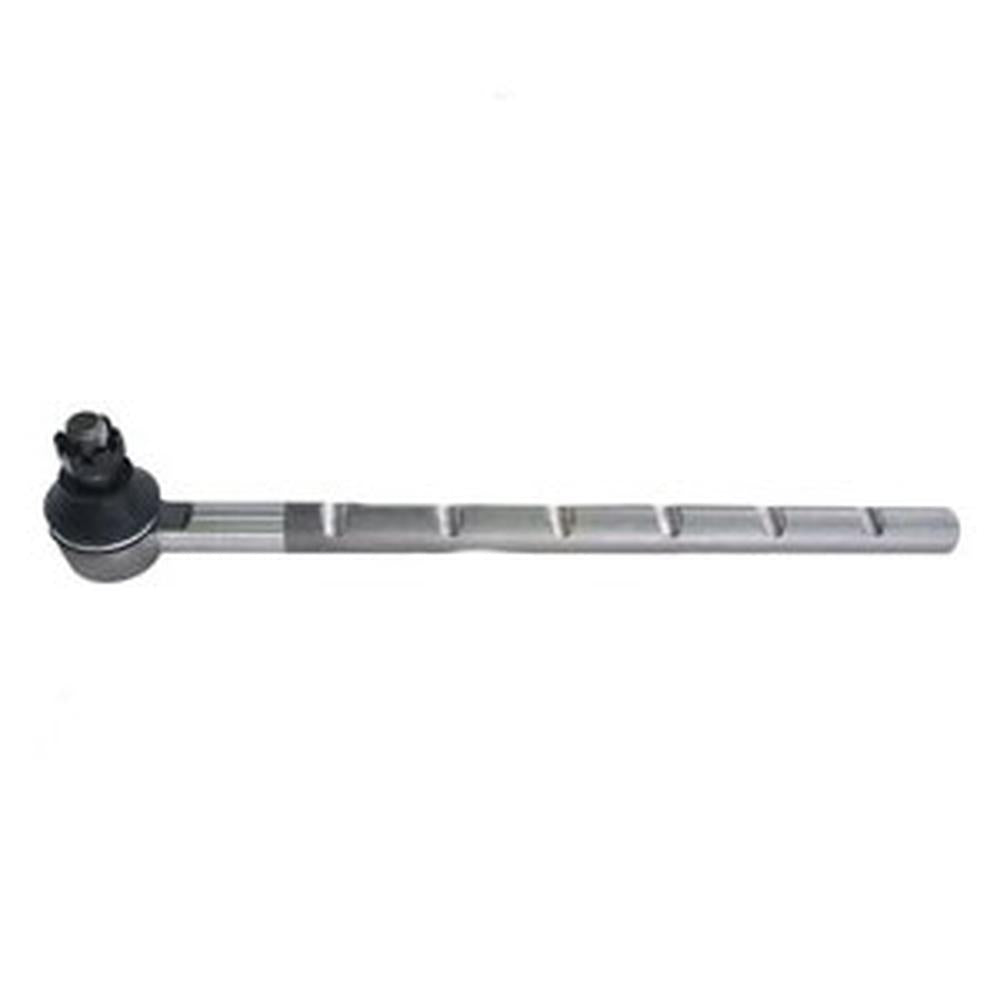

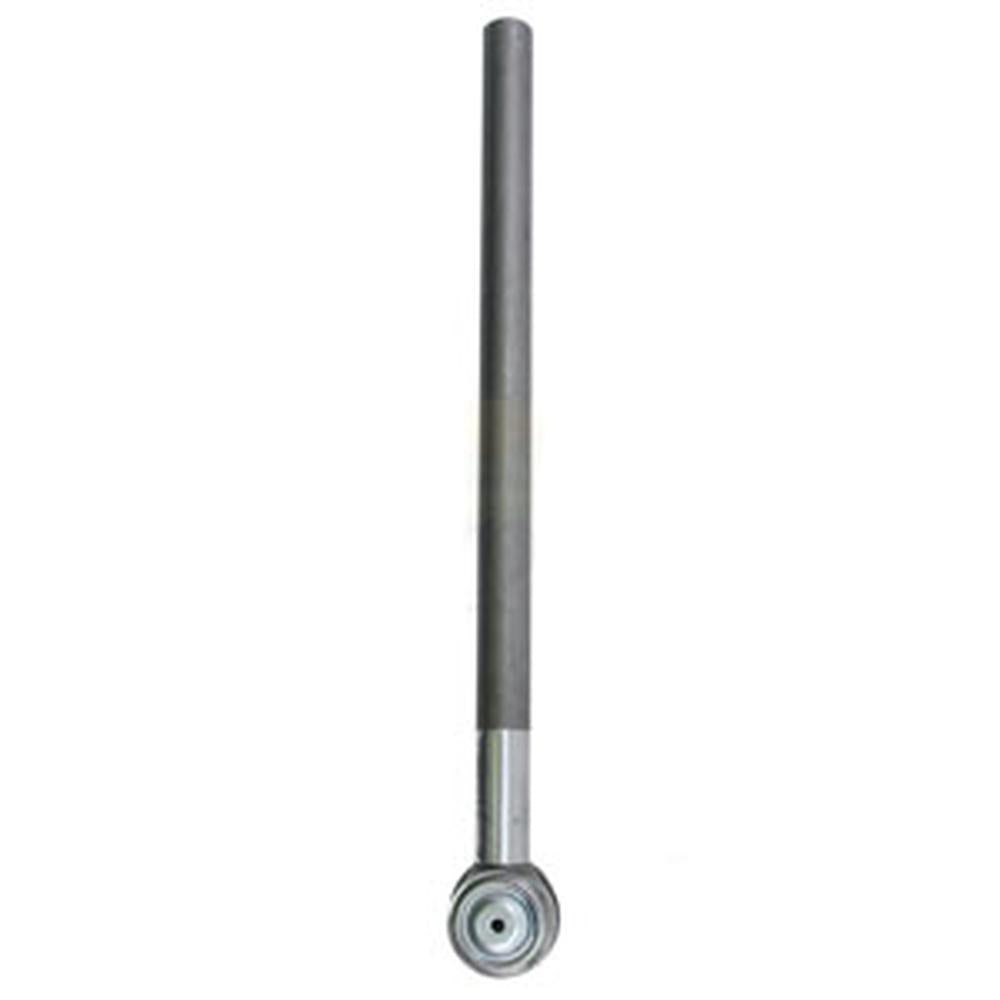

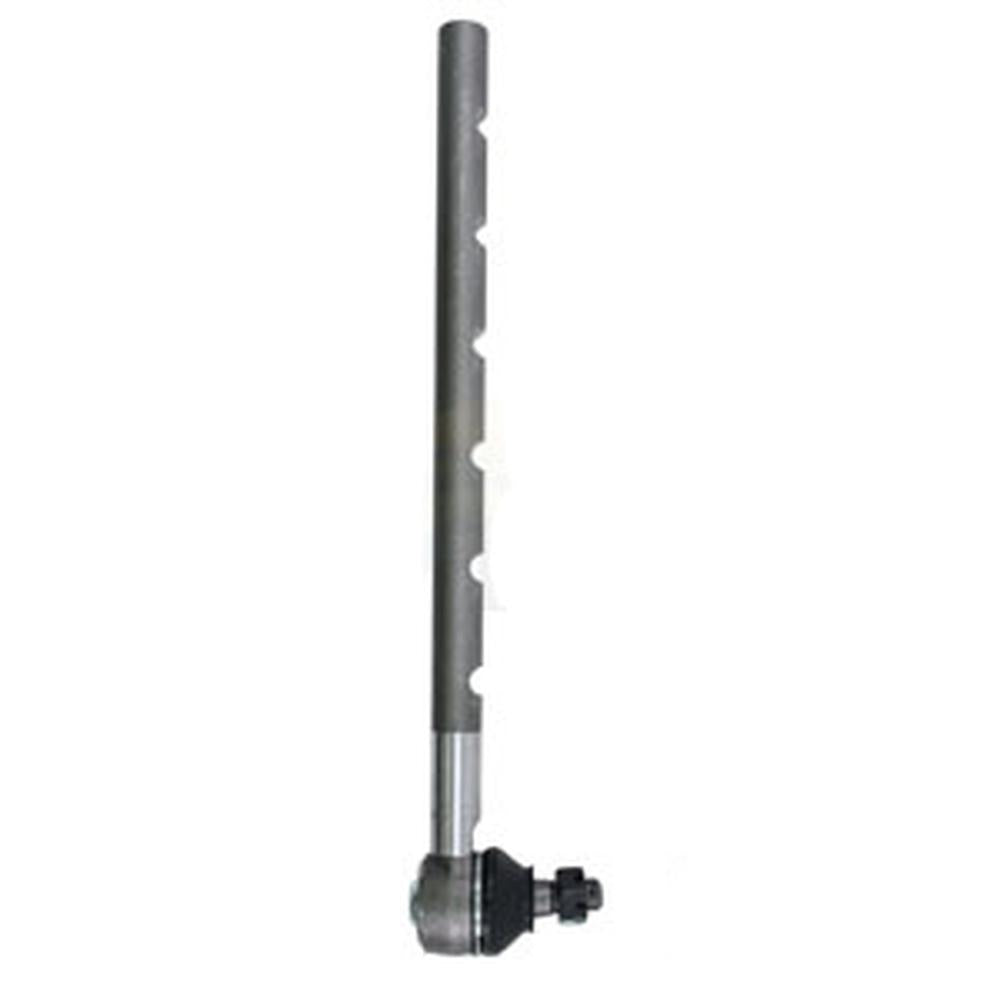

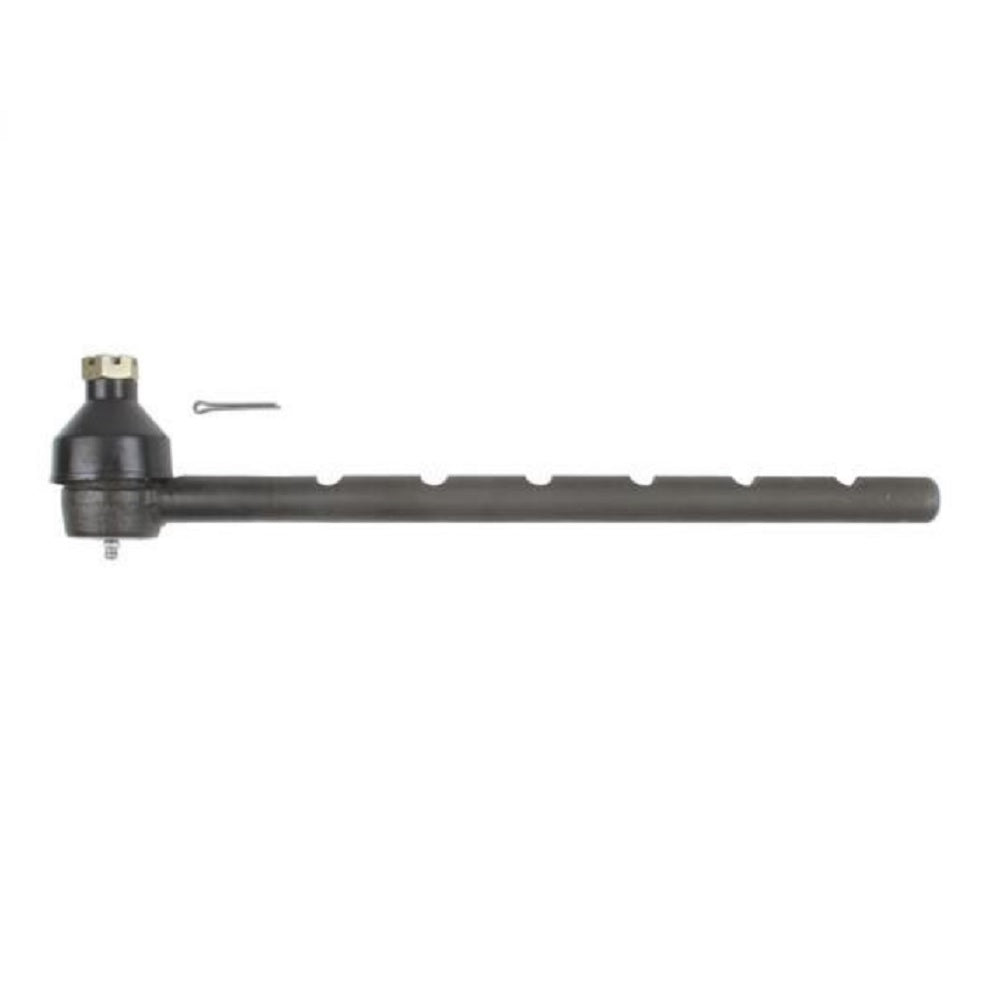

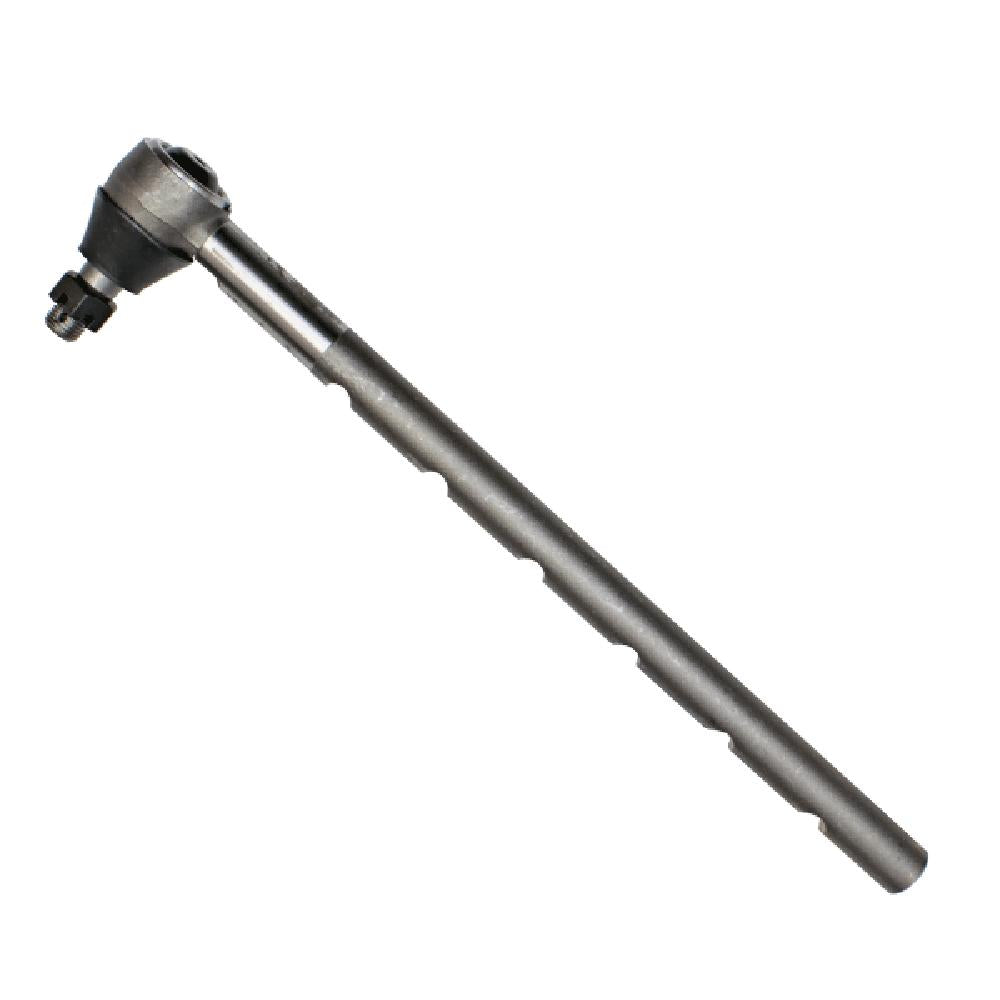

One New Aftermarket Outer Tie Rod End
Fits International Models: H, Super H, M, MD, Super M, Super MD, MTA, Super MTA, Hydro 100, Hydro 186, Hydro 70, Hydro 86, 300, 350, 400, 450, 460, 544, 560, 656, 666, 686, 706, 756, 766, 786, 806, 826, 856, 886, 966, 1026, 1066, 1086, 1206, 1256, 1456, 1466, 1468, 1486, 1566, 1568, 1586
Tech Info:
-15-3/4" long
-0.920" diameter
-6 notches
-Tapered ball stud measures 0.675" to 0.762" at the widest point of the taper shaft, with5/8-18" thread.
-15-3/4" long
-0.920" diameter
-6 notches
-Tapered ball stud measures 0.675" to 0.762" at the widest point of the taper shaft, with5/8-18" thread.
Replaces Part Number(s): 359984R93
Fits International Models: H, Super H, M, MD, Super M, Super MD, MTA, Super MTA, Hydro 100, Hydro 186, Hydro 70, Hydro 86, 300, 350, 400, 450, 460, 544, 560, 656, 666, 686, 706, 756, 766, 786, 806, 826, 856, 886, 966, 1026, 1066, 1086, 1206, 1256, 1456, 1466, 1468, 1486, 1566, 1568, 1586
Tech Info:
-15-3/4" long
-0.920" diameter
-6 notches
-Tapered ball stud measures 0.675" to 0.762" at the widest point of the taper shaft, with5/8-18" thread.
-15-3/4" long
-0.920" diameter
-6 notches
-Tapered ball stud measures 0.675" to 0.762" at the widest point of the taper shaft, with5/8-18" thread.
Replaces Part Number(s): 359984R93
Models This Part Fits:
756, Hydro 70, 686, 450, 656, 1066, 1568, 3288, H, 350, 660, 826, Super MTA, Hydro 186, 5088, 5488, 460, Hydro 100, 966, MTA, 706, 786, 560, 1566, Super M, M, 3688, 986, 1586, 1086, 1466, 766, 300, 3488, 2022, 1456, 1822, 856, 544, MD, Super H, 1206, 400, 1256, Hydro 86, 5288, 666, Super MD, 3088, 886, 1486, 806, 1468, 1026Additional Information:

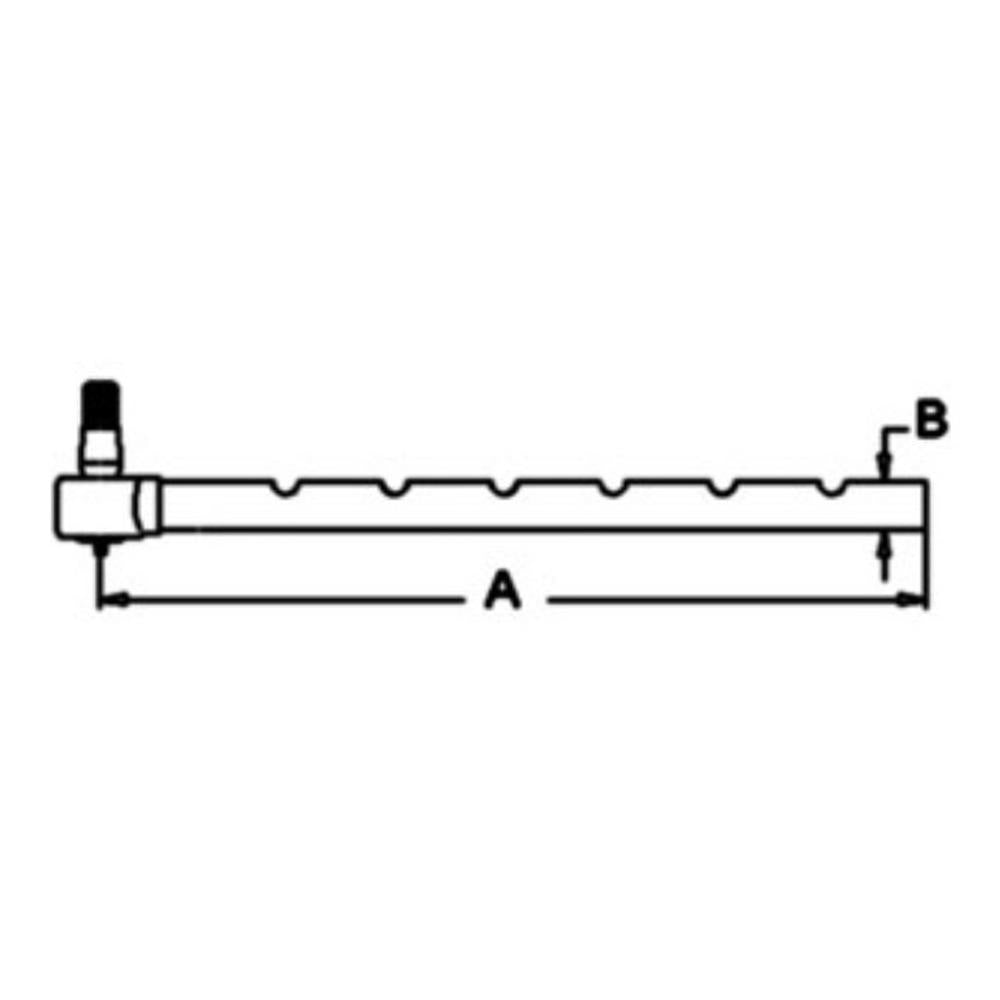

Left or Right Hand Center to End: 7 7/8" Diameter: 15/16" Length: 15 3/4" .92" per notch 6 Notches Tie RodReference Numbers:
358983R1, 358983R91, 359984R91, 359984R92, 359984R93, 359984R93GV, 383915R92, 384438R93, 384441R91, 384441R92, 384441R93, 359984R93Makes This Part Fits:
