IHS3479 Fits Cub Hydraulic Pump Gasket, O-Ring and Seal Kit Fits International

Name: IHS3479 Fits Cub Hydraulic Pump Gasket, O-Ring and Seal Kit Fits International
Brand: AIC Replacement Parts
SKU: IHS3479-STR
Price: 31.88 USD
Availability: InStock

IHS3479 Fits Cub Hydraulic Pump Gasket, O-Ring and Seal Kit Fits International

AIC Replacement Parts

TO VIEW PRICE

LOGIN or REGISTER

Product variants

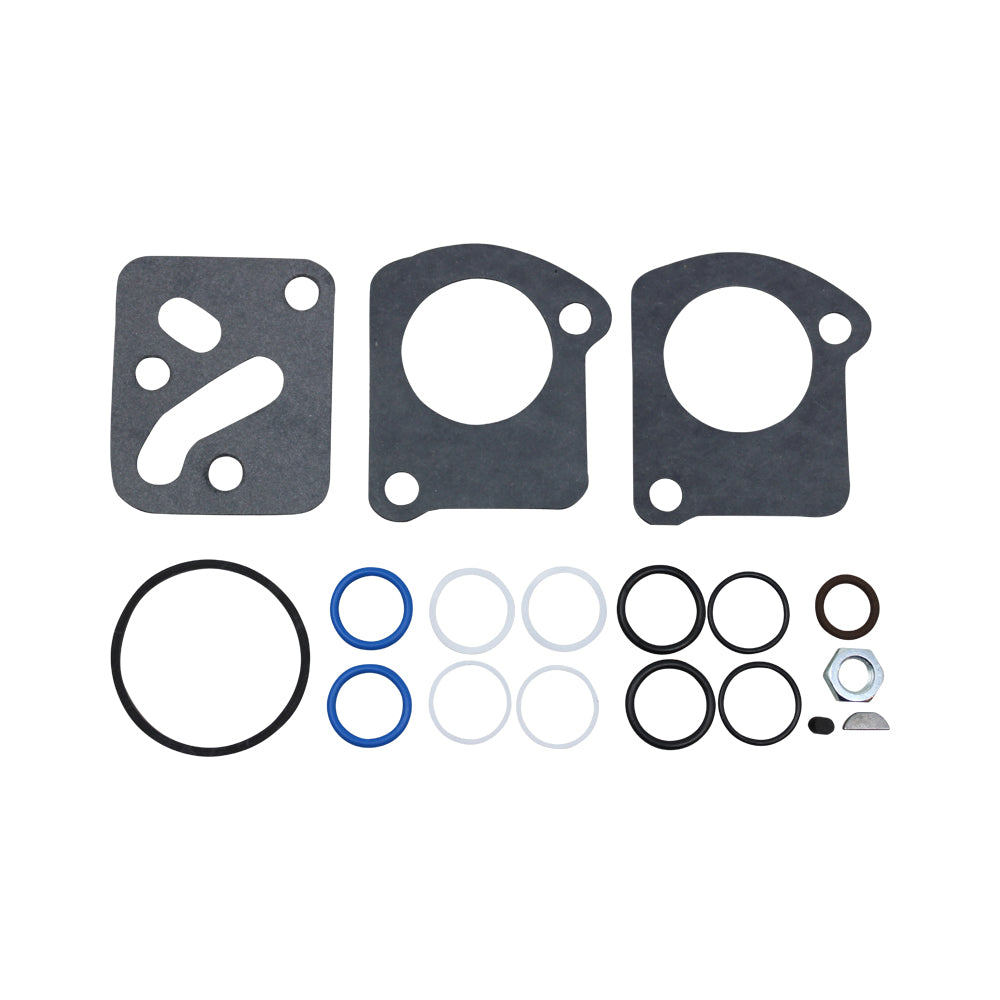

One Fits Cub Hydraulic Pump Gasket, O-Ring and Seal Kit

Fits International Models: Fits Cub, Fits Cub Loboy

Tech Info:
- Includes jam nut and drive key that most kits do not include.
- 18-piece kit plus instructions
- (1) pump mounting gasket (351677R1)
- (2) pump manifold to touch control assembly mounting gaskets (352034R2)
- (1) pump body quad ring (510185,old # 353828R1)
- (2) bearing seal o-rings; 15/16" OD, 3/4" IDx 3/32" thick (86977728,old # 252707R1)
- (2) pump manifold front o-rings; 7/8" ODx 21/32" IDx7/64" thick (72585739,old # 350667R1)
- (2) back-up washers; 15/16" OD(355047R1)
- (2) bearing seal o-rings; 7/8" ODx3/4" IDx 1/16" thick (353827R1)
- (1) 3/8"-24 UNF jam nut (124925, old # 114494)
- (1) woodruff drive key; # 3, 1/8" x 1/2" (12

Models This Part Fits:

Cub, Cub Loboy, CUB, CUB LOBOY

Additional Information:

18-pc Hyd. Pump Gasket & Seal Kit w/ Instructions

Reference Numbers:

355047R1, 355199R1, 124925, 354650R93, 354650R92, 353827R1, 75285739, 355882R1, 354650R91, 114494, 126109, 352034R2, 350667R1, 355208R91, 86977728, 252739R1, 14457080, 124543, 510185, 86637641, 106749, 252707R1, 353828R1, IHS3479
