AIC Replacement Parts

**TO VIEW PRICE**

LOGIN or REGISTER

Models This Part Fits:

450, 450B

Additional Information:

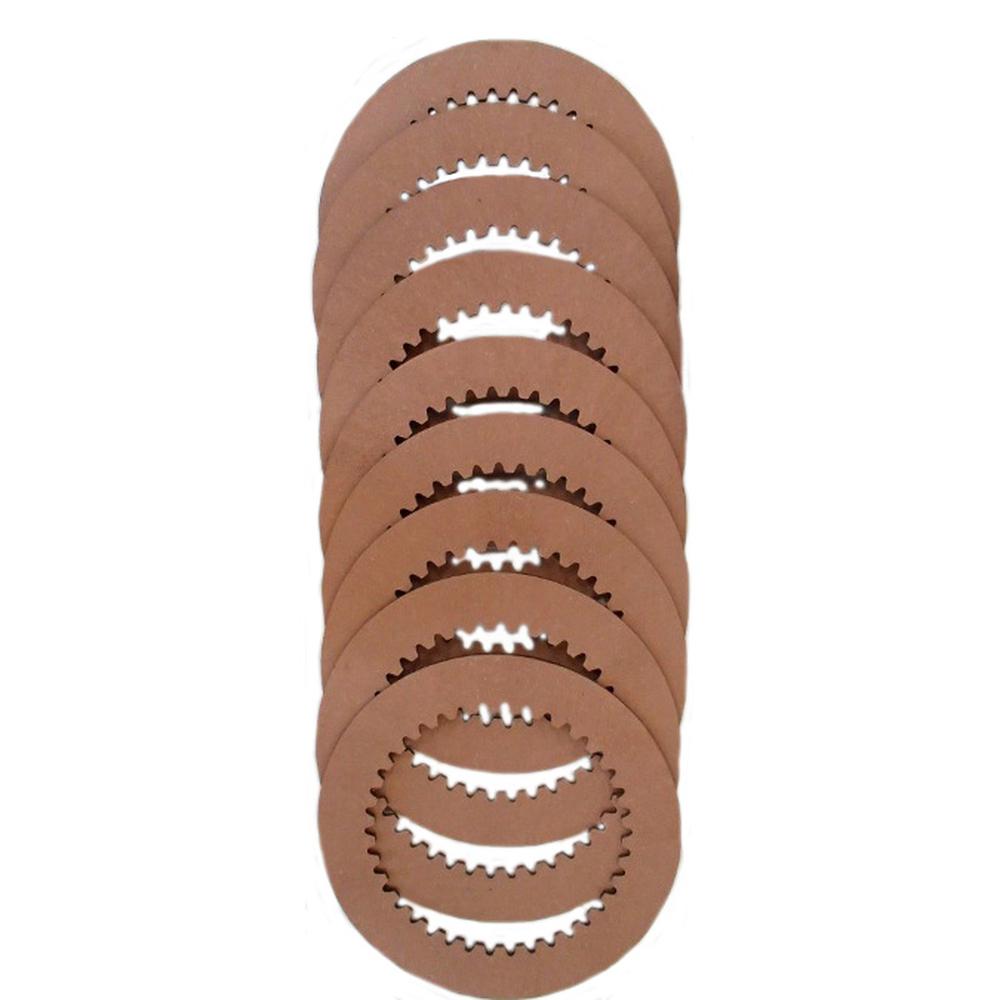

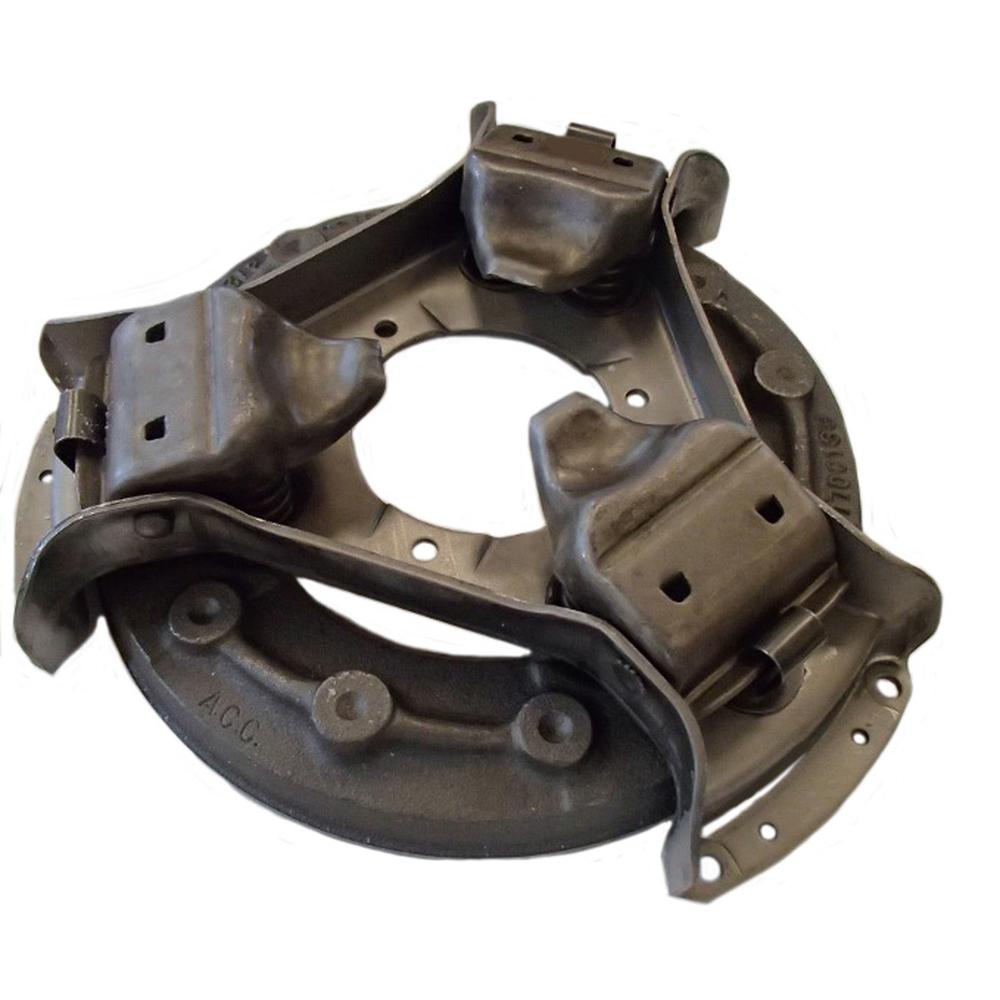

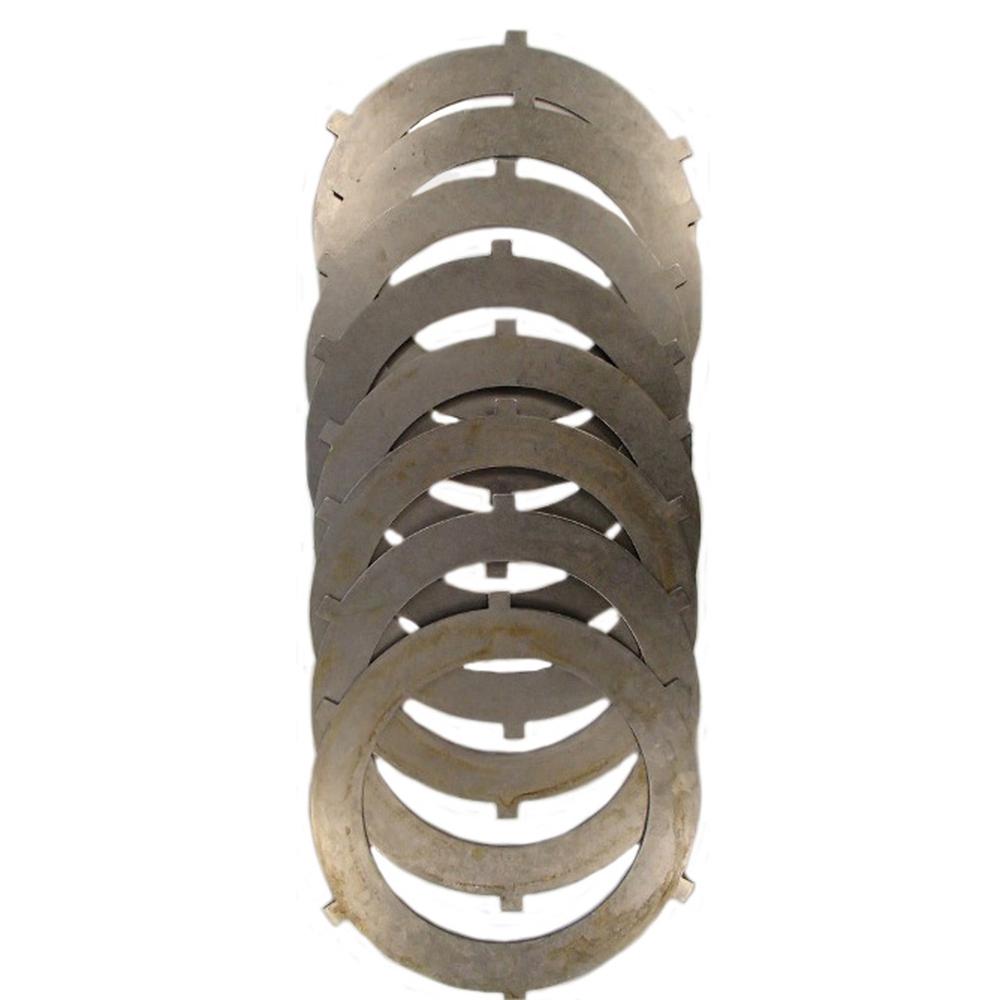

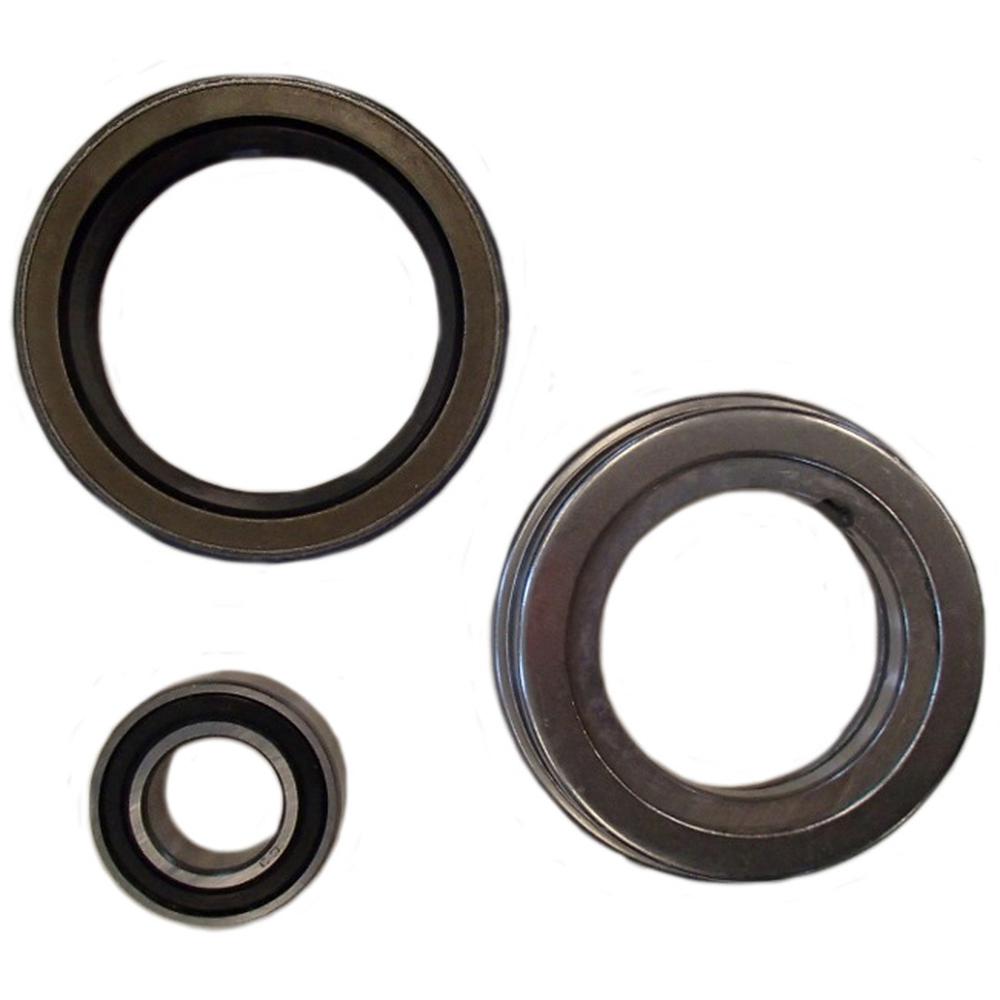

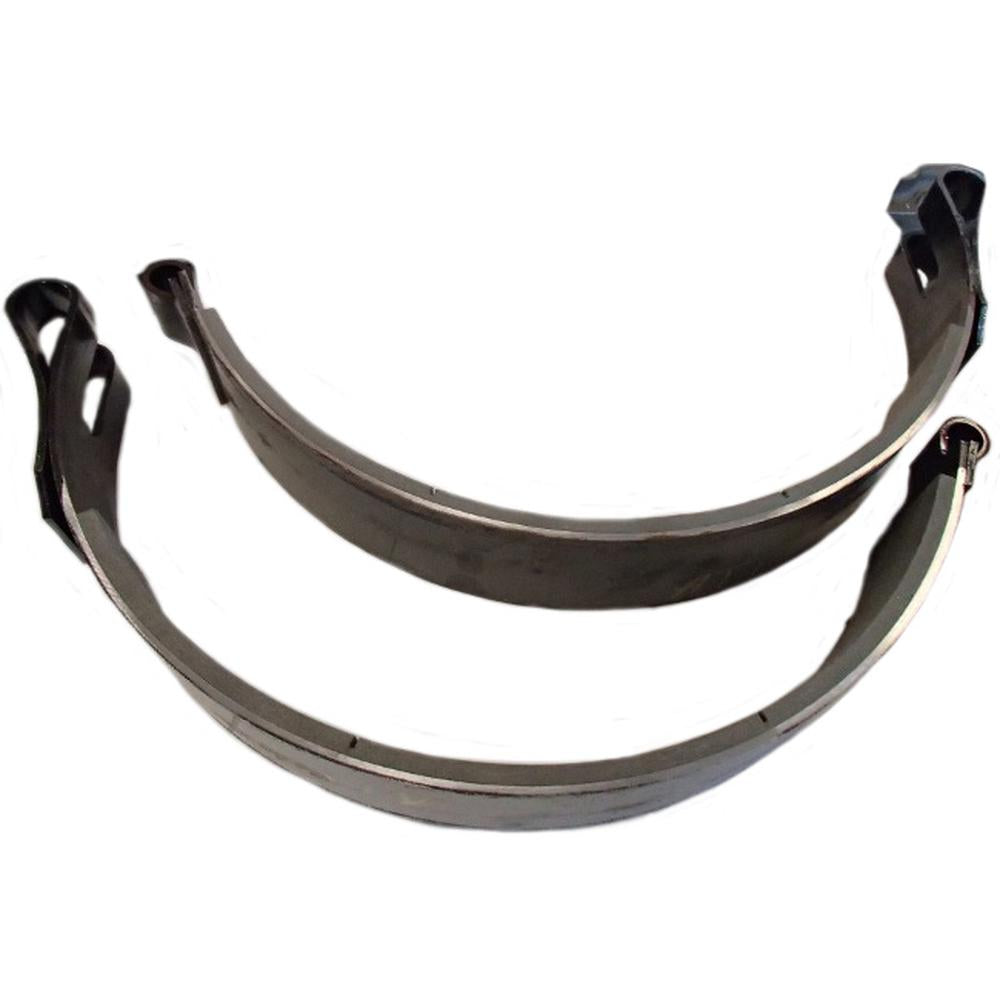

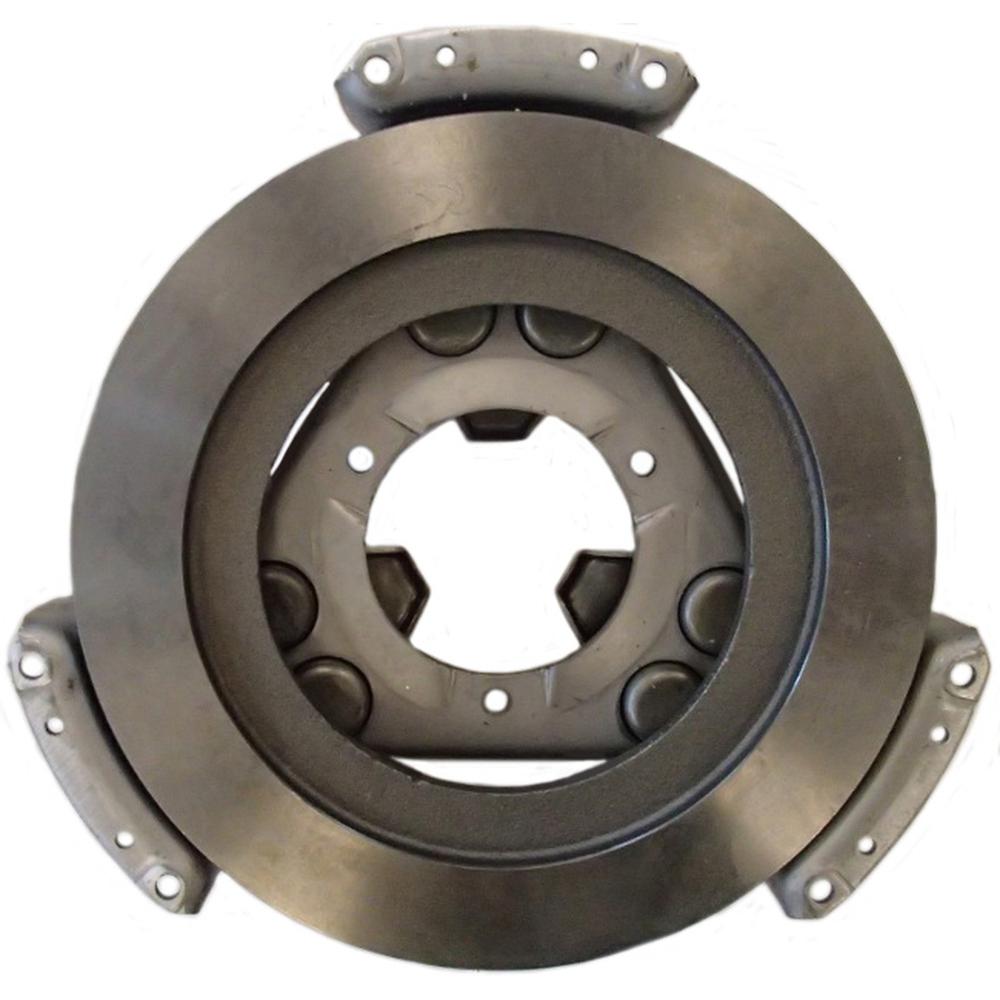

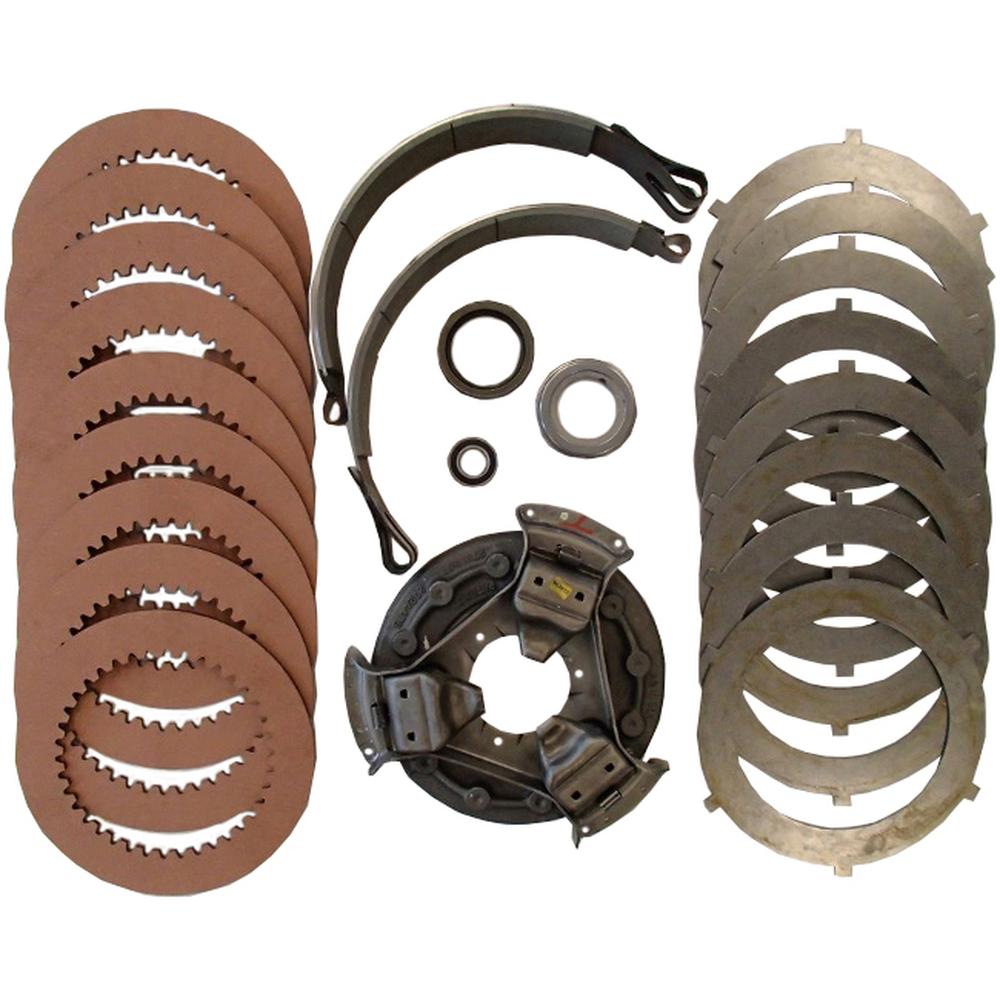

Kit Includes: (8) Steel Steering Clutch Disc, (9) Fiber Steering Clutch Disc, (1) Brake Band Set, (1) Pressure Plate, (1) Clutch Release Bearing, (1) Pilot Bearing, (1) Final Drive Top Seal (8) Steering Clutch Disc Tech Info: Steel Outer Diameter: 11.86" Inner Diameter: 8.128" Spline: 6 External Replaces Part Numbers: T-31732, T31732, T31732N, 313711 (9) Steering Clutch Disc Tech Info: Fiber Outer Diameter: 10.899” Inner Diameter: 7.42” Spline: 38 Internal Replaces Part Numbers: T-20716, T20716, T20716N, T211832, T44129 (1) Brake Band Set Tech Info: Complete 2 Piece Band Replaces Part Numbers: AT129806, AT129807, AT129806-807, AT129806-07, 900715, 900725, AT18418, AT18420, AT86898, AT86899 (1) Pressure Plate Tech Info: Levers: 3 Replaces Part Numbers: AT18416, AT18416T (1) Clutch Release Bearing Tech Info: Outer Diameter: 3.795" Inner Diameter: 2.25” Width: .805" Greasable Replaces Part Numbers: N1171, G13624, AT10500, AT13012, AT17463, AT17464, T23010 (1) Pilot Bearing Tech Info: Outer Diameter: 1.850" Inner Diameter: 0.983" Width: 0.473" Replaces Part Numbers: 105CC, JD9326 (1) Final Drive Top Seal Tech Info: Outer Diameter: 3.628" Inner Diameter: 2.625" Width: 0.469" Replaces Part Numbers: 415003, 475458, AT18387

Reference Numbers:

T-31732, T31732, T31732N, 313711, T-20716, T20716, T20716N, T211832, T44129, AT129806, AT129807, AT129806-807, AT129806-07, 900715, 900725, AT18418, AT18420, AT86898, AT86899, AT18416, AT18416T, N1171, G13624, AT10500, AT13012, AT17463, AT17464, T23010, 105CC, JD9326, 415003, 475458, AT18387

Makes This Part Fits:

Shop John Deere Wholesale Parts

Product Category:

Construction Replacement Parts

Product Group:

Product Sub Group:

View full details
