L171335 - Rear Window Glass
L171335 - Rear Window Glass
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

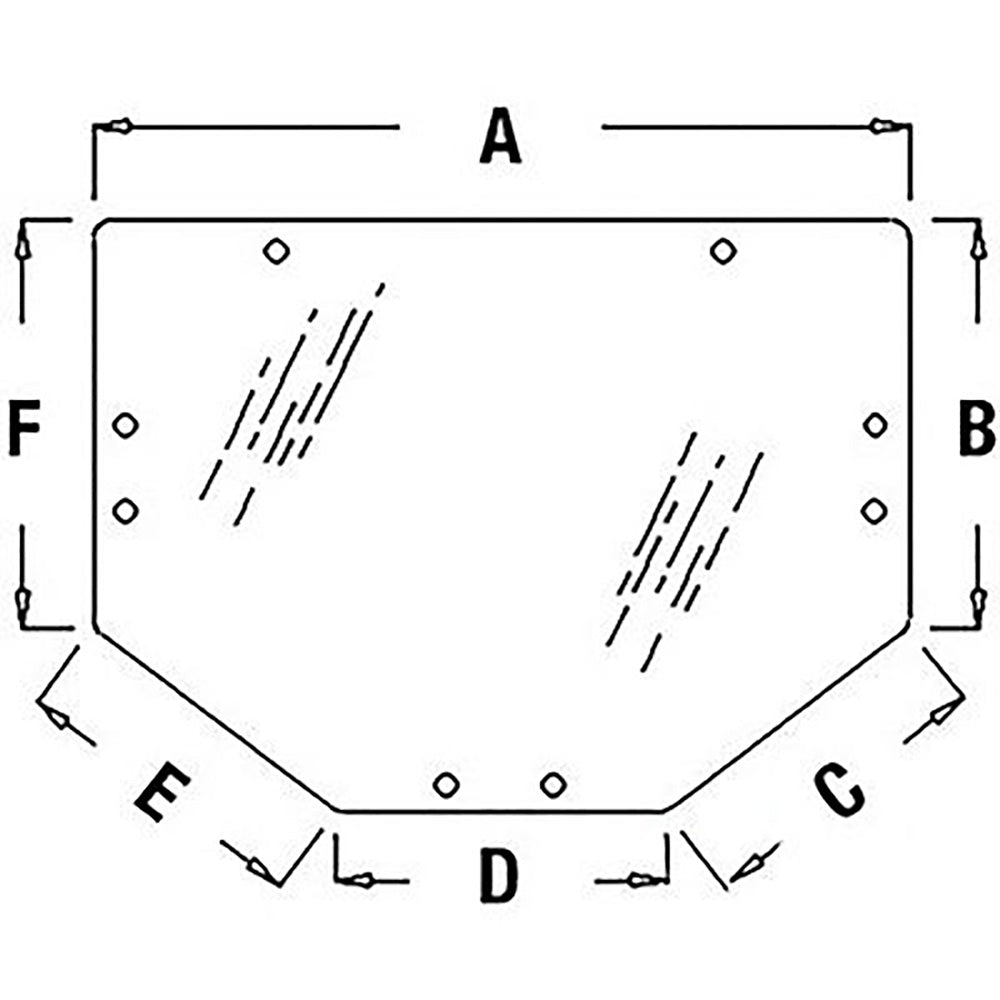

One New Aftermarket Rear Window GlassTech Info:
-(A) = 45.25"
-(B) = 22.75"
-(C) = 18.00"
-(D) = 18.00"
-(E) = 18.00"
-(F) = 22.75"
-Length 29.921"
-Thickness .236"
-Width 44.961"Made to Fit John Deere:
Tractor Models: 6105M, 6110, 6110M, 6115M, 6120, 6120M, 6125M, 6130, 6130M, 6140M, 6145M, 6150M, 6155M, 6170M, 6175M, 6195M, 6210, 6215, 6220, 6230, 6310, 6320, 6330, 6405, 6410, 6415, 6420, 6430, 6500, 6530, 6534, 6605, 6615, 6630, 6715, 6830, 6930, 7130, 7230, 7320, 7330, 7420, 7430
Replaces Part Number(s): L171335, L202528, L21335
-(A) = 45.25"
-(B) = 22.75"
-(C) = 18.00"
-(D) = 18.00"
-(E) = 18.00"
-(F) = 22.75"
-Length 29.921"
-Thickness .236"
-Width 44.961"Made to Fit John Deere:
Tractor Models: 6105M, 6110, 6110M, 6115M, 6120, 6120M, 6125M, 6130, 6130M, 6140M, 6145M, 6150M, 6155M, 6170M, 6175M, 6195M, 6210, 6215, 6220, 6230, 6310, 6320, 6330, 6405, 6410, 6415, 6420, 6430, 6500, 6530, 6534, 6605, 6615, 6630, 6715, 6830, 6930, 7130, 7230, 7320, 7330, 7420, 7430
Replaces Part Number(s): L171335, L202528, L21335
Models This Part Fits:
6605, 6175M, 6430, 7420, 6120, 7130, 6210, 6410, 6145M, 6150M, 6630, 6930, 7330, 6170M, 6530, 6330, 6830, 6320, 6130M, 7430, 6140M, 6125M, 6115M, 6155M, 6195M, 6215, 6615, 6500, 6715, 6310, 6110, 6415, 6130, 7230, 6220, 6534, 7320, 6120M, 6230, 6110M, 6105M, 6405, 6420Additional Information:
Top Width: 45.25" Right Length: 22.75" Bottom Angle Widths: 18.00" Left Side Length: 22.75" Thickness: .236" Rear Window GlassReference Numbers:
L171335, L202528, L21335Makes This Part Fits:
Shop John Deere Wholesale PartsProduct Category:
Agriculture Replacement PartsProduct Group:
Cab Parts Replacement PartsProduct Sub Group:
