LED Cab Tail Light AR78825 Fits John Deere Fits Allis Chalmers White

Name: LED Cab Tail Light AR78825 Fits John Deere Fits Allis Chalmers White
Brand: AIC Replacement Parts
SKU: zbox_mpn_22004
Price: 31.66 USD
Availability: InStock

LED Cab Tail Light AR78825 Fits John Deere Fits Allis Chalmers White

AIC Replacement Parts

TO VIEW PRICE

LOGIN or REGISTER

Product variants

One New Aftermarket Replacement Red LED Cab Tail / Warning Light - Replaces AR78825 - Fits John Deere, Fits Allis Chalmers, and White Tractors

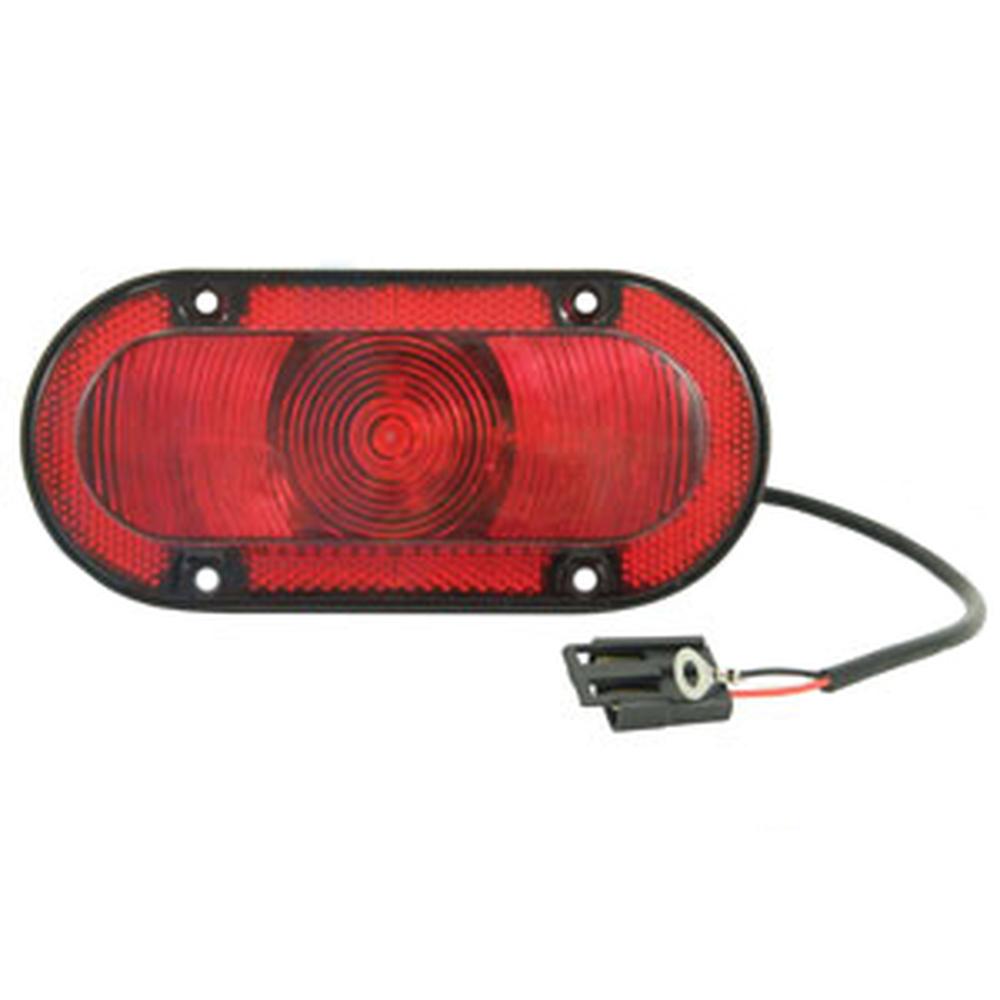

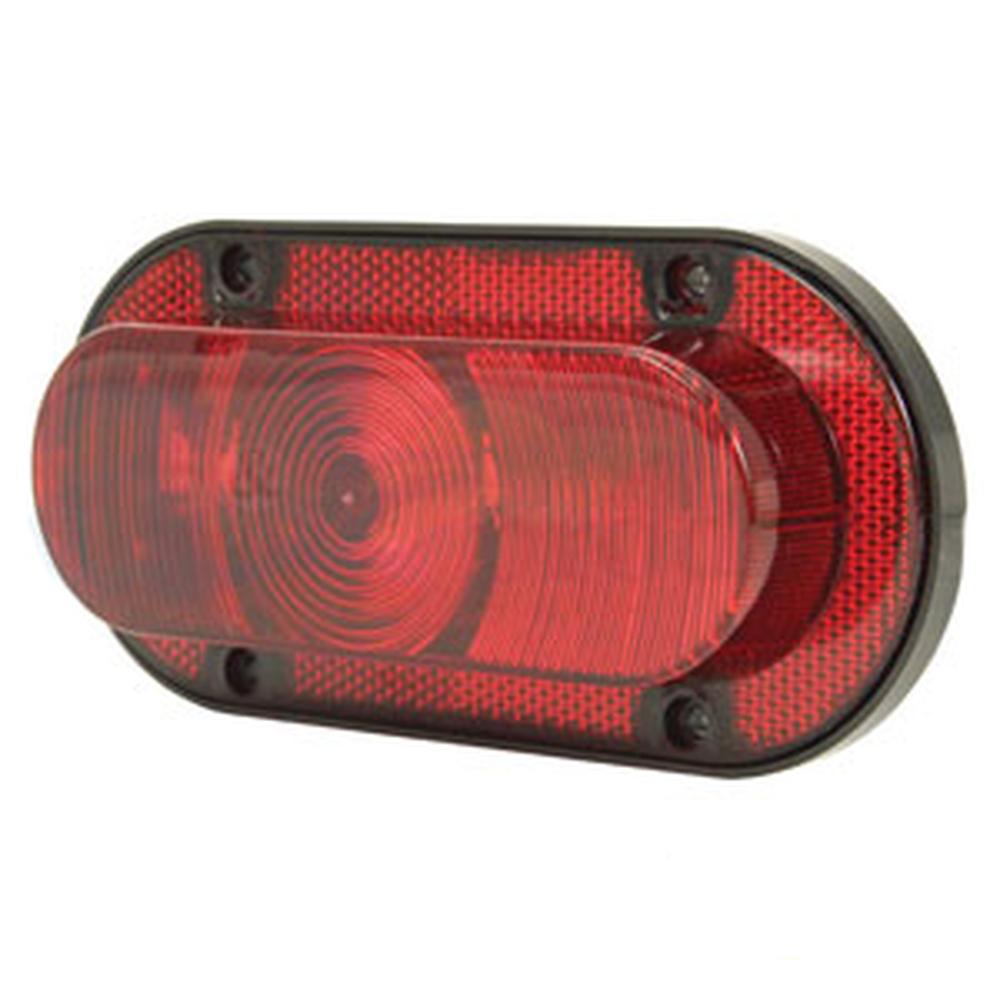

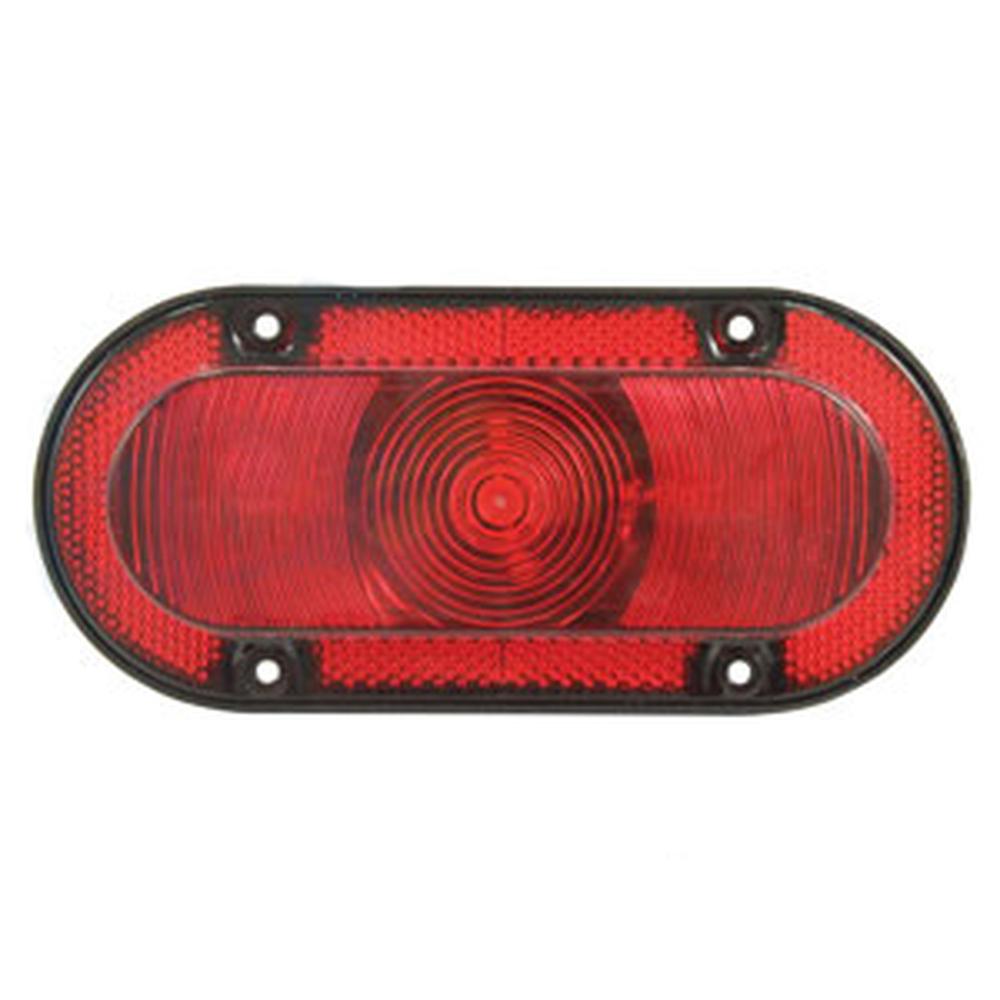

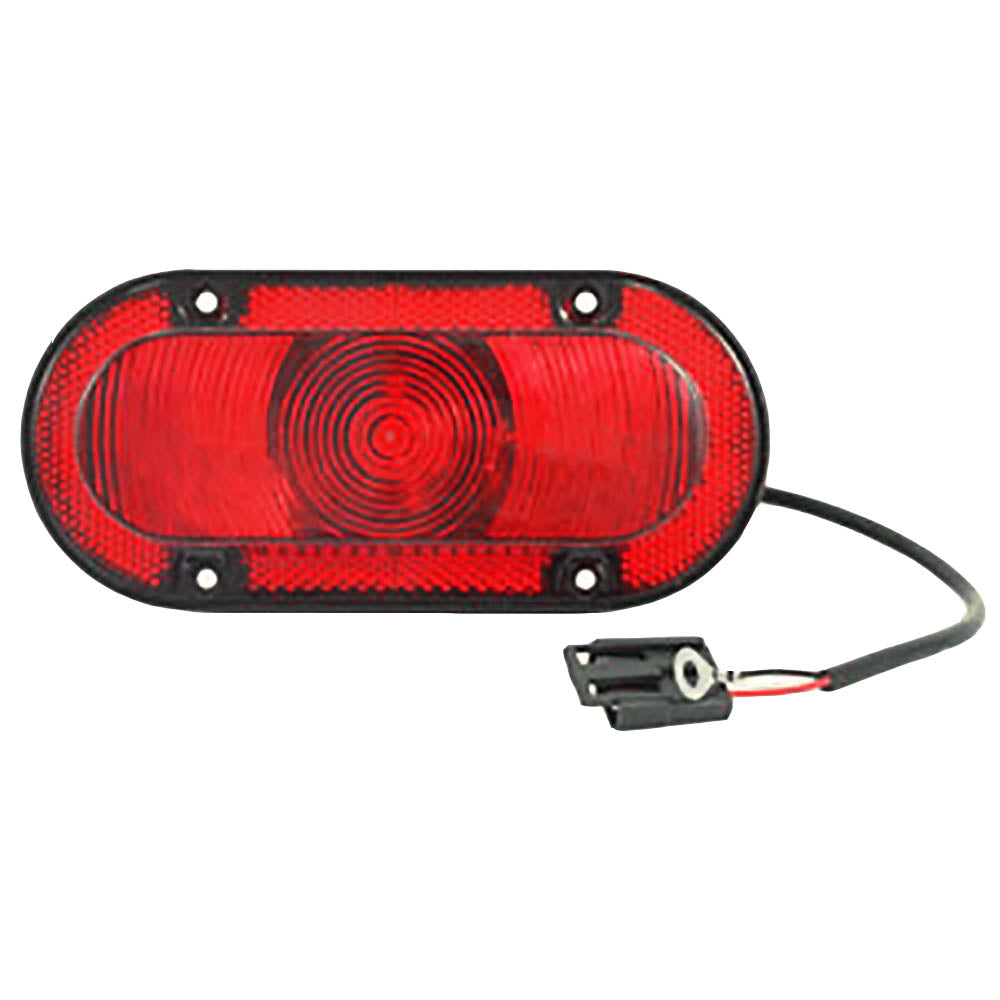

This oval red LED cab tail and warning light mounts at the rear cab or rear fender and serves as a high-visibility tail and brake light on a wide range of Fits John Deere (Fits JD) tractors, cotton pickers, cotton strippers, forage harvesters, and sprayers, as well as Fits Allis Chalmers and White tractor models. The light features three 3-watt LED bulbs behind a red polycarbonate lens and is wired for both high-beam and low-beam (brake) function. The black ground wire eyelet must be grounded properly for the light to function.

Specifications

Shape: Oval
Overall Length: 7.900"
Height (Top to Bottom): 3.600"

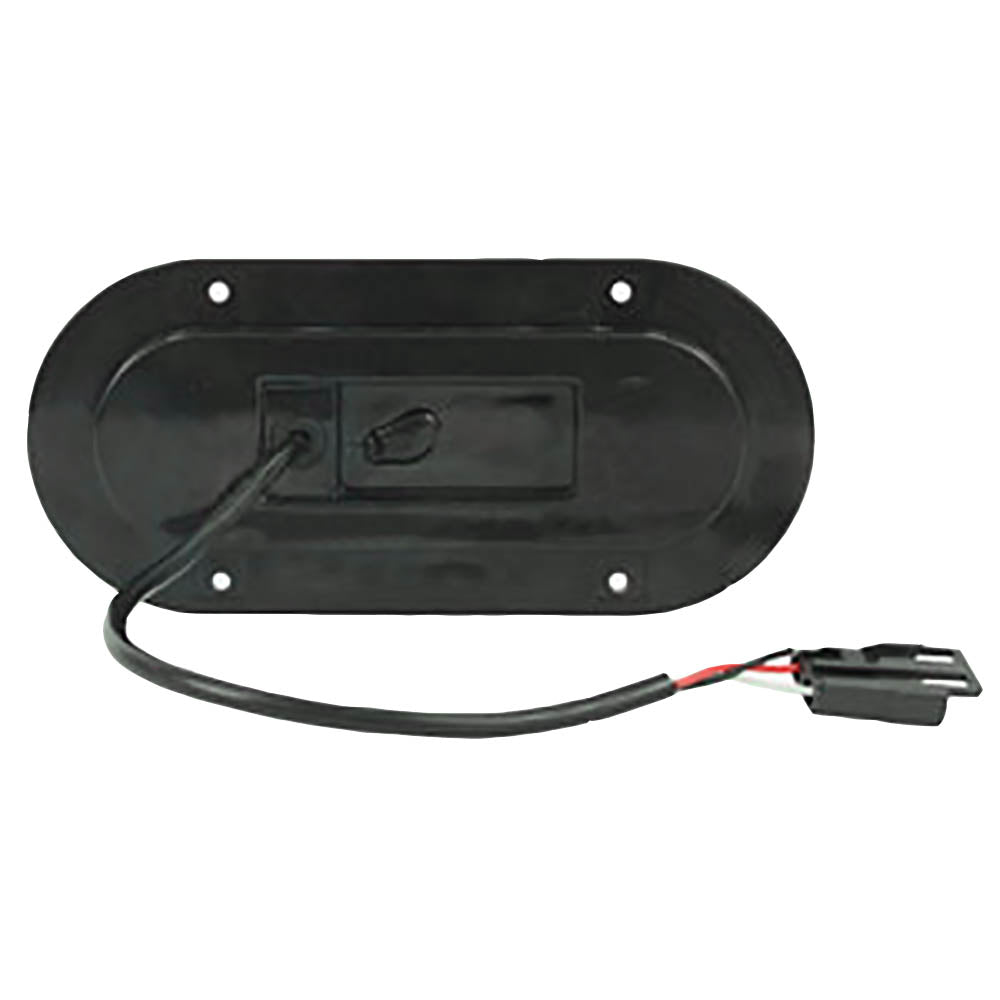

Mounting: 4 holes, 4" apart side to side and 3" apart top to bottom
LED Output: (3) 3-Watt LED bulbs, 9 Watts total
Voltage Range: 6 - 30 Volt systems
Lens Color: Red polycarbonate

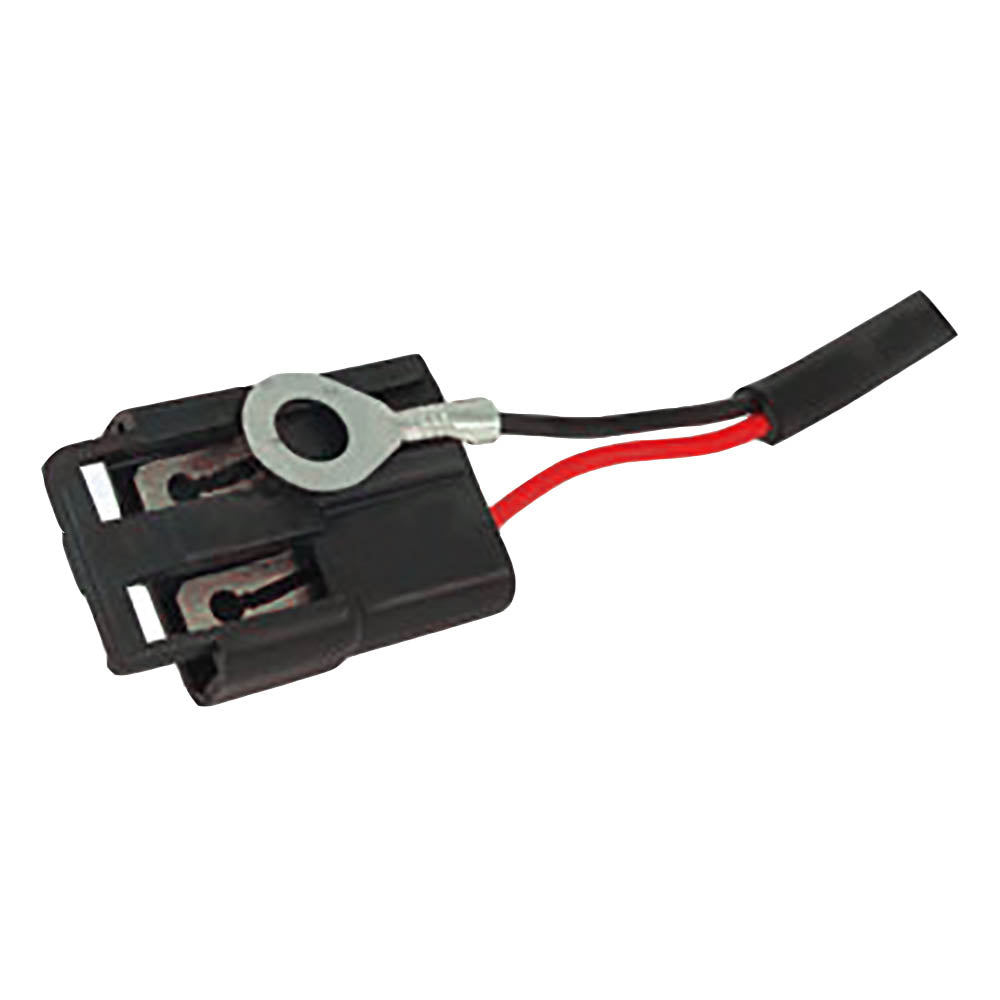

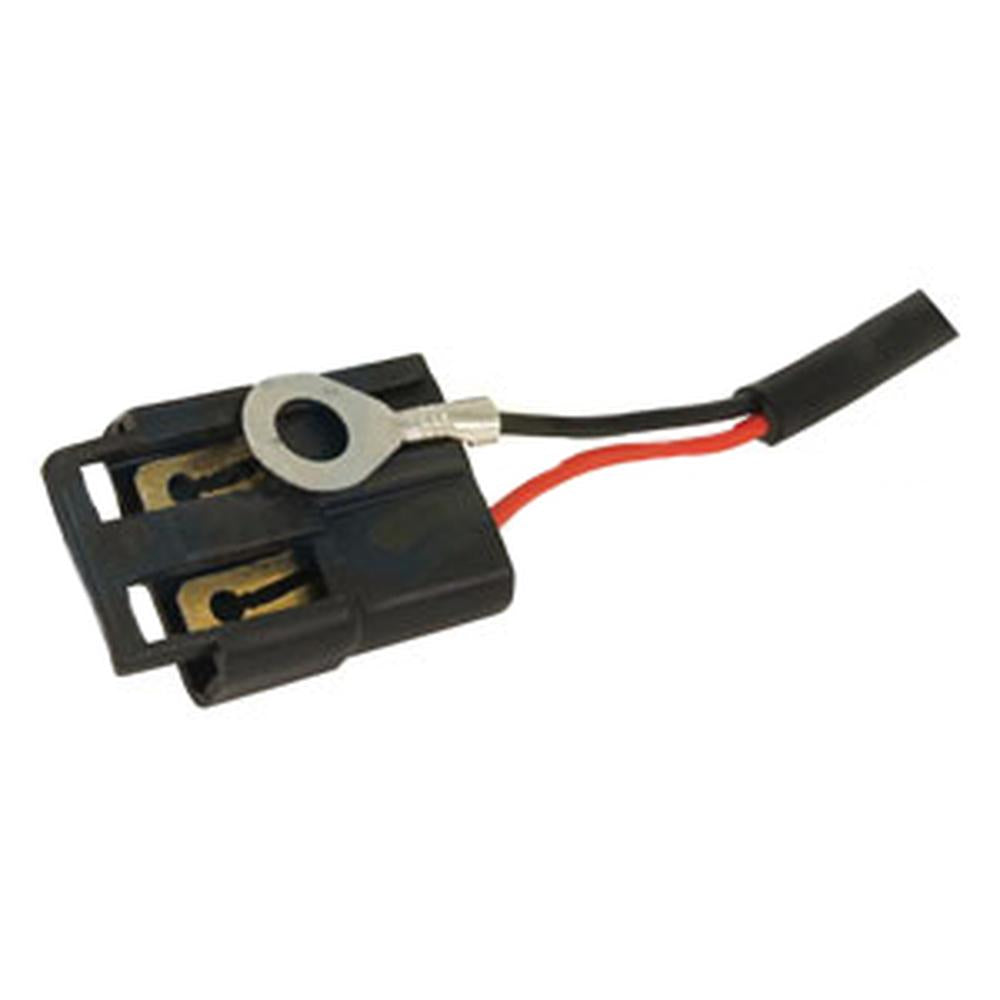

Wiring: Black = Ground, Red = High Beam, Yellow = Low Beam
Note: Black ground wire eyelet must be grounded properly for the light to function.

Compatible Models

Fits John Deere Tractors: 2140, 2350, 2355, 2510, 2550, 2555, 2750, 2755, 2855N, 2940, 2950, 2955, 3020, 3040, 3055, 3140, 3150, 3155, 3255, 4000, 4020, 4030, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4320, 4430, 4440, 4450, 4455, 4520, 4560, 4620, 4630, 4640, 4650, 4755, 4760, 4840, 4850, 4955, 4960, 5020, 5210, 5310, 5410, 5510, 6030, 7020, 7520, 8430, 8440, 8450, 8630, 8640, 8650, 8850

Fits John Deere Cotton Pickers: 9900, 9910, 9920, 9930, 9940, 9950, 9960, 9965, 9970

Fits John Deere Cotton Strippers: 484, 7440, 7445

Fits John Deere Forage Harvesters: 5440, 5460, 5720, 5730, 5820, 5830

Fits John Deere Sprayers: 6000 Hi-Cycle, 6100, 6500, 6600

Fits John Deere Industrial: 500B

White / Fits Allis Chalmers Tractors: 100, 120, 140, 160, 185, 2-70, 2-75, 2-78, 2-85, 2-88, 2-105, 2-110, 2-115, 2-135, 2-150, 2-155, 2-180, 2-180 Series II, 4-270, 3150

Replaces Part Number(s):

AR45099, AR78825, RE39223, 30-3153347, 72160473

Aftermarket Interchange Numbers

ELJ50-0335 (item number), AR44989, AR78825-LED, 72160473LED, Grote 455

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

2-155, 4440, 4055, 4650, 2950, 4760, 8640, 3055, 4560, 2940, 5440, 8430, 4020, 484, 2-110, 9960, 4430, 5020, 9940, 7520, 6600, 2-115, 4455, 9970, 6030, 4000, 9170, 2-180, 5460, 4040, 5210, 120, 3020, 7440, 9150, 2-180 SERIES II, 6100, 9950, 185, 2140, 5410, 4840, 4960, 4250, 2-75, 4030, 3155, 8850, 5310, 4-270, 2755, 6000 HI-CYCLE, 140, 3040, 4050, 160, 9130, 2750, 9910, 4850, 8450, 4255, 4755, 2-150, 4450, 9930, 2350, 2-78, 4240, 5510, 9965, 3150, 4620, 4630, 7020, 8440, 2-85, 4555, 2955, 100, 8650, 5730, 2355, 4955, 500B, 4520, 5830, 6500, 4320, 7445, 2555, 2-88, 5820, 3140, 9190, 9920, 4640, 2-135, 2-70, 2550, 9900, 4230, 2510, 2-105, 5720, 8630, 3255, 2855N

Additional Information:

Oval 4 Mounting Holes 4" Apart Side to Side & 3" Apart Top to Bottom 7.900" Overall Length 3.600" Top to Bottom (3) 3 Watt Led Lights 6 - 30 Volt Systems Black Wire Is Ground, Red Wire Is High Beam, Yellow Wire Is Low Beam Note: the Black Wire Must Be Grounded Properly for the Light to Function. Red LED Warning Light
