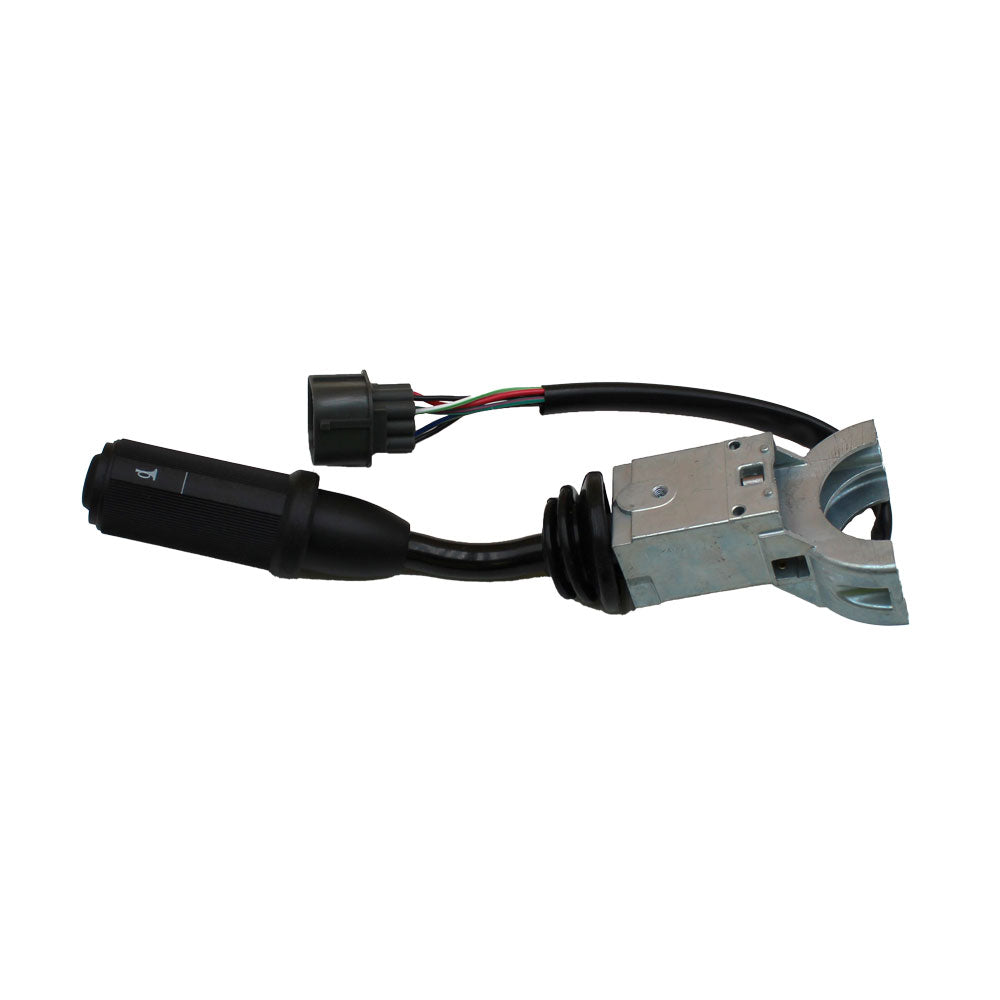

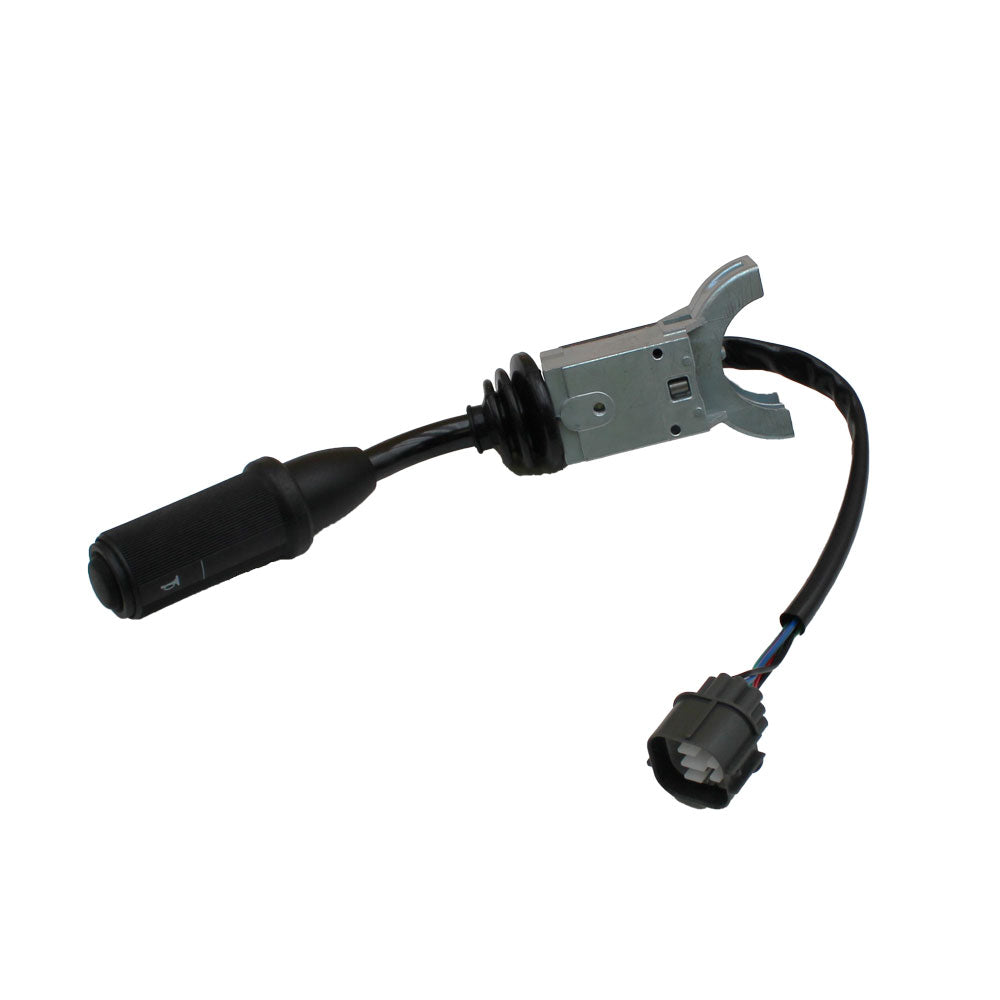

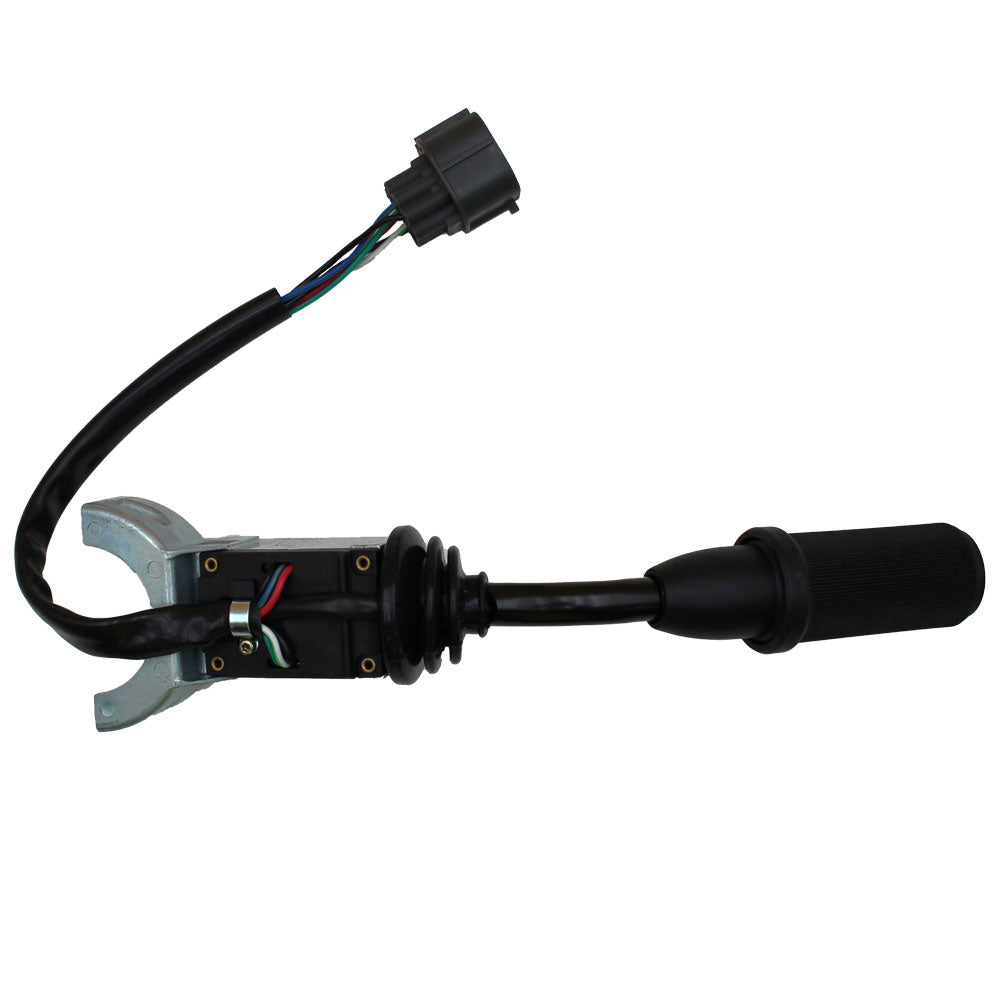

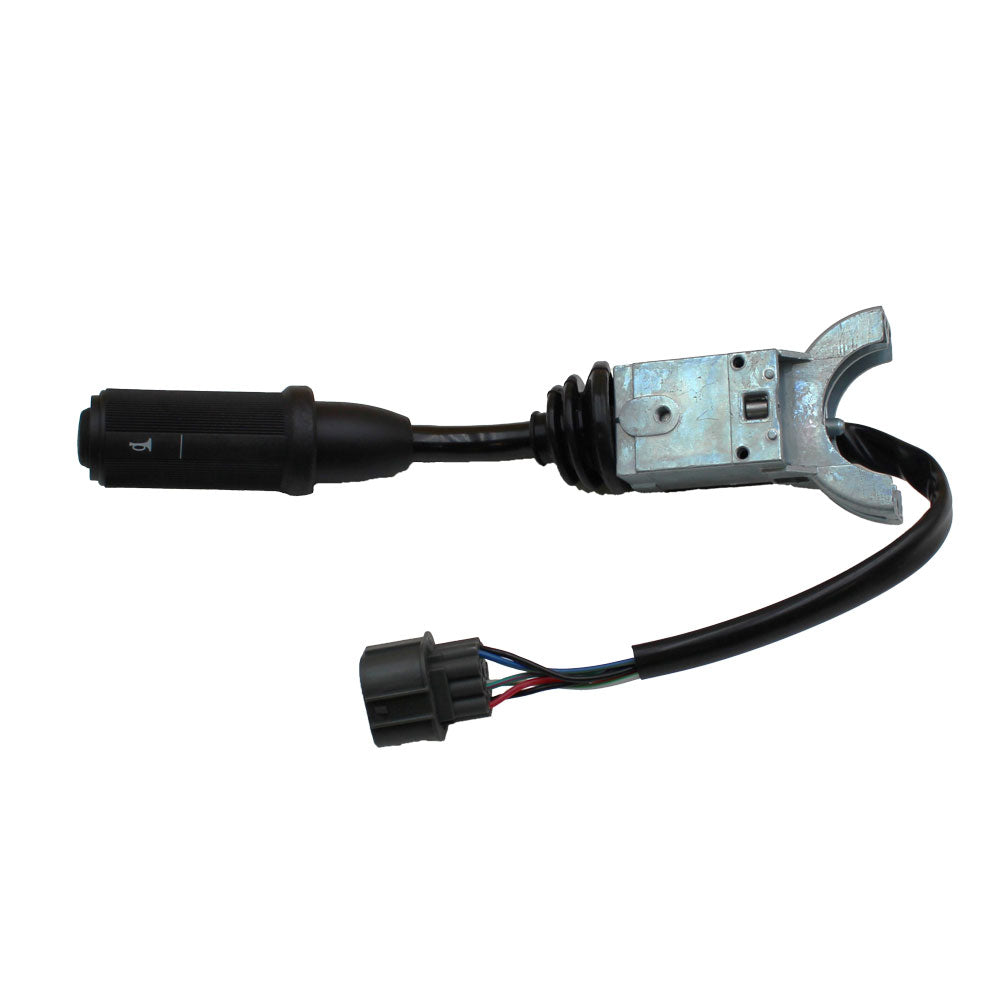

One New Aftermarket Replacement Left Hand Forward & Reverse Column Switch 70180296 for JCB Backhoe Loaders

This left hand (LH) forward and reverse column switch mounts on the steering column and controls directional travel - Forward, Reverse, and Neutral - on JCB backhoe loaders and loader backhoes equipped with Manual or SynchroShuttle transmission. The switch also incorporates a Neutral Lock function and a horn button, making it the primary operator control for directional changes from the cab. Replaces OEM part number 701/80296.

Specifications

• Total Length: 10.0 in.
• Total Width: 2.7 in.
• Total Height: 4.4 in.
• Built-In Diameter: 1.8 in.
• Number of Mounting Holes: 2
• Mounting Hole Diameter: 0.21 in.
• Shortest Center Distance Between Mounting Holes: 2.4 in.
• Connection Type: Wire with Connector
• Number of Connections: 1
• Number of Levers: 1
• Control Functions: Neutral, Neutral Lock, Forward, Reverse
• Features: Horn

Compatible Models

JCB 2CX Series: 2CX, 2CX-SM, 2CX-AIRMASTER, 2CXL, 2CXSL, 2CXS, 2CX Utility

JCB 3CX Series: 3CX, 3CXS-PC, 3C, 3D, 3DX

JCB 4CX Series: 4CX, 4CX444 Super, 4CN444 Super, 4C, 4CN, 4DX

JCB Backhoe Loaders: 1400B, 1550B, 1600B, 1700B, 214, 215, 216, 217

JCB Telemaster: TM320

Replaces Part Number(s):

701/80296, 701-80296, 70180296

New aftermarket replacement part - not remanufactured, not used.
