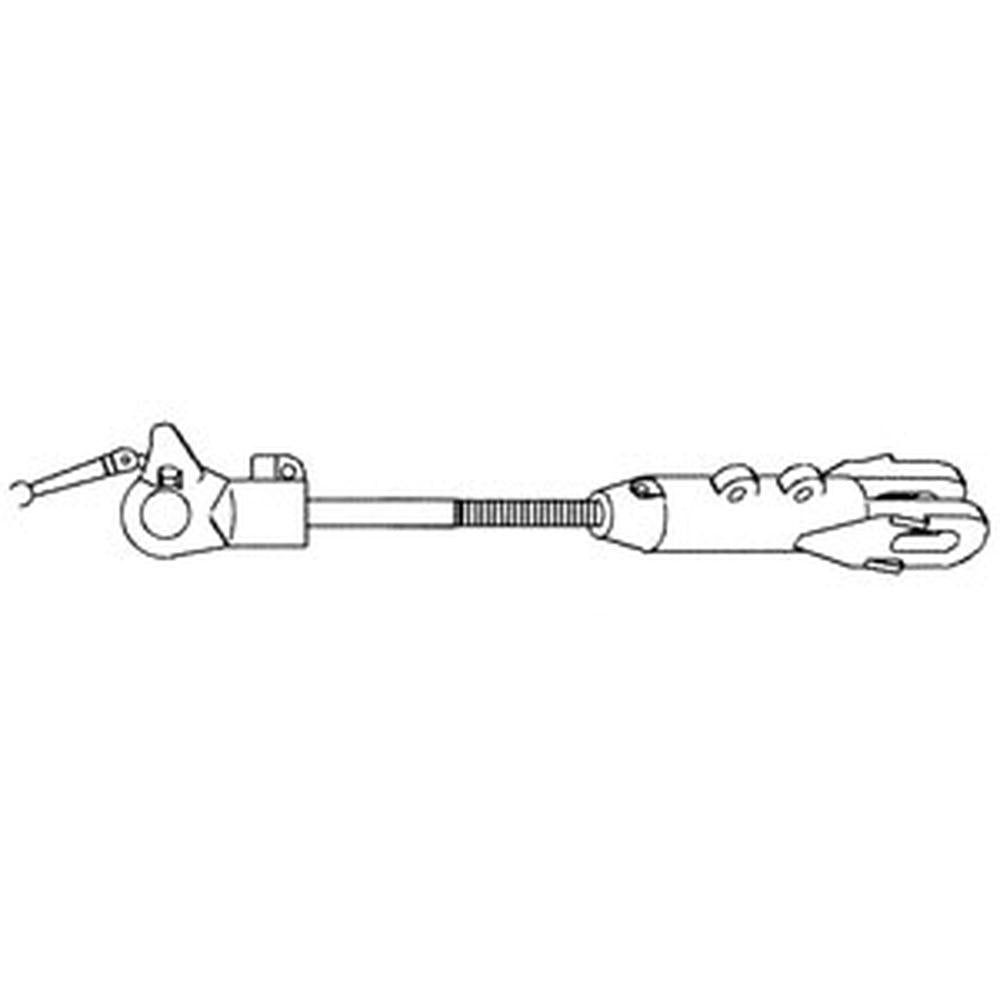

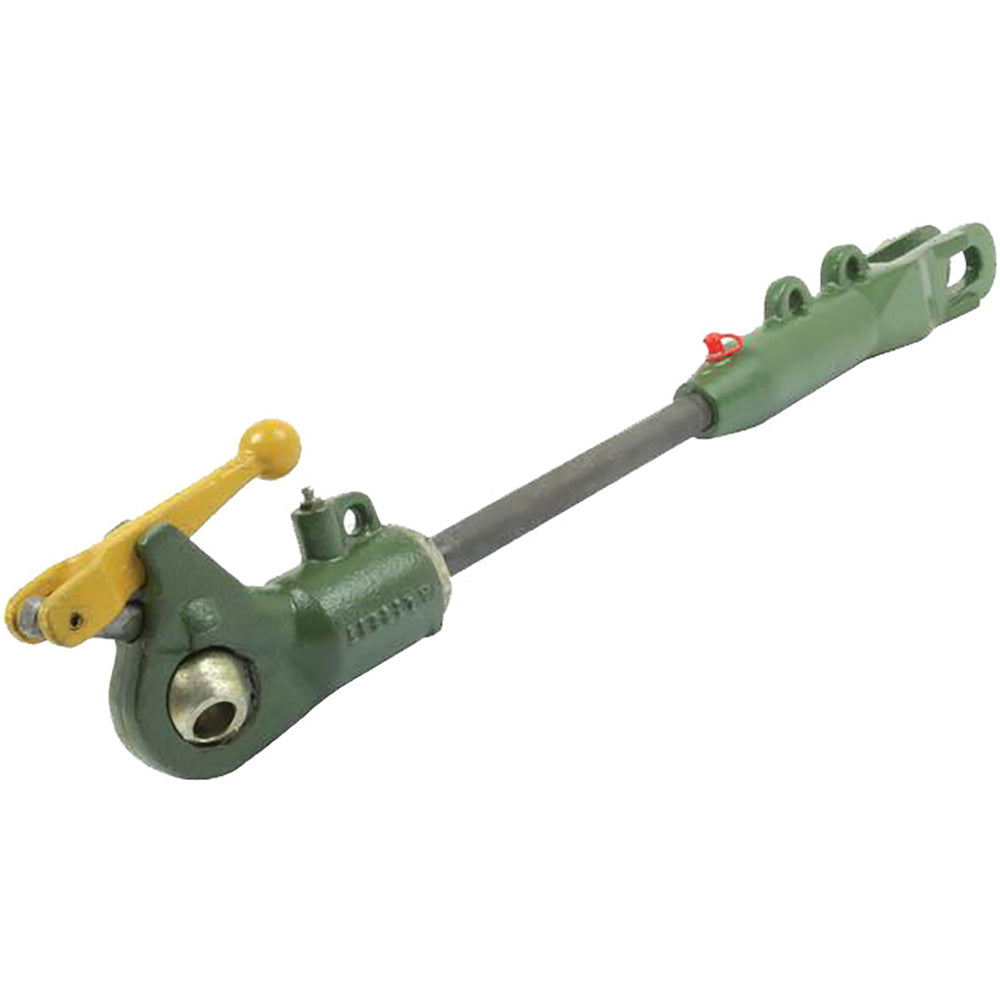

One New Aftermarket Replacement Lift Link Assembly for John Deere Tractors

This right-hand adjustable lift link assembly (leveling box assembly) is a direct replacement for the 3-point hitch system on a wide range of John Deere (JD) tractors. Used with telescoping 3-point pull arms, it allows precise height and level adjustment of rear-mounted implements via the Category 1 hitch.

Specifications

• Side: Right Hand (RH)
• Adjustable leveling box assembly
• Category: Cat 1 - 3-Point Hitch
• Housing assembly length: 15"
• Closed length: 21-1/4"
• Extended length: 27-1/2"
• I.D. of fork: 1"
• Diameter of bore hole in ball joint: 3/4"

Compatible Models

John Deere Tractors: 820, 830, 920, 930, 940, 1020, 1030, 1120, 1130, 1140, 1520, 1530, 1630, 1830, 2020, 2030, 2040, 2120, 2130, 2150, 2155, 2240, 2255, 2350, 2355, 2440, 2550, 2555, 2630, 2640, 2750, 2755, 2840, 2855, 2940, 2950, 2955, 3055, 3150, 3155, 3255, 300, 300B, 301, 302, 310, 400, 401, 410

Replaces Part Number(s):

AR44552, L28374, L2837415, R3122, RE16370, R48595, T24908

Aftermarket Interchange Numbers

A-AR44552, WN-AR44552, MTCC-AR44552

New aftermarket replacement part - not remanufactured, not used.
