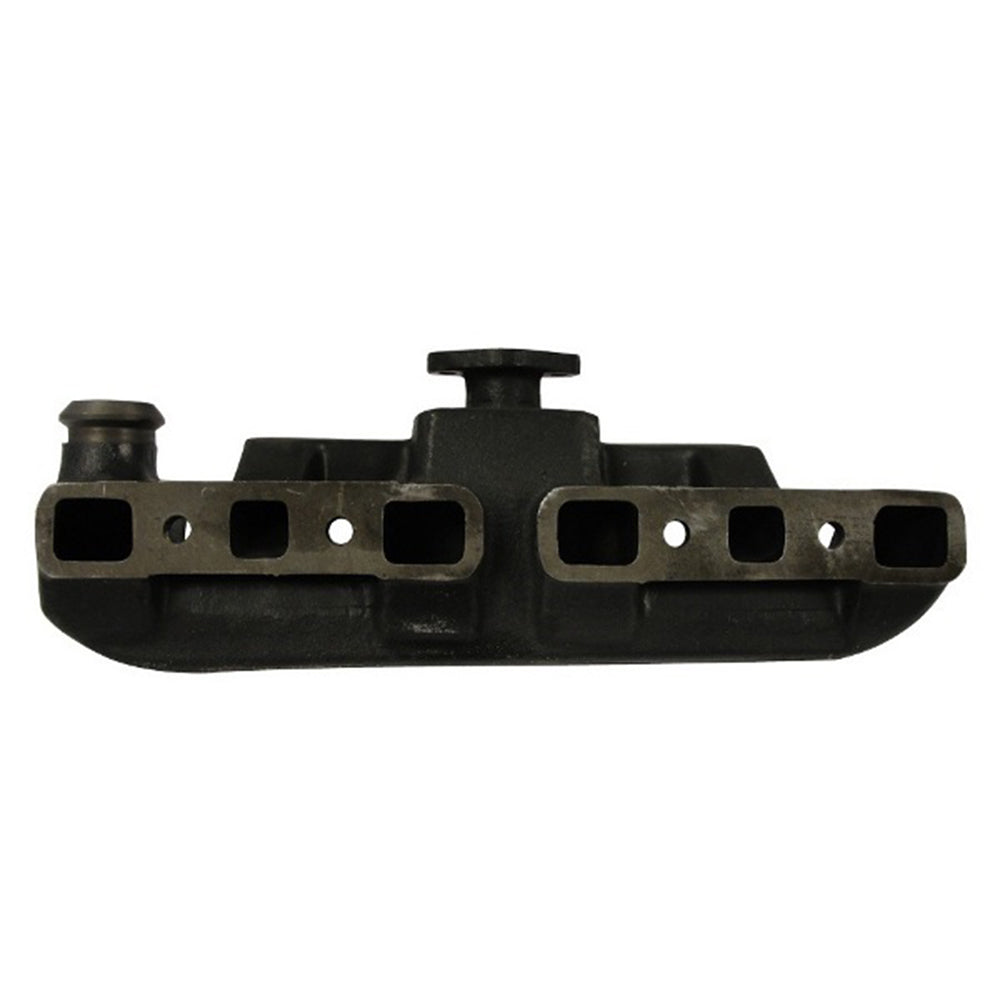

Manifold with Gaskets & Nuts Fits Minneapolis-Moline Replaces 06833

Manifold with Gaskets & Nuts Fits Minneapolis-Moline Replaces 06833

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER

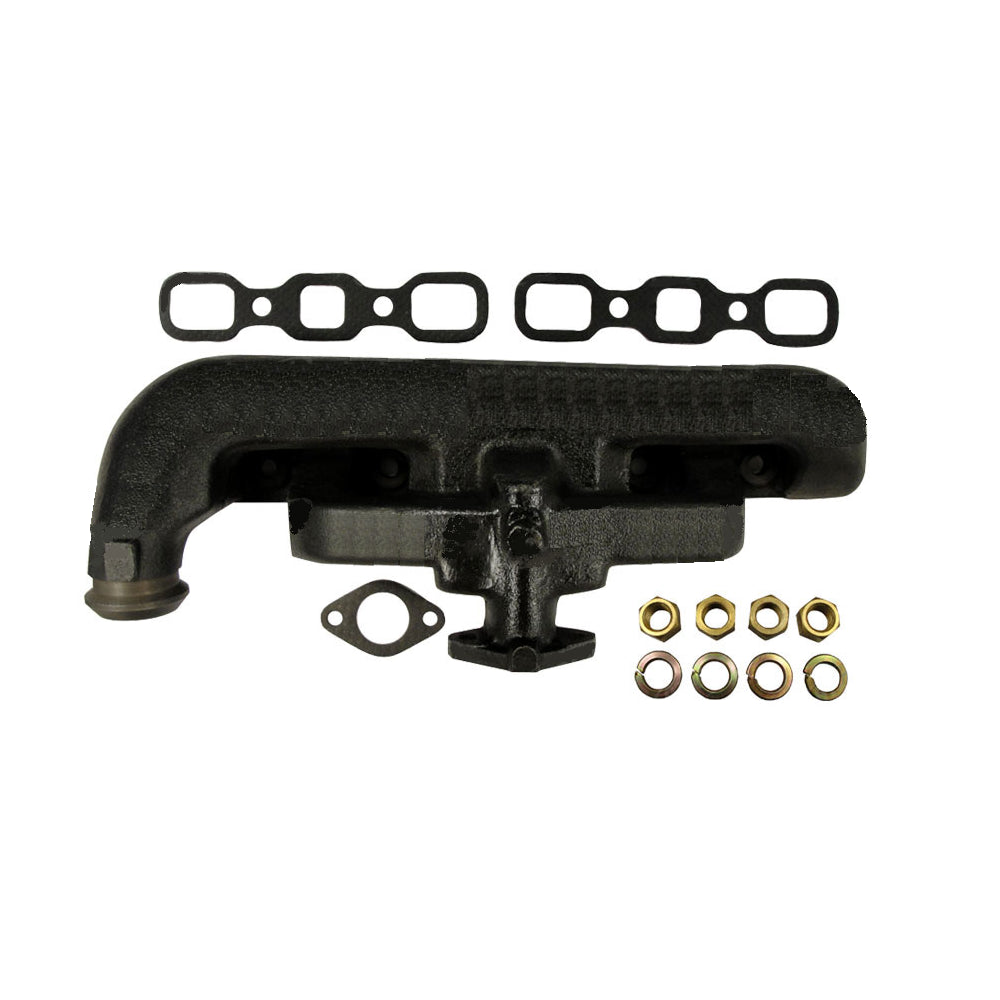

One New Aftermarket Manifold with Gaskets & Nuts

Tech Info:
 -(1) 4-pc Nut Kit for Manifolds
 -This kit includes brass nuts and yellow zinc plated washers
 -7/16" x 20 pitch, brass w/lock washer
 -
 -(2) Manifold Gaskets
 -Replace Part Number: 9N-9448
 -
 -(1) Manifold
 -The center to center bolt holes are 2 1/2" on the flange
 -The Inner Diameter on the flange is 1"
 -The exhaust is 1 3/16" ID and 2 1/16" Outer Diameter
 -Overall length is 17" Approximately
 -Replaces Part Numbers: 9N9425WG
 -
 -(1) Carburetor to Manifold Gasket
 -2-7/8" x 1-34"
 -2-1/4" Center to Center
 -Replaces Part Numbers: 15162A, 1506634M1, 181531M2

Made to Fit Minneapolis-Moline:
 Tractor Models: BF, BG, BIG
 Replaces Part Number(s): 112232, 06833

Models This Part Fits:

BF, BG, BIG

Additional Information:

(1) 4-pc Nut Kit for Manifolds This kit includes brass nuts and yellow zinc plated washers 7/16" x 20 pitch, brass w/ lock washer (2) Manifold Gaskets Replace Part Number: 9N-9448 (1) Manifold The center to center bolt holes are 2 1/2" on the flange The Inner Diameter on the flange is 1" The exhaust is 1 3/16" ID and 2 1/16" Outer Diameter Overall length is 17" Approximately Replaces Part Numbers: 9N9425WG (1) Carburetor to Manifold Gasket 2-7/8" x 1-34" 2-1/4" Center to Center Replaces Part Numbers: 15162A, 1506634M1, 181531M2 Manifold with Gaskets & Nuts

Reference Numbers:

112232, 06833
