Manifold with Gaskets & Nuts Fits Allis Chalmers Replaces 233208

Manifold with Gaskets & Nuts Fits Allis Chalmers Replaces 233208

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER

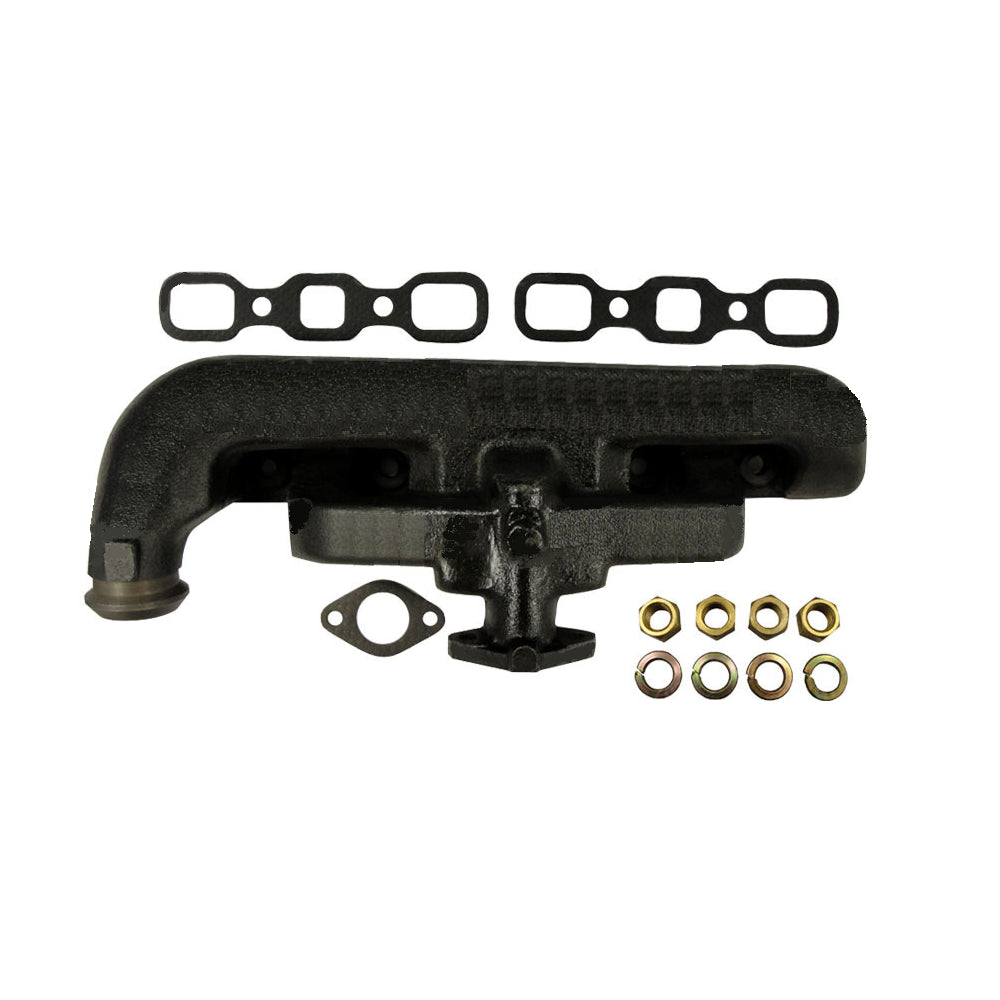

One New Aftermarket Manifold with Gaskets & Nuts

Tech Info:
 -(1) 4-pc Nut Kit for Manifolds
 -This kit includes brass nuts and yellow zinc plated washers
 -7/16" x 20 pitch, brass w/lock washer
 -
 -(2) Manifold Gaskets
 -Replace Part Number: 9N-9448
 -

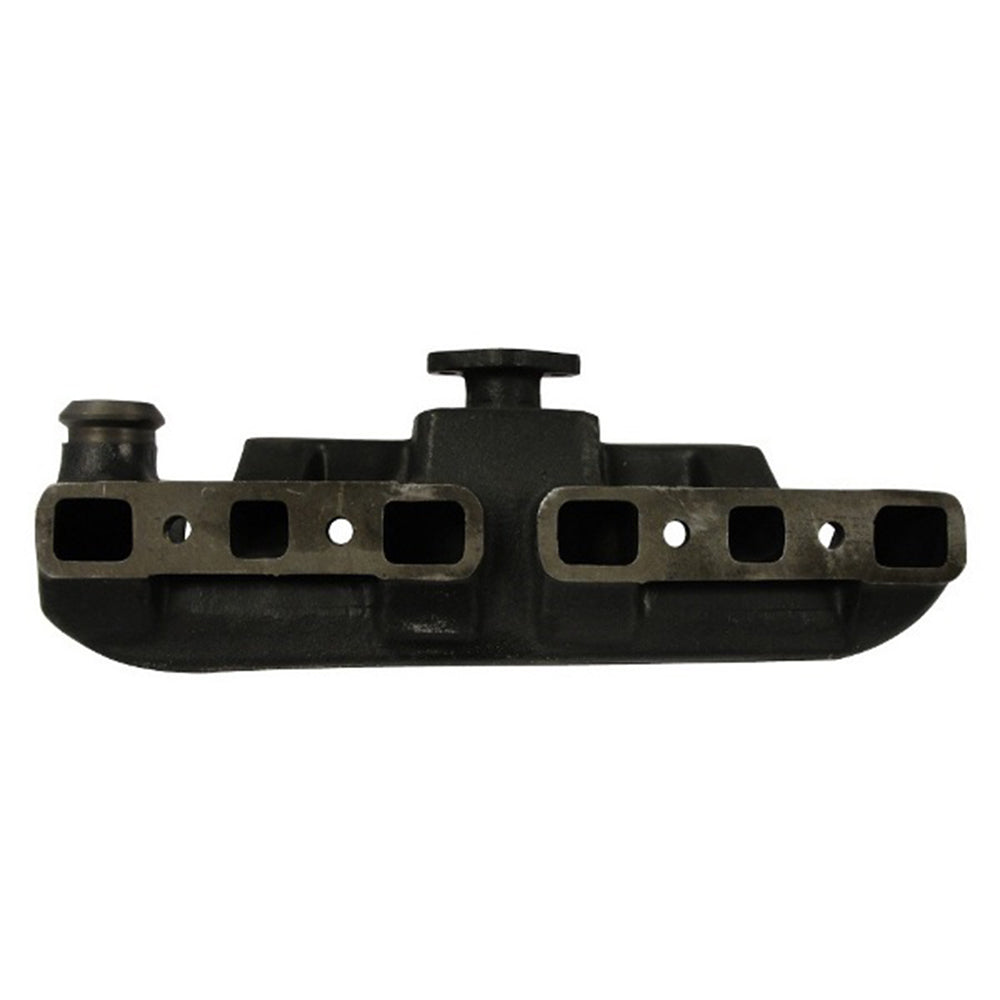

 -(1) Manifold
 -The center to center bolt holes are 2 1/2" on the flange
 -The Inner Diameter on the flange is 1"
 -The exhaust is 1 3/16" ID and 2 1/16" Outer Diameter
 -Overall length is 17" Approximately
 -Replaces Part Numbers: 9N9425WG
 -
 -(1) Carburetor to Manifold Gasket
 -2-7/8" x 1-34"
 -2-1/4" Center to Center
 -Replaces Part Numbers: 15162A, 1506634M1, 181531M2

Made to Fit Allis Chalmers:
 Tractor Models: I60, C, 175, WF, 170, D12, I40, IB, D10, I400, WD, RC, WC, D15, B, WD45, D17, I600, D14, CA, H3
 Replaces Part Number(s): 70233208, 70233209, 233208, 233209

Models This Part Fits:

I600, C, 170, IB, I400, WD45, H3, D17, I40, I60, 175, WF, D12, D15, D10, RC, WD, WC, D14, B, CA

Additional Information:

(1) 4-pc Nut Kit for Manifolds This kit includes brass nuts and yellow zinc plated washers 7/16" x 20 pitch, brass w/ lock washer (2) Manifold Gaskets Replace Part Number: 9N-9448 (1) Manifold The center to center bolt holes are 2 1/2" on the flange The Inner Diameter on the flange is 1" The exhaust is 1 3/16" ID and 2 1/16" Outer Diameter Overall length is 17" Approximately Replaces Part Numbers: 9N9425WG (1) Carburetor to Manifold Gasket 2-7/8" x 1-34" 2-1/4" Center to Center Replaces Part Numbers: 15162A, 1506634M1, 181531M2 Manifold with Gaskets & Nuts

Reference Numbers:

70233208, 70233209, 233208, 233209
