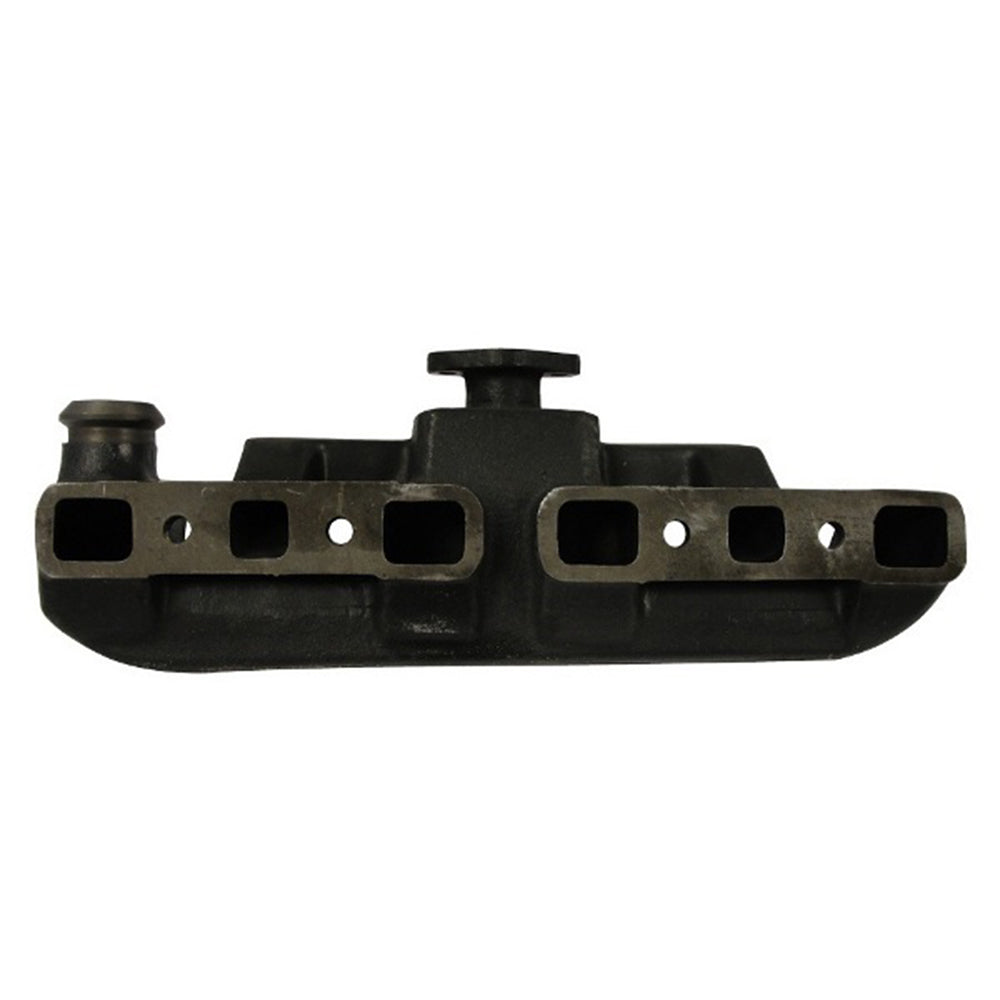

Manifold with Gaskets & Nuts Fits John Deere Replaces 1 AT420T
Manifold with Gaskets & Nuts Fits John Deere Replaces 1 AT420T
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

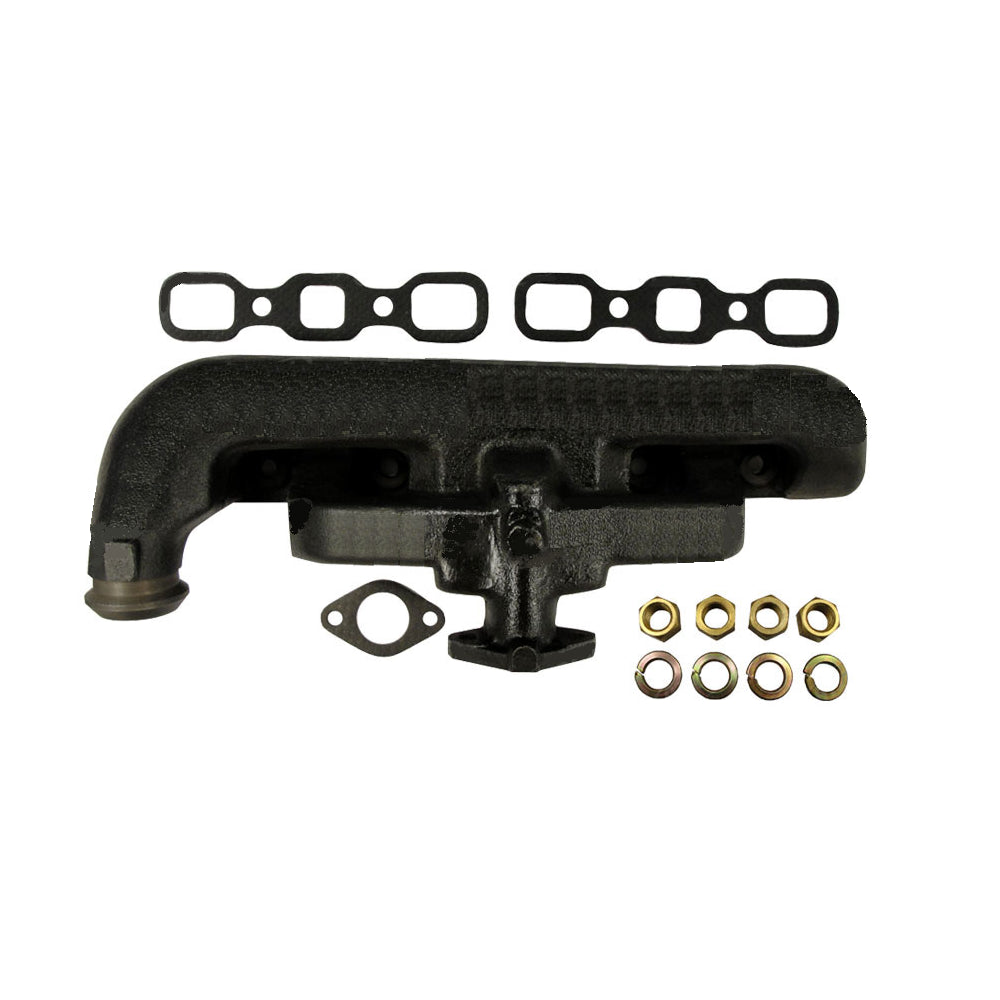

One New Aftermarket Manifold with Gaskets & NutsTech Info:
-(1) 4-pc Nut Kit for Manifolds
-This kit includes brass nuts and yellow zinc plated washers
-7/16" x 20 pitch, brass w/lock washer
-
-(2) Manifold Gaskets
-Replace Part Number: 9N-9448
-
-(1) Manifold
-The center to center bolt holes are 2 1/2" on the flange
-The Inner Diameter on the flange is 1"
-The exhaust is 1 3/16" ID and 2 1/16" Outer Diameter
-Overall length is 17" Approximately
-Replaces Part Numbers: 9N9425WG
-
-(1) Carburetor to Manifold Gasket
-2-7/8" x 1-34"
-2-1/4" Center to Center
-Replaces Part Numbers: 15162A, 1506634M1, 181531M2Made to Fit John Deere:
Tractor Models: L, LA, LI, LUC
Replaces Part Number(s): AM1613T, AM1794T, AM2067T, AM3061T, AM3227T, AM3611T, AM3612T, AM366T, AR62244, AT10181T, AT10576T, AT11158T, AT11637T, AT11680, AT11680T, AT11756T, AT12357, AT12357T, AT13064T, AT14028T, AT14095, AT14095T, AT17629, AT18098T, AT21142, AT21142T, AT21729, AT21784, AT21785T, AT21848, AT21848T, AT22994, AT23000, AT29295, AT29427, AT30264T, AT359T, 1 AT420T, AT453T
-(1) 4-pc Nut Kit for Manifolds
-This kit includes brass nuts and yellow zinc plated washers
-7/16" x 20 pitch, brass w/lock washer
-
-(2) Manifold Gaskets
-Replace Part Number: 9N-9448
-
-(1) Manifold
-The center to center bolt holes are 2 1/2" on the flange
-The Inner Diameter on the flange is 1"
-The exhaust is 1 3/16" ID and 2 1/16" Outer Diameter
-Overall length is 17" Approximately
-Replaces Part Numbers: 9N9425WG
-
-(1) Carburetor to Manifold Gasket
-2-7/8" x 1-34"
-2-1/4" Center to Center
-Replaces Part Numbers: 15162A, 1506634M1, 181531M2Made to Fit John Deere:
Tractor Models: L, LA, LI, LUC
Replaces Part Number(s): AM1613T, AM1794T, AM2067T, AM3061T, AM3227T, AM3611T, AM3612T, AM366T, AR62244, AT10181T, AT10576T, AT11158T, AT11637T, AT11680, AT11680T, AT11756T, AT12357, AT12357T, AT13064T, AT14028T, AT14095, AT14095T, AT17629, AT18098T, AT21142, AT21142T, AT21729, AT21784, AT21785T, AT21848, AT21848T, AT22994, AT23000, AT29295, AT29427, AT30264T, AT359T, 1 AT420T, AT453T
Models This Part Fits:
L, LA, LUC, LIAdditional Information:
(1) 4-pc Nut Kit for Manifolds This kit includes brass nuts and yellow zinc plated washers 7/16" x 20 pitch, brass w/ lock washer (2) Manifold Gaskets Replace Part Number: 9N-9448 (1) Manifold The center to center bolt holes are 2 1/2" on the flange The Inner Diameter on the flange is 1" The exhaust is 1 3/16" ID and 2 1/16" Outer Diameter Overall length is 17" Approximately Replaces Part Numbers: 9N9425WG (1) Carburetor to Manifold Gasket 2-7/8" x 1-34" 2-1/4" Center to Center Replaces Part Numbers: 15162A, 1506634M1, 181531M2 Manifold with Gaskets & NutsReference Numbers:
AM1613T, AM1794T, AM2067T, AM3061T, AM3227T, AM3611T, AM3612T, AM366T, AR62244, AT10181T, AT10576T, AT11158T, AT11637T, AT11680, AT11680T, AT11756T, AT12357, AT12357T, AT13064T, AT14028T, AT14095, AT14095T, AT17629, AT18098T, AT21142, AT21142T, AT21729, AT21784, AT21785T, AT21848, AT21848T, AT22994, AT23000, AT29295, AT29427, AT30264T, AT359T, 1 AT420T, AT453TMakes This Part Fits:
