MFWD Drive Shaft Coupler R222832 for J D 5400 5210 5410 5220 5525 5103 5075E

MFWD Drive Shaft Coupler R222832 for J D 5400 5210 5410 5220 5525 5103 5075E

AIC Replacement Parts - FEDEX2DAY


**TO VIEW PRICE**

LOGIN or REGISTER

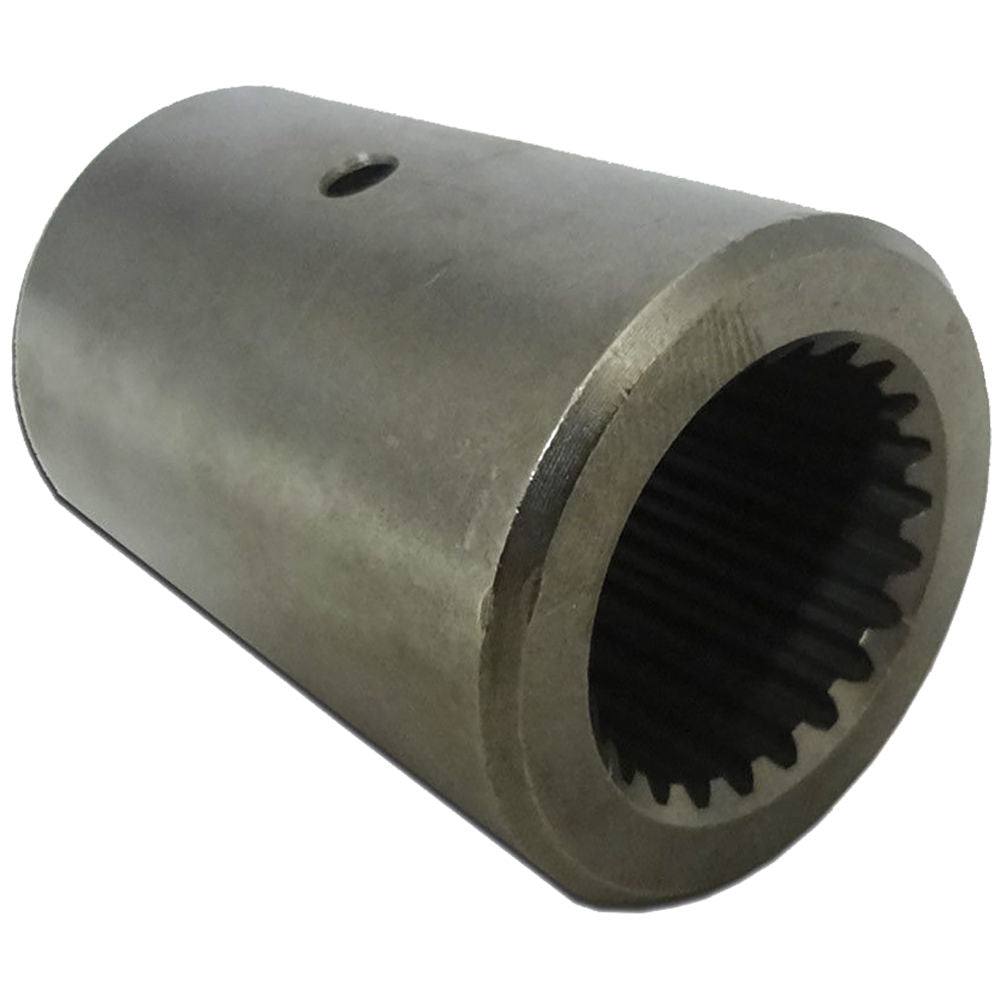

One New Aftermarket Replacement MFWD Drive Shaft Splined Coupling for John Deere Tractors

This MFWD driveshaft splined coupling connects the front axle drive shaft on John Deere (JD) tractors equipped with Mechanical Front Wheel Drive (MFWD). The coupling transfers power from the front axle drive shaft to the front differential, and is a critical component in maintaining proper four-wheel-drive engagement. This part uses a roll pin retention design with no lube fitting hole and features 22 internal splines.

Specifications

  • Inside Diameter: 1.083"
  • Outside Diameter: 1.750"
  • Spline Count: 22
  • Retention: Roll pin (no lube fitting hole)

Compatible Models

John Deere (JD) 5 Series Tractors (MFWD): 5045D, 5045E, 5050E, 5055D, 5055E, 5058E, 5060E, 5065E, 5067E, 5075E, 5076E, 5076EL, 5078E, 5082E, 5083E, 5085E, 5090E, 5090EH, 5090EL, 5093E, 5100E, 5101E, 5103, 5200, 5203, 5204, 5210, 5220, 5225, 5300, 5303, 5310, 5320, 5325, 5400, 5403, 5410, 5415, 5415H, 5425, 5425N, 5500, 5503, 5510, 5525, 5603, 5605, 5610, 5615, 5625, 5705, 5715, 5715HC, 5725, 5725N

Replaces Part Number(s):

R222832, CQ52006, R105248

Aftermarket Interchange Numbers

A-R222832, FRA80-0023

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

5500, 5615, 5400, 5210, 5425, 5603, 5055E, 5725, 5300, 5425N, 5090E, 5605, 5075E, 5610, 5200, 5203, 5525, 5060E, 5045E, 5303, 5320, 5415, 5078E, 5090EL, 5050E, 5093E, 5101E, 5410, 5076EL, 5067E, 5220, 5510, 5705, 5058E, 5103, 5065E, 5076E, 5225, 5082E, 5204, 5083E, 5503, 5325, 5100E, 5403, 5415H, 5715HC, 5090EH, 5625, 5725N, 5055D, 5715, 5085E, 5045D, 5310

Additional Information:

Inside Diameter: 1.083" Outside Diameter: 1.750" Spline Count: 22 MFWD Shaft Drive Coupler

Reference Numbers:

R222832

Makes This Part Fits:

Shop John Deere Wholesale Parts

Product Category:

Agriculture Replacement Parts

Product Group:

Product Sub Group:

View full details
